CLUTCH CONTROL

CLUTCH

21A-11

Set the length of the pushrod assembly to the
dimension shown to make the adjustment of the
clutch pedal easier.

INSPECTION

M1211002200152

• Check inside the cylinder body for rust and scars.

• Check the piston for rust and scars.

• Check the pipe connection for clogging.

26-1

GROUP 26

FRONT AXLE

CONTENTS

GENERAL INFORMATION . . . . . . . .

26-2

SERVICE SPECIFICATIONS. . . . . . .

26-3

LUBRICANTS  . . . . . . . . . . . . . . . . . .

26-3

SPECIAL TOOLS. . . . . . . . . . . . . . . .

26-4

ON-VEHICLE SERVICE. . . . . . . . . . .

26-6

WHEEL BEARING AXIAL PLAY CHECK . .

26-6

HUB BOLT REPLACEMENT  . . . . . . . . . . .

26-6

FRONT AXLE HUB ASSEMBLY . . . .

26-8

REMOVAL AND INSTALLATION  . . . . . . . .

26-8

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

26-10

DRIVE SHAFT ASSEMBLY . . . . . . . .

26-11

REMOVAL AND INSTALLATION  . . . . . . . .

26-11

DISASSEMBLY AND REASSEMBLY . . . . .

26-15

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

26-21

BJ BOOT (RESIN BOOT) REPLACEMENT

26-21

GENERAL INFORMATION

FRONT AXLE

26-2

GENERAL INFORMATION

M1261000100422

The front axle consists of front hub unit bearings,
knuckles and driveshafts, and it has the following
features:

• The wheel bearing is a unit ball bearing

(double-row angular contact ball bearing) for
reduced friction.

• The wheel bearing incorporates vehicle speed

detection magnetic encoder for ABS  to reduce
the quantity of parts.

• The front wheel hub assembly combines the hub,

wheel bearing, housing, and oil seal in a single
unit for fewer parts, better durability, improved
assembly precision, and better structural
organization.

• The driveshaft incorporates BJ-TJ type constant

velocity joints with high transmission efficiency for
low vibration and noise.

• The dynamic damper is mounted on the left

driveshaft <M/T, A/T> and on the right driveshaft
<A/T> to reduce differential gear noise.

• Due to the use of the inner shaft and bracket

assembly, the right and left drive shafts are
approximately the same in length. This reduces
noise, vibration and torque steer. <M/T, LH drive
vehicles with A/T

− High ground clearance

suspension (optional) >

• For environmental protection, a lead-free grease

is used on the joints.

NOTE:

.

•

TJ: Tripod Joint

•

BJ: Birfield Joint

SPECIFICATIONS

Item

M/T

A/T

Wheel bearing Type

Unit ball bearing (double-row angular
contact ball bearing)

Driveshaft

Joint type

Outer

BJ

Inner

TJ

Length (joint to joint)

×

diameter mm

LH 395.8

× 25.6

396.6

× 24

RH

490.4

× 25.6

717.1

× 24

491.2

× 24

<Vehicles with High
ground clearance
suspension
(optional)

SERVICE SPECIFICATIONS

FRONT AXLE

26-3

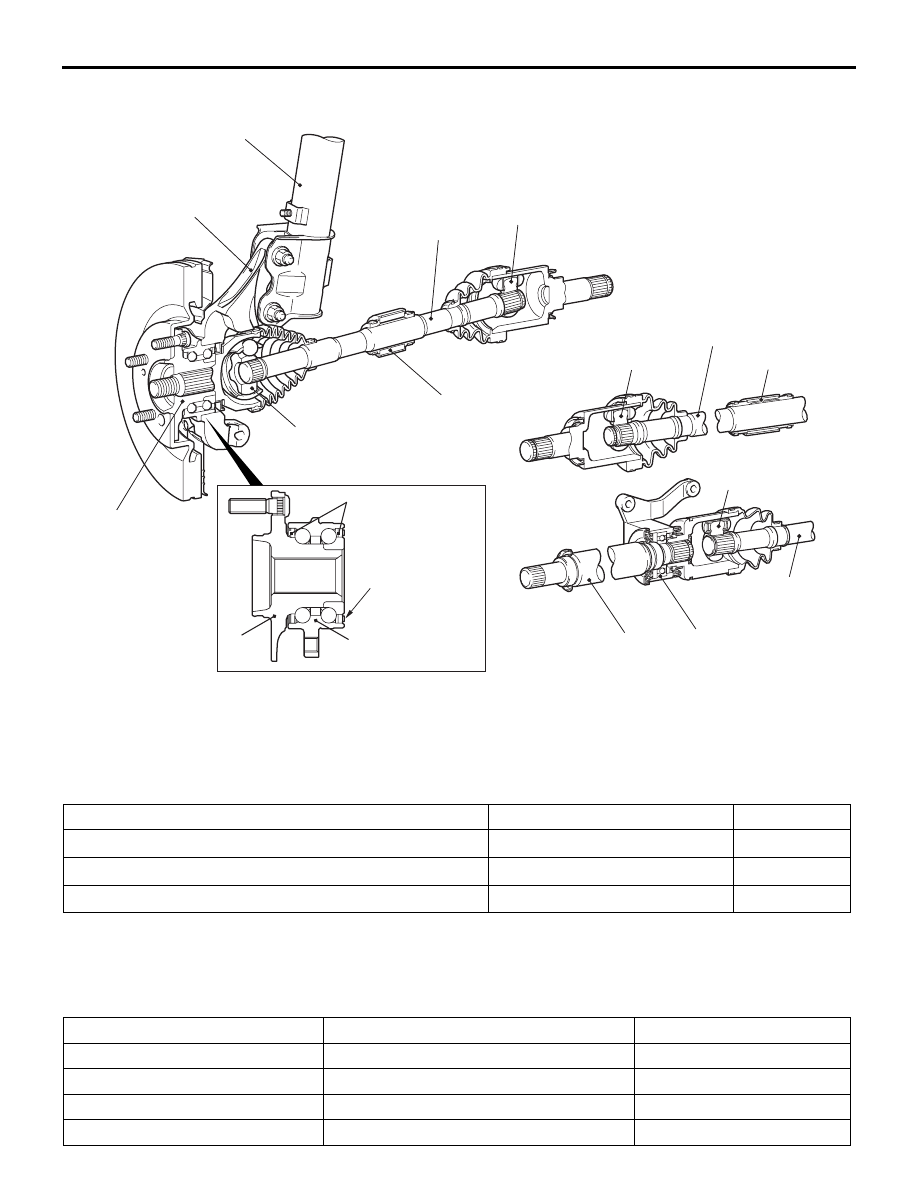

CONSTRUCTION DIAGRAM

SERVICE SPECIFICATIONS

M1261000300493

LUBRICANTS

M1261000400478

AC310294

Front hub

Knuckle

Strut assembly

TJ (LH)

Drive shaft (LH)

Dynamic damper
(LH)

BJ

Wheel bearing

Bracket assembly

Drive shaft (RH)

Inner shaft

AB

AC301431AB

Oil seal

Hub

Vehicle speed
detection magnetic
encoder

Drive shaft (RH)

TJ (RH)

TJ (RH)

Dynamic damper
(RH)

<A/T>

<M/T, LH drive
vehicles with
 A/T (optional)>

Item

Standard value

Limit

Wheel bearing axial play mm

−

0.05

Hub starting torque N

⋅m

−

2.1

Setting of TJ boot length mm

80.9

± 3

−

Item

Specified lubricant

Quantity

TJ boot grease

Repair kit grease

145

± 5 g

BJ boot grease

Repair kit grease

130

± 5 g

Dust seal inner grease

Repair kit grease

14

− 20 g

Dust seal outer grease

Repair kit grease

8

− 12 g
