SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-330

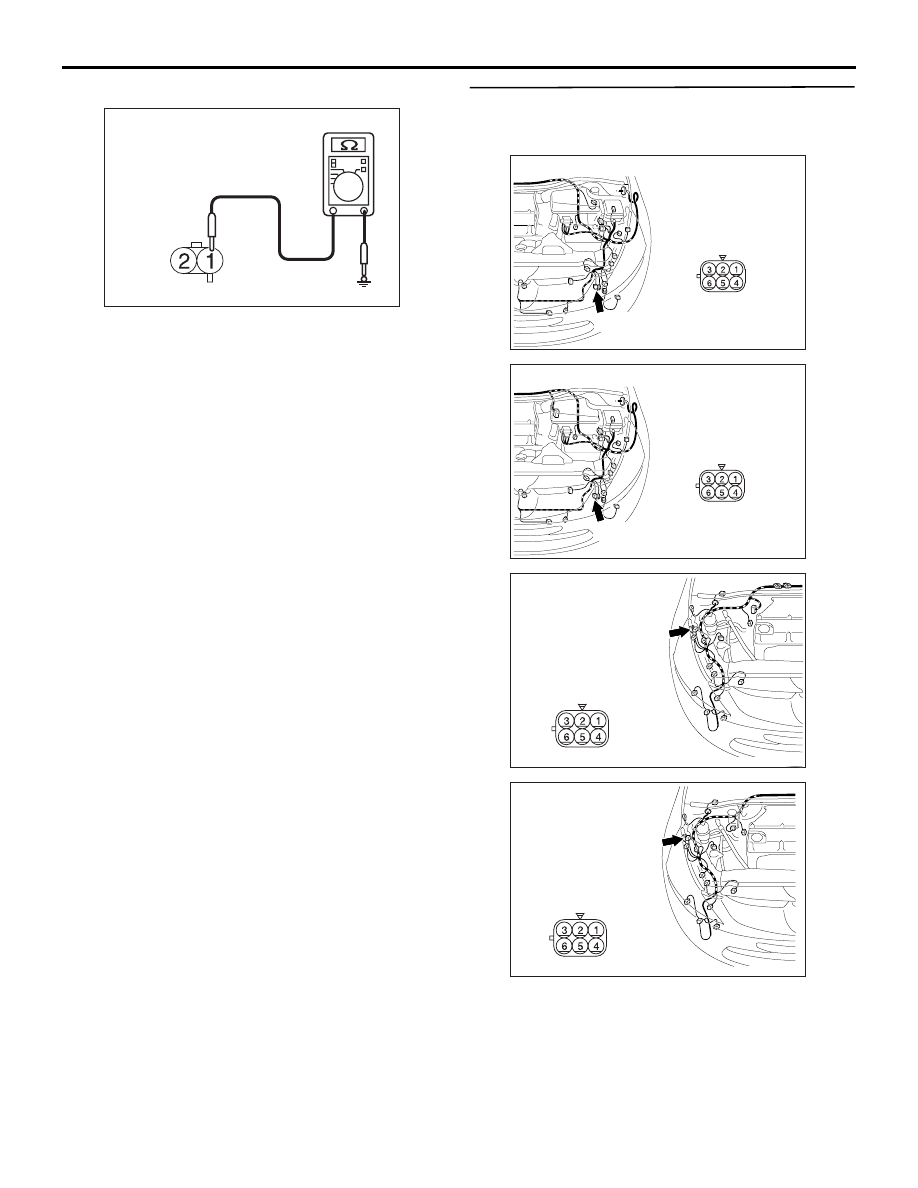

lamp connector terminal and body earth.

•

Resistance between A-33 front turn-signal lamp

(RH) connector terminal No.1 and body earth

• Resistance between A-23 front turn-signal

lamp (LH) connector terminal No.1 and body
earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Go to Step 5.

Step 5. Connector check: A-40 earth connector
<front turn-signal lamp (RH)> and A-25 earth
connector <front turn-signal lamp (LH)>.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the connector.

AC310506BO

Connectors A-23, A-33
(Harness side)

AC310403

A-25 (GR)

AE

Connector: A-25 <LHD>

Harness side

AC310398

A-25 (GR)

AE

Connector: A-25 <RHD>

Harness side

AC310401

Connector: A-40 <LHD>

Harness side

AE

A-40 (GR)

AC310396

Connector: A-40 <RHD>

Harness side

AE

A-40 (GR)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-331

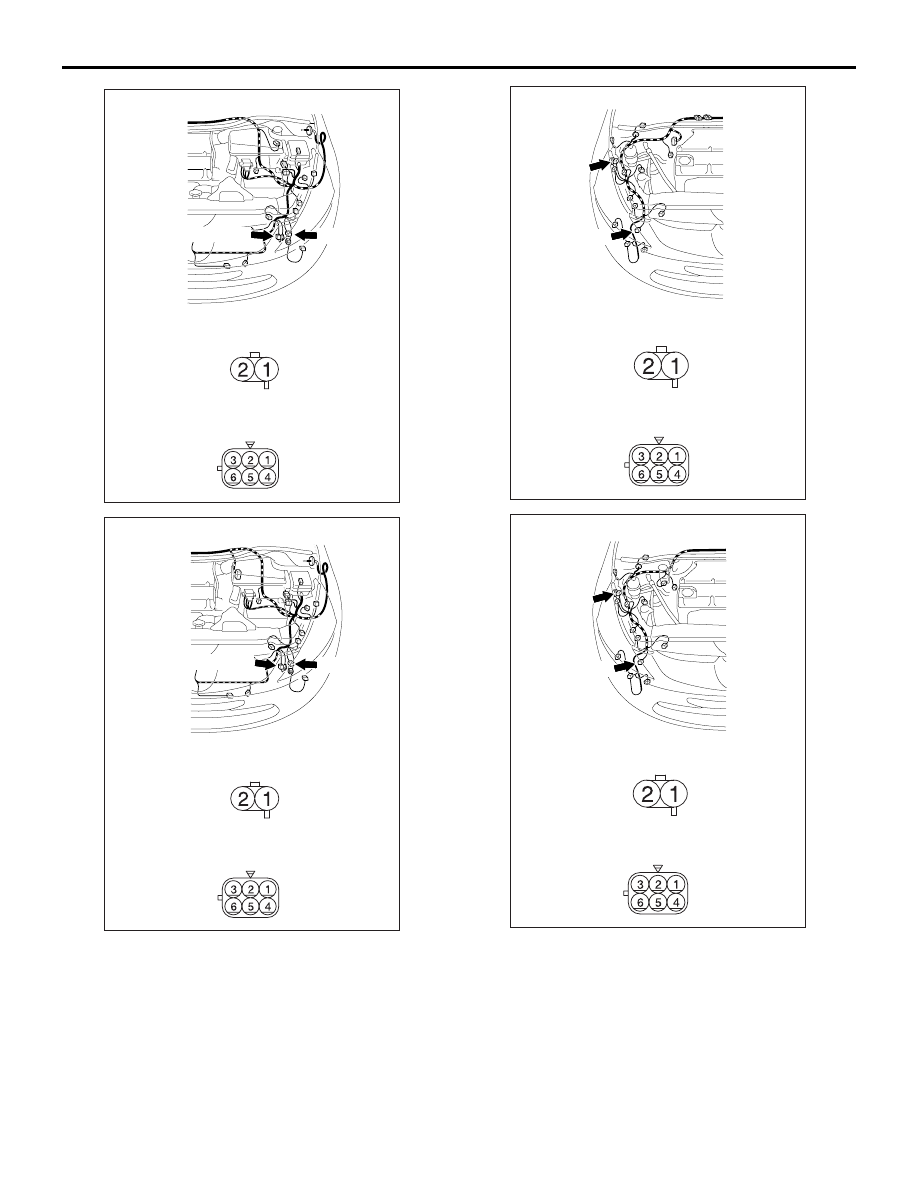

Step 6. Check the wiring harness from A-33 front
turn-signal lamp (RH) connector terminal No.1
and A-40 earth connector terminal No.3 or A-23
front turn-signal lamp (LH) connector terminal
No.1 and A-25 earth connector terminal No.6.

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-332

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

AC310404

AD

Connectors: A-23, A-25

A-23 (B)

A-23

Harness side

A-25 (GR)

A-25

Harness side

<LHD>

AC310399

AD

Connectors: A-23, A-25

A-23 (B)

A-23

Harness side

A-25 (GR)

A-25

Harness side

<RHD>

AC310402

AD

Connectors: A-33, A-40

A-33 (B)

A-33

Harness side

A-40 (GR)

A-40

Harness side

<LHD>

AC310397

AD

Connectors: A-33, A-40

A-33 (B)

A-33

Harness side

A-40 (GR)

A-40

Harness side

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-333

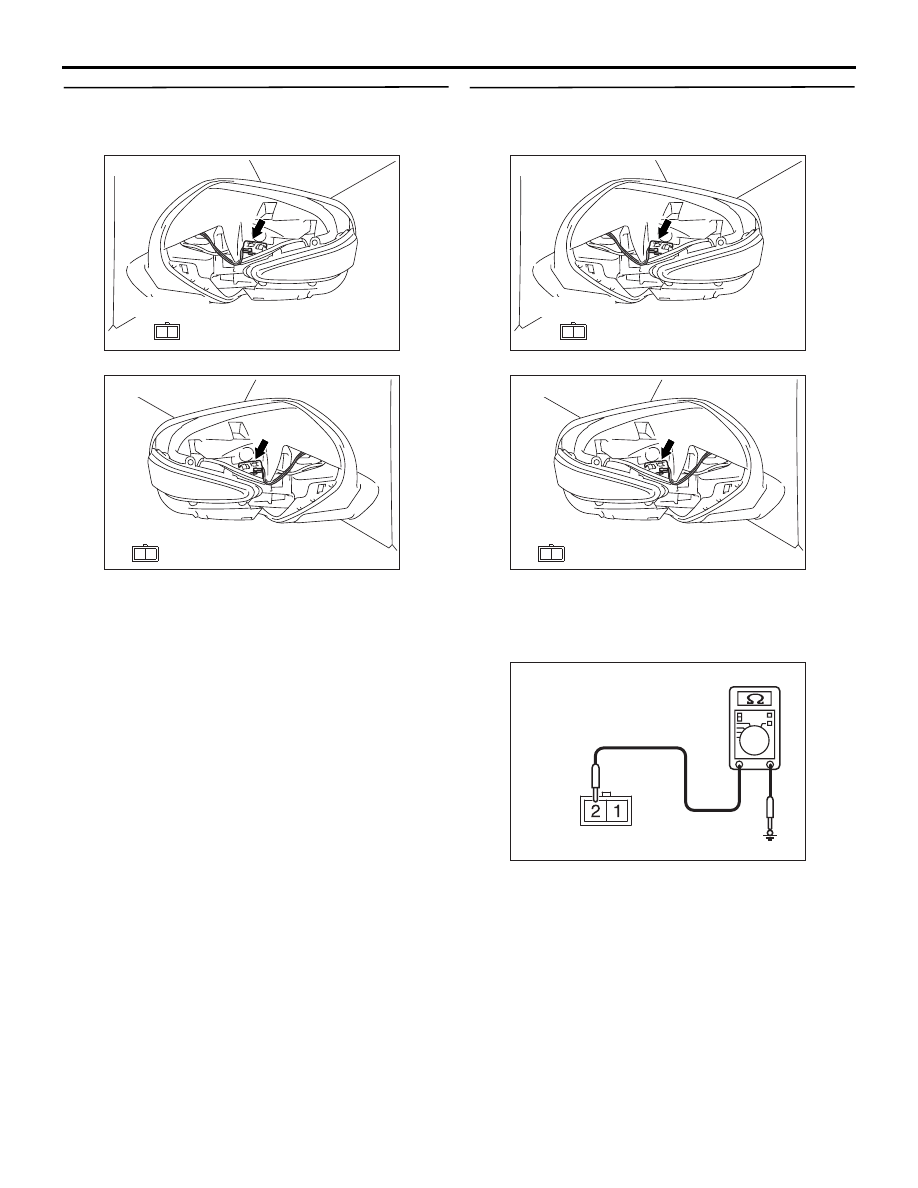

Step 7. Connector check: F-13-6 side turn-signal
lamp (RH) or F-07-6 side turn-signal lamp (LH)
connector.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the defective connector.

Step 8. Resistance measurement at the F-13-6
side turn-signal lamp (RH) or F-07-6 side
turn-signal lamp (LH) connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance measurement between the defective

lamp connector terminal and body earth.

•

Resistance between F-13-6 side turn-signal lamp

(RH) connector terminal No.2 and body earth

• Resistance between F-07-6 side turn-signal

lamp (LH) connector terminal No.2 and body
earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 19.

NO :

Go to Step 9.

AC303049AF

Connector:

 F-07-6

Harness side

1

2

AC303050AC

Connector:

 F-13-6

Harness side

1

2

AC303049AF

Connector:

 F-07-6

Harness side

1

2

AC303050AC

Connector:

 F-13-6

Harness side

1

2

AC310506BQ

Connectors F-07-6, F-13-6
(Harness side)
