SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-369

Step 5. Connector check: C-219 ETACS-ECU
connector and E-02 room lamp connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

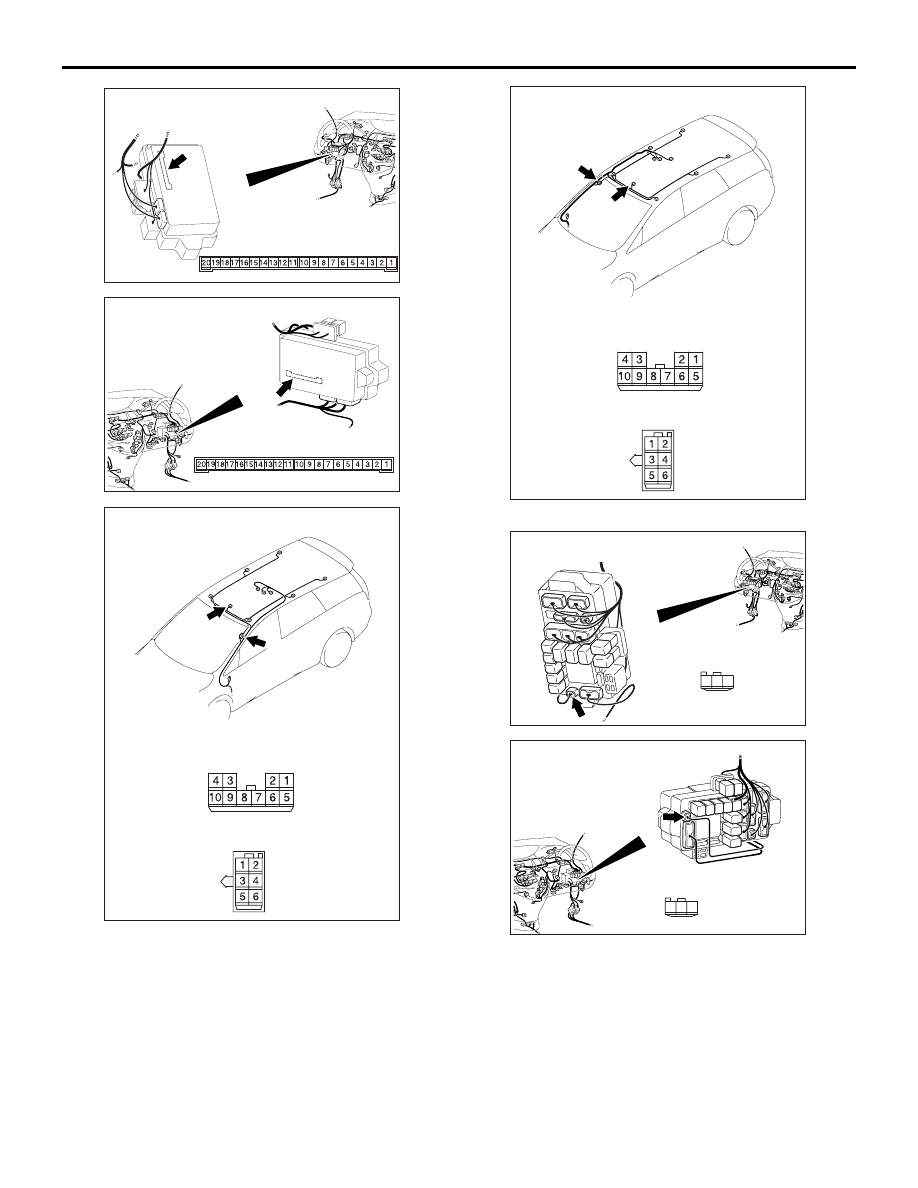

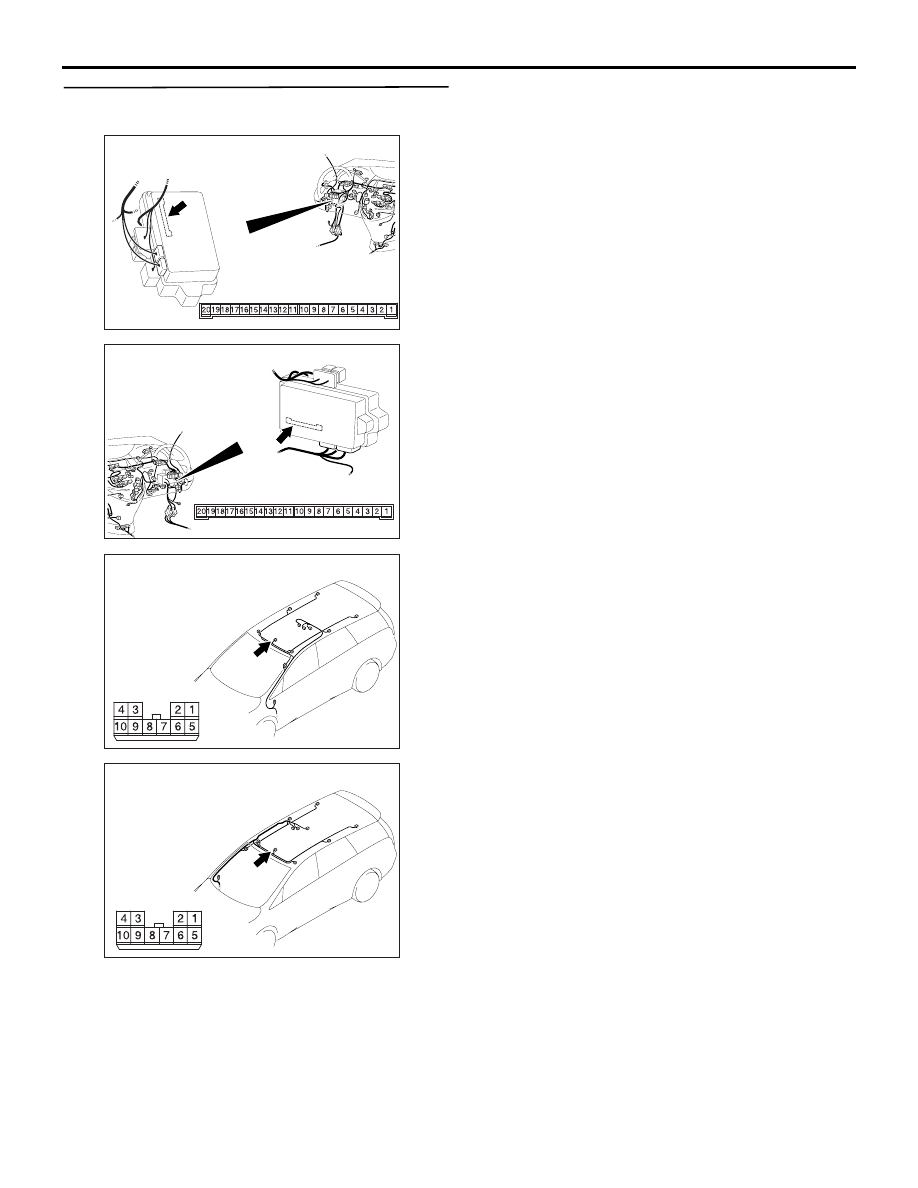

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC310651

AD

Connector: E-02 <LHD>

Harness side

AC310655

AE

Connector: E-02 <RHD>

Harness side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-370

Step 6. Check the wiring harness from C-219
ETACS-ECU connector terminal No.5 to E-02
room lamp connector terminal No.8.

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-371

NOTE:

Prior to the wiring harness inspection, check
intermediate connector E-11 and junction block
connector C-211, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

Replace the ETACS-ECU.

NO :

Repair the wiring harness.

AC310626

Connector: C-219

Junction block (Rear view)

<LHD>

AB

Junction block side

AC310620

Connector: C-219

Junction block
(Rear view)

<RHD>

AB

Junction block side

AC310652

AB

Connectors: E-02, E-11

Harness side

E-02

E-11

E-02

E-11

<Vehicles with
sunroof-LHD>

AC310656

AB

Connectors: E-02, E-11

Harness side

E-02

E-11

E-02

E-11

<Vehicles with
sunroof-RHD>

AC310623

AC310623

Connector: C-211

AQ

<LHD>

Junction block (Front view)

Harness side

3

1

2

AC310618

AC310618

Connector: C-211 <RHD>

AS

Harness side

Junction block (Front view)

3

1

2

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-372

Inspection Procedure P-2: The room lamp does not illuminate normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.
