GENERAL INFORMATION
SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR
54B-21
INTERIOR LAMP
INTERIOR LAMP DIMMER CONTROL
FUNCTION (THE INITIAL CONDITION: 15
SECONDS)
When the interior lamp switch is on the door position,
ETACS-ECU controls the interior lamp lamps as
follows.
1. When the ignition switch is OFF:
By opening any door or tailgate, the lamp turns ON
(100%), and dims (60%) when the door or
tailgate is closed, then and turns off after 15
seconds.
However, when the ignition switch is turned ON or
the driver’s door lock actuator switch is turned
ON, the lamps turn off at that time.
2. When the ignition switch is ON:
By opening any door or tailgate, the lamp (100%)
turns ON and OFF when the door or tailgate is
closed.
3. When all doors and the tailgate are closed, and
the ignition key is removed <Vehicles with
keyless entry system>:
By removing the ignition key with all doors and the
tailgate closed, the lamp turns ON 60%, and
turns off after 15 seconds.
By inserting the ignition key again or operating the
door lock with the lamp lit, the lamps turns off.
NOTE: For the vehicles with the keyless entry
system, the delayed interior lamp turning off duration
and the operation times of the keyless entry interior
lamp answer back can be changed by the customize
function.

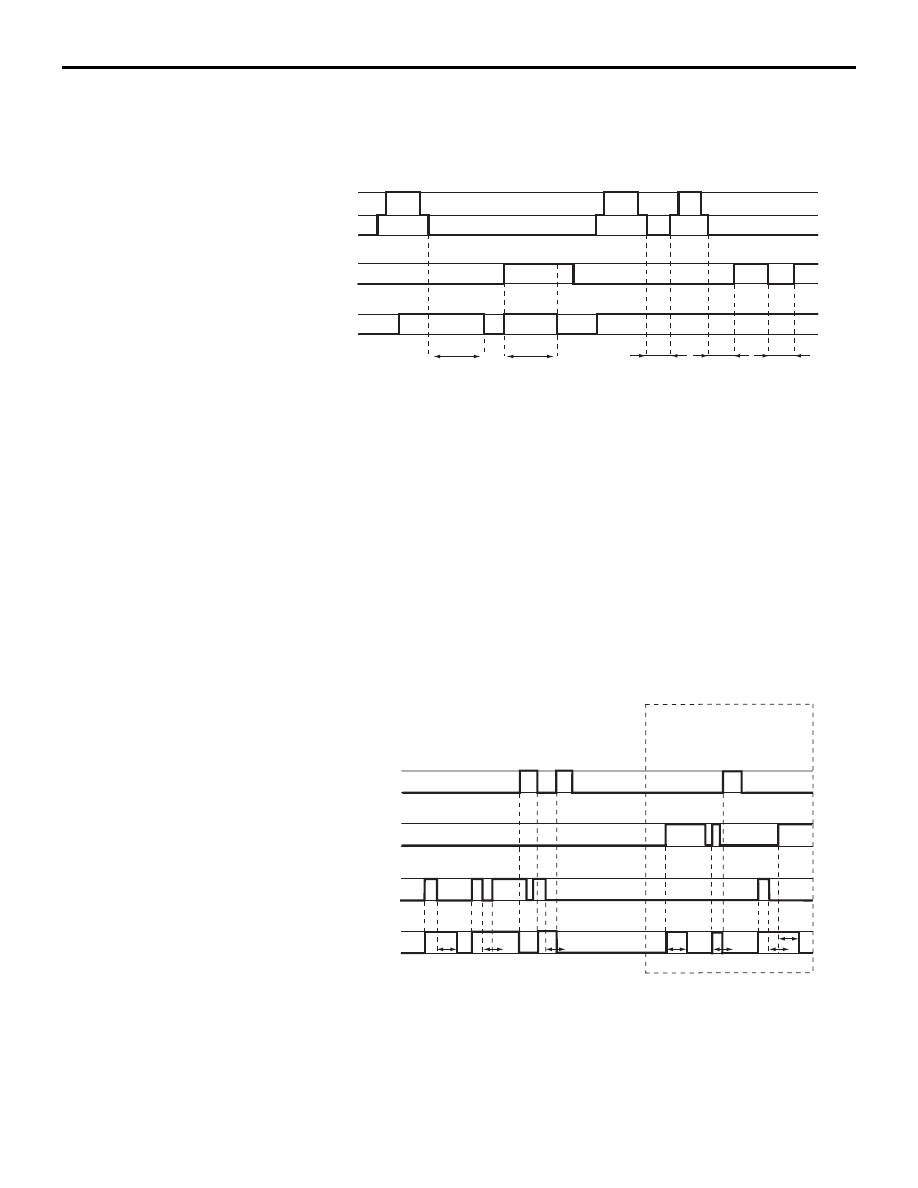

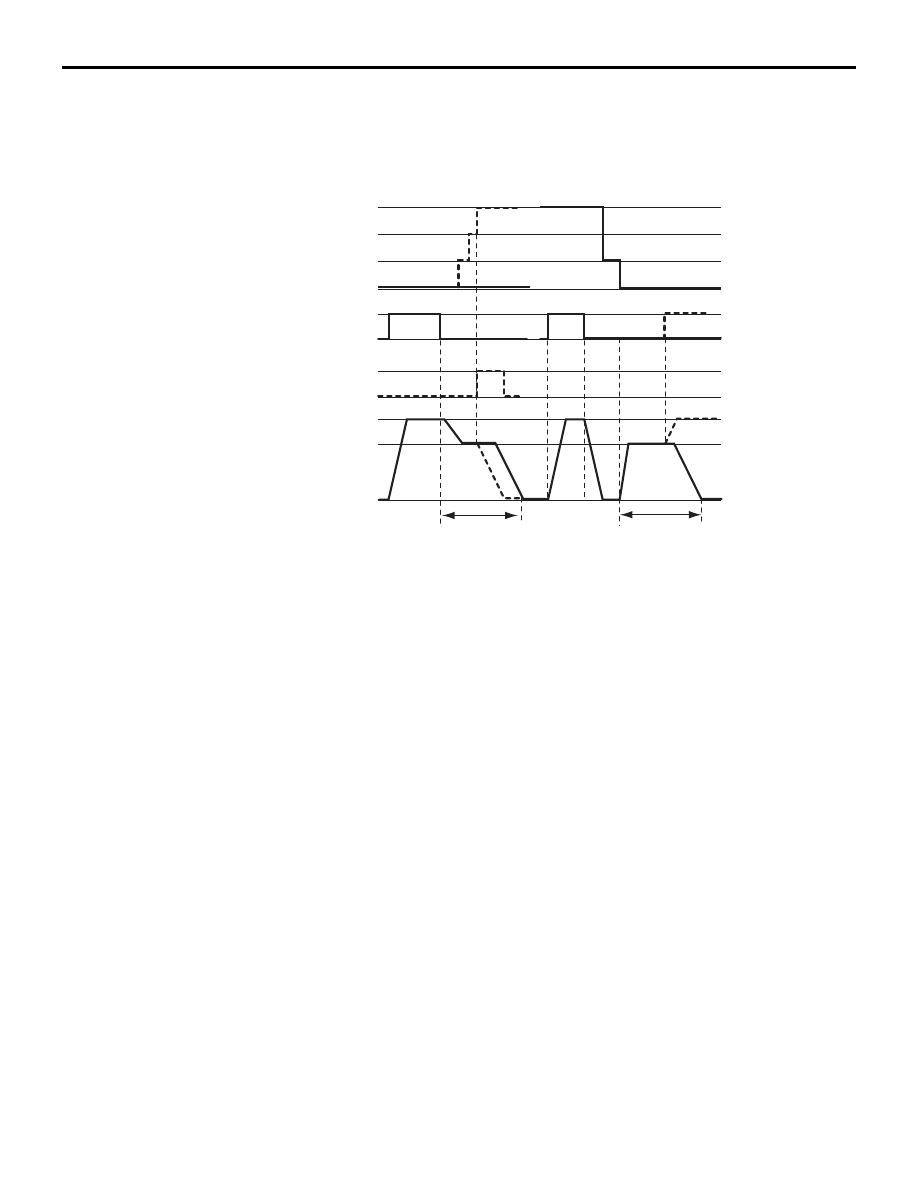

AC310305
15 seconds
(All closed) OFF
(Any one open) ON
ON
OFF
Key removed
ACC
100 %
0 %
60 %
Door switch
(Unlock) OFF
(Lock) ON
Driver's door
lock actuator switch
(lock switch)
Interior lamp brightness
Ignition switch
15 seconds
