Mitsubishi L200. Manual - part 895

AC600483AJ

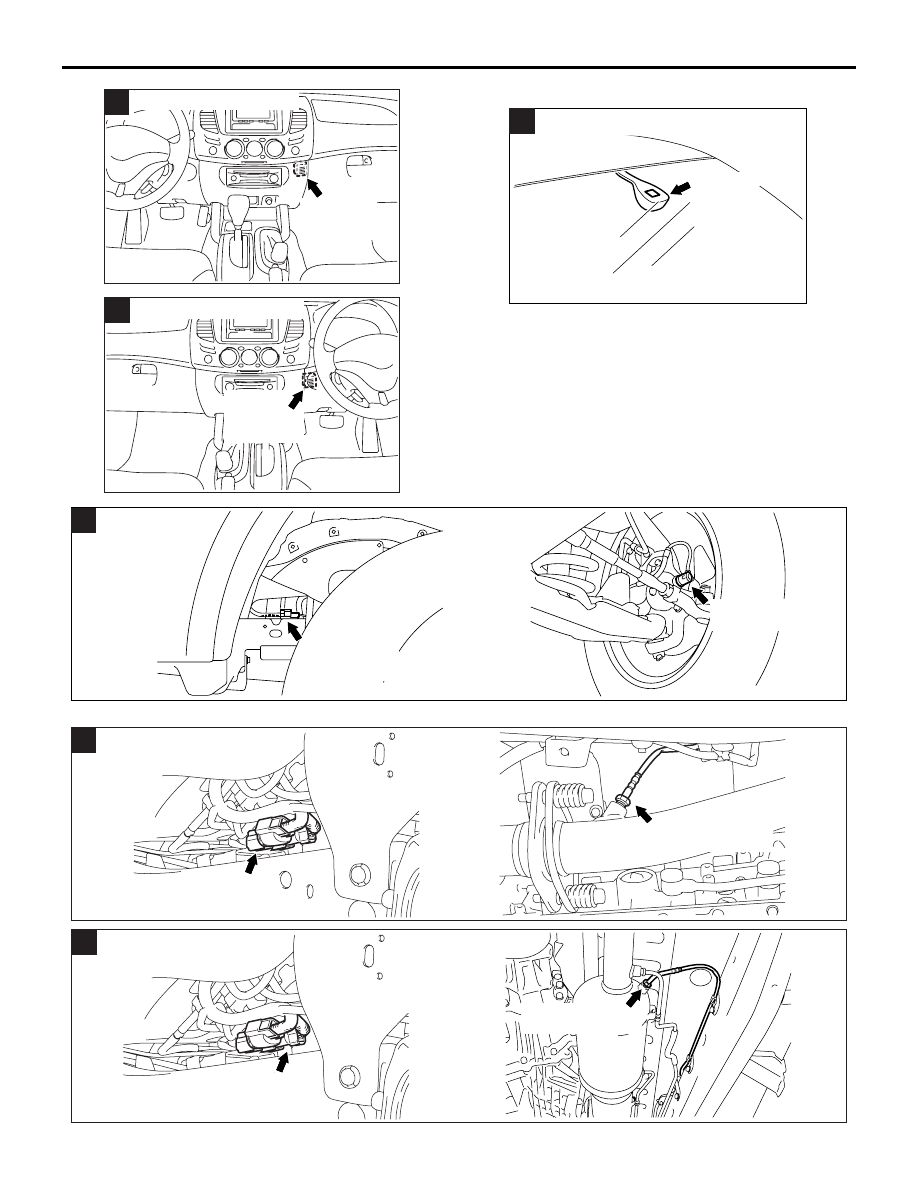

Interior
temperature
sensor

<Automatic A/C (LHD)>

S

AC600190AO

Interior
temperature
sensor

<Automatic A/C (RHD)>

S

AC703208

AP

T

<Vehicles with auto lamp>

Lighting control
sensor

AC501694

AV

Front wheel
speed sensor
connector

Front wheel
speed sensor

U

ACB01880

AB

No.2 exhaust gas
temperature sensor
connector

V

<Euro5>

No.2 exhaust gas
temperature sensor

ACB01881

AB

W

<Euro5>

No.3 exhaust gas
temperature sensor

No.3 exhaust gas
temperature sensor
connector

SENSOR

COMPONENT LOCATIONS

70-10

AC800518

AM

Side impact
sensor

X

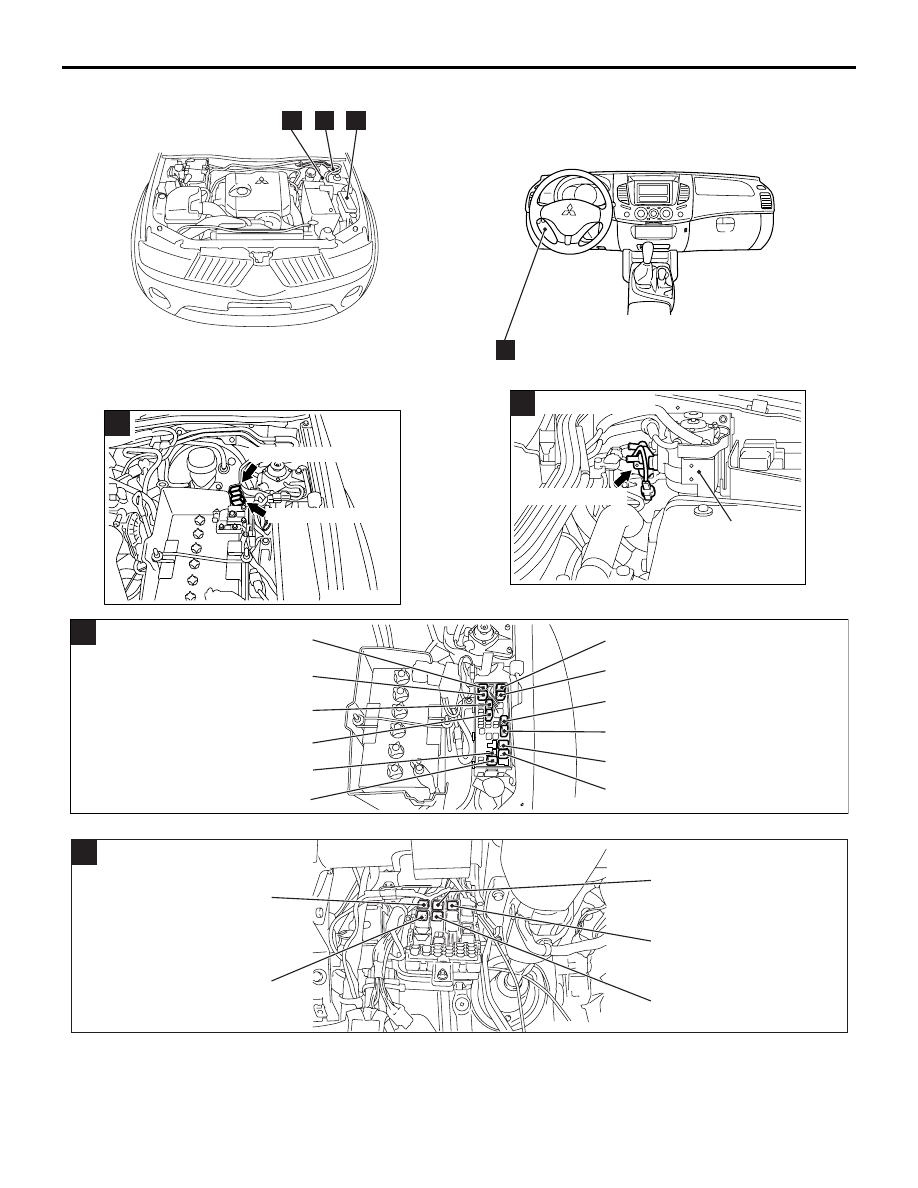

RELAY

COMPONENT LOCATIONS

70-11

RELAY

AC805488

AE

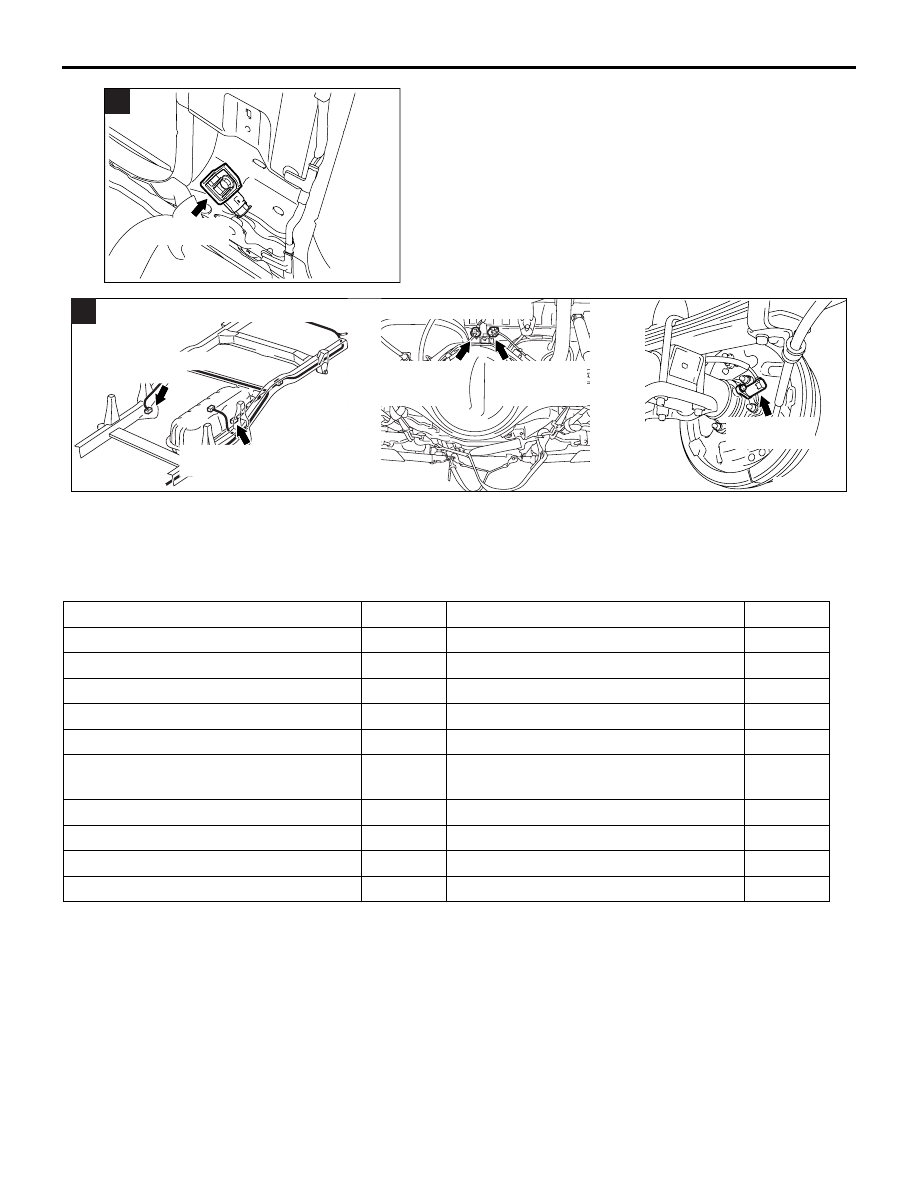

Rear wheel
speed sensor
connector (LH)

Rear wheel
speed sensor
connector (RH)

Rear wheel speed sensor
connector (RH)

Rear wheel speed sensor
connector (LH)

Rear wheel
speed sensor

Y

<2WD (except for HIGH RIDER)>

<HIGH RIDER, 4WD>

M1701000402332

Name

Symbol

Name

Symbol

A/C compressor relay

C

Headlamp relay (LO)

C

A/T control relay

C

Headlamp washer relay

C

Accessory socket relay

D

Heated seat relay

D

Blow-by heater relay

C

Horn relay

C

Blower relay

D

Power window relay

C

Condenser fan relay <Vehicles for
Israel>

C

Rear fog lamp relay

D

Engine control relay

C

PTC heater relay 1

A

Front fog lamp relay

C

PTC heater relay 2

A

Glow plug relay <Except Euro5>

B

Rear window defogger relay

D

Headlamp relay (HI)

C

Starter relay

C

AC805296

AD

D

A

C

B

AC509815

AF

PTC heater relay 1

PTC heater relay 2

A

AC501628

AC501629

AI

Glow plug relay

Fuel filter

B

<Except Euro5>

ACB01956

Engine control relay

A/C compressor relay

Headlamp relay (LO)

Headlamp relay (HI)

Power window relay

A/T control relay

Horn relay

Starter relay

AB

Front fog lamp relay

Blow-by heater relay

Headlamp washer relay

C

Condenser fan relay

AC509991

AD

Accessory socket relay

Rear fog lamp relay

Rear window
defogger relay

Heated seat relay

Blower relay

<LHD>

D

RELAY

COMPONENT LOCATIONS

70-12

AC509989

AC

Accessory socket relay

Rear fog lamp relay

Rear window
defogger relay

Heated seat relay

Blower relay

<RHD>

D

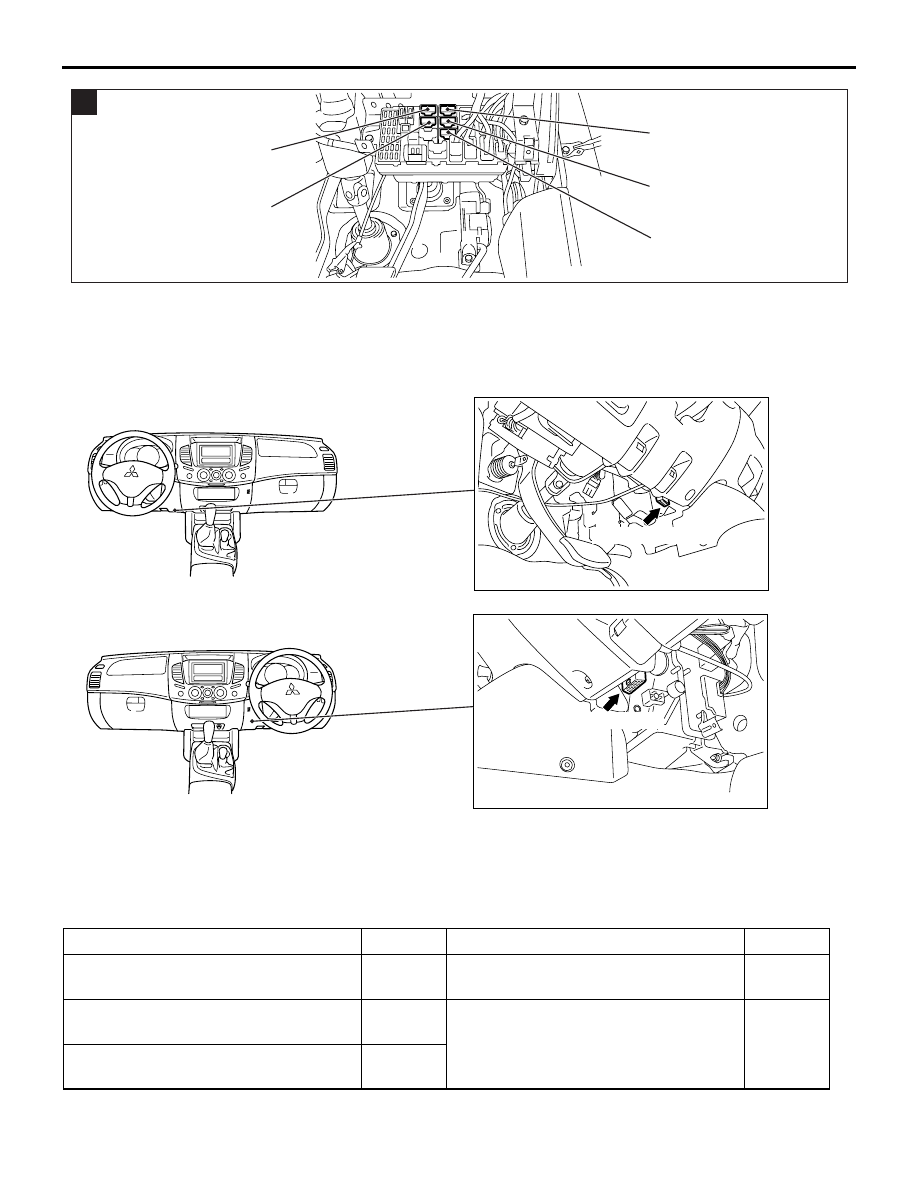

INSPECTION TERMINAL LOCATION

COMPONENT LOCATIONS

70-13

INSPECTION TERMINAL LOCATION

M1701000201089

AC805301

AB

Diagnosis connector

<LHD>

AC502026

AC

Diagnosis connector

<RHD>

SOLENOID VALVE

M1701000802277

Name

Symbol

Name

Symbol

A/T control solenoid valve assembly
(incorporating solenoid valve)

D

Suction control valve

B

Solenoid valve 1 <Vehicles for Europe
(4WD)>

A

Variable geometry control solenoid
valve <Euro5>

C

Solenoid valve 2 <Vehicles for Europe
(4WD)>

A
