WINDSHIELD WIPER AND WASHER

EXTERIOR

51-48

Inspection Procedure 3: The Windshield Wipers do not Stop at The Specified Park Position

CAUTION

Whenever the ECU is replaced, ensure that the input and output signal circuits are normal.

AC903745

J/B SIDE

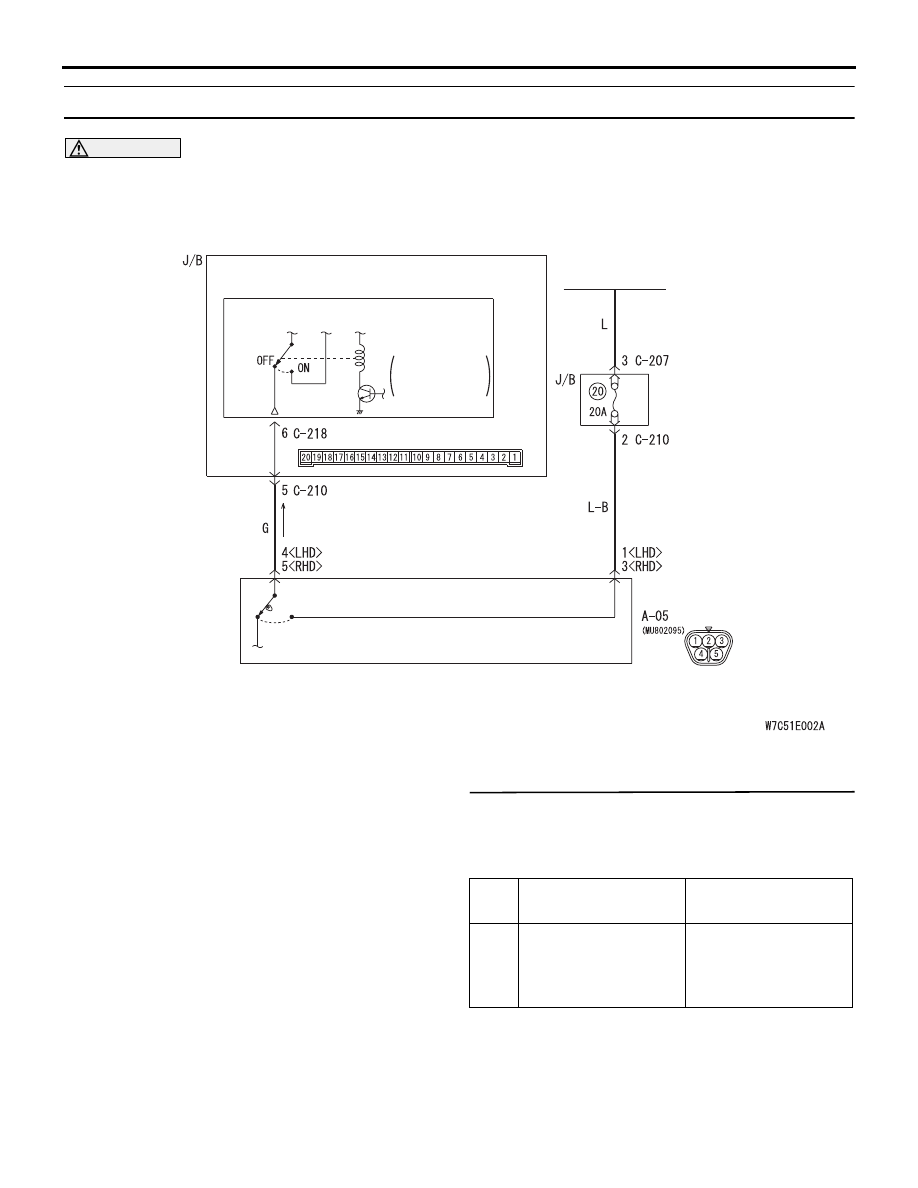

Windshield Wiper Automatic Stop Relay Circuit

IGNITION
SWITCH (ACC)

ETACS-ECU

WINDSHIELD
WIPER MOTOR

WIPER
AUTOMATIC
STOP RELAY

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

AB

COMMENTS ON TROUBLE SYMPTOM
The windshield wiper motor or the ETACS-ECU may
be defective.

PROBABLE CAUSES

• Malfunction of the windshield wiper motor

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list
Check if the ETACS-ECU receives the windshield
wiper auto-stop signal.

•

Item
No.

Item name

Normal condition

25

Front wiper auto stop
switch

Turns ON when the
wipers are activated
from the stopped
state.

Activate the windshield wipers.

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Go to Step 2.

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-49

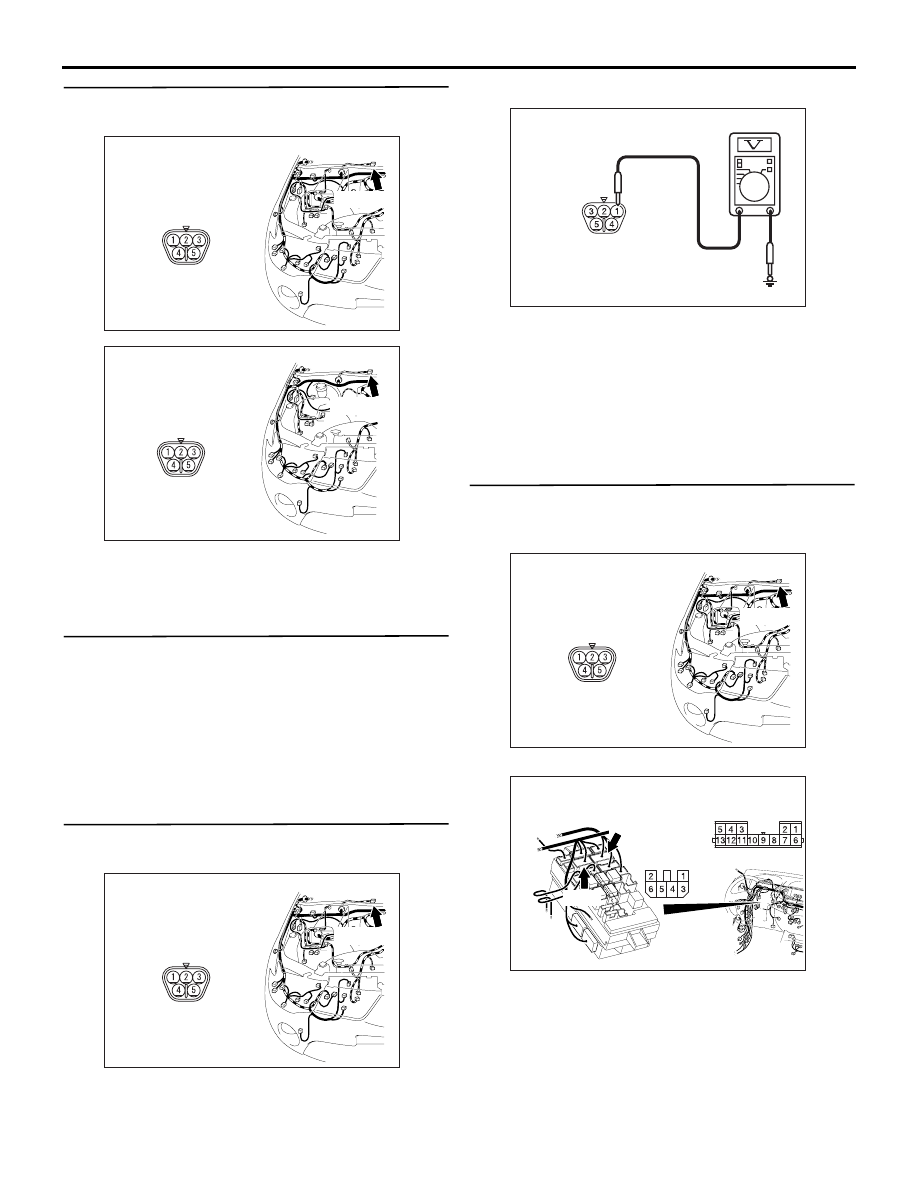

STEP 2. Connector check: A-05 windshield wiper
motor connector

AC903897

AJ

Connector: A-05 <LHD>

Harness side

A-05 (GR)

AC903889

AC

Connector: A-05 <RHD>

Harness side

A-05 (GR)

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the connector.

STEP 3. Check the windshield wiper motor
assembly.
Refer to

P.51-71

.

Q: Is the check result normal?

YES <LH drive vehicles> :

Go to Step 4.

YES <RH drive vehicles> :

Go to Step 8.

NO :

Replace the windshield wiper motor
assembly.

STEP 4. Voltage measurement at the A-05
windshield wiper motor connector.

AC903897

AJ

Connector: A-05 <LHD>

Harness side

A-05 (GR)

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Ignition switch: ACC

AC310507 IV

Connector A-05

(Harness side)

(3) Check the voltage between the A-05 windshield

wiper motor connector terminal No.1 and body
earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

STEP 5. Check the wiring harness between A-05
windshield wiper motor connector terminal No.1
and ignition switch (ACC).

AC903897

AJ

Connector: A-05 <LHD>

Harness side

A-05 (GR)

NOTE:

AC509934

Connectors: C-207, C-210 <LHD>

Junction block (Front view)

C-207

C-210

C-207

AO

Harness side

Harness side

C-210

Prior to the wiring harness inspection, check the
junction block connectors C-207, C-210, and repair if
necessary.

• Check the power supply line to ignition switch

(ACC) for open circuit.

Q: Is the check result normal?

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-50

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

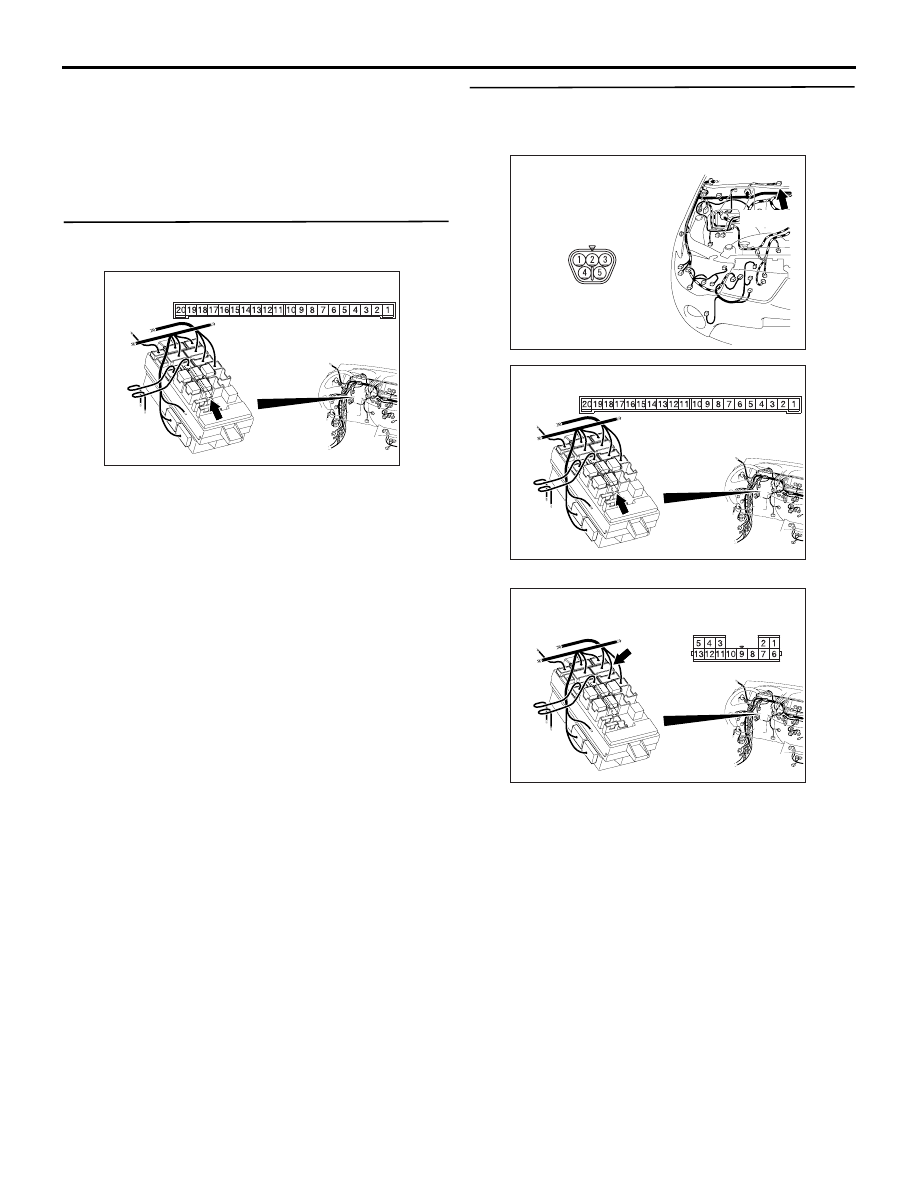

STEP 6. Connector check: C-218 ETACS-ECU
connector

AC509934

Connector: C-218 <LHD>

AJ

Junction

block

Junction block side

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the connector.

STEP 7. Check the wiring harness between A-05
windshield wiper motor connector terminal No.4
and C-218 ETACS-ECU connector terminal No.6.

AC903897

AJ

Connector: A-05 <LHD>

Harness side

A-05 (GR)

AC509934

Connector: C-218 <LHD>

AJ

Junction

block

Junction block side

NOTE:

AC509934

Connector: C-210 <LHD>

Junction block

AN

Harness side

Prior to the wiring harness inspection, check the
junction block connector C-210, and repair if neces-
sary.

• Check the input signal lines.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Repair the wiring harness.

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-51

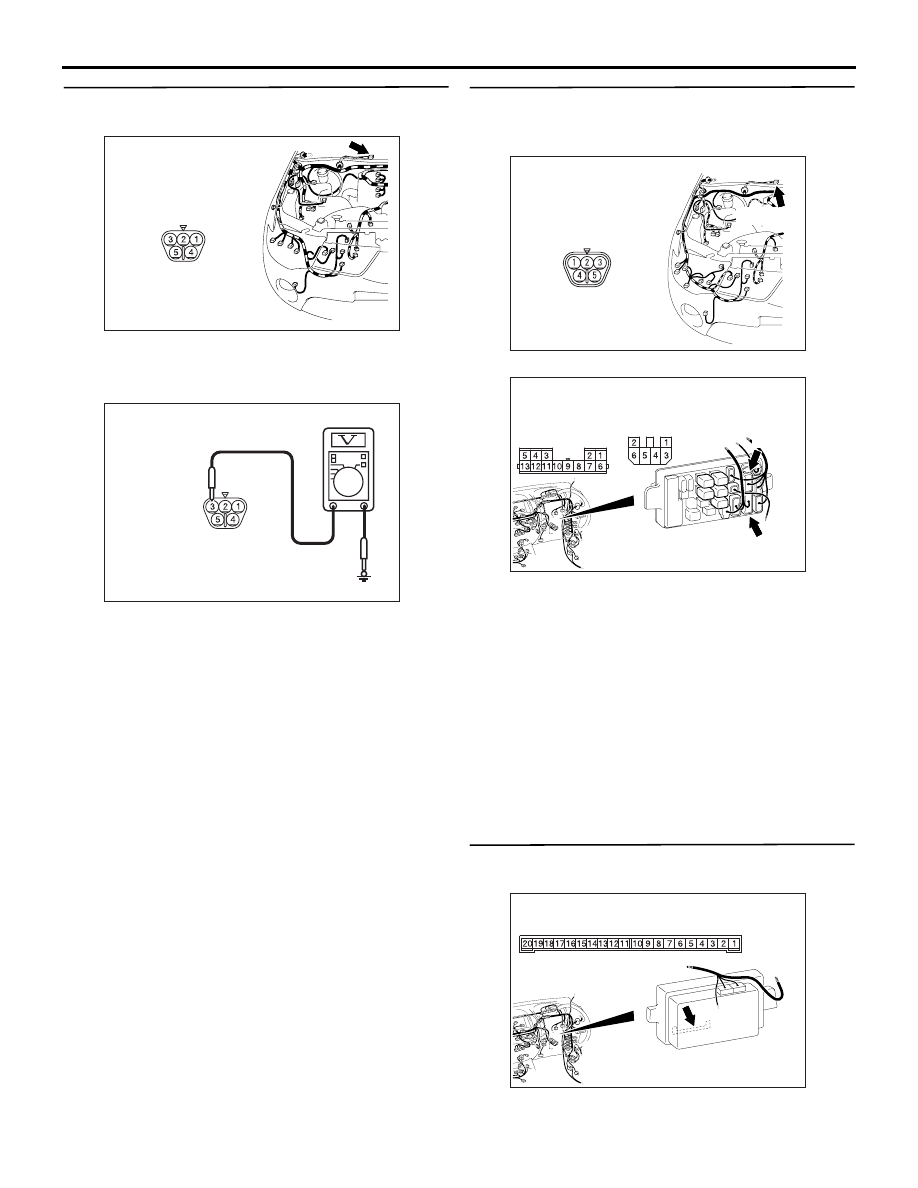

STEP 8. Voltage measurement at the A-05
windshield wiper motor connector.

AC510126

Connector: A-05 <RHD>

Harness side

AB

A-05(GR)

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Ignition switch: ACC

AC310507 FX

Connector A-05

(Harness side)

(3) Check the voltage between the A-05 windshield

wiper motor connector terminal No.3 and body
earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Go to Step 9.

STEP 9. Check the wiring harness between A-05
windshield wiper motor connector terminal No.3
and ignition switch (ACC).

AC903889

AC

Connector: A-05 <RHD>

Harness side

A-05 (GR)

NOTE:

AC509936

Connectors: C-207, C-210 <RHD>

C-207

C-210

C-207

Harness side

Harness side

C-210

AK

Junction block
(Front view)

Prior to the wiring harness inspection, check the
junction block connectors C-207, C-210, and repair if
necessary.

• Check the power supply line to ignition switch

(ACC) for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

STEP 10. Connector check: C-218 ETACS-ECU
connector

AC509943

Connector: C-218 <RHD>

AC

Junction block

 (Rear view)

Junction block side

Q: Is the check result normal?
