TROUBLESHOOTING

DIESEL FUEL

13A-380

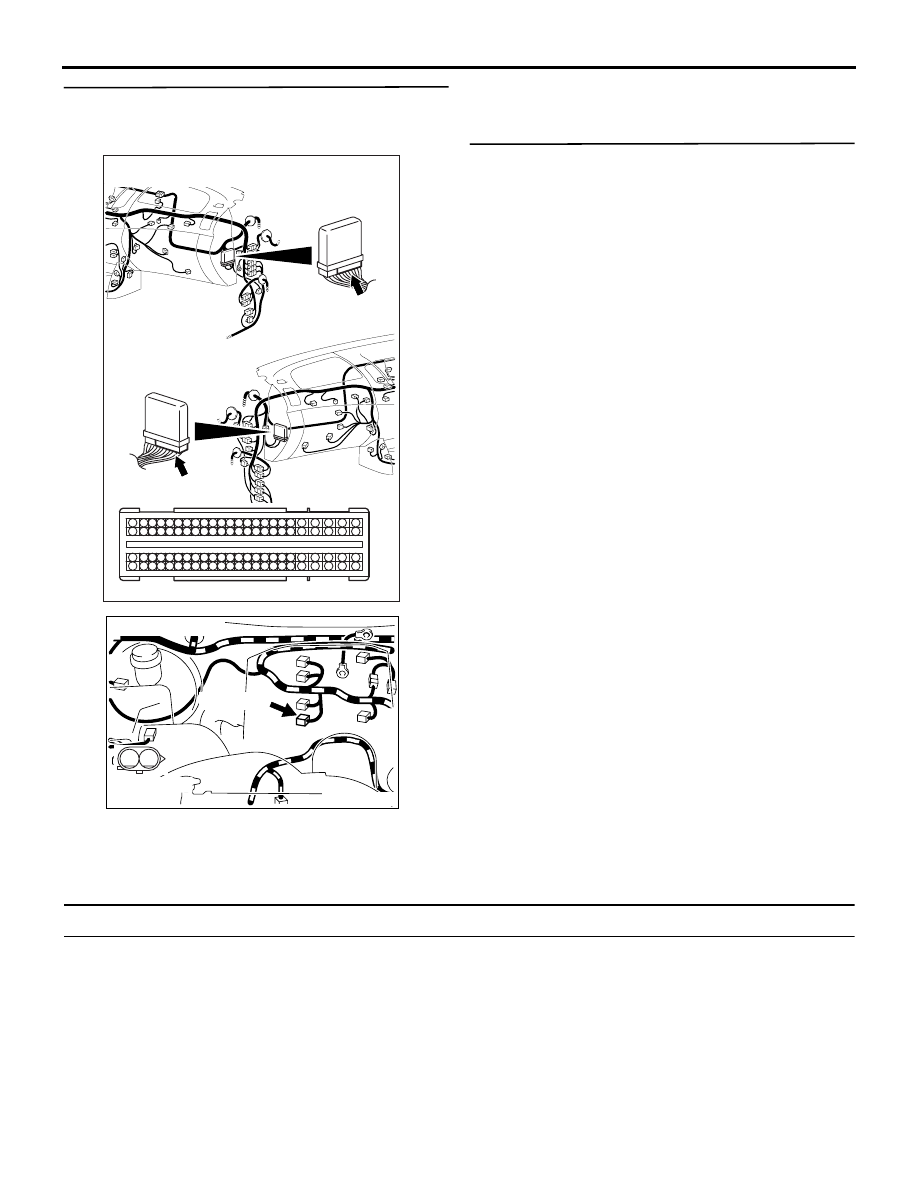

STEP 7. Check harness between C-105 (terminal
No. 27) engine-ECU connector and A-129
(terminal No. 1) No. 4 injector connector.

• Check earthing line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the damaged harness wire.

STEP 8. Check harness between C-105 (terminal
No. 1) engine-ECU connector and A-42 (terminal
No. 2) No. 1 injector connector.

• Check power supply line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the damaged harness wire.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00189

1

2

Connector: A-129

Harness side
connector

AB

A-129 (GR)

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00186

1

2

Connector: A-42

A-42 (GR)

Harness side
connector

AB

1

2

TROUBLESHOOTING

DIESEL FUEL

13A-381

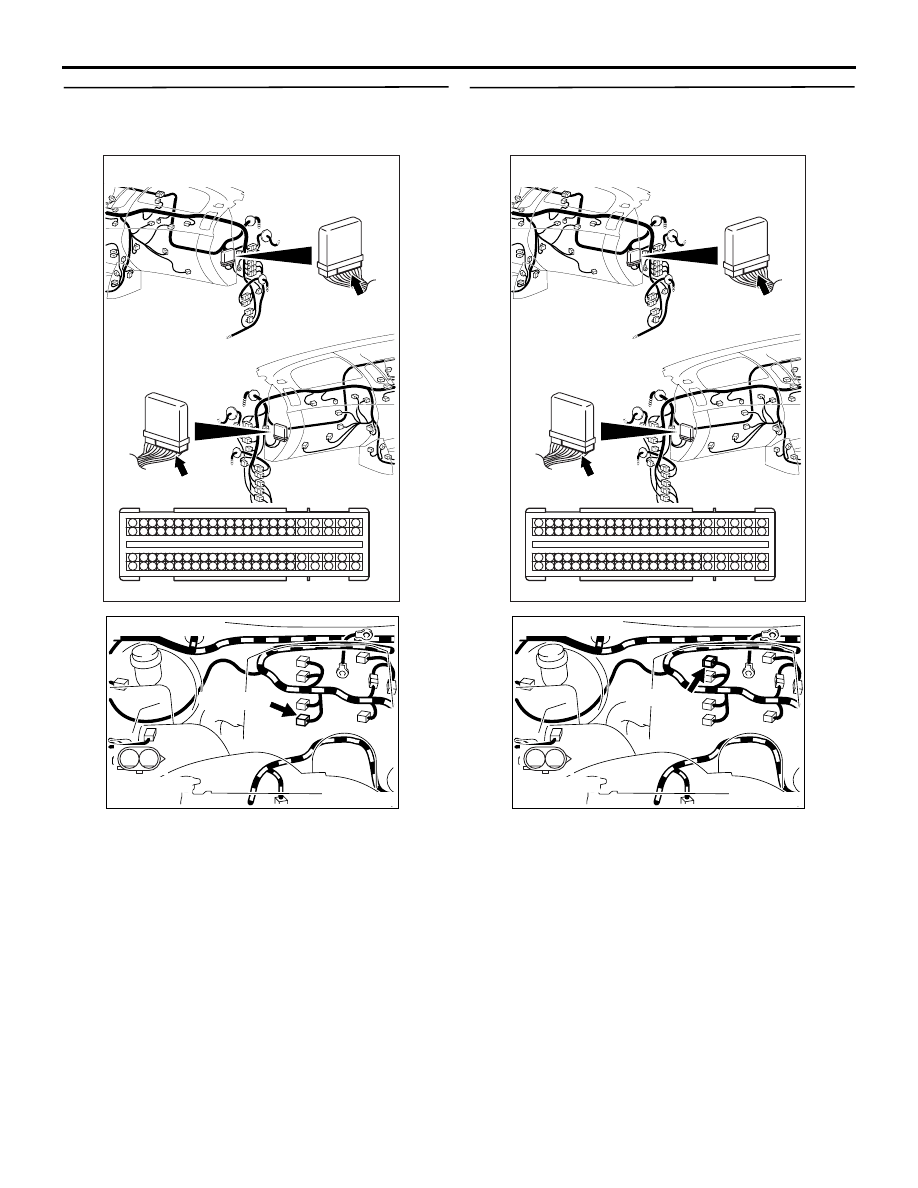

STEP 9. Check harness between C-105 (terminal
No. 25) engine-ECU connector and A-41 (terminal
No. 2) No. 2 injector connector.

• Check power supply line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the damaged harness wire.

STEP 10. Check harness between C-105 (terminal
No. 25) engine-ECU connector and A-130
(terminal No. 2) No. 3 injector connector.

• Check power supply line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the damaged harness wire.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00187

1

2

Connector: A-41

A-41 (GR)

Harness side
connector

AB

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00188

1

2

Connector: A-130

A-130 (GR)

Harness side
connector

AB

TROUBLESHOOTING

DIESEL FUEL

13A-382

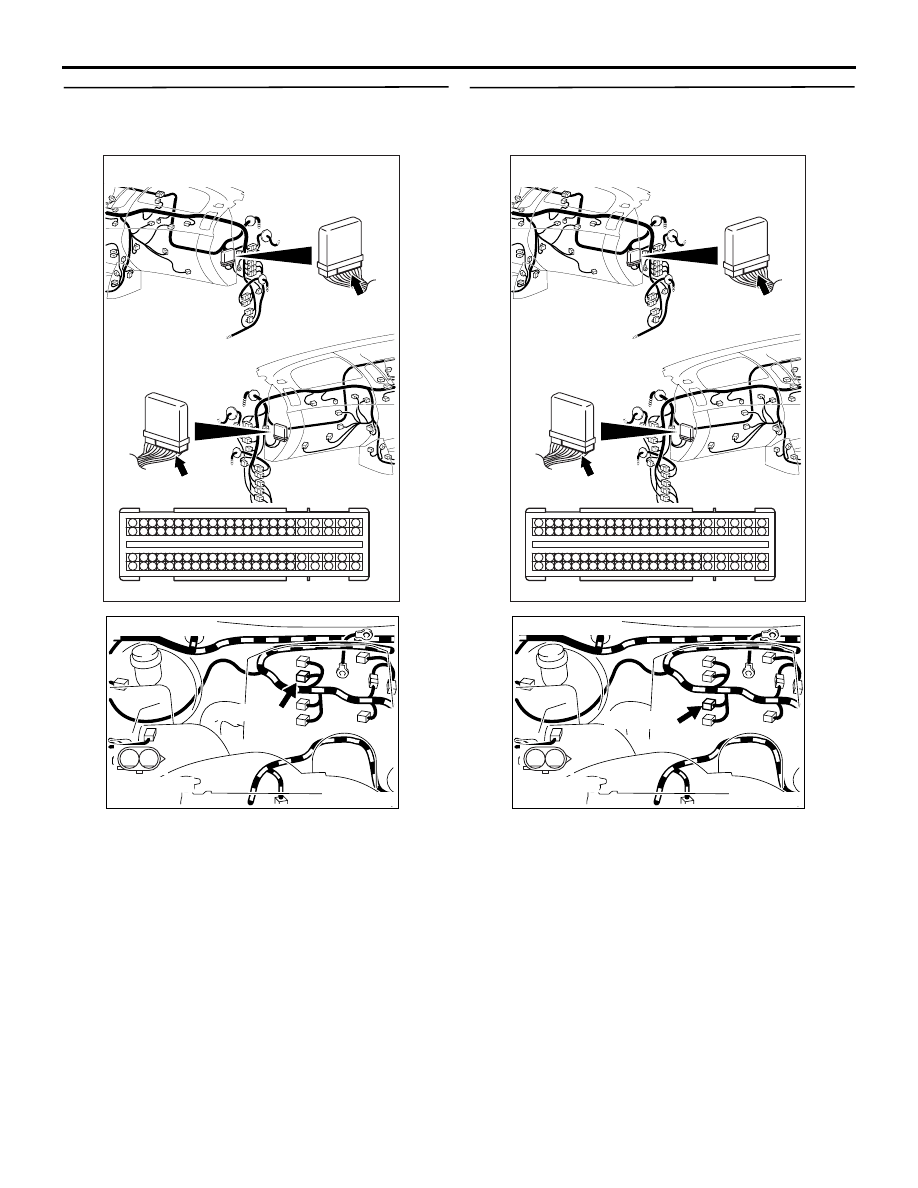

STEP 11. Check harness between C-105 (terminal
No. 1) engine-ECU connector and A-129 (terminal
No. 2) No. 4 injector connector.

• Check power supply line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Repair the damaged harness wire.

STEP 12. M.U.T.-III diagnosis code.

• After erasing the diagnosis code through M.U.T.-

III, start the engine and confirm whether the diag-
nosis code is set.

Q: Is the diagnosis code set?

YES :

Replace the engine-ECU. When the engine-

ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

Code No. P2148: Injector Common 1 (Cylinder No. 1 and No. 4) Circuit Battery Short <Euro5>

OPERATION

• Refer to Code No. P0201: No. 1 Injector Circuit

Malfunction

P.13A-158

.

• Refer to Code No. P0204: No. 4 Injector Circuit

Malfunction

P.13A-173

. <Euro5>

FUNCTION

• The engine-ECU monitors voltage application to

the injector during no injector energization to
detect errors in the No. 1 and No. 4 injector drive
circuit.

TROUBLE JUDGMENT

Check Condition

• Ignition switch is in "ON" position.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00189

1

2

Connector: A-129

Harness side
connector

AB

A-129 (GR)

TROUBLESHOOTING

DIESEL FUEL

13A-383

Judgment Criterion

• Short-circuit to the battery is detected in the injec-

tor drive circuit.

PROBABLE CAUSES

• Short circuit in injector circuit or loose connector

contact

• Failed No. 1 injector

• Failed No. 4 injector

• Failed engine-ECU

DIAGNOSIS PROCEDURE

WARNING

A high-tension voltage is flowing between
the engine-ECU and the injectors while the
engine is running. Handle them carefully to
avoid receiving electric shocks from the volt-
age.

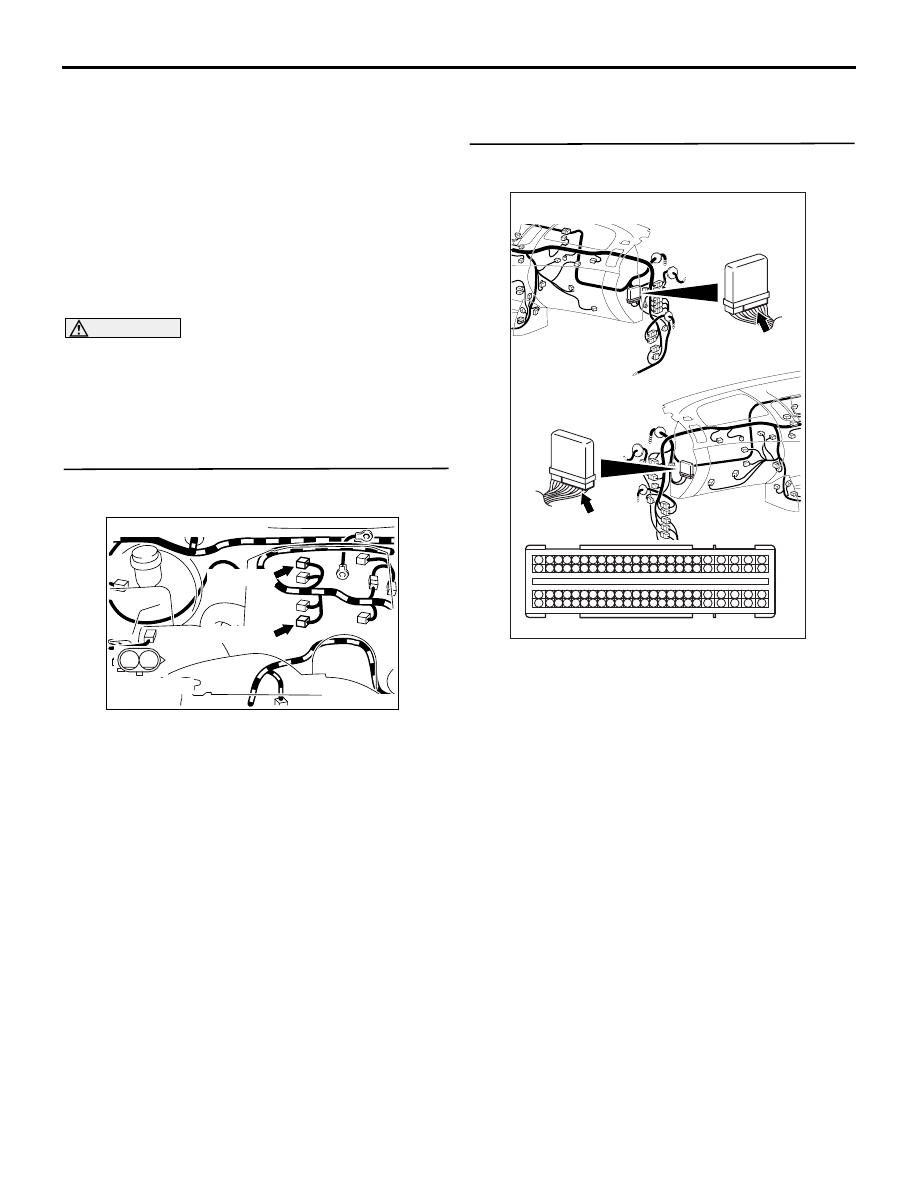

STEP 1. Connector check: A-42 No. 1 injector
connector and A-129 No. 4 injector connector.

Q: Are the check results normal?

YES :

Go to Step 2 .

NO :

Repair or replace the connector.

STEP 2. Connector check: C-105 engine-ECU
connector.

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

AKA00190

1

2

Connectors: A-42, A-129

A-42 (GR)

A-129 (GR)

Harness side
connector

AB

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB
