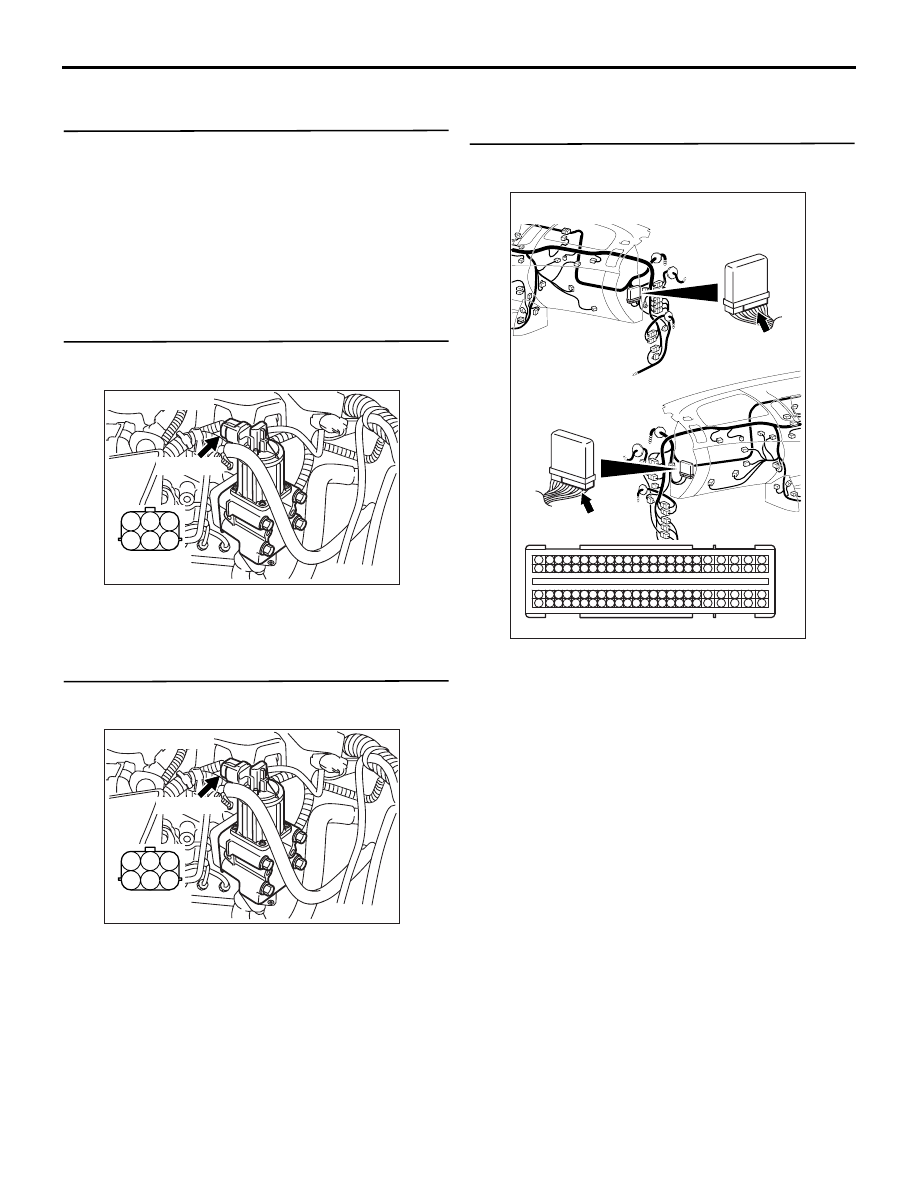

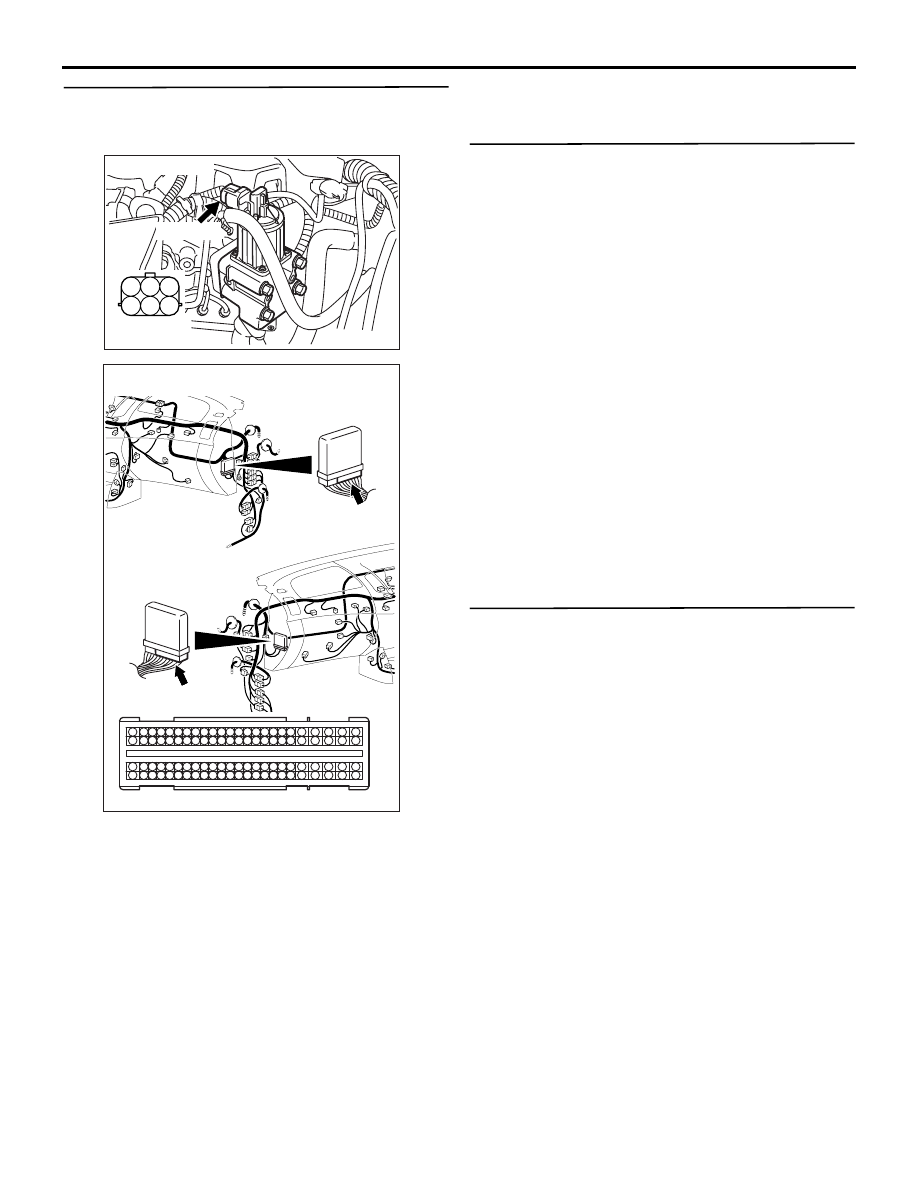

TROUBLESHOOTING

DIESEL FUEL

13A-248

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 16: EGR valve position sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Go to Step 2 .

STEP 2. Connector check: A-45 EGR valve
assembly connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

STEP 3. Perform resistance measurement at A-45
EGR valve assembly connector.

• Disconnect connector, and measure at harness

side.

• Resistance between terminal No. 2 and earth.

OK: Continuity (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Go to Step 4 .

STEP 4. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair or replace the connector.

AK501331

1

2

3

4

5

6

AB

Harness side
connector

A-45 (GR)

Connector: A-45

AK501331

1

2

3

4

5

6

AB

Harness side
connector

A-45 (GR)

Connector: A-45

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-249

STEP 5. Check harness between A-45 (terminal
No. 2) EGR valve assembly connector and C-105
(terminal No. 81) engine-ECU connector.

• Check earthing line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair the damaged harness wire.

STEP 6. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 16: EGR valve position sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Replace the engine-ECU. When the engine-
ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
carry out the forcible DPF regeneration.
(Refer to GROUP 17

− Emission Control −

Diesel Particulate Filter (DPF) System

−

Forcible DPF Regeneration ).

STEP 7. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 16: EGR valve position sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Replace the EGR valve assembly.

AK501331

1

2

3

4

5

6

AB

Harness side
connector

A-45 (GR)

Connector: A-45

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-250

Code No. P0502: Vehicle Speed Sensor Low Input <2WD-M/T and 4WD vehicles>

AKA00104

1

2

3

1

2

3
4

101 102

103104 105 106107 108109 110 111112 113 114115

118119 120 121122 123124 125126127 128 129130

131132 133 134135 136137 138139140 141142 143

146147 148 149150 151152 153154155 156 157158

117

145

116

144

10

23

20A

B-01

(MU802723)

Vehicle speed sensor

141

B

W-L

W-L

W-L

W-L

R

R

R

Engine-ECU

A-20X

10

2

A-28

1

3

2

C-29

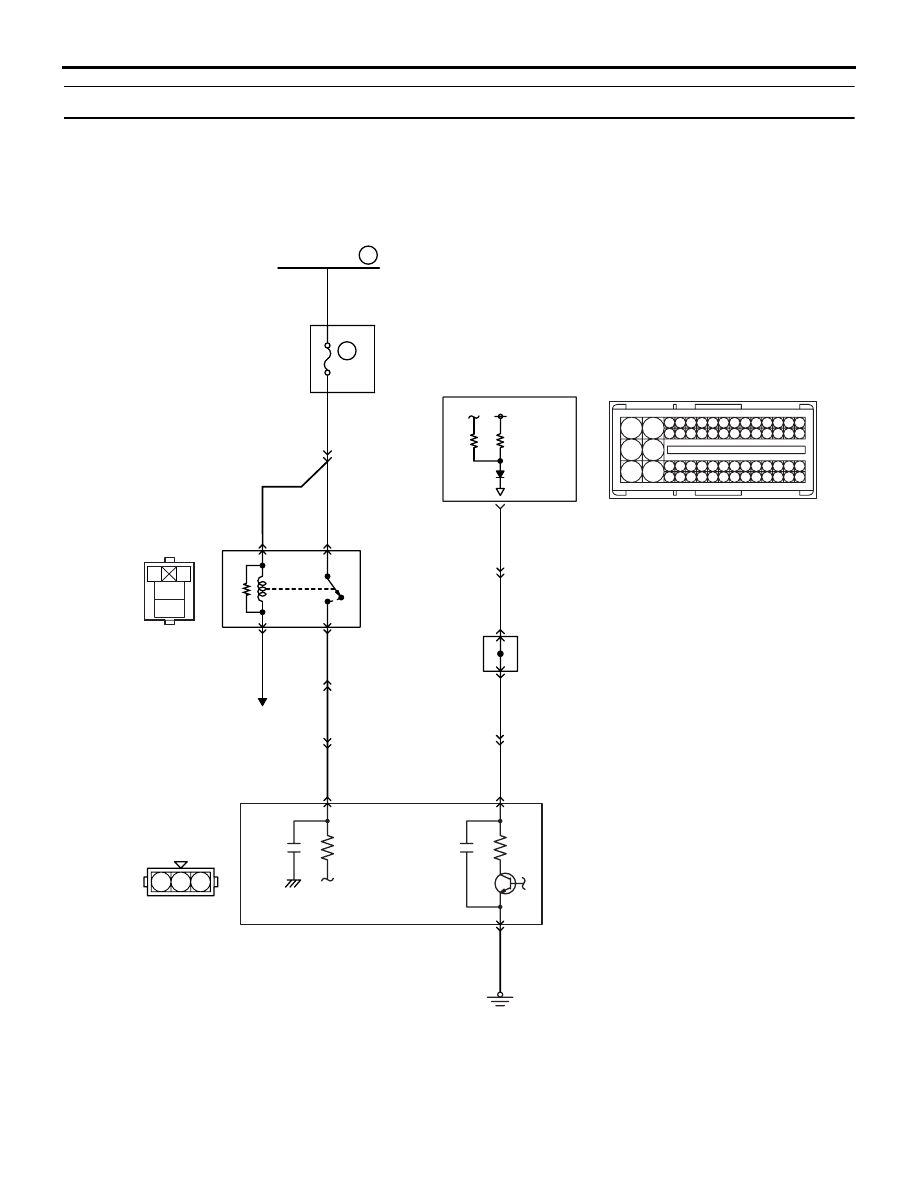

Vehicle Speed Sensor Circuit

C-103

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Grey
R: Red  P: Pink  V: Violet

  PU: Purple  SI: Silver

22

11

21

4

J/C (2)

C-127

C-30

5 V

Engine
control
relay

4

1

3

2

3

A-115

Relay
box

W-R

Fusible link

To engine-ECU

W-B

W-B

OFF

ON

NOTE

*1: L.H. drive vehicles
*2: R.H. drive vehicles

W-B

C-53*¹
or
C-35*²

AB

TROUBLESHOOTING

DIESEL FUEL

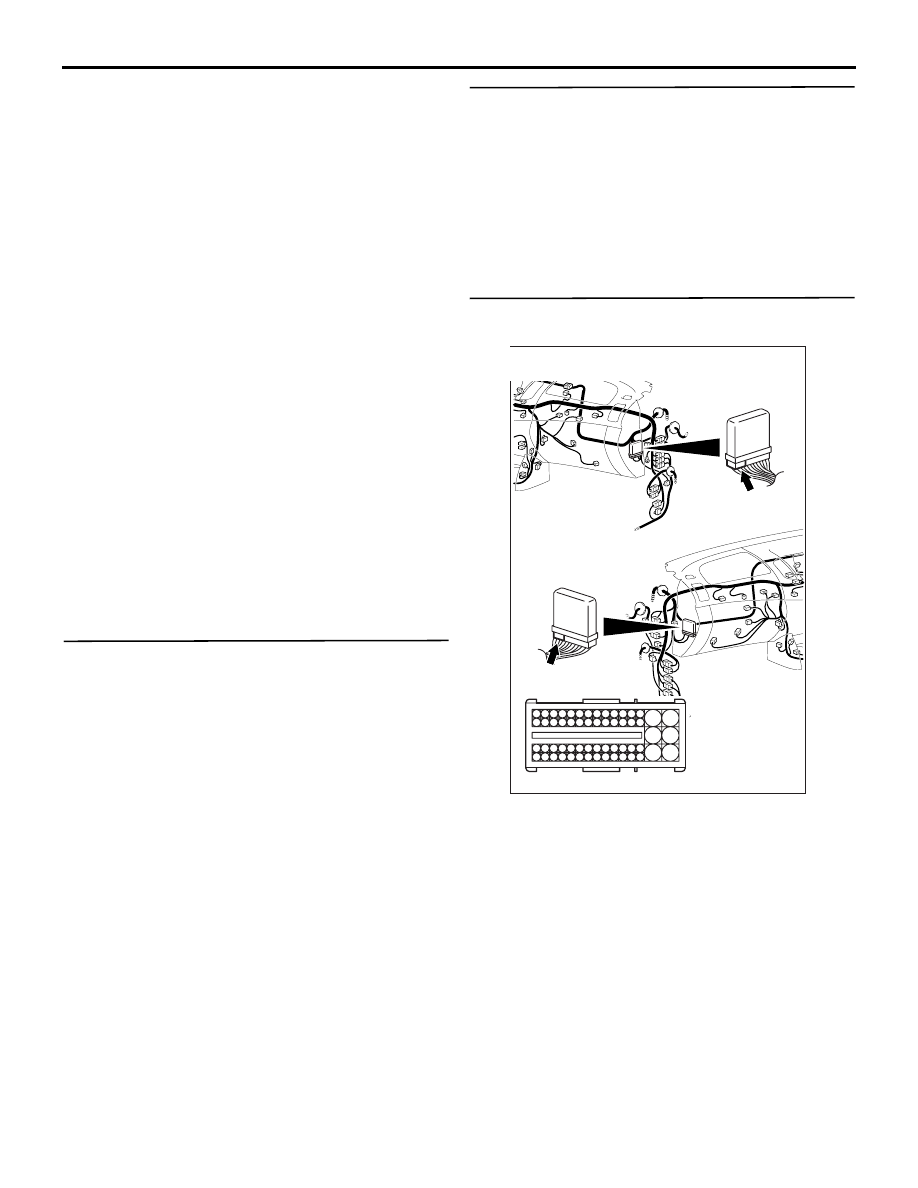

13A-251

OPERATION

• A power voltage of 5 V is applied to the vehicle

speed sensor (terminal No. 3) from the engine-
ECU (terminal No. 114).

FUNCTION

• The vehicle speed sensor converts the vehicle

speed to the voltage, and then input it into the
engine-ECU

TROUBLE JUDGMENT

Check Conditions

• Engine is running

• Engine coolant temperature is 80°C or higher

• The last fuel injection rate exceeds the specified

value.

• Engine speed is 2,900 r/min or more.

Judgment Criterion

• Vehicle speed is 5 km/h or lower for 2 seconds.

PROBABLE CAUSES

• Failed vehicle speed sensor

• Open/short circuit or harness damage in vehicle

speed sensor circuit or loose connector contact

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check the speed meter

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Check the speed meter (Refer to GROUP
54A

−Combination Meter − On-vehicle

Service

− Speedometer Check ).

STEP 2. M.U.T.-III data list

• Refer to Data list reference table

P.13A-542

.

a. Item 4: Vehicle speed sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

 Go to Step 3 .

STEP 3. Connector check: C-103 engine-ECU
connector

Q: Is the check result normal?

YES :

 Go to Step 4 .

NO :

Repair or replace the connector.

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB
