COMMON RAIL AND SUPPLY PUMP

ENGINE OVERHAUL

11B-30

CAUTION

*1: Unless replaced, do not remove the sensor.

<Euro5>

AKB00324

10

11

12

13

7

14

15

1

20 ± 2 N·m

10 ± 2 N·m

24 ± 4 N·m

35 ± 5 N·m

35 ± 5 N·m

AB

24 ± 4 N·m

6

8

2

16

17

20 ± 2 N·m

10 ± 2 N·m

5

8.9 ± 1.9 N·m

9

20 ± 4 N·m

20

24 ± 3 N·m

3

24 ± 3 N·m

10 ± 2 N·m

4

24 ± 3 N·m

18

19

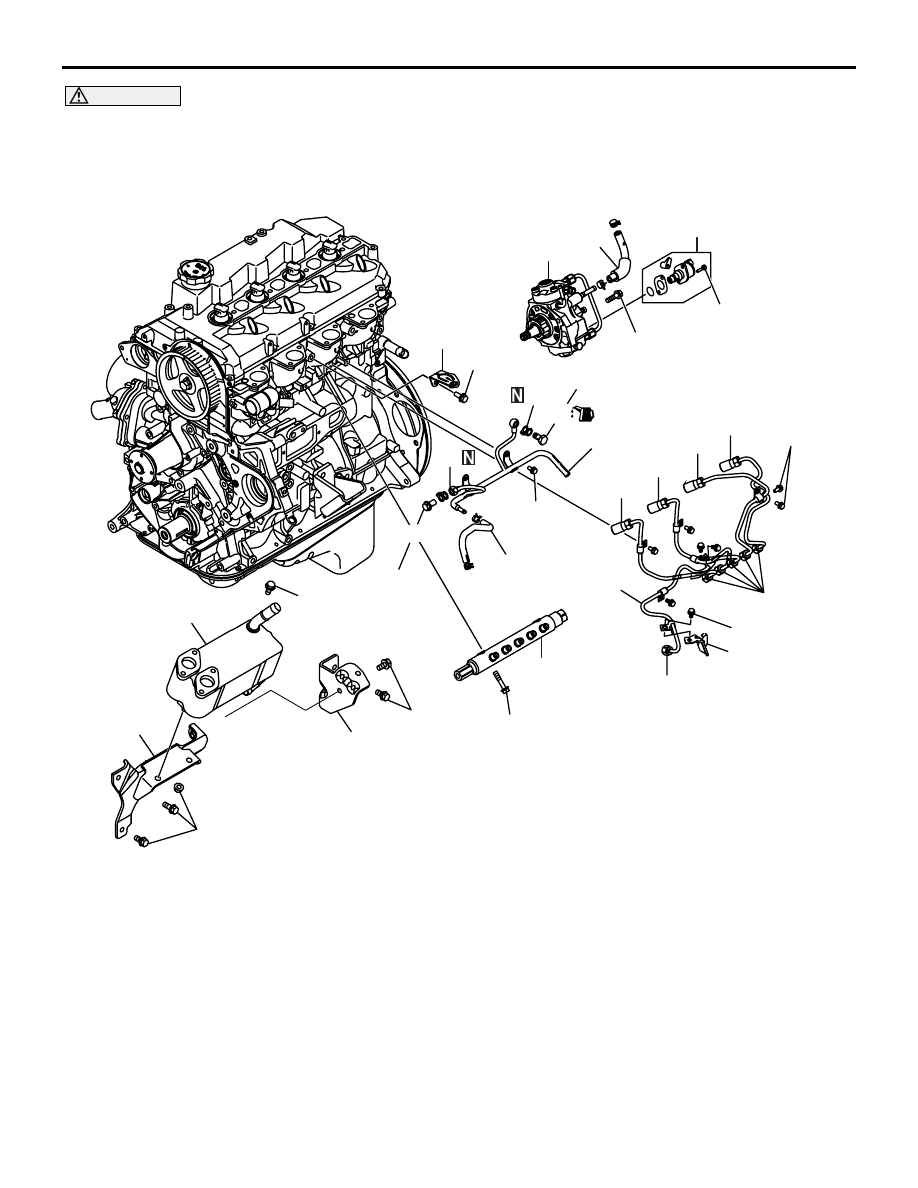

Removal steps

1.

Fuel return hose

2.

Fuel inlet hose

>>

B

<< 3.

EGR cooler brackct assenbly "B"

>>

B

<< 4.

EGR cooler brackct assenbly "A"

>>

B

<< 5.

EGR cooler

6.

Suction control valve kit *1

>>

B

<< 7.

Supply pump

>>

B

<< 8.

Fuel supply pump pipe bracket

>>

A

<< 9.

Fuel supply pump pipe

>>

A

<< 10. Bracket

11. Fuel injection No.1 pipe

>>

A

<< 12. Fuel injection No.2 pipe

>>

A

<< 13. Fuel injection No.3 pipe

>>

A

<< 14. Fuel injection No.4 pipe

>>

A

<< 15. Common rail

>>

A

<< 16. Eye bolt (Cylinder head side)

>>

A

<< 17. Fuel return gasket

>>

A

<< 18. Eye bolt (Common rail side)

>>

A

<< 19. Fuel return gasket

>>

A

<< 20. Fuel return pipe

Removal steps (Continued)

COMMON RAIL AND SUPPLY PUMP

ENGINE OVERHAUL

11B-31

CAUTION

*1: Unless replaced, do not remove the sensor.

INSTALLATION SERVICE POINTS

>>A<< BRACKET / FUEL INJECTION PIPE / COM-
MON RAIL / EYE BOLT / FUEL RETURN GASKET /
FUEL RETURN PIPE INSTALLATION

CAUTION

• The reinstallation histories of the removed

injection pipe are up to five times. To count
how many times the injection pipe is rein-
stalled, record the number of the reinstalla-
tion histories on the service booklet by
adding this latest number of the histories,
which is usually "1", to the previous one. Use
a new injection pipe when the total reinstalla-
tion history numbers reach five times, or
when the injector or common rail is replaced.
In this case, record "a new injection pipe, the
number of the reinstallation histories is zero"
on the service booklet.

• If a fuel leak is present in the fuel injection

pipe and fuel injection pipe set once, do not
reuse it and replace with a new one.

• If the fuel injector assembly, common rail

assembly or supply pump assembly is
replaced, the contact surface (seal surface)
between the fuel injection pipe and fuel injec-
tion pipe set, and the other side component is
changed, do not reuse the fuel injection pipe
and fuel supply pump pipe and replace with a
new one.

• When the injection pipe is reinstalled, confirm

there is no foreign material on the seal sur-
face or in the pipe and then install it not to
deviate from the axis, fitting the seal surface.

AK500705

1. Temporarily tighten the fuel return pipe with bolts.

AK801174

Cylinder
port

Bracket

AB

Hatched

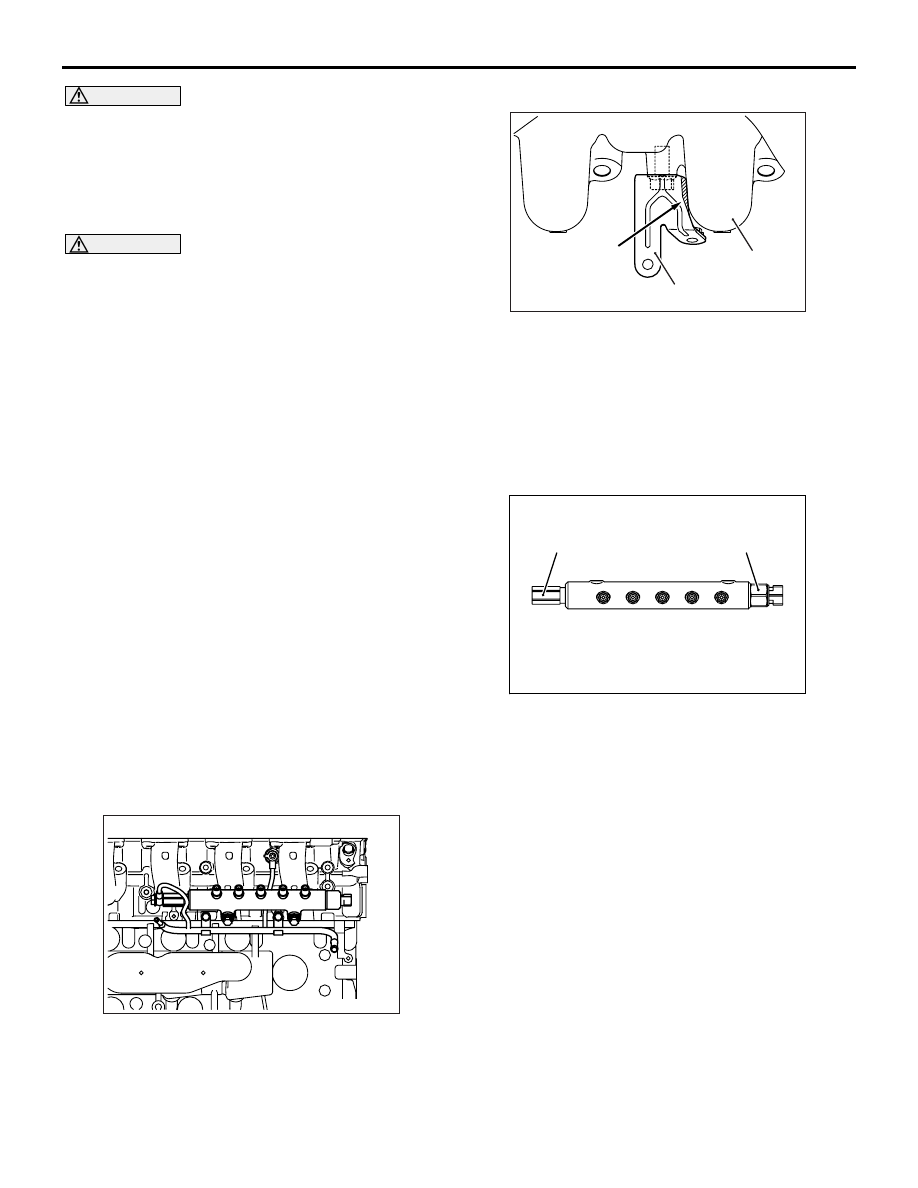

2. Slightly put the hatched area of the bracket to the

cylinder port and tighten it to the specified torque
of 20

± 2 N⋅m. <Euro5>

3. Tighten to the specified torque of 20

± 2 N⋅m the

eye bolt and the fuel return gasket located at the
cylinder head side.

4. Temporarily tighten the common rail with bolts,

holding the common rail body.

AK500706

Common rail

AB

Pressure sensor

Pressure limiter

NOTE: At this time, do not hold the pressure lim-
iter or pressure sensor of the common rail.
NOTE: Before the installation, confirm there is
neither foreign material nor a rust on the threads
and the sealing surface of a high-pressure pipe.

5. Align the fuel injection pipe centre axis with the

other side components (fuel injector assembly
and common rail assembly) centre axis to install
the fuel injection pipe. Then, tighten the flare nut
temporarily until the tip of pipe (seal surface)
contacts with the other side components.
NOTE: When the fuel injection pipe is installed,
tighten the flare nut while shaking the pipe lightly
to align the centre axis of both components.

AK600656

MB992188

AB

COMMON RAIL AND SUPPLY PUMP

ENGINE OVERHAUL

11B-32

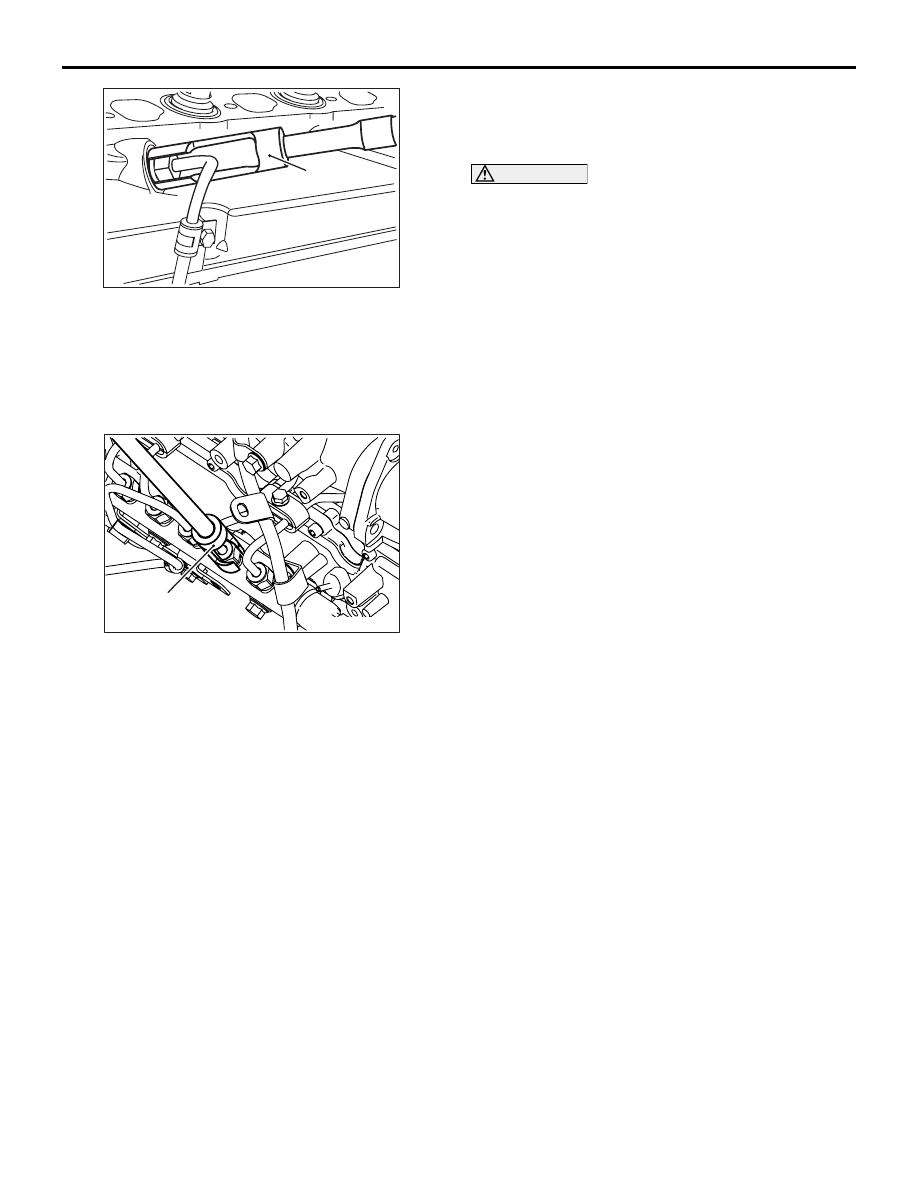

6. Using special tool Fuel injection pipe wrench

(MB992188), install injection pipe assembly No.1
to No.4.
Tighten to the specified torque of 35

± 5 N⋅m the

flare nuts of the fuel injection pipe No.1 to No.4 at
injector side.

AK600668

MB992188

AB

7. Using special tool Fuel injection pipe wrench

(MB992188), install injection pipe assembly No.1
to No.4.
Tighten to the specified torque of 35

± 5 N⋅m the

flare nuts of the fuel injection pipe No.1 to No.4 at
common rail side.

8. Tighten the common rail to the specified torque of

24

± 4 N⋅m.

9. Tighten to the specified torque of 20

± 2 N⋅m the

eye bolt and the fuel return gasket located at the
common rail side.

10.Tighten the fuel return pipe to the specified torque

of 10

± 2 N⋅m.

11.Tighten to the specified torque of 10

± 2 N⋅m the

bolts of the fuel injection pipe No.1 to No.4.

>>B<< EGR COOLER / EGR COOLER BRACKET /
SUPPLY PUMP / FUEL SUPPLY PUMP PIPE /
FUEL SUPPLY PUMP PIPE BRACKET
INSTALLATION

CAUTION

• The reinstallation histories of the removed

fuel supply pump pipe are up to five times. To
count how many times the fuel supply pump
pipe is reinstalled, record the number of the
reinstallation histories on the service booklet
by adding this latest number of the histories,
which is usually "1", to the previous one. Use
a new fuel supply pump pipe when the total
reinstallation history numbers reach five
times, or when the supply pump or common
rail is replaced. In this case, record "a new
fuel supply pump pipe, the number of the
reinstallation histories is zero" on the service
booklet.

• If a fuel leak is present in the fuel injection

pipe and fuel injection pipe set once, do not
reuse it and replace with a new one.

• If the fuel injector assembly, common rail

assembly or supply pump assembly is
replaced, the contact surface (seal surface)
between the fuel injection pipe and fuel injec-
tion pipe set, and the other side component is
changed, do not reuse the fuel injection pipe
and fuel supply pump pipe and replace with a
new one.

• When the fuel supply pump pipe is rein-

stalled, confirm there is no foreign material on
the seal surface or in the pipe and then install
it not to deviate from the axis, fitting the seal
surface.

1. Align the fuel supply pump pipe centre axis with

the other side components (common rail
assembly and supply pump assembly) centre axis
to install the fuel supply pump pipe. Then, tighten
the flare nut temporarily until the tip of pipe (seal
surface) contacts with the other side components.
NOTE: When the fuel supply pump pipe is
installed, tighten the flare nut while shaking the
pipe lightly to align the centre axis of both compo-
nents.

2. Temporarily tighten the supply pump with bolts.
3. Temporarily tighten the fuel supply pump pipe

flare nuts.

4. Tighten to the specified torque of 35

± 5 N⋅m the

flare nuts of the fuel supply pump pipe together
with the supply pump and common rail.

COMMON RAIL AND SUPPLY PUMP

ENGINE OVERHAUL

11B-33

5. Tighten the supply pump to the specified torque of

24

± 4 N⋅m.

AK801189AC

Tightened together
with the fuel supply
pump pipe bracket

<Except Euro5>

AKB00339AB

Tightened together
with the fuel supply
pump pipe bracket

<Euro5>

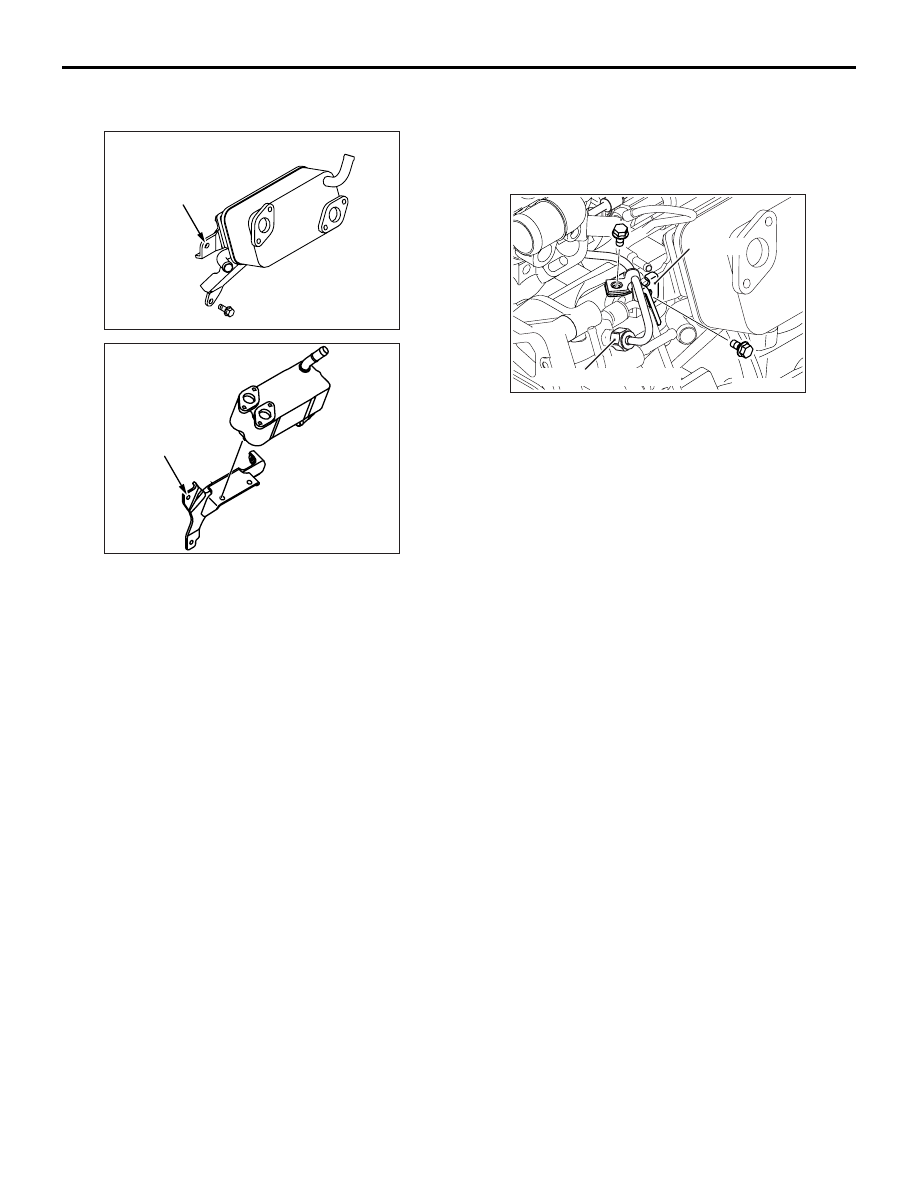

6. Tighten the EGR cooler to the specified torque of

24

± 3 N⋅m.

NOTE: The arrow position shown in the illustra-
tion is tightened together with the fuel supply
pump pipe bracket.

AK801190AB

Bracket

Fuel supply pump pipe

7. Tighten the EGR cooler bracket to the specified

torque of 24

± 3 N⋅m.

8. Tighten to the specified torque of 10

± 2 N⋅m the

installation fuel supply pump pipe bolts together
with the fuel supply pump pipe bracket.
