Air Conditioning Fundamentals

TC070-05-01S

5 – AIR CONDITIONING
COMPONENTS



26

COMPRESSOR

The compressor (Figure 10) is the refrigerant pump for the A/C system.
A drive belt and pulley connect the compressor to the engine
crankshaft, which provides the power to operate the compressor. It
draws in warm, low-pressure vapor from the evaporator, drastically
raises the pressure (and temperature) of the vapor, and then passes it
on to the condenser.















The compressor operates only with refrigerant in its gaseous state.
Liquid refrigerant in the compressor will lock it up, damaging the
compressor and other A/C components.





There are two types of compressors commonly used today.



1. Axial (Piston-Type)



2. Vane (Non-piston-Type)






























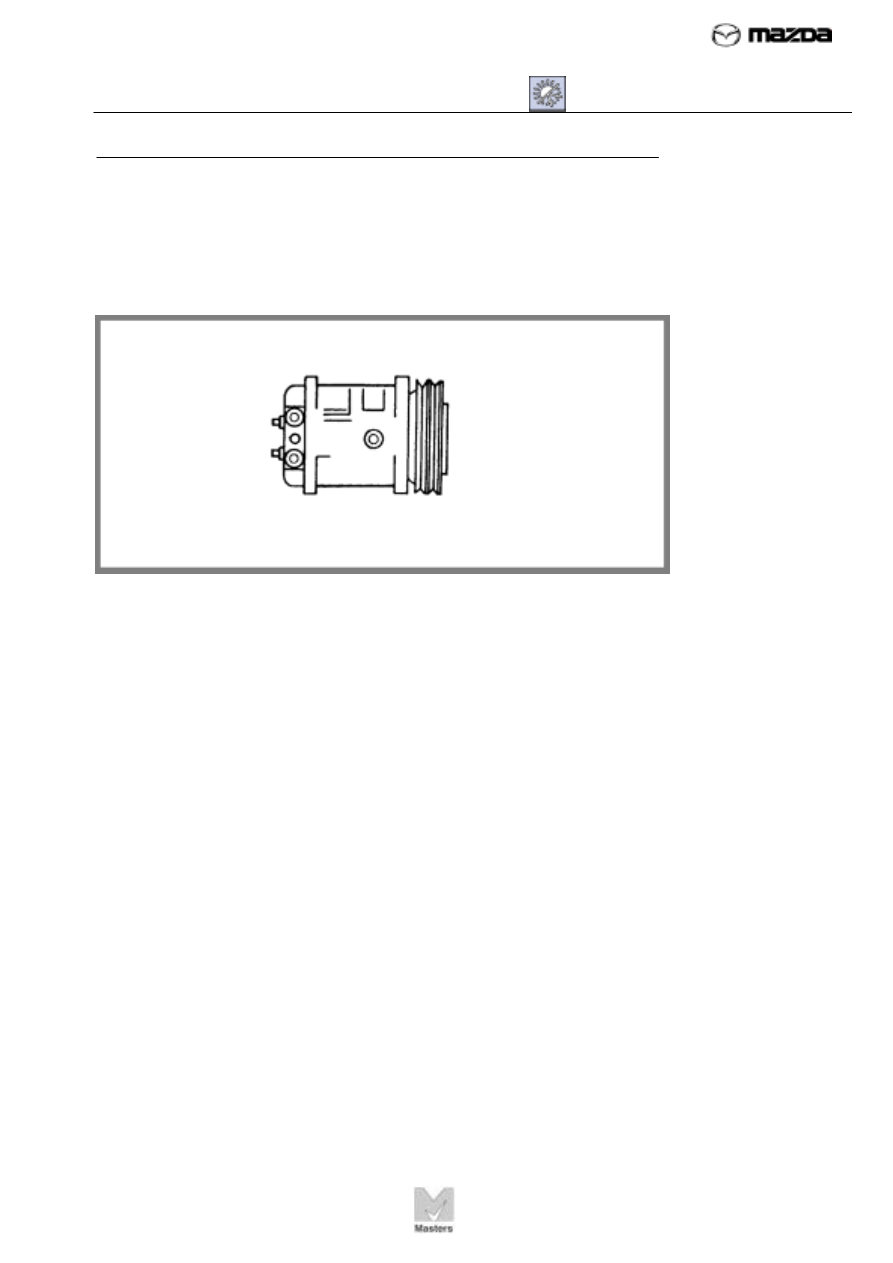

FIGURE 10. The
compressor draws in
warm, low-pressure
vapor from the
evaporator and
compresses it into a
hot, high- pressure
vapor, which moves
on to the condenser.



Air Conditioning Fundamentals

TC070-05-01S

5 – AIR CONDITIONING
COMPONENTS



27






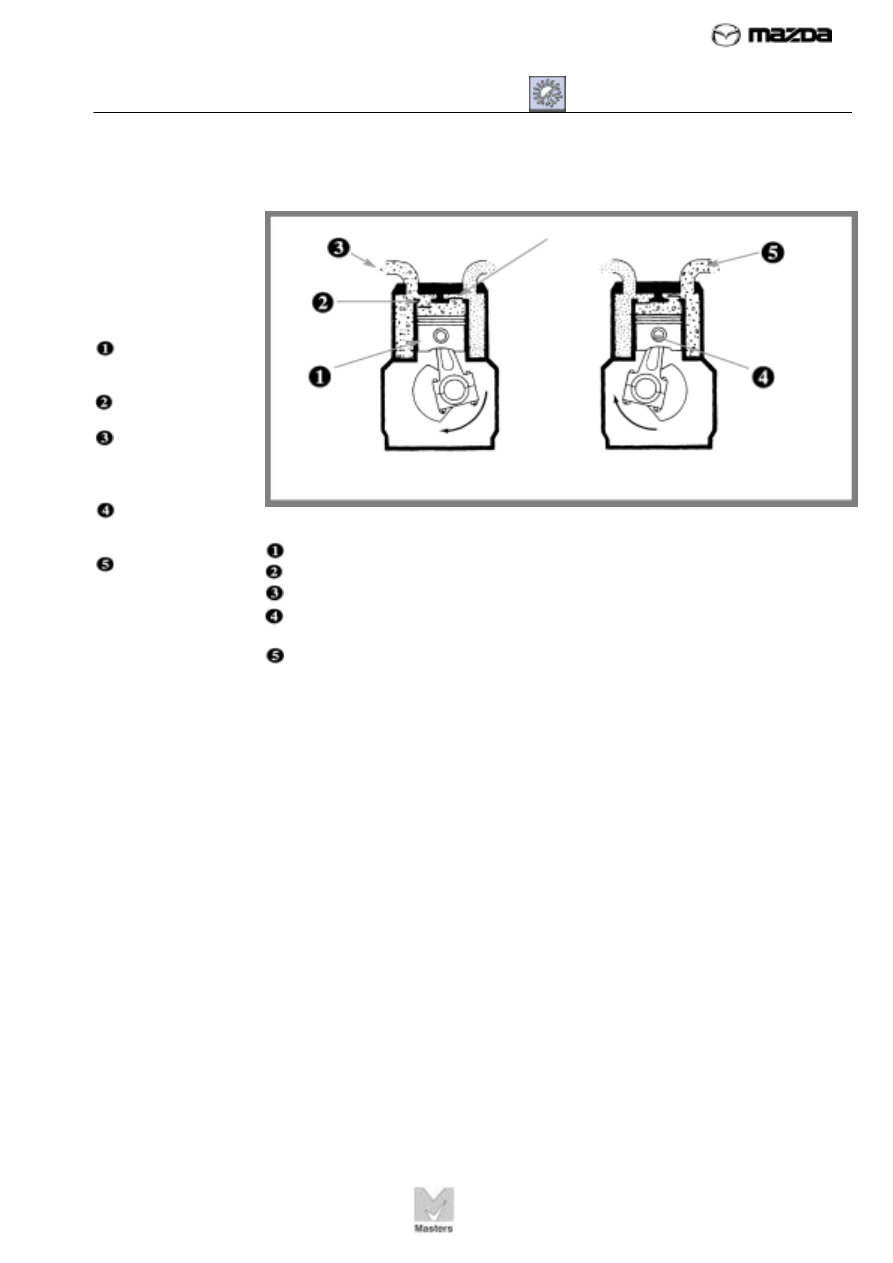

FIGURE 11. An axial
compressor draws in
low-pressure vapor,
compresses it in a
cylinder, and outputs
high-pressure vapor.


Piston on
downstroke



Inlet valve



Low-pressure

vapor (from
evaporator)



Piston on

upstroke



High-pressure
vapor (to
condensor)



Axial (Piston-Type) Compressors



Axial compressors create suction and pressure as shown in Figure 11.
















Piston movement pressurizes the refrigerant vapor as follows:



The piston moves down in the cylinder, creating suction.

  The discharge valve closes and the inlet valve opens.

  Low-pressure refrigerant vapor is drawn into the cylinder.



The piston starts to move up again. The inlet valve closes,
causing the pressure in the cylinder to rise.

  When the piston nears the top of its stroke, the discharge valve

opens. The piston forces the high-pressure vapor out of the
cylinder, into the discharge line to the condenser.






Discharge valve

Air Conditioning Fundamentals

TC070-05-01S

5 – AIR CONDITIONING
COMPONENTS



28

The cylinders on an axial compressor face toward the front and back
of the compressor, along its axis, as shown in Figure 12. The main
drive shaft has a round plate, called a swash plate, mounted to the
shaft on an angle. As the shaft turns, the outer edge of the plate
moves back and forth. This action moves the pistons back and forth
in their cylinders.
























There are two different configurations of axial compressors:



1. Double-ended piston axial compressors



2. Single-ended piston axial compressors.







Double-Ended Piston Axial Compressors



Axial compressors have double-ended pistons that straddle the
swash plate. Each piston has two opposing cylinders. As one end of
the piston moves back in one cylinder, the other end of the piston
moves forward in the opposing cylinder.
















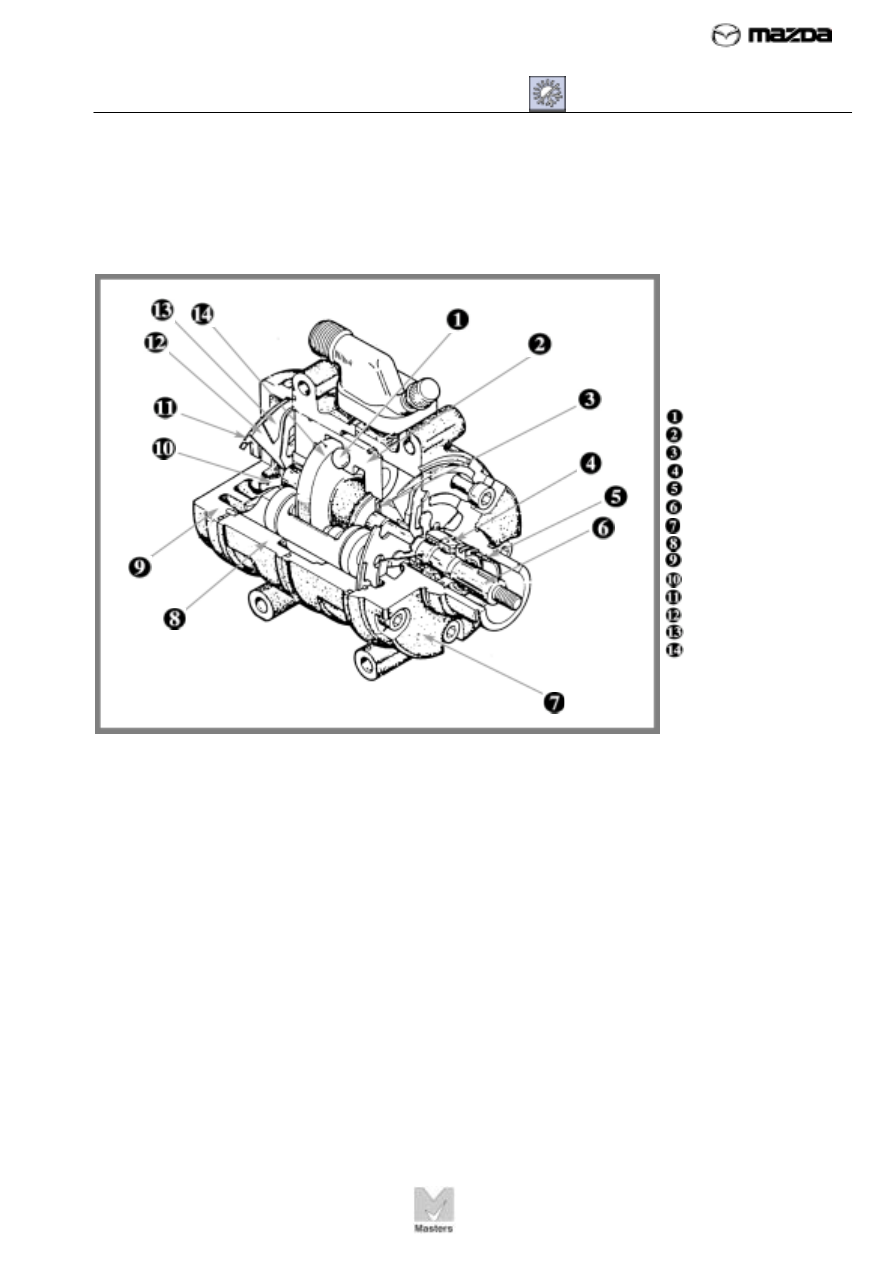

FIGURE 12.
Double-ended piston
axial compressors
have pistons that
straddle the swash
plate.


Hemisphere shoe

Piston

Thrust bearing

Shaft seal
Felt

Shaft

Front housing

Cylinder

Rear housing

Discharge valve

Steel gasket

Valve plate
Suction valve
Swash plate



Air Conditioning Fundamentals

TC070-05-01S

5 – AIR CONDITIONING
COMPONENTS



29









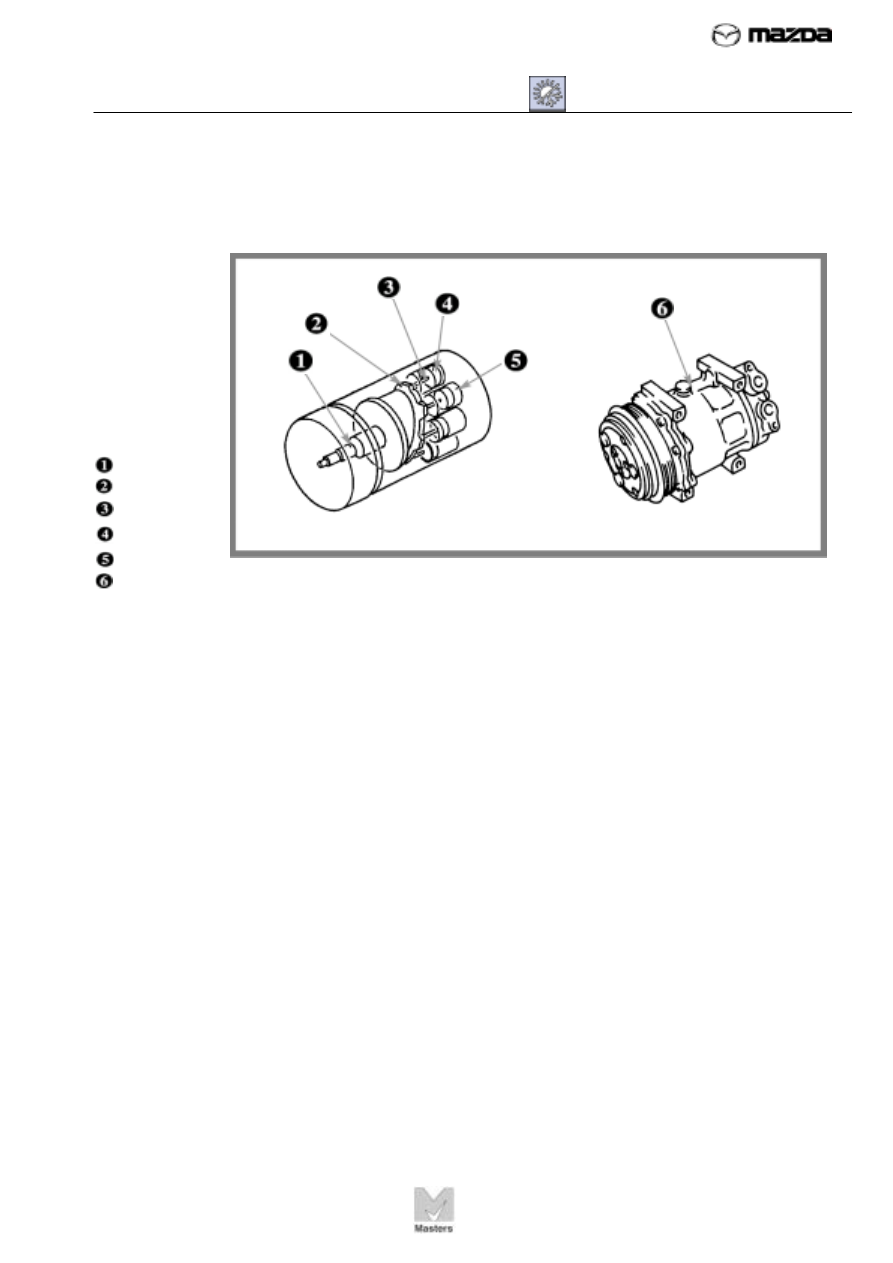

FIGURE 13.
Single-ended
piston axial
compressors
have all pistons
and cylinders
mounted
side-by-side in
the compressor,
facing the same
direction.



Shaft

Swash plate



Rod



Piston



Cylinder



Drain Plug





Single-Ended Piston Axial Compressors

Single-ended piston axial compressors have all their pistons and cylinders
mounted side-by-side in the compressor, facing the same direction, as
shown in Figure 13.



















Just as with the double-ended piston axial compressor, the pistons travel
along the outer edge of the swash plate, connected to a similar plate by
connecting rods and ball-sockets. As the swash plate turns, it moves the
adjoining plate, which moves pistons back and forth in the cylinders.







Vane (Non-Piston-Type) Compressors



The vane-type compressor (see Figure 14) operates in a similar way to air
pumps, power steering pumps, and other impeller-style pumps. The vanes
in some compressors are driven outward by centrifugal force as well as the
pressure behind the back of the vane.


The benefit of the vane-type compressor is that there is no efficiency loss
from reciprocating pistons. The compressor provides low-friction operation
by having vanes and a rotor in an elliptical housing. The vanes compress
the refrigerant vapor into a smaller area and push it through spring-loaded
discharge reed valves.
