05 – Reading and Printing Freeze Frame Data (FFD)










Activity 05- Page 7

Activity 05
(Continued)


Print Freeze Frame Data

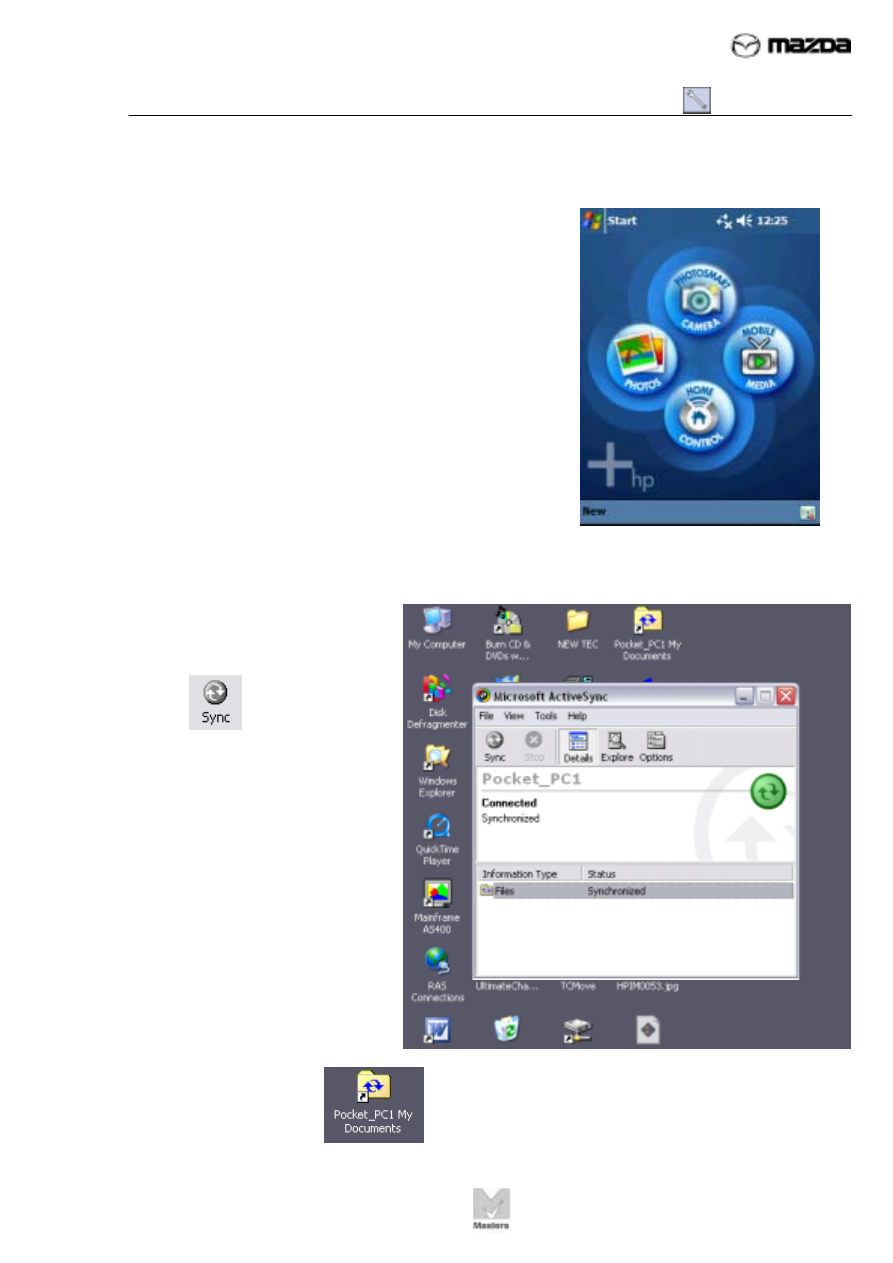

20.  Place the PDA in the cradle attached to the

same PC that you previously used.













21.  The Microsoft ActiveSync pop-up window will display on the PC’s desktop. This

window indicates the PDA and PC are communicating.




If all files do not
synchronize click on the

 Sync icon as

needed until the pop-up
window displays
“Synchronized” under
Connected on the top
half of the window.






22. Click

the

X

 in the upper

right corner to close the
pop-up window.










23.  Double-click the                       Pocket_PC [number] My Documents folder.



TC001-18-01H

INTRODUCTION TO M-MDS
05 – Reading and Printing Freeze Frame Data (FFD)










Activity 05- Page 8

Activity 05
(Continued)

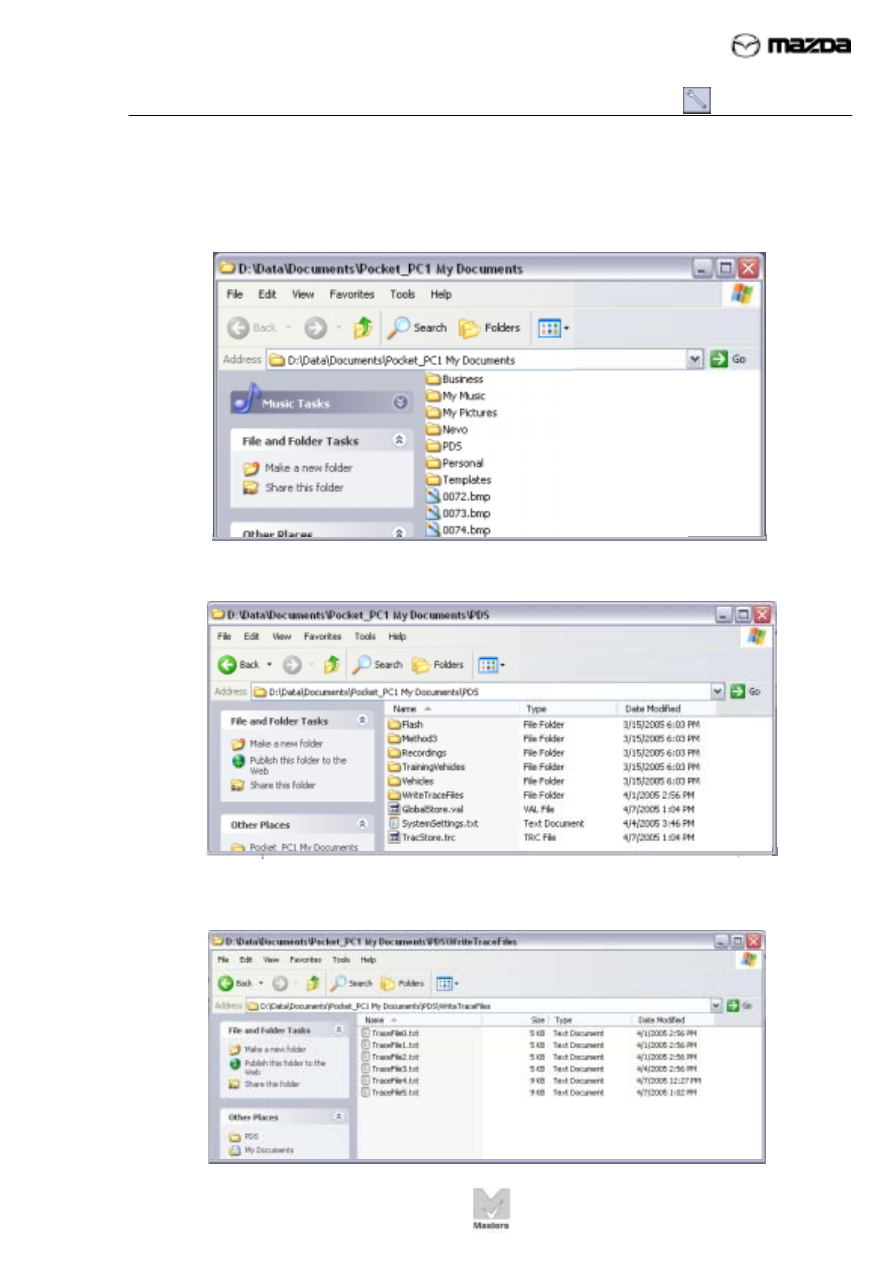

24. Double-click

the

PDS folder.



















25. Double-click

the

WriteTraceFiles folder.

















26. Double-click

the

Trace File [number].txt file you wrote down in step 15 on

page 5.














TC001-18-01H

INTRODUCTION TO M-MDS
05 – Reading and Printing Freeze Frame Data (FFD)










Activity 05- Page 9

Activity 05
(Continued)

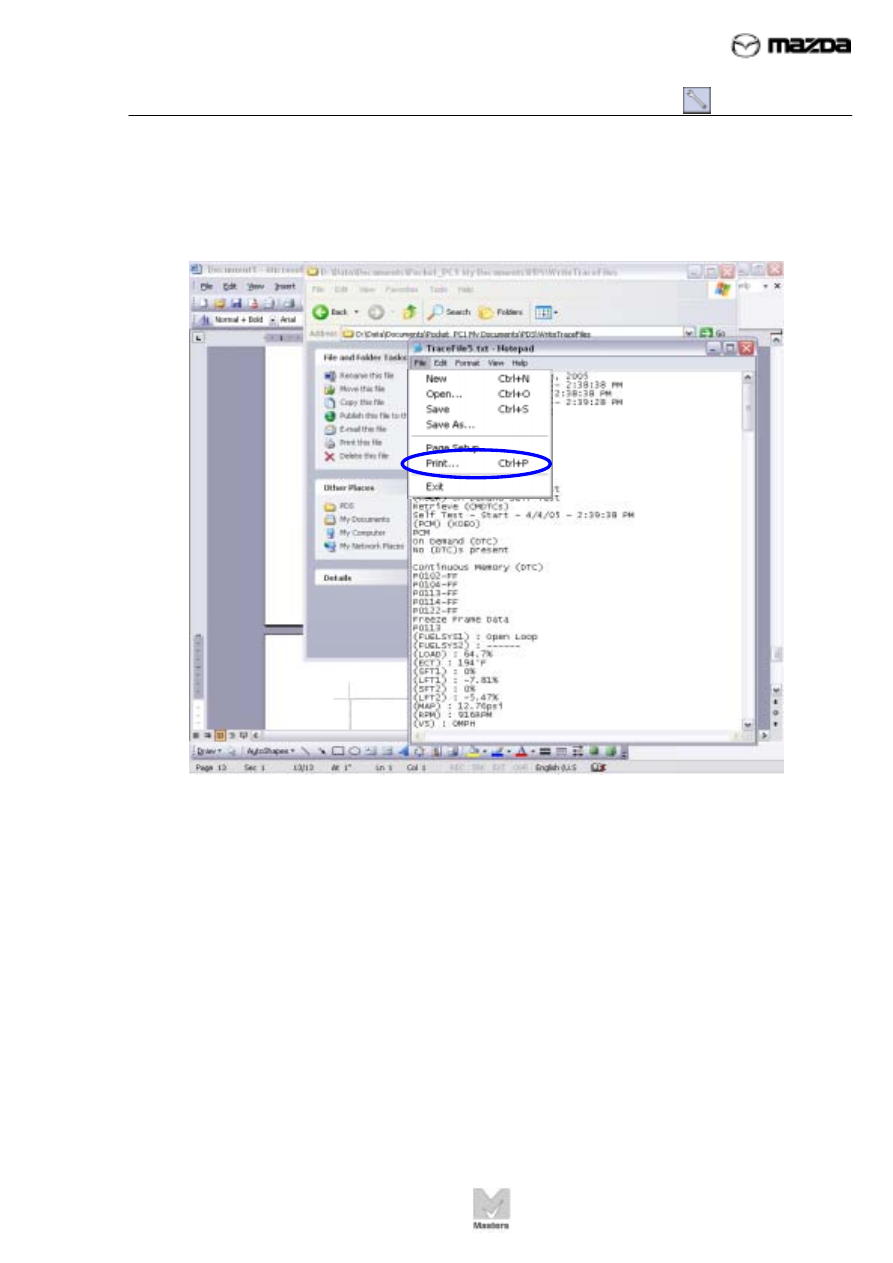

27.  Click on the File menu in the TraceFile pop-up window, then click Print.










































TC001-18-01H

INTRODUCTION TO M-MDS
05 – Reading and Printing Freeze Frame Data (FFD)










Activity 05- Page 10

Activity 05
(Continued)

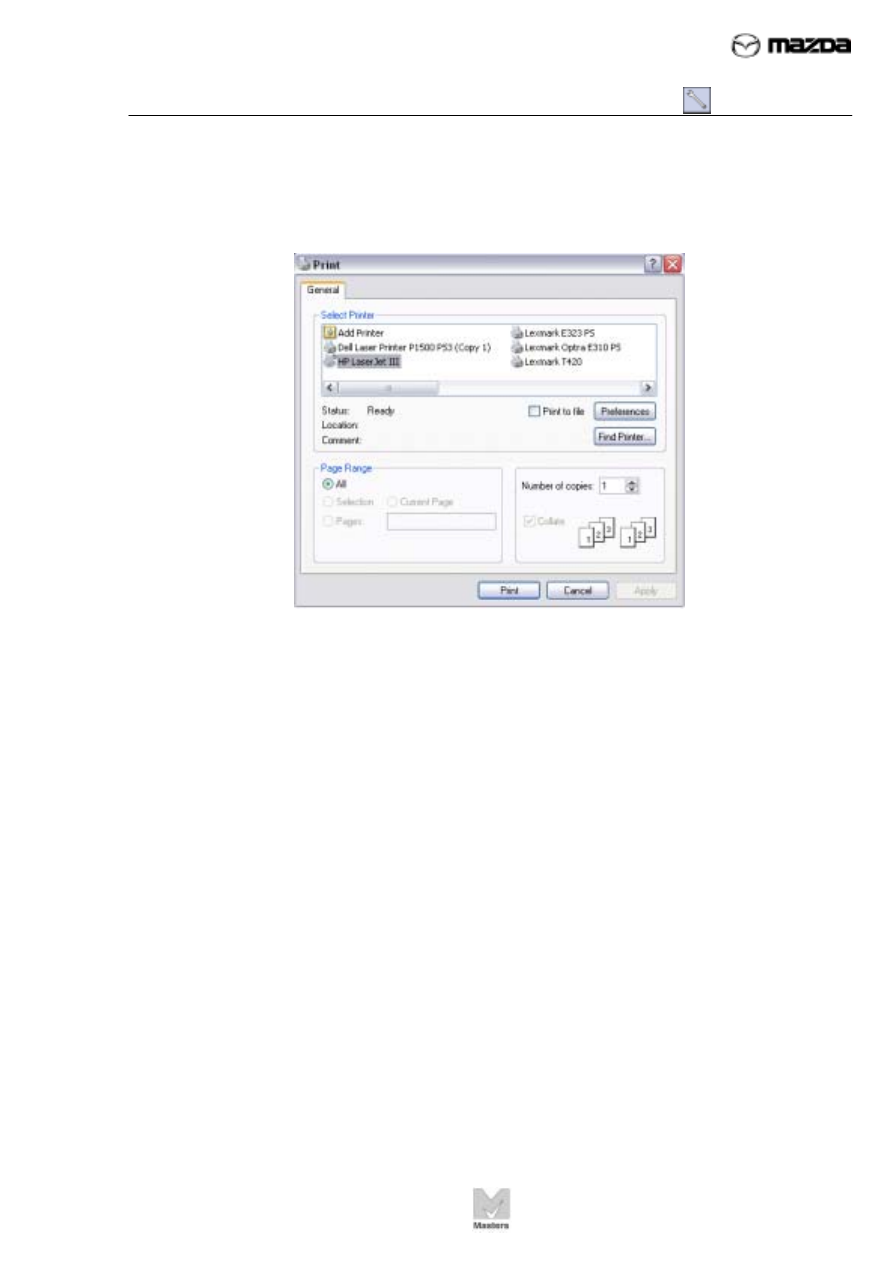

28.  When the Print window displays, click Print to print the FFD.



















The FFD is now printed. Bring this activity and the printed FFD page to your
instructor to sign off this activity.


Conclusion:

In this activity, you used M-MDS to read and print FFDs.
