Closer motor

1. Apply battery positive voltage and connect ground to the corresponding closer motor terminals, and

inspect the closer motor operation.

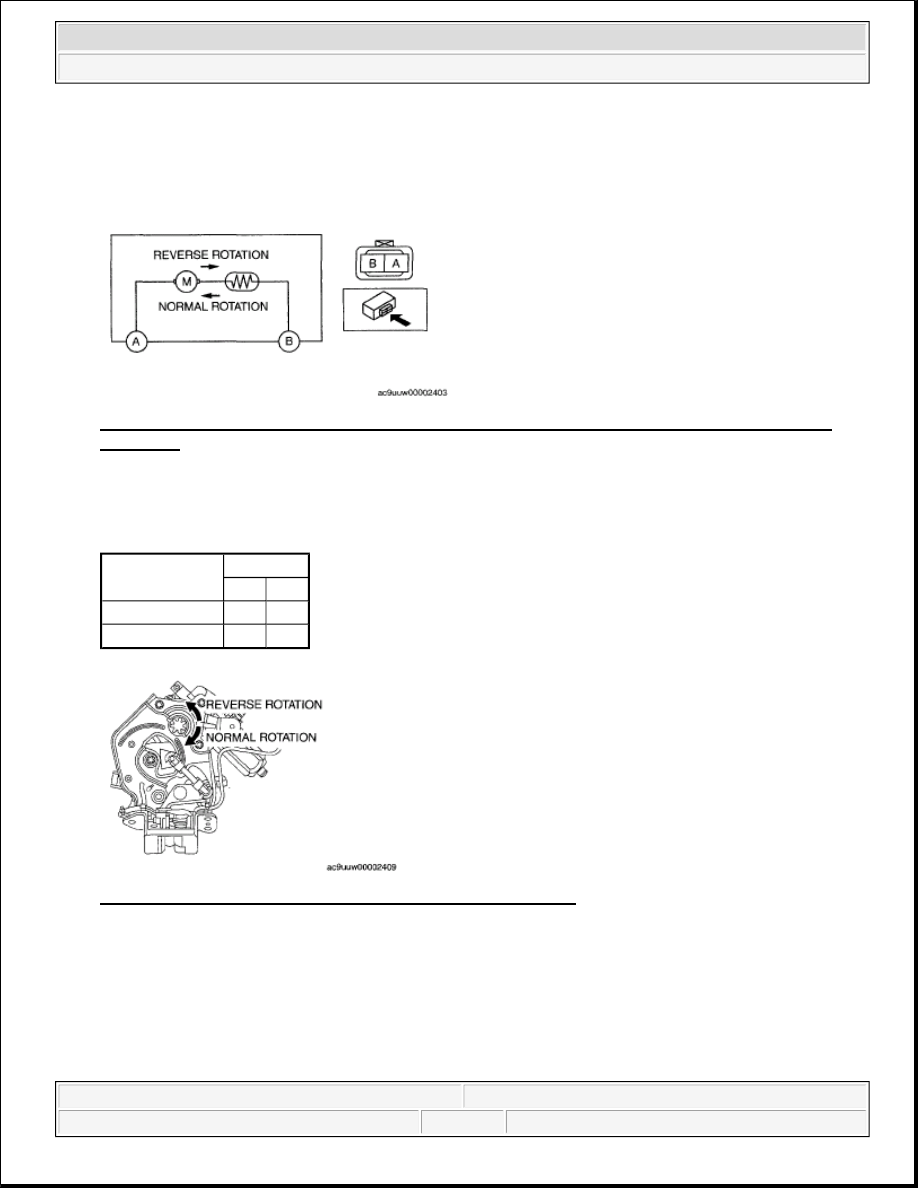

Fig. 41: Applying Battery Positive Voltage & Connect Ground To Corresponding Closer Motor
Terminals
Courtesy of MAZDA MOTORS CORP.



If not as indicated in the table, replace the liftgate latch and lock actuator.

LIFTGATE LATCH AND LOCK ACTUATOR REFERENCE

Fig. 42: Identifying Closer Motor Reverse & Normal Rotation
Courtesy of MAZDA MOTORS CORP.

VEHICLES WITHOUT PLG

Liftgate latch switch

1. When inspecting the latch, press the latch lever using a flathead screwdriver or a similar tool.

Operation

Terminal

A

B

Normal rotation GND B+

Reverse rotation B+ GND



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 23

© 2005 Mitchell Repair Information Company, LLC.

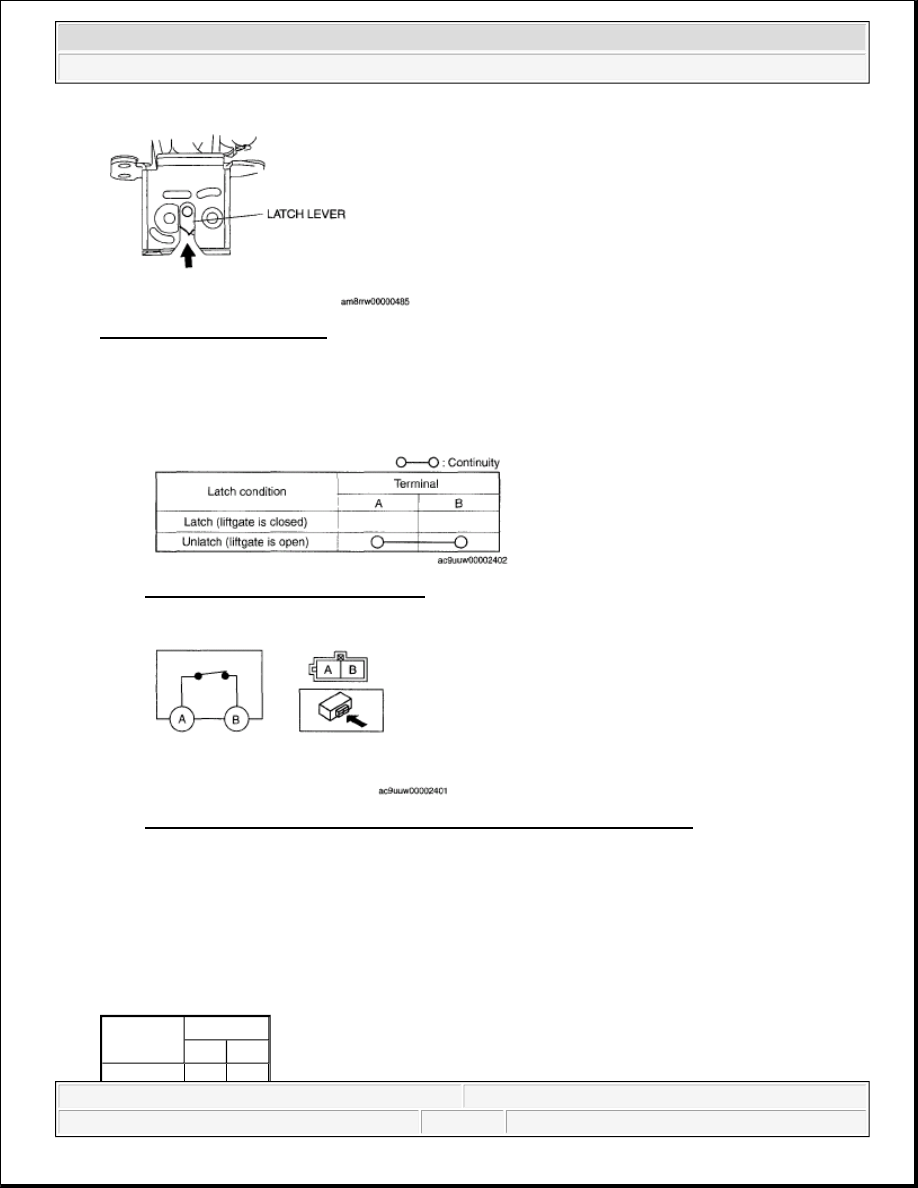

Fig. 43: Pressing Latch Lever
Courtesy of MAZDA MOTORS CORP.

2. Verify that the continuity is as indicated in the table.



If not as indicated in the table, replace the liftgate latch and lock actuator.

Fig. 44: Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 45: Checking Continuity Between Liftgate Latch Switch Terminals
Courtesy of MAZDA MOTORS CORP.

Liftgate lock actuator

1. Apply battery positive voltage and connect ground to the corresponding liftgate lock actuator terminals,

and inspect the liftgate lock actuator operation.



If not as specified, replace the liftgate latch and lock actuator.

LIFTGATE LATCH AND LOCK ACTUATOR REFERENCE

Operation

Terminal

A

B



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 24

© 2005 Mitchell Repair Information Company, LLC.

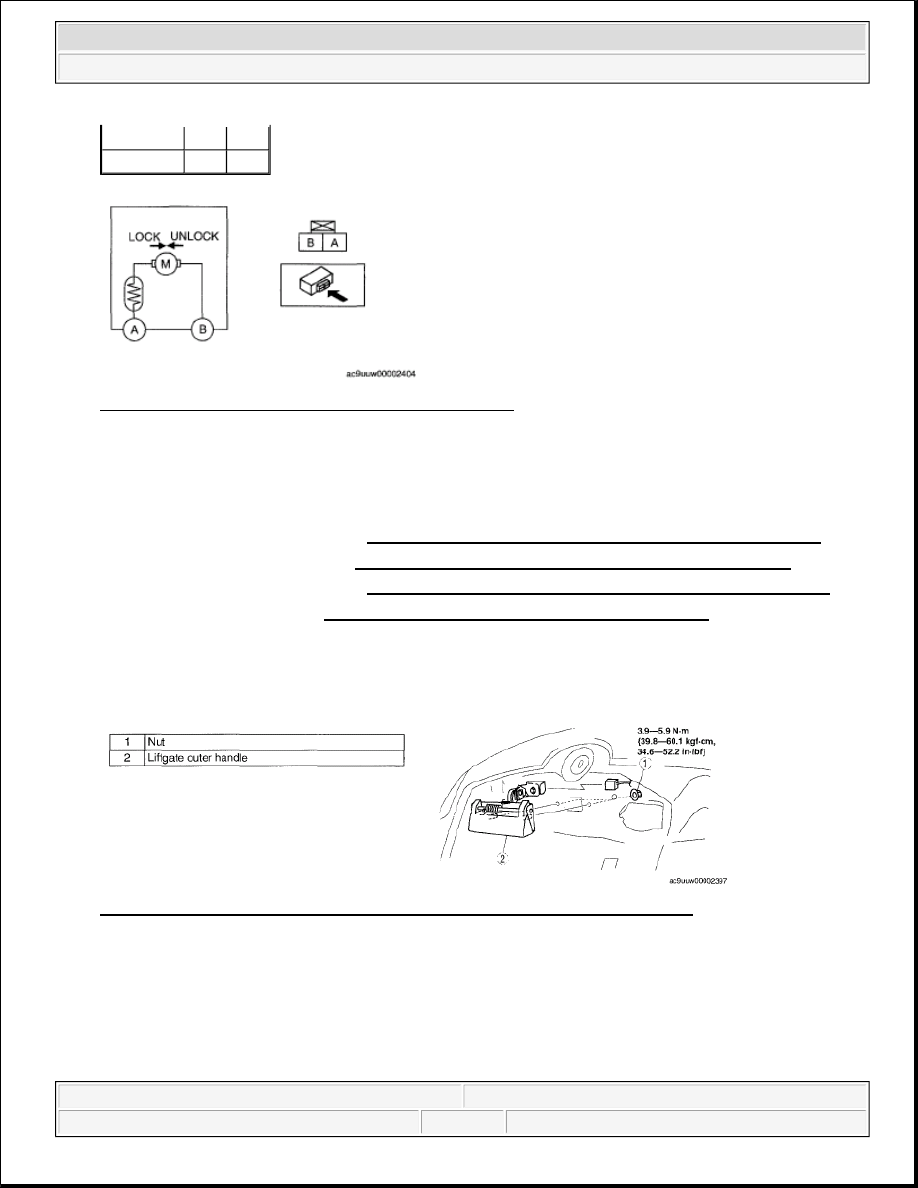

Fig. 46: Identifying Liftgate Lock Actuator Terminals
Courtesy of MAZDA MOTORS CORP.

LIFTGATE OUTER HANDLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)

3. Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)

4. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)

5. Remove the rear finisher. (See REAR FINISHER REMOVAL/INSTALLATION .)

6. Disconnect the liftgate outer handle switch connector. (Vehicles with power liftgate system)

7. Disconnect the cable. (Vehicles without power liftgate system)

8. Remove in the order indicated in the table.

Fig. 47: Identifying Liftgate Outer Handle With Nut & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

9. Install in the reverse order of removal.

LIFTGATE OUTER HANDLE SWITCH INSPECTION

1. Verify that the continuity between the liftgate outer handle switch terminals is as indicated in the table.

Lock

B+ GND

Unlock

GND B+



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 25

© 2005 Mitchell Repair Information Company, LLC.



If not as indicated in the table, replace the liftgate outer handle. (See LIFTGATE OUTER
HANDLE REMOVAL/INSTALLATION.)

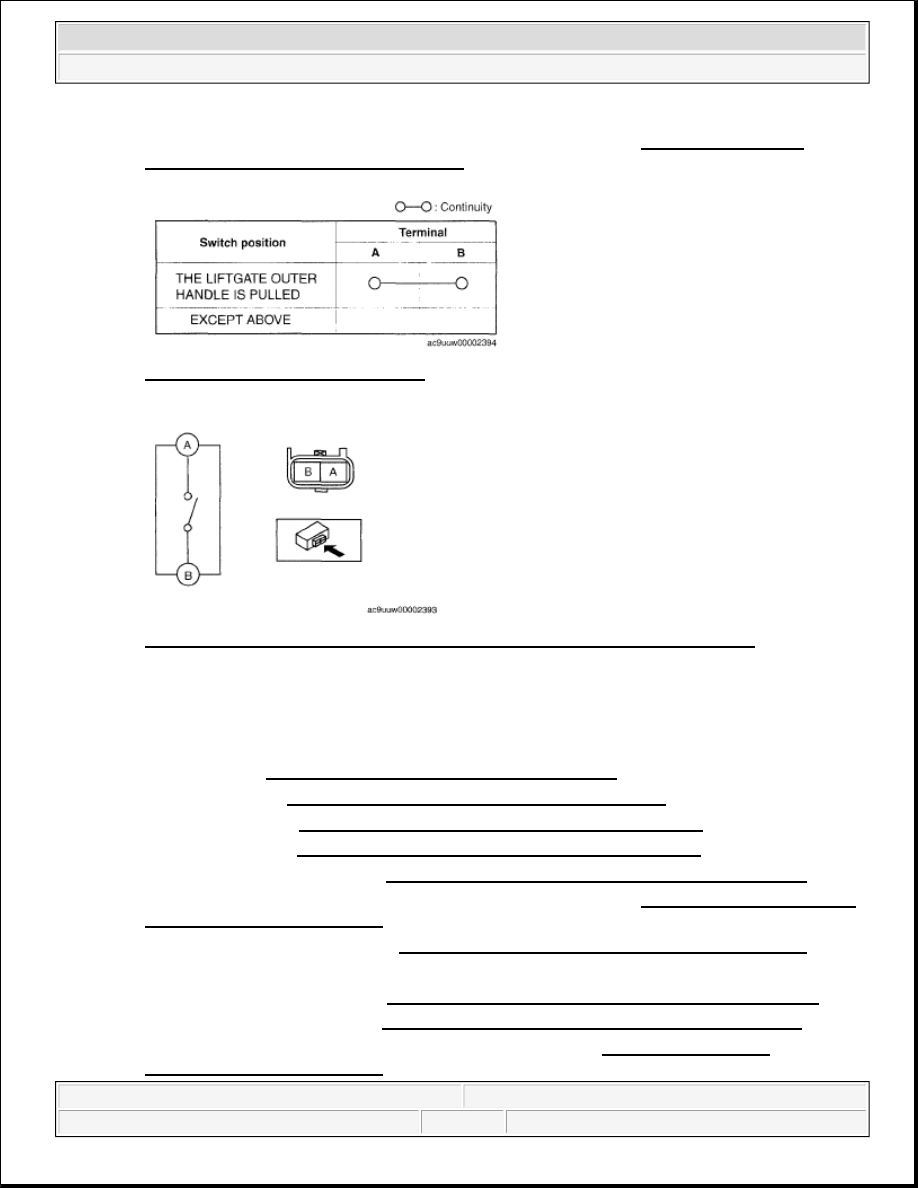

Fig. 48: Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 49: Checking Continuity Between Liftgate Outer Handle Switch Terminals
Courtesy of MAZDA MOTORS CORP.

FUEL-FILLER LID OPENER REMOVAL/INSTALLATION

1. When removing the fuel-filler lid opener, perform the following procedure:

1. Trunk box. (See TRUNK BOX REMOVAL/INSTALLATION .)

2. Seat side box. (See SEAT SIDE BOX REMOVAL/INSTALLATION .)

3. Trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)

4. Third-row seat. (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

5. Rear scuff plate inner. (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)

6. Third-row seat belt lower anchor installation bolt. (Driver side) (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

7. Trunk side trim. (Driver side) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

2. When removing the fuel-filler lid opener cable, perform the following procedure:

1. Front scuff plate inner (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)

2. Rear scuff plate inner (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)

3. Front seat belt lower anchor installation bolt (Driver side) (See FRONT SEAT BELT

REMOVAL/INSTALLATION .)
