Mazda CX-9 Grand Touring. Manual - part 293

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED



Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the

repair order, then go to the next step.

2

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY



Verify related Service Bulletins and/or on-
line repair information availability.



Is any related Service Bulletins available?

Yes

Perform repair or diagnosis according to the
available Service Bulletins.



If the vehicle is not repaired, go to the
next step.

No

Go to the next step.

3

INSPECT ALL OTHER PATS DTCs



Repair all other PATS DTCs before
P0689. (See IMMOBILIZER SYSTEM
COMPONENT REPLACEMENT/KEY
ADDITION AND CLEARING
[ADVANCED KEYLESS SYSTEM] .)

(See IMMOBILIZER SYSTEM
COMPONENT REPLACEMENT/KEY
ADDITION AND CLEARING
[KEYLESS ENTRY SYSTEM] .)



Have all other PATS DTCs been
diagnosed?

Yes Go to the next step.

No

(See IMMOBILIZER SYSTEM

COMPONENT REPLACEMENT/KEY

ADDITION AND CLEARING

[ADVANCED KEYLESS SYSTEM] .)

(See IMMOBILIZER SYSTEM

COMPONENT REPLACEMENT/KEY

ADDITION AND CLEARING

[KEYLESS ENTRY SYSTEM] .)

4

INSPECT PCM CONNECTOR FOR POOR
CONNECTION



Turn the ignition switch off.



Disconnect the PCM connector.



Inspect for poor connection (such as
damaged, pulled-out pins, corrosion).



Is there any malfunction?

Yes

Repair or replace suspected part, then go to
Step 7.

No

Go to the next step.

5

INSPECT BATTERY POSITIVE CIRCUIT
FOR OPEN CIRCUIT



Turn the ignition switch to the ON
position (Engine off).



Measure the voltage between PCM
terminal 1BD (wiring harness-side) and
body ground.



Is the voltage B+ ?

Yes Go to the next step.

No

Repair or replace suspected part, then go to

Step 7.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:40 AM

Page 305

© 2005 Mitchell Repair Information Company, LLC.

DTC P0690 [MZI-3.7]

DTC P0690 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

6

INSPECT FOR CORRECT PCM
OPERATION



Disconnect all the PCM connectors.



Visually inspect for:



Pushed out pins



Corrosion



Connect all the PCM connectors and
verify that they seat correctly.



Retrieve DTCs using the M-MDS.



Is the PENDING CODE for this DTC
present?

Yes Go to the next step.

No The system is correctly. Go to the next step.

7

VERIFY TROUBLESHOOTING OF DTC
P0689 HAS BEEN COMPLETED



Verify that all disconnected connectors
reconnected.



Clear the DTC from the PCM memory
using the M-MDS.



Perform the "KOEO or KOER self-test"
using the M-MDS. (See KOEO/KOER
SELF TEST [MZI-3.7].)



Is the PENDING CODE for the DTC
present?

Yes

Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION
[MZI-3.7] .)

No

Go to the next step.

8

VERIFY AFTER REPAIR PROCEDURE



Perform the "AFTER REPAIR
PROCEDURE". (See AFTER REPAIR
PROCEDURE [MZI-3.7].)



Are any DTCs present?

Yes

Go to the applicable DTC inspection. (See
DTC TABLE [MZI-3.7].)

No

Troubleshooting completed.

DTC P0690

ECM/PCM power relay sense circuit high

DETECTION

CONDITION



This DTC sets when the passive anti theft system (PATS) system indicates the key
is in the OFF, ACC, or LOCK position and the ignition switch position run circuit
indicates ON or START position.

POSSIBLE

CAUSE



Short to power supply between battery positive terminal and PCM terminal 1BD



PATS system malfunction



Ignition switch malfunction



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:40 AM

Page 306

© 2005 Mitchell Repair Information Company, LLC.

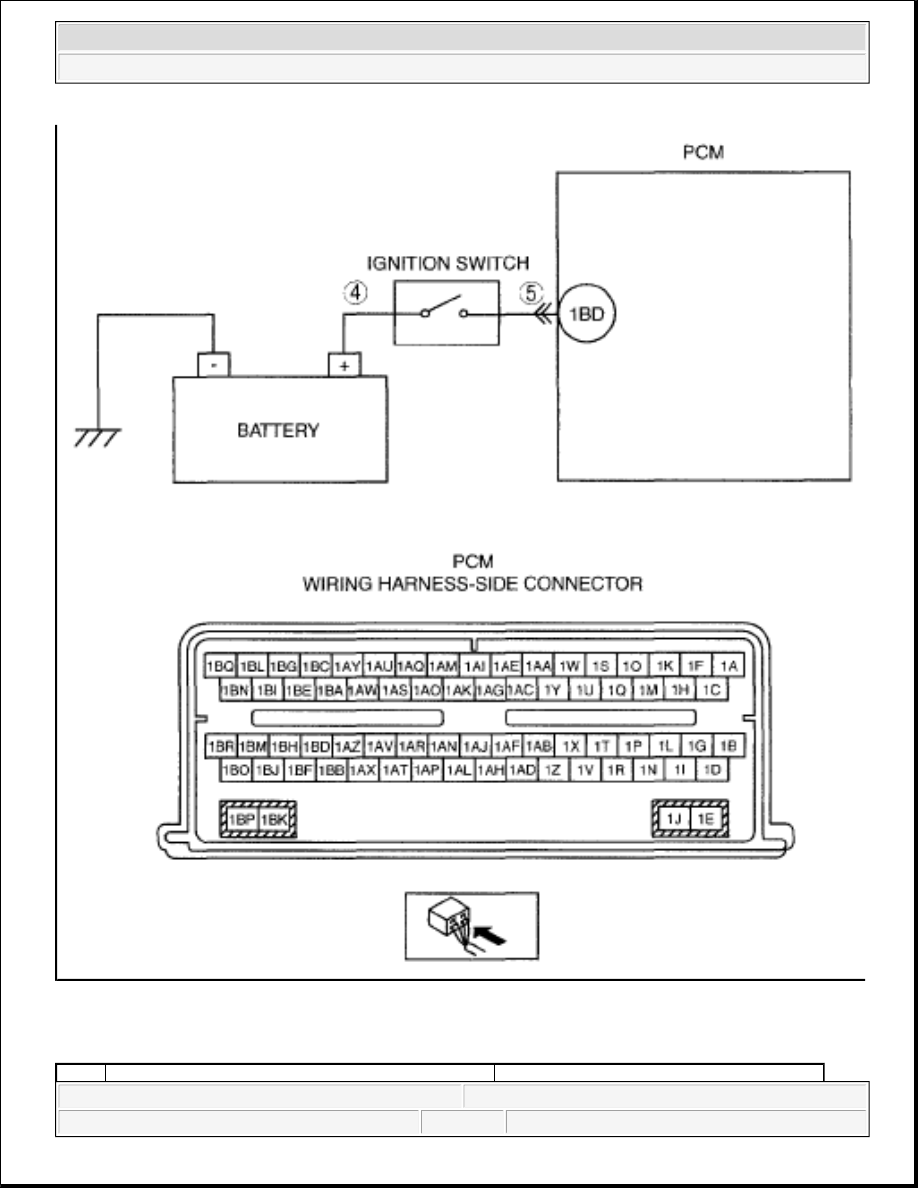

DIAGNOSTIC PROCEDURE
