Mazda CX-9 Grand Touring. Manual - part 151

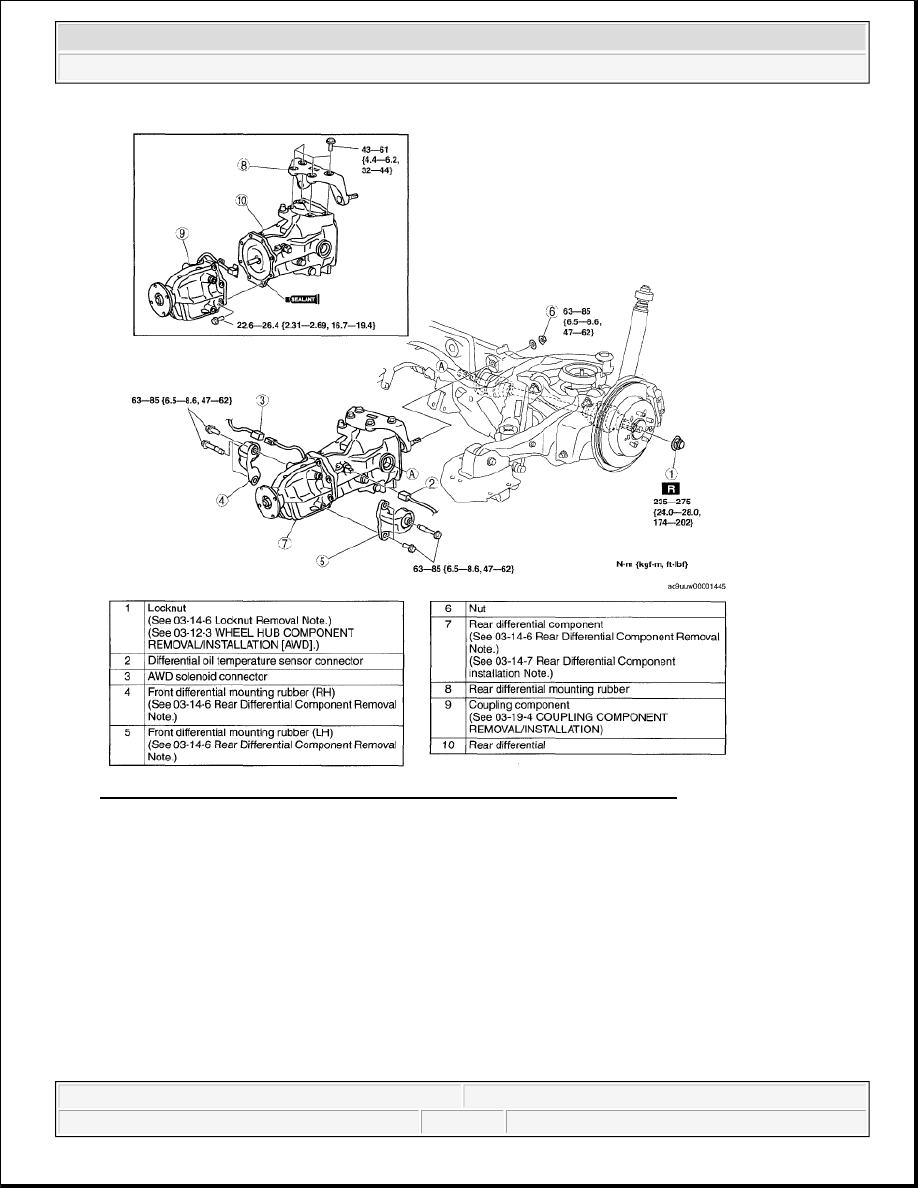

Fig. 12: Identifying Rear Differential Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

LOCKNUT REMOVAL NOTE

1. Lock the hub by applying the brakes.

2. Knock the crimped portion of the locknut outward using a small chisel and a hammer.

3. Loosen the locknut.

4. Temporarily tighten the locknut.

CAUTION:



Do not remove the locknut when lowering the rear differential.
Otherwise, the rear drive shaft could fall and cause injury, or
damage the part.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Differential - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:52:15 AM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

REAR DIFFERENTIAL COMPONENT REMOVAL NOTE

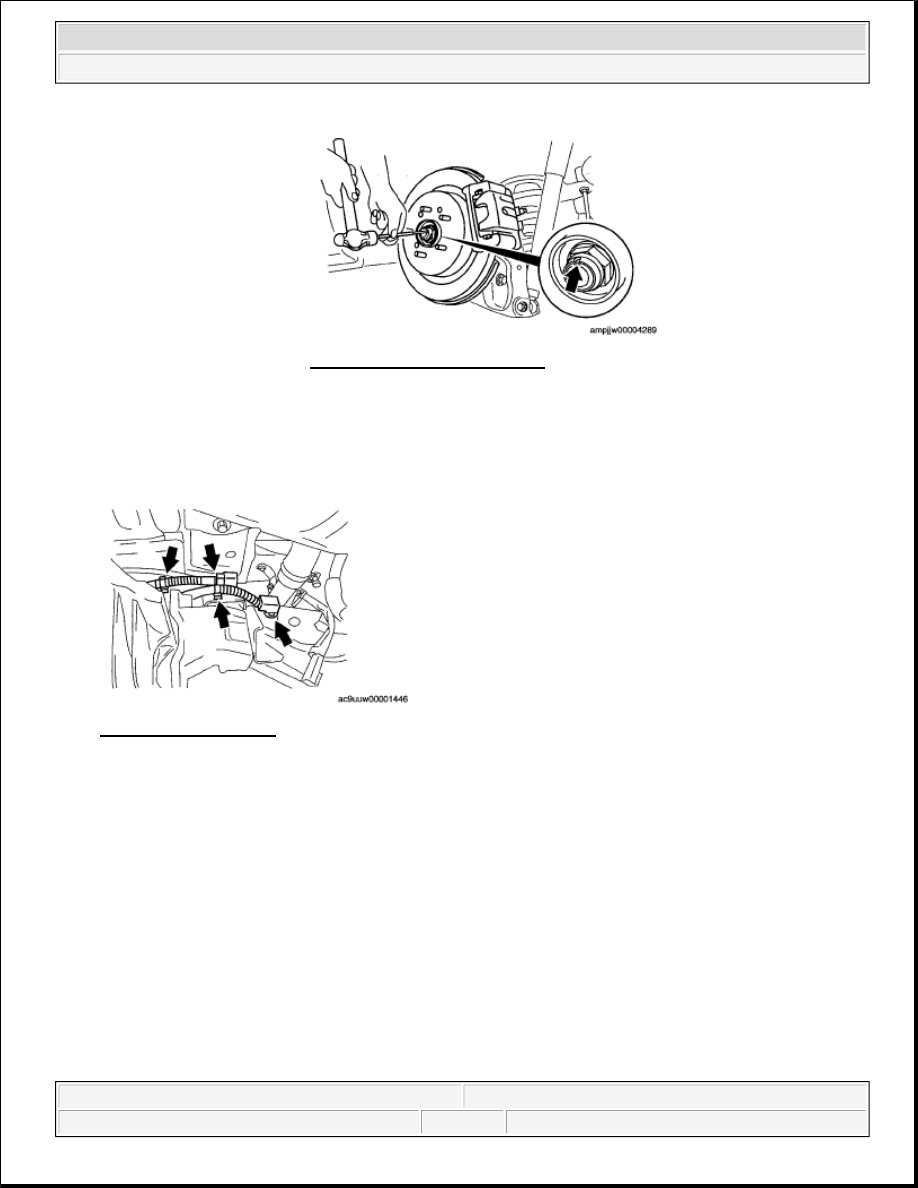

1. Detach clips as shown in the figure.

Fig. 14: Locating Clips
Courtesy of MAZDA MOTORS CORP.

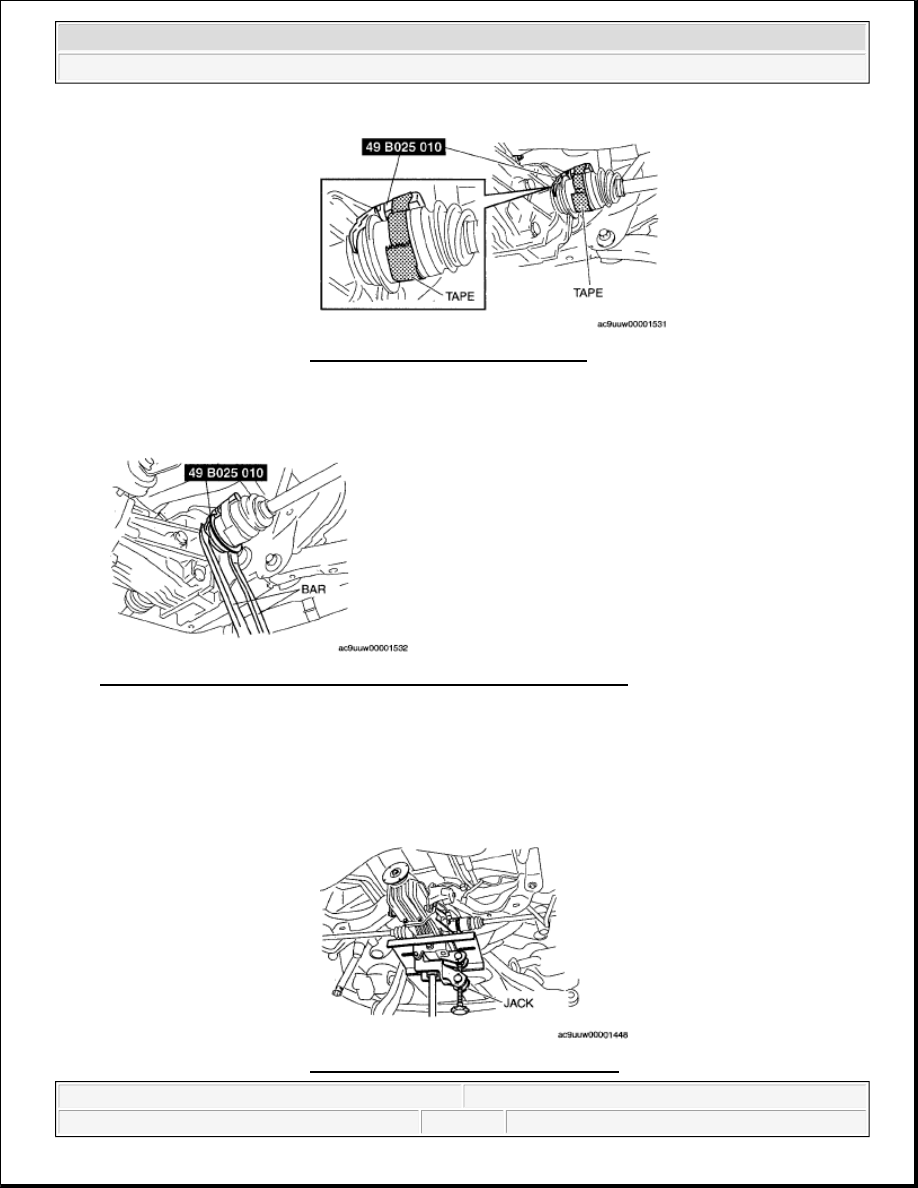

2. Position the SST on the driveshaft and secure the SST with tape as shown in the figure.

Fig. 13: Loosening Locknut
Courtesy of MAZDA MOTORS CORP.

CAUTION:



Always secure the SST using tape because the SST may fall off
during the operation and cause injury.



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Differential - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:52:15 AM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

3. Disconnect the rear drive shaft from the rear differential side using the SST and two bars.

Fig. 16: Disconnecting Rear Drive Shaft From Rear Differential Side
Courtesy of MAZDA MOTORS CORP.

4. Support the rear differential using a jack.

Fig. 15: Securing SST With Tape
Courtesy of MAZDA MOTORS CORP.

CAUTION:



When lowering the rear differential, be careful not to damage the
rear differential oil seal, rear drive shaft, and surrounding parts.

Fig. 17: Supporting Rear Differential



2008 Mazda CX-9 Grand Touring

2008 DRIVELINE/AXLES Differential - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:52:15 AM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

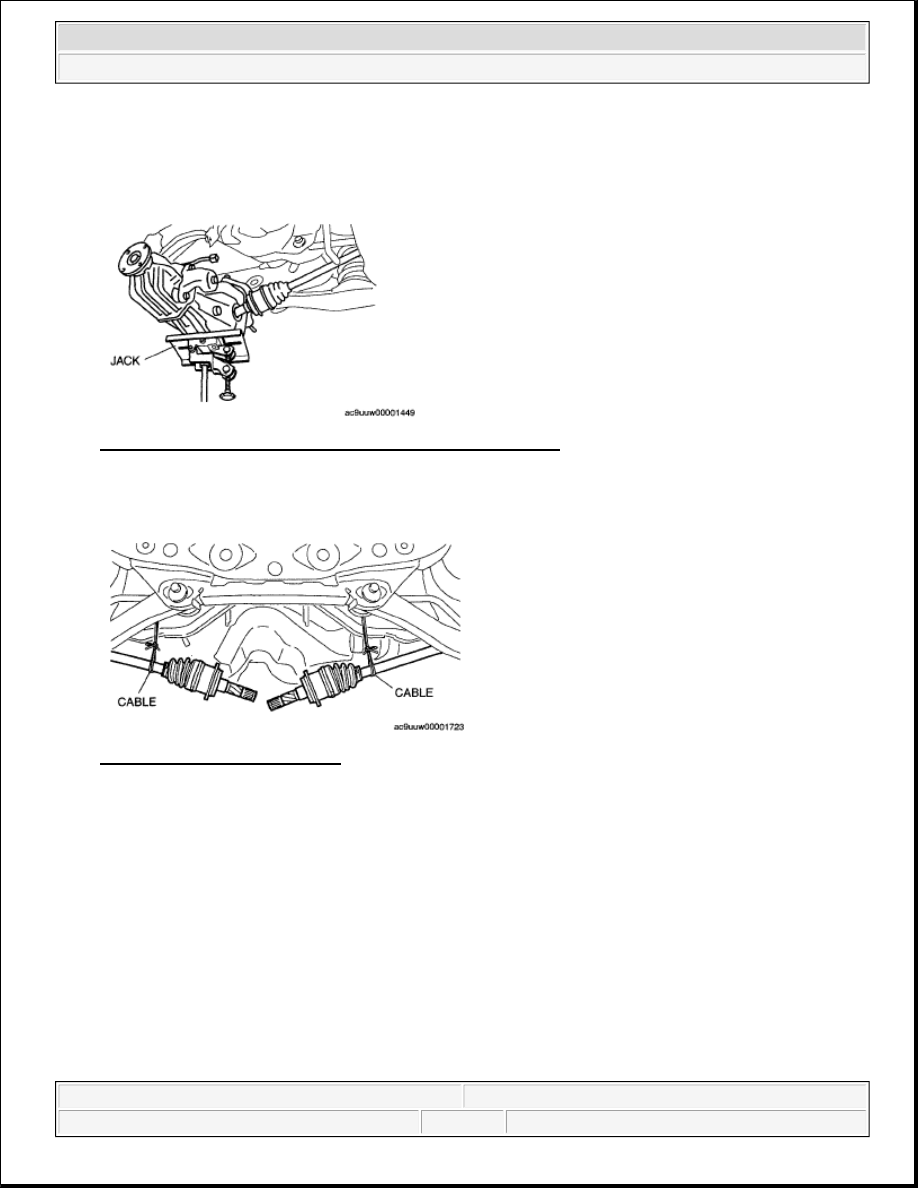

5. Remove the rear drive shaft from the rear differential while lowering the rear differential gradually.

Fig. 18: Removing Rear Drive Shaft From Rear Differential
Courtesy of MAZDA MOTORS CORP.

6. Suspend the drive shaft using a cable.

Fig. 19: Identifying Drive Shaft
Courtesy of MAZDA MOTORS CORP.

REAR DIFFERENTIAL COMPONENT INSTALLATION NOTE

1. Install the rear drive shaft to the rear differential while raising the rear differential gradually.

2. Jack up the rear drive shaft until it is horizontal and engage the rear drive shaft (differential side) and rear

differential by tapping the wheel side.

Courtesy of MAZDA MOTORS CORP.

CAUTION:



When raising the rear differential, be careful not to damage the rear
differential oil seal, rear drive shaft, and surrounding parts.
