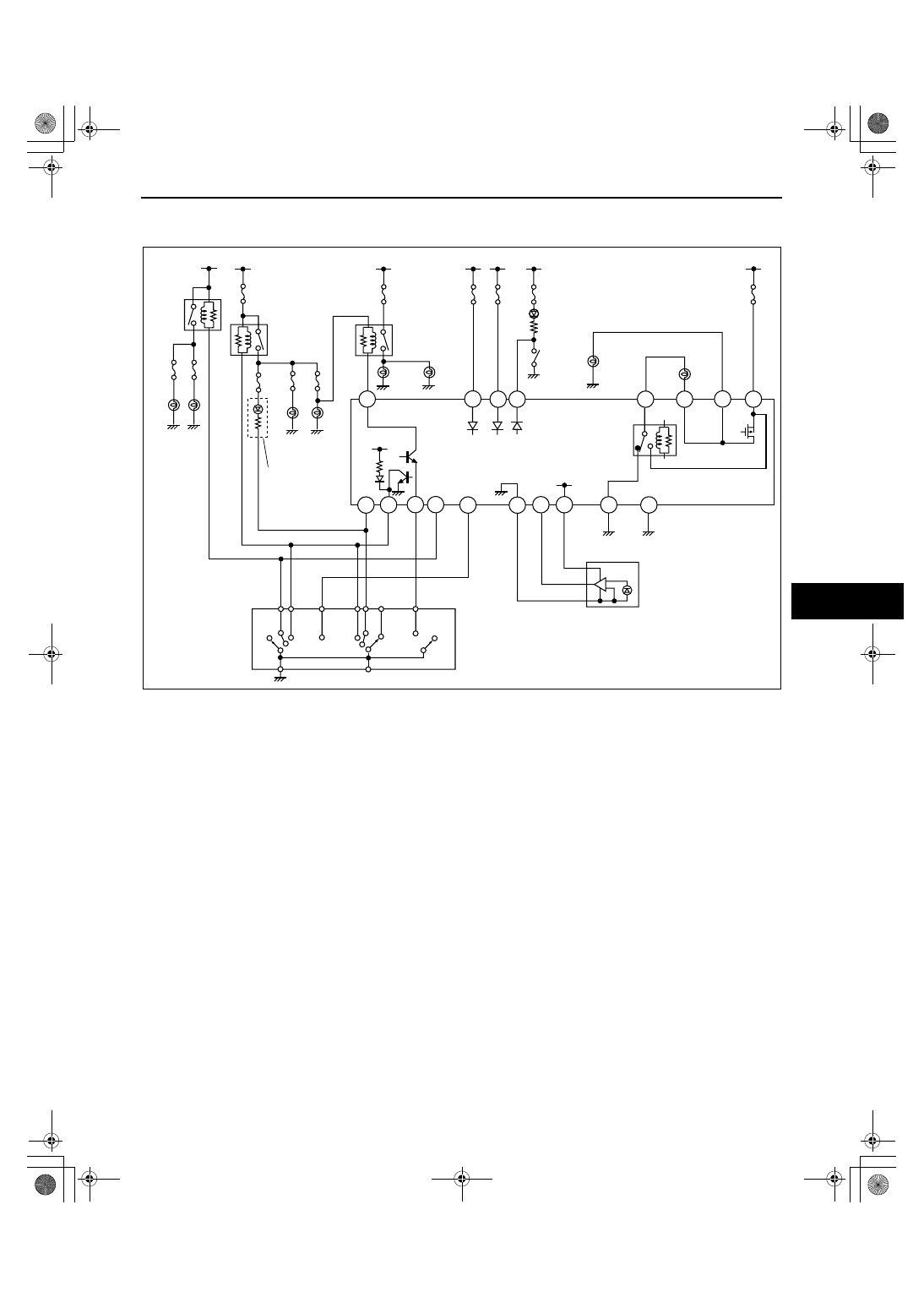

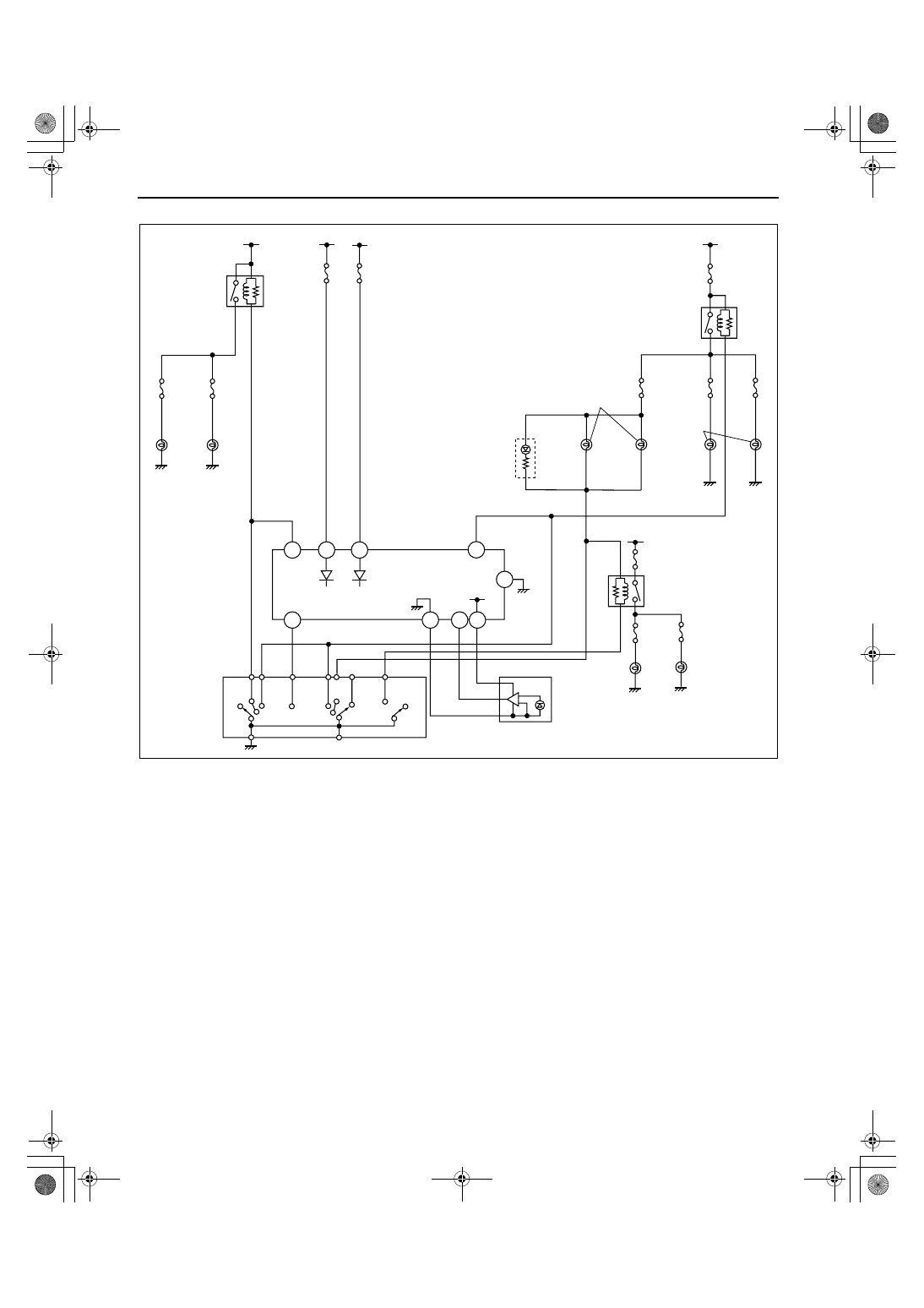

LIGHTING SYSTEMS
09-18–15
09-18

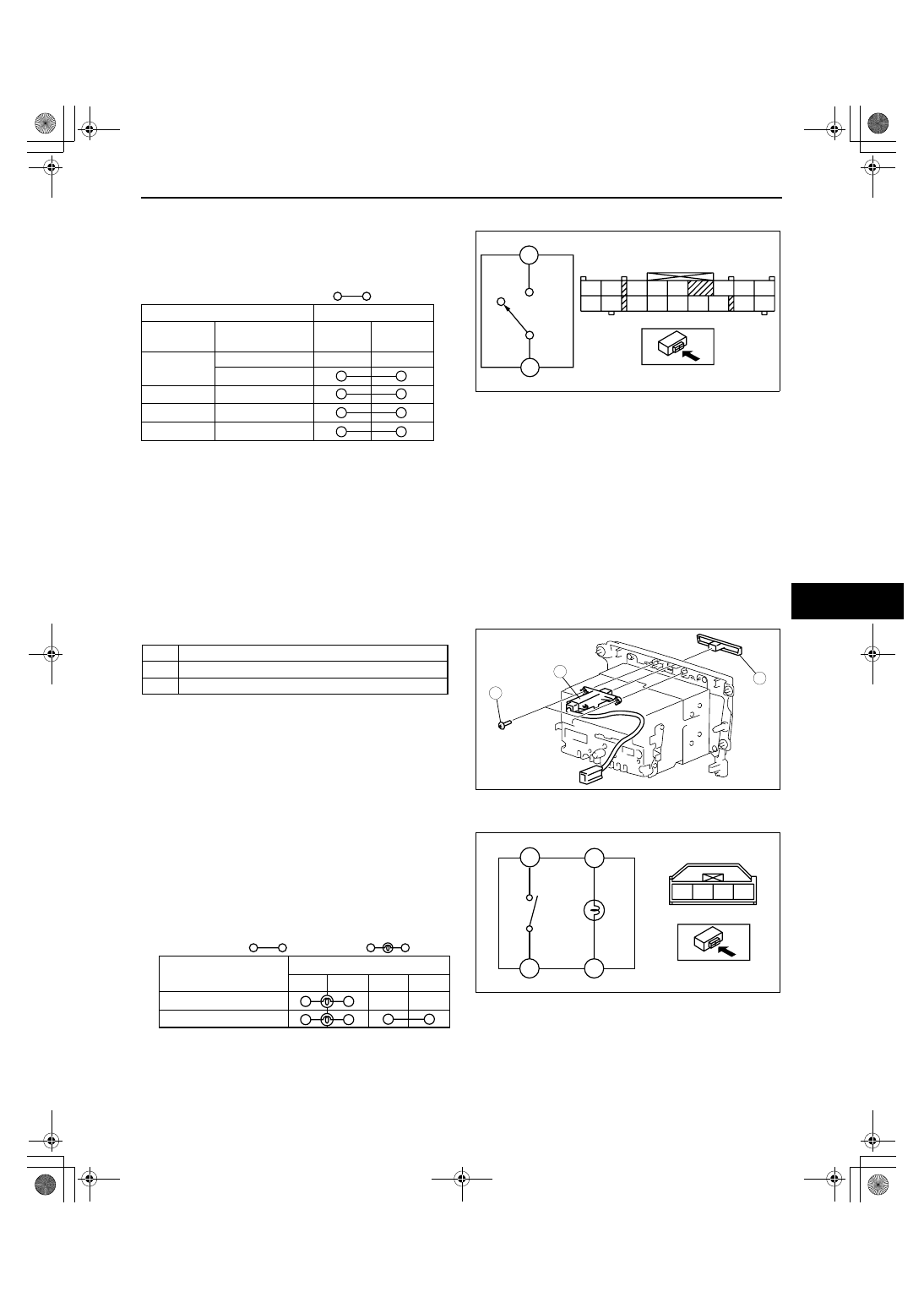

FRONT FOG LIGHT SWITCH INSPECTION
id091800803200
1. Verify that the continuity between the front fog
light switch terminals is as indicated in the table.
• If not as indicated in the table, replace the
light switch.
End Of Sie
WM: HAZARD WARNING SWITCH
HAZARD WARNING SWITCH REMOVAL/INSTALLATION
id091800803000
1. Disconnect the negative battery cable.
2. Remove the following parts:
(1) Front scuff plate inner (See 09-17-19 FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2) Front side trim (See 09-17-18 FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3) Console panel (See 09-17-15 CONSOLE PANEL REMOVAL/INSTALLATION.)
(4) Console (See 09-17-13 CONSOLE REMOVAL/INSTALLATION.)
(5) Hood release lever (See 09-14-25 HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
(6) Lower panel (See 09-17-9 LOWER PANEL REMOVAL/INSTALLATION.)
(7) Center panel (See 09-17-8 CENTER PANEL REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.
.
4. Install in the reverse order of removal.
End Of Sie
HAZARD WARNING SWITCH INSPECTION
id091800803100
1. Verify that the continuity between the hazard
warning switch terminals is as indicated in the
table.
• If not as indicated in the table, replace the
hazard warning switch.
End Of Sie

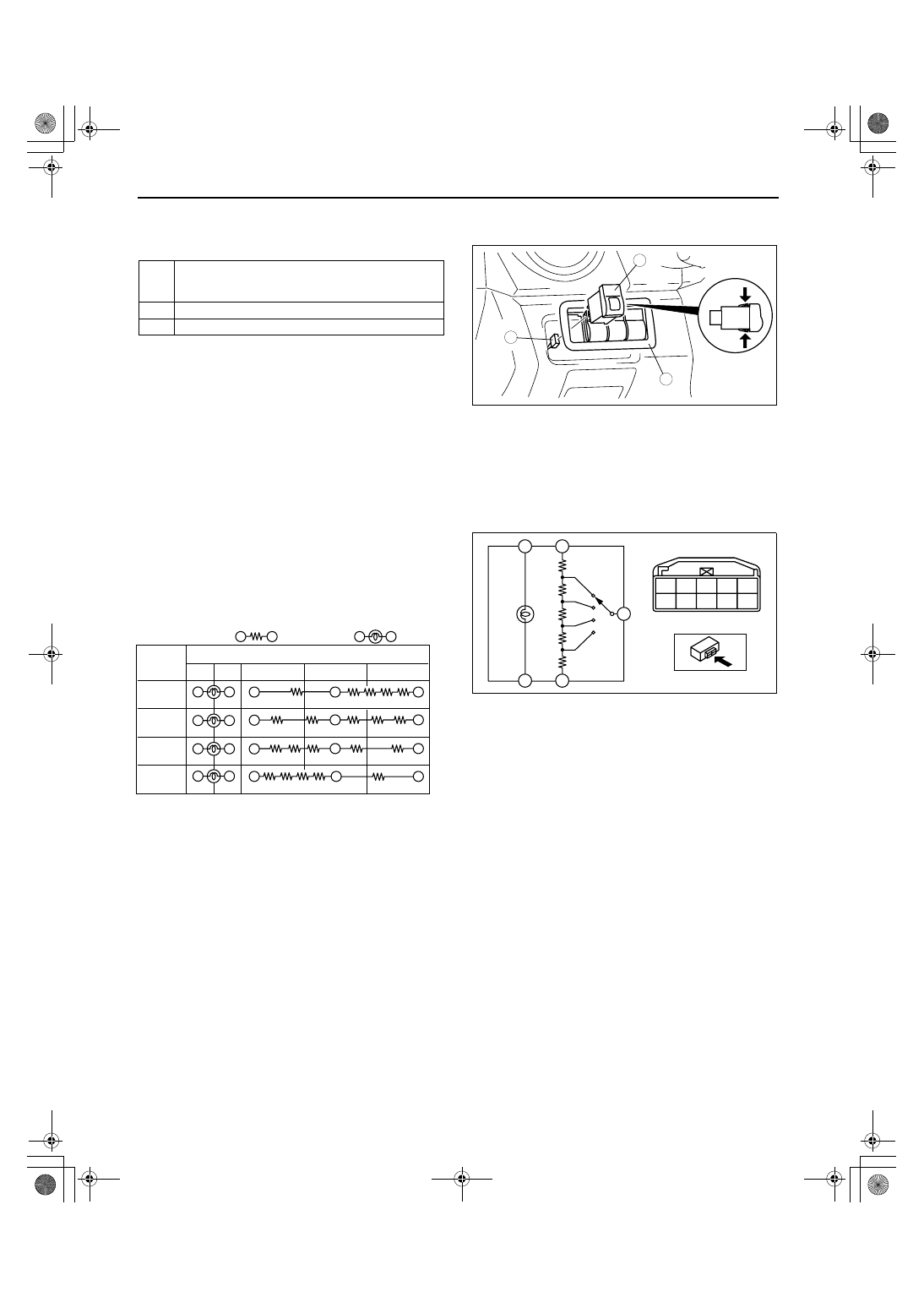

WM: HEADLIGHT LEVELING SWITCH
P
D
OFF
ON
O
Q
C
E
A
P
L
J
F
H
D
*
*
*
*
*
*
acxuuw00001736
D
P
:
Continuity
Switch position
Terminal
Light
Front fog
light switch
OFF
OFF
ON
ON
ON
ON
TNS
Head light
Auto
acxuuw00001737
1
Hazard warning switch panel
2
Screw
3
Hazard warning switch
3
1
2
acxuuw00002276
C
B
A
D
A
C
B
D
acxuuw00001748
C
A
B
D
: Continuity
: Bulb
Switch position
Terminal
Off
On
acxuuw00001749
