Operate switch.
Pump motor should run.
If not: Suspect faulty pump motor.
Brake pedal position (BPP) switch
Checking -

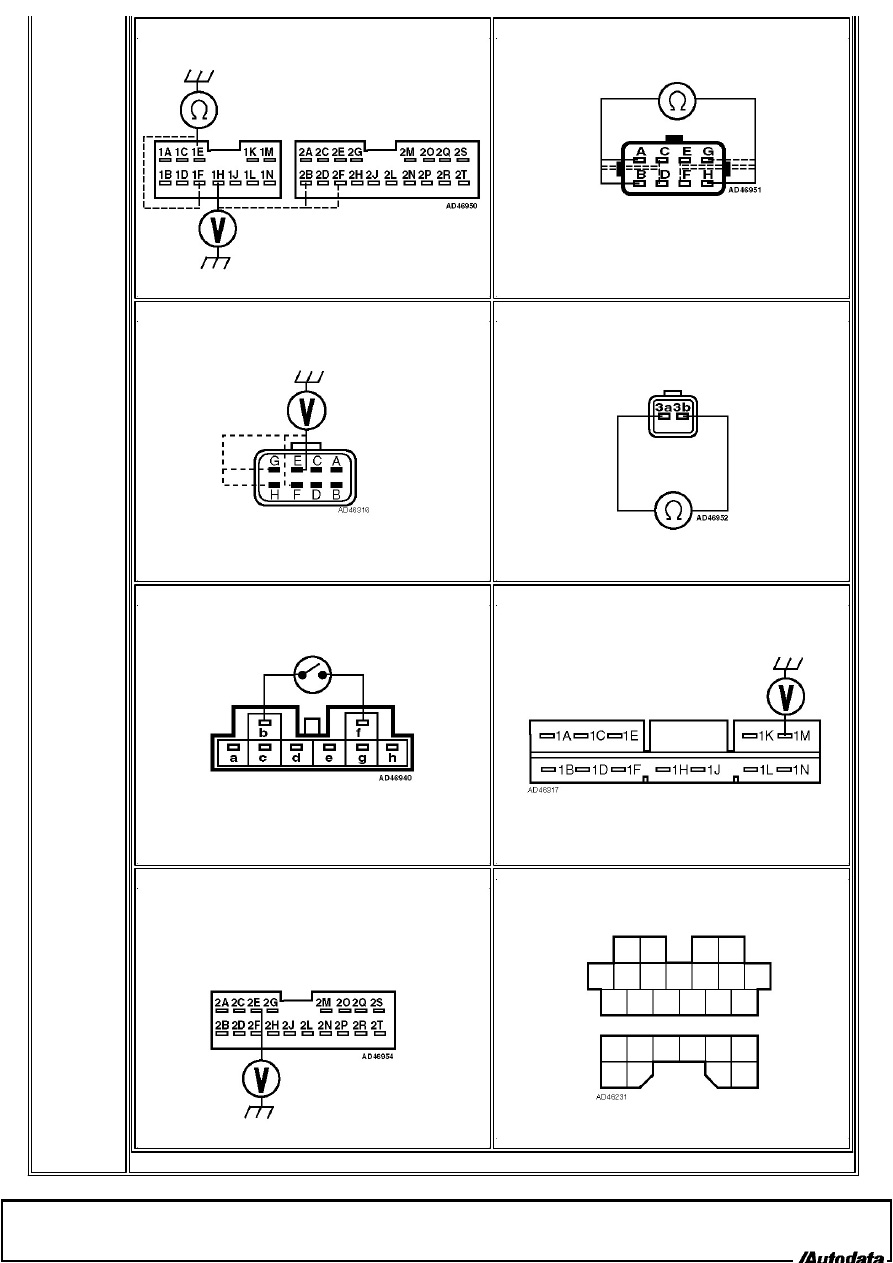

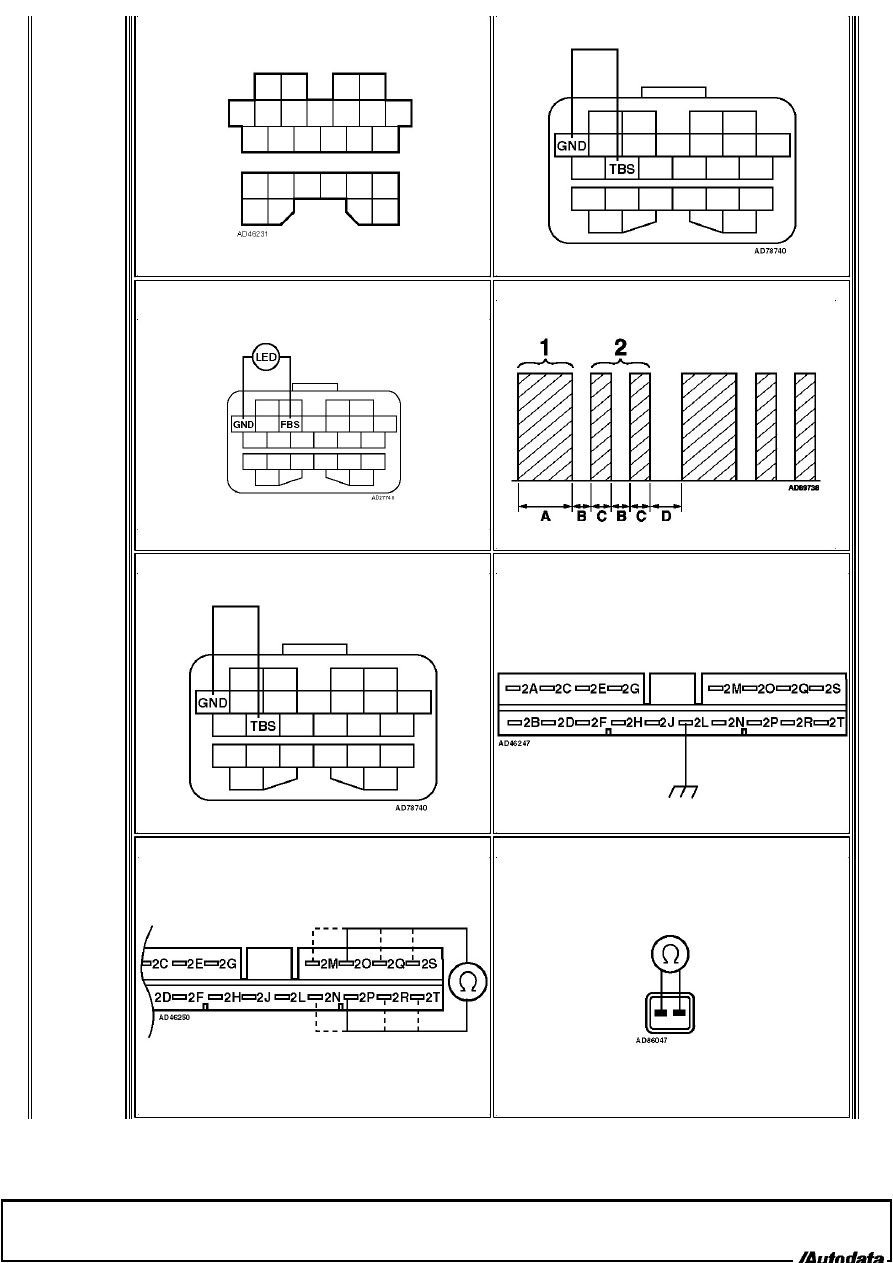

Fig. 19
Technical Data
Terminals
Condition
Voltage
1M & earth Pedal released
Zero
1M & earth Pedal depressed Battery voltage
Ensure ignition switched OFF.
Disconnect ECU multi-plugs.
Connect breakout box to 12-pin harness multi-plug.
Check voltage between breakout box terminal and earth.
Depress brake pedal.
Check voltage between breakout box terminal and earth.
If voltage not as specified: Check wiring and fuses.
G-force sensor - 626 4WD
Checking voltage -

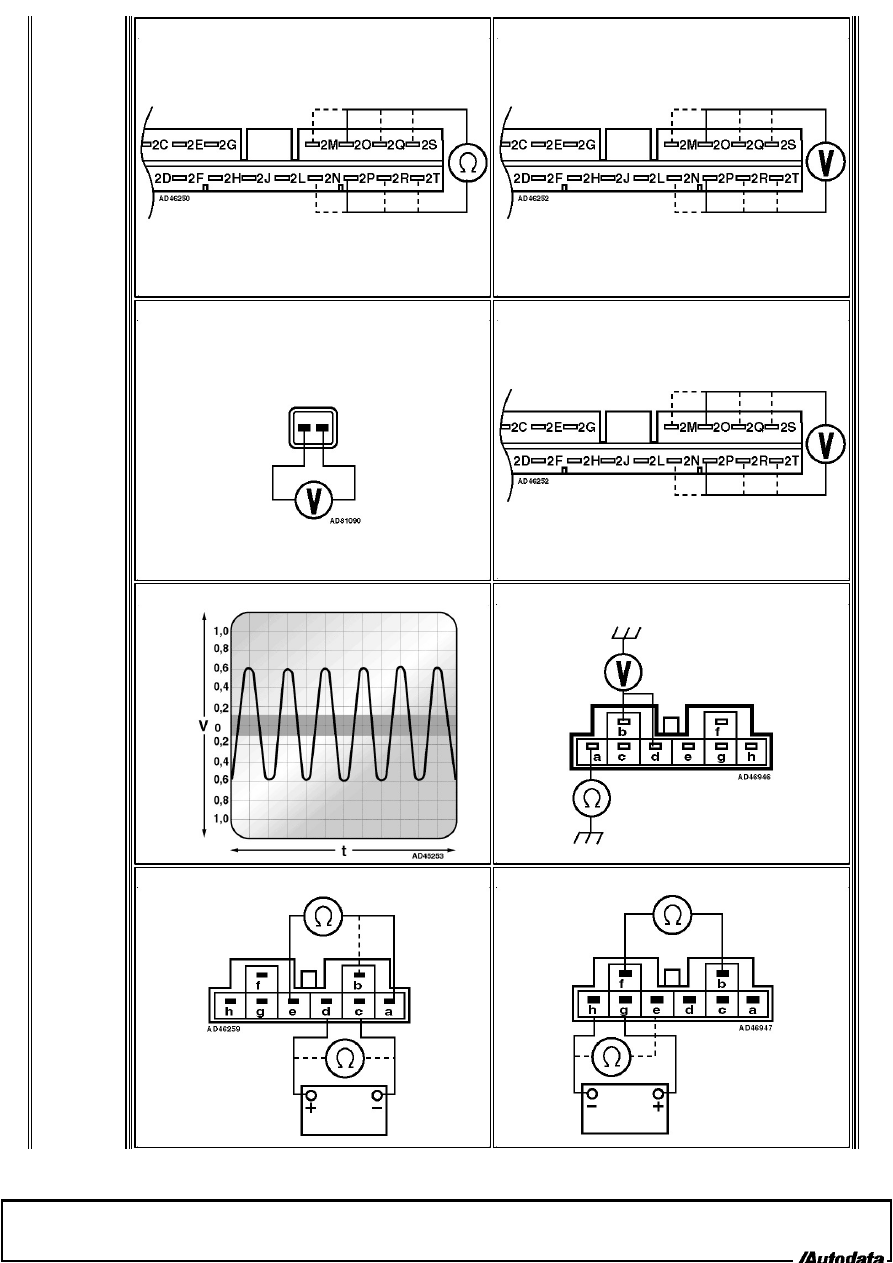

Fig. 20
Technical Data
Terminals
Voltage
2E & earth 2 V approx.
Ensure ignition switched OFF.
Disconnect ECU multi-plugs.
Connect breakout box to 18-pin harness multi-plug.
Switch ignition ON.
Check voltage between breakout box terminal and earth.
Hydraulic system
Bleeding
Ensure ignition switched OFF.
Ensure reservoir topped up to MAX.
Bleed in sequence: RH rear, LH rear, RH front, LH front.
Connect tube to bleed screw and immerse end in jar of clean fluid.
Depress brake pedal firmly two or three times.
Open bleed screw.
Depress brake pedal fully.
Close bleed screw. Tightening torque: 6,9-9,8 Nm.
Allow brake pedal to return.
Repeat process until fluid is air free.
Maintain fluid level in reservoir during bleeding procedure.
Top up reservoir to MAX.
