DIMENSIONS

V–3

V

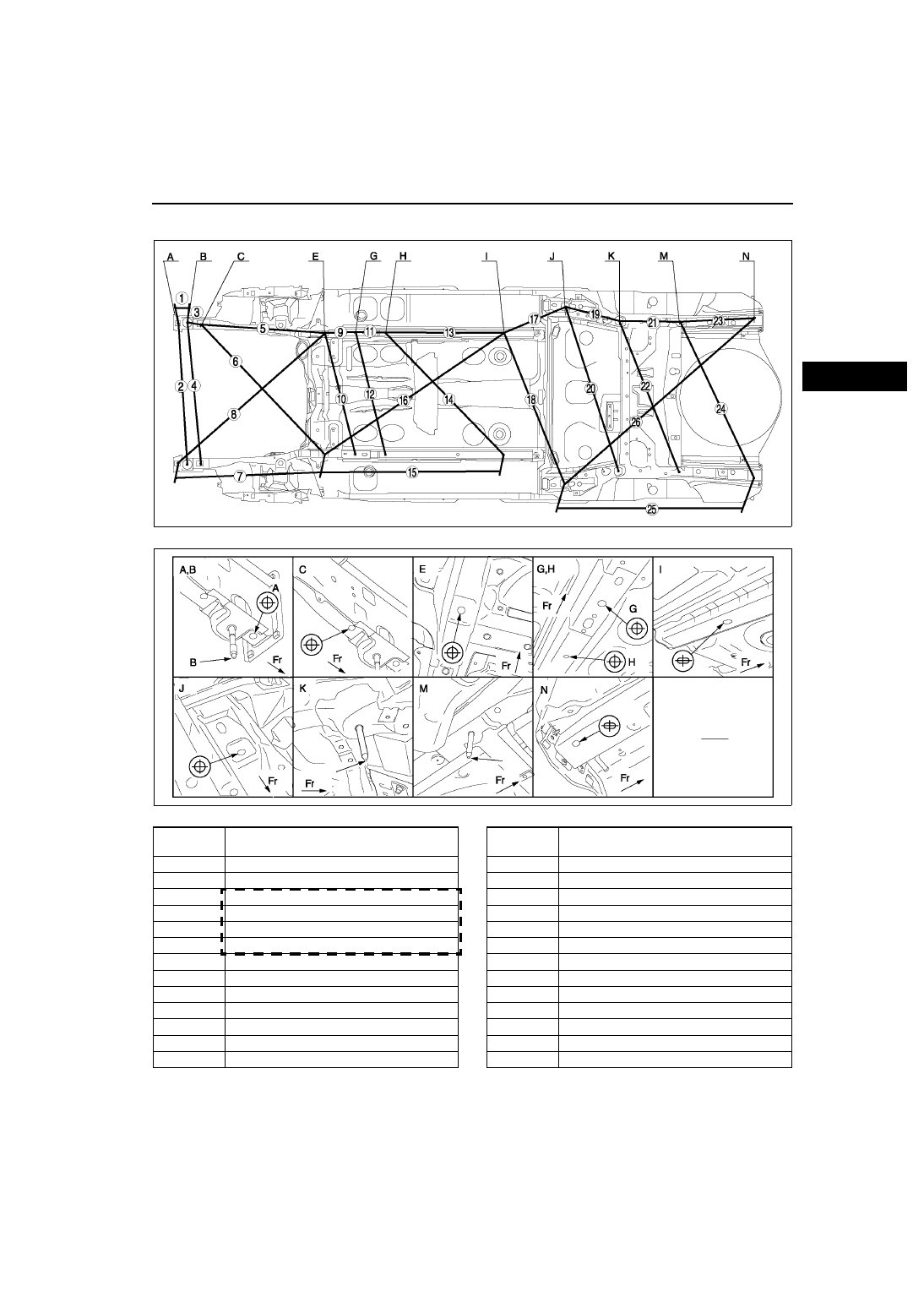

UNDERBODY  STRAIGHT-LINE DIMENSIONS

A6E981653010B02

.

End Of Sie

A6E9816B002

A6E9816B003

Measured

location

Dimensions mm {in}

1

149 {5.87}

2

993 {39.09}

3

RH:152 {5.98}, LH:153 {6.02}

4

RH:991 {39.02}, LH:1,001 {39.41}

5

RH:924 {36.38}, LH:923 {36.34}

6

RH:1,293 {50.91}, LH:1,286 {50.63}

7

1,076 {42.36}

8

1,401 {55.16}

9

207 {8.15}

10

851 {33.50}

11

200 {7.87}

12

850 {33.46}

13

800 {31.50}

14

1,150 {45.28}

15

1,205 {47.44}

16

1,461 {57.52}

17

479 {18.86}

18

1,112 {43.78}

19

395 {15.55}

20

1,202 {47.32}

21

454 {17.87}

22

1,156 {45.51}

23

532 {20.94}

24

1,226 {48.27}

25

1,366 {53.78}

26

1,805 {71.06}

Measured

location

Dimensions mm {in}

V–4

DIMENSIONS

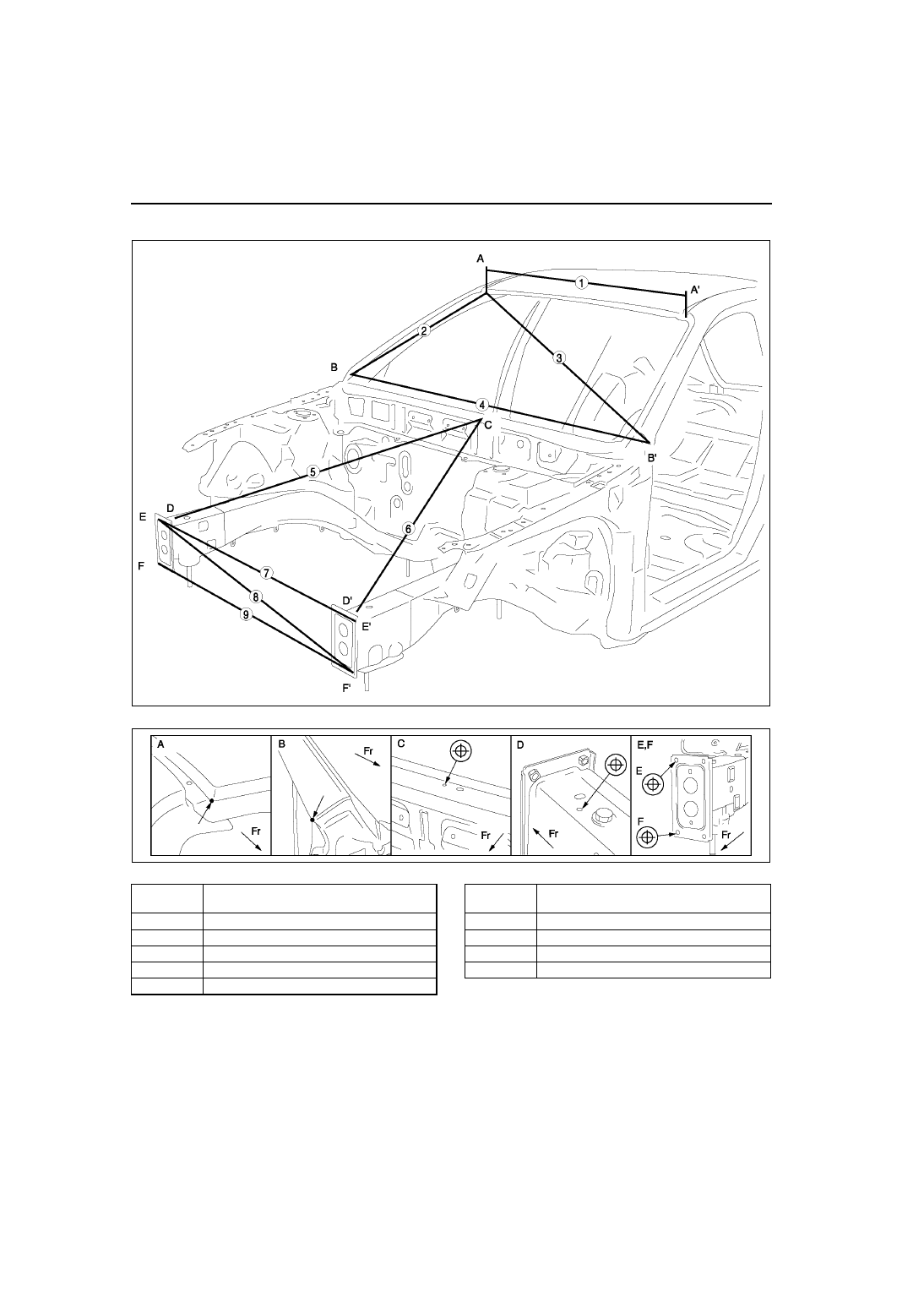

FRONT BODY STRAIGHT-LINE DIMENSIONS (1)

A6E981653020B01

.

End Of Sie

A6E9816B004

A6E9816B005

Measured

location

Dimensions mm {in}

1

1,023 {40.28}

2

749 {29.49}

3

1,458 {57.40}

4

1,529 {60.20}

5

1,070 {42.13}

6

1,085 {42.72}

7

1,070 {42.13}

8

1,084 {42.68}

9

1,070 {42.13}

Measured

location

Dimensions mm {in}

DIMENSIONS

V–5

V

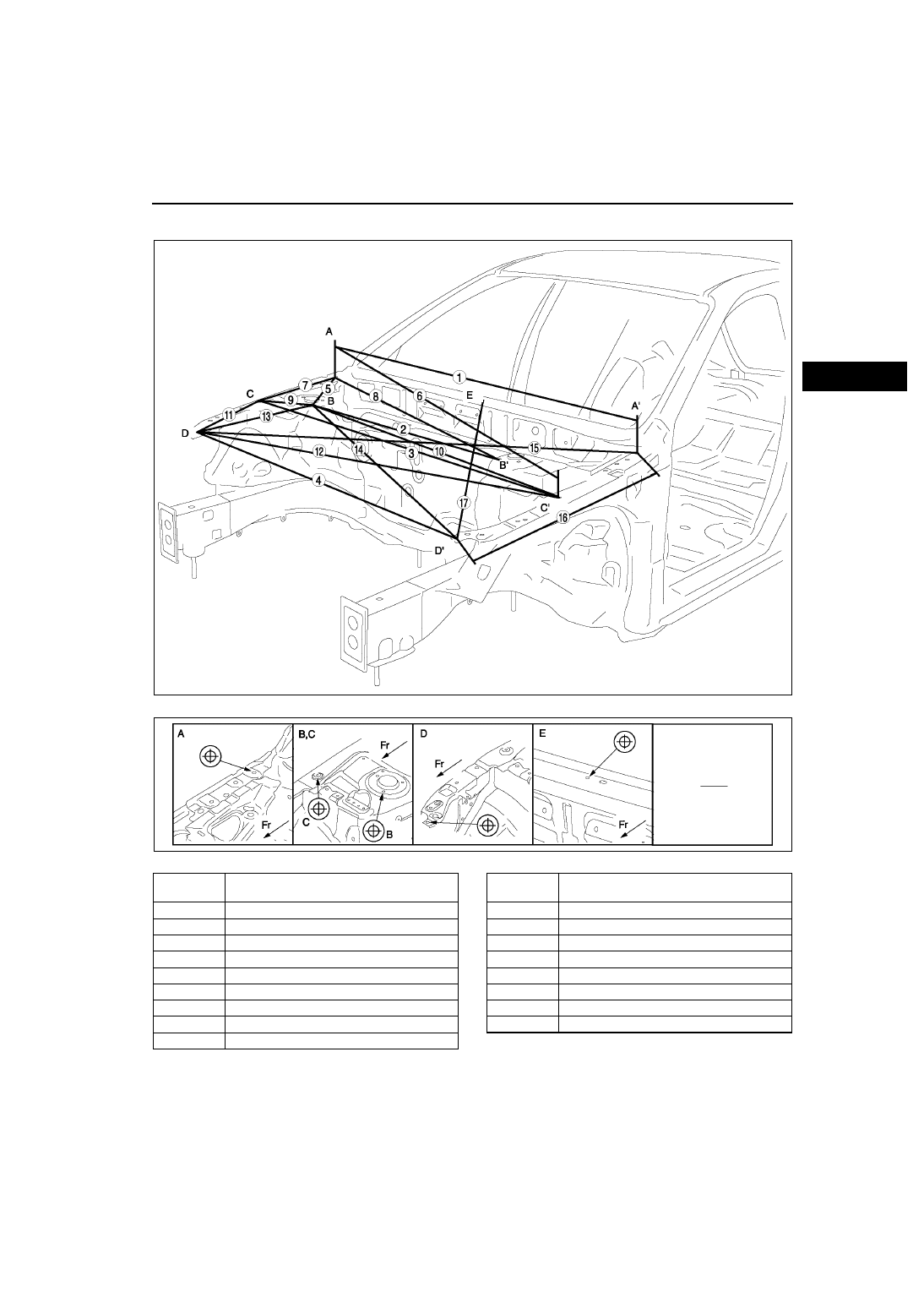

FRONT BODY STRAIGHT-LINE DIMENSIONS (2)

A6E981653020B02

.

End Of Sie

A6E9816B006

A6E9816B007

Measured

location

Dimensions mm {in}

1

1,480 {58.27}

2

959 {37.76}

3

1,481 {58.31}

4

1,340 {52.76}

5

452 {17.80}

6

1,538 {60.55}

7

418 {16.46}

8

1,274 {50.16}

9

268 {10.55}

10

1,221 {48.07}

11

363 {14.29}

12

1,455 {57.28}

13

451 {17.76}

14

1,220 {48.03}

15

1,608 {63.31}

16

777 {30.59}

17

1,009 {39.72}

Measured

location

Dimensions mm {in}

V–6

DIMENSIONS

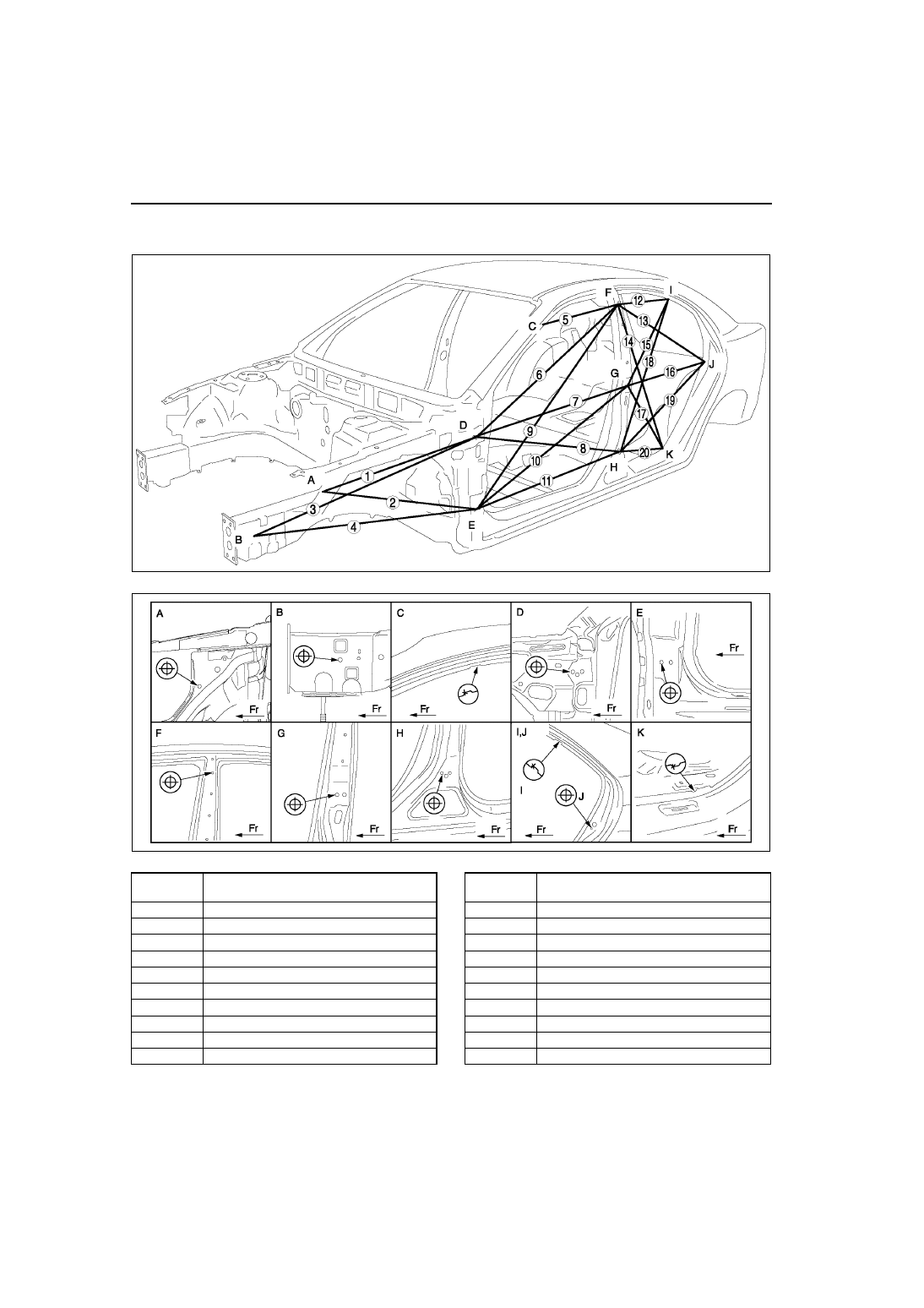

CABIN SIDE FRAME STRAIGHT-LINE DIMENSIONS

A6E981670010B01

SEDAN

.

A6E9816B008

A6E9816B009

Measured

location

Dimensions mm {in}

1

692 {27.24}

2

747 {29.41}

3

998 {39.29}

4

968 {38.11}

5

451 {17.76}

6

1,349 {53.11}

7

1,144 {45.04}

8

1,144 {45.04}

9

1,501 {59.09}

10

1,204 {47.40}

11

1,093 {43.03}

12

662 {26.06}

13

943 {37.13}

14

979 {38.54}

15

864 {34.02}

16

921 {36.26}

17

683 {26.89}

18

1,093 {43.03}

19

1,004 {39.53}

20

536 {21.10}

Measured

location

Dimensions mm {in}
