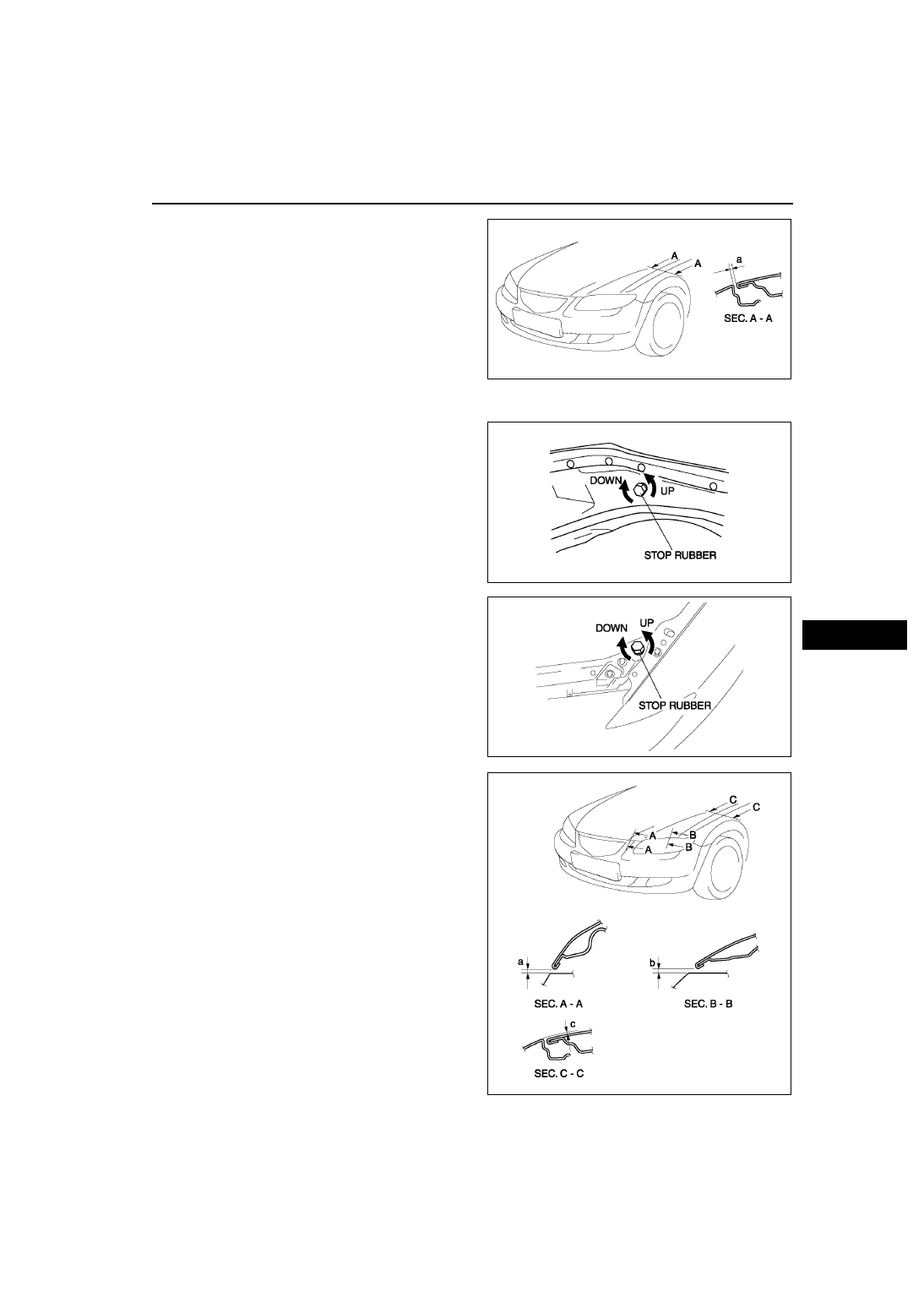

BONNET

S–11

S

4. Verify that the gap between the bonnet and the

body is within the specification.

Clearance

a: 2.5—4.5 mm {0.08—0.17 in}

Height Adjustment

1. Turn the stop rubber to adjust the height of the

bonnet.

2. Verify that the height between the bonnet and the

body is within the specification.

Clearance

a: 3.0—6.0 mm {0.12—0.23 in}
b: 3.0—6.0 mm {0.12—0.23 in}
c: -1.0—1.0 mm {-0.04—0.04 in}

End Of Sie

A6E7710W004

A6E7710W006

A6E7710W003

A6E7710W005

S–12

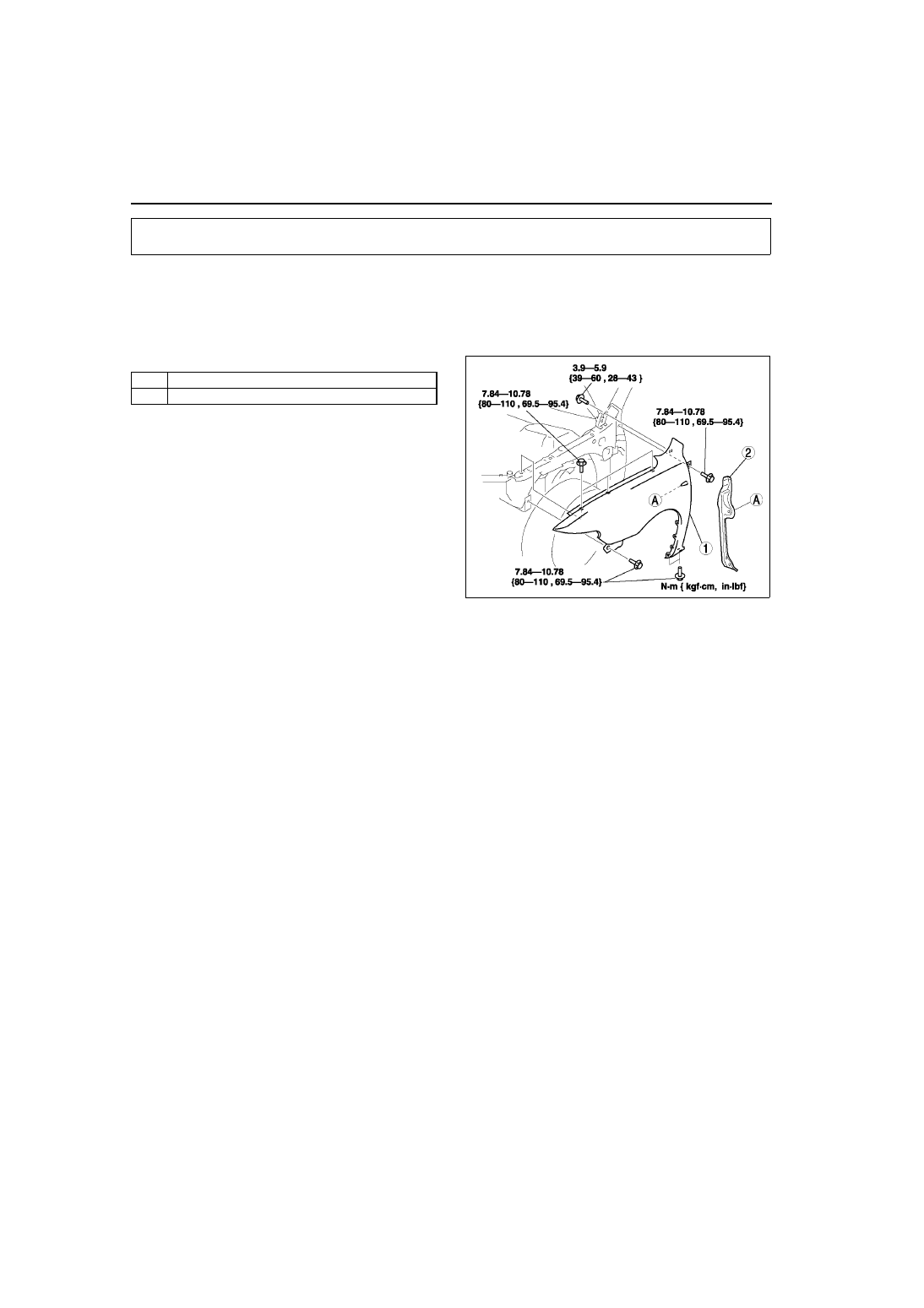

FRONT FENDER PANEL

FRONT FENDER PANEL REMOVAL/INSTALLATION

A6E771252110W01

1. Disconnect the negative battery cable.
2. Remove the front side turn light.
3. Remove the fender molding. (See

S–50 COWL GRILLE REMOVAL/INSTALLATION

.)

4. Remove the front bumper. (See

S–47 FRONT BUMPER REMOVAL/INSTALLATION

.)

5. Remove the front combination light. (See

T–26 FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

.)

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

End Of Sie

FRONT FENDER PANEL

1

Front fender panel

2

Seal plate

A6E7712W001

DOOR

S–13

S

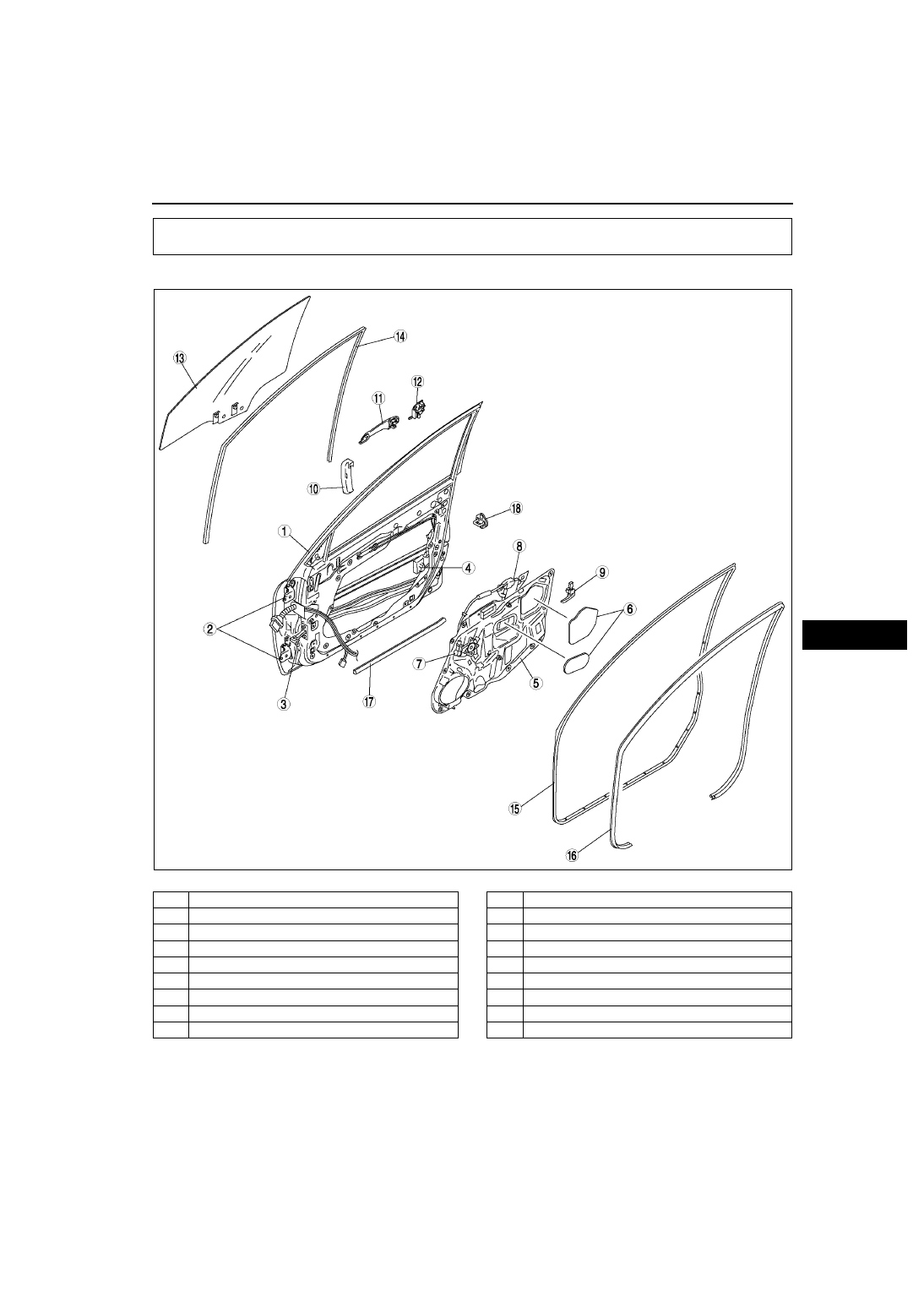

FRONT DOOR STRUCTURAL VIEW

A6E771458010W01

.

End Of Sie

DOOR

A6E7714W001

1

Front door

2

Front door hinge

3

Checker

4

Front door latch and lock actuator

5

Front door unit

6

Hole cover

7

Power window motor

8

Power window regulator

9

Inner handle

10

Protector

11

Outer handle

12

Front door key cylinder

13

Front door glass

14

Glass run channel

15

Front door weatherstrip A

16

Front door lower weatherstrip

17

Front door weatherstrip B

18

Striker

S–14

DOOR

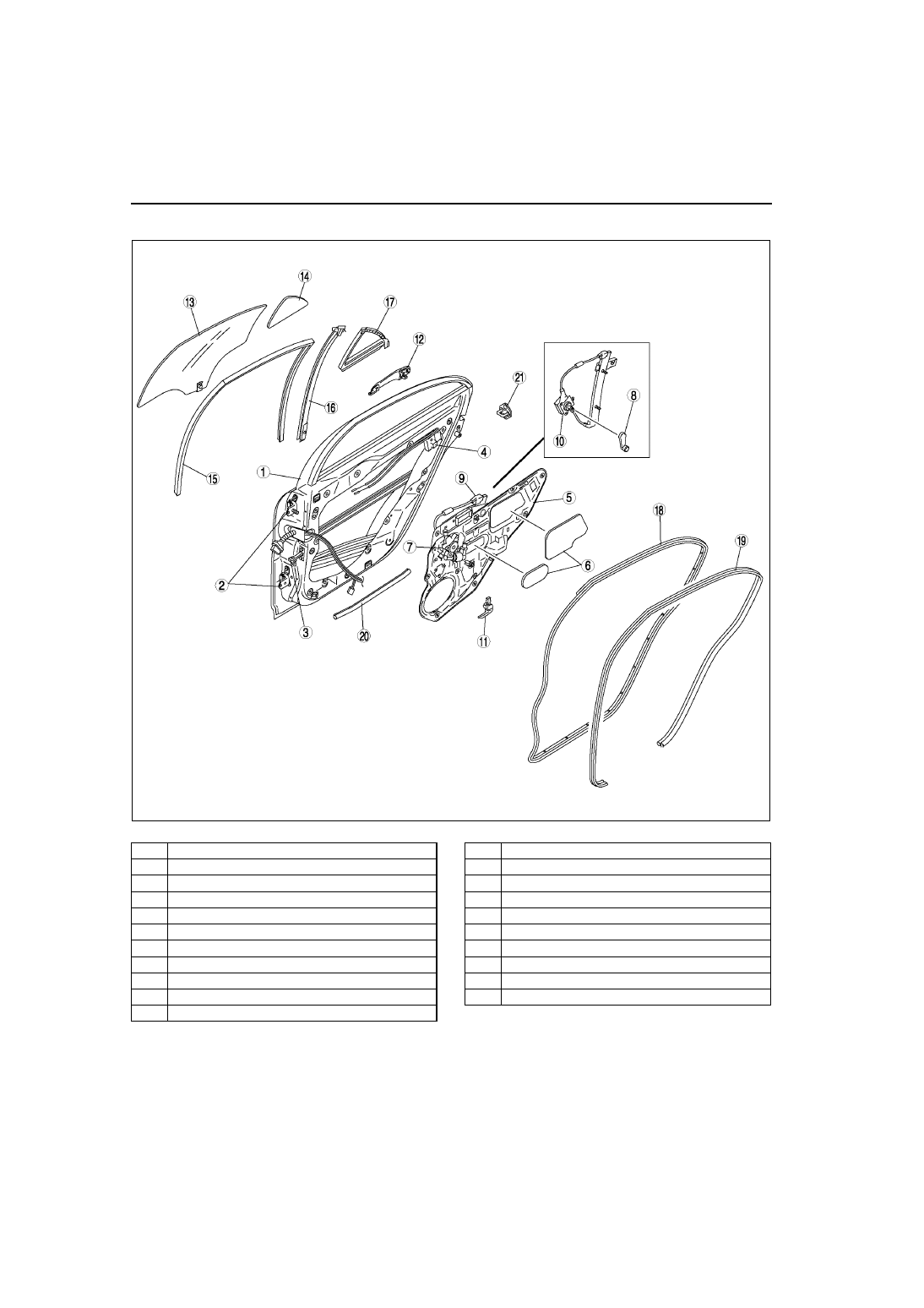

REAR DOOR STRUCTURAL VIEW

A6E771472010W01

.

End Of Sie

A6E7714W002

1

Rear door

2

Rear door hinge

3

Checker

4

Rear door latch and lock actuator

5

Rear door unit

6

Hole cover

7

Power window motor

8

Regulator handle

9

Power window regulator

10

Manual window regulator

11

Inner handle

12

Outer handle

13

Rear door glass

14

Quarter window glass

15

Glass run channel

16

Glass guide

17

Quarter window molding

18

Rear door weatherstrip A

19

Rear door lower weatherstrip

20

Rear door weatherstrip B

21

Striker
