Mazda 6. Manual - part 223





LOCATION INDEX, GENERAL PROCEDURES

M–3

M

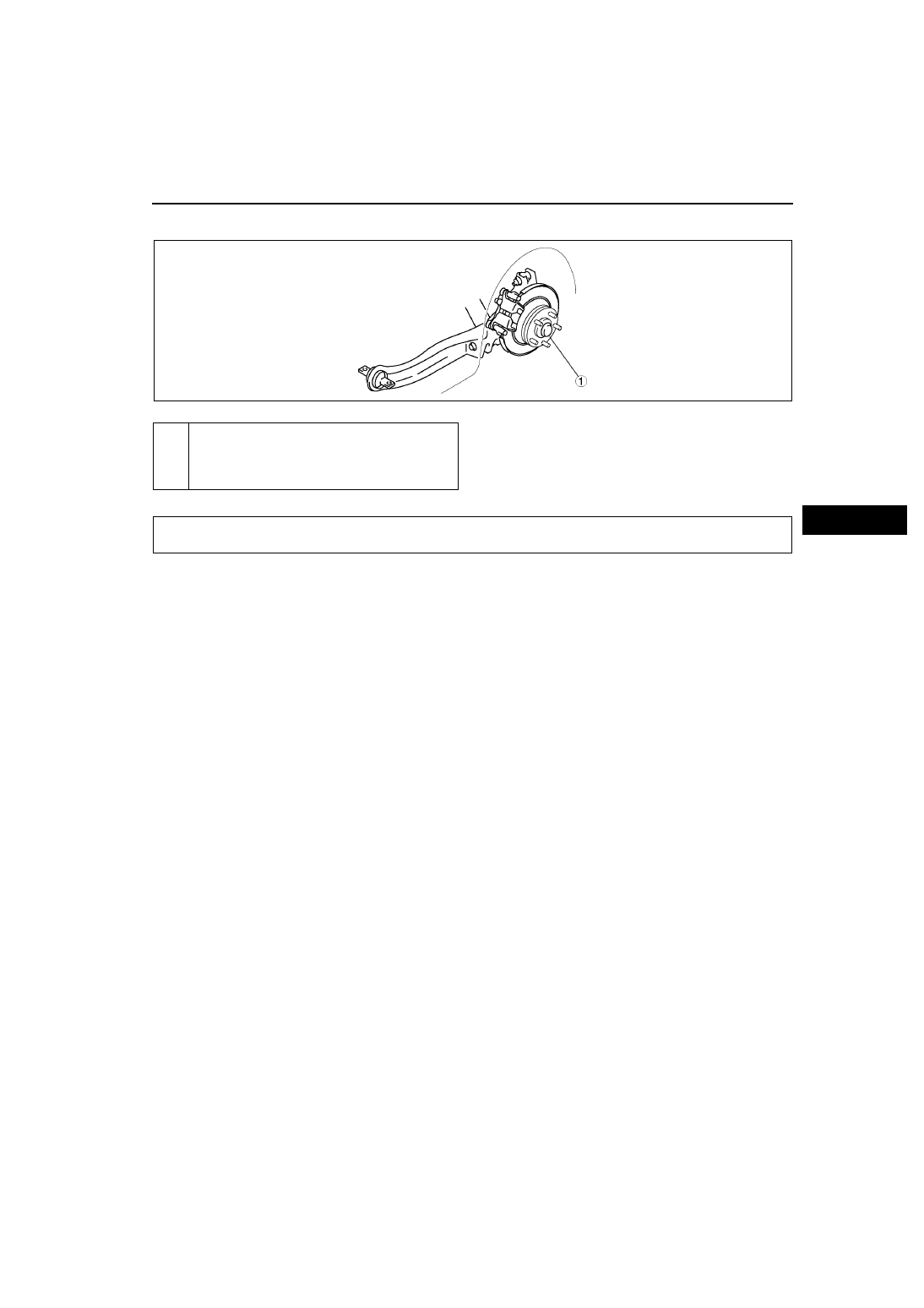

REAR AXLE LOCATION INDEX

A6E630005000W01

.

End Of Sie

PRECAUTION (FRONT AND REAR AXLE)

A6E631001018W01

Wheel and Tire Removal/Installation

1. The removal and installation procedures for the wheels and tires are not mentioned in this section. When a

wheel is removed, tighten it to 88—118 N·m {9.0—12.0 kgf·m, 65.0—87.0 ft·lbf}

Brake Line Disconnection/Connection

Caution

• Brake fluid will damage painted surfaces. If brake fluid gets on a painted surface, wipe it off

immediately.

1. Tighten the brake pipe flare nut using the SST (49 0259 770B). Be sure to modify the brake pipe flare nut

tightening torque to allow for use of a torque wrench-SST combination. (See

GI–16 TORQUE FORMULAS

.)

2. If any brake line has been disconnected any time during the procedure, add brake fluid, bleed the brakes, and

inspect for leakage after the procedure has been completed.

Suspension Arm Removal/Installation

1. Tighten any part of the suspension that uses rubber bushings only after vehicle has been lowered and

unloaded.

Note

• Unloaded: Fuel tank is full. Engine coolant and engine oil are at specified level. Spare tire, jack, and tools

are in designated position.

End Of Sie

A6E0312W016

1

Wheel hub, hub spindle
(See

M–9 WHEEL HUB, HUB SPINDLE PRE-

INSPECTION

)

(See

M–10 WHEEL HUB, HUB SPINDLE

REMOVAL/INSTALLATION

)

GENERAL PROCEDURES

M–4

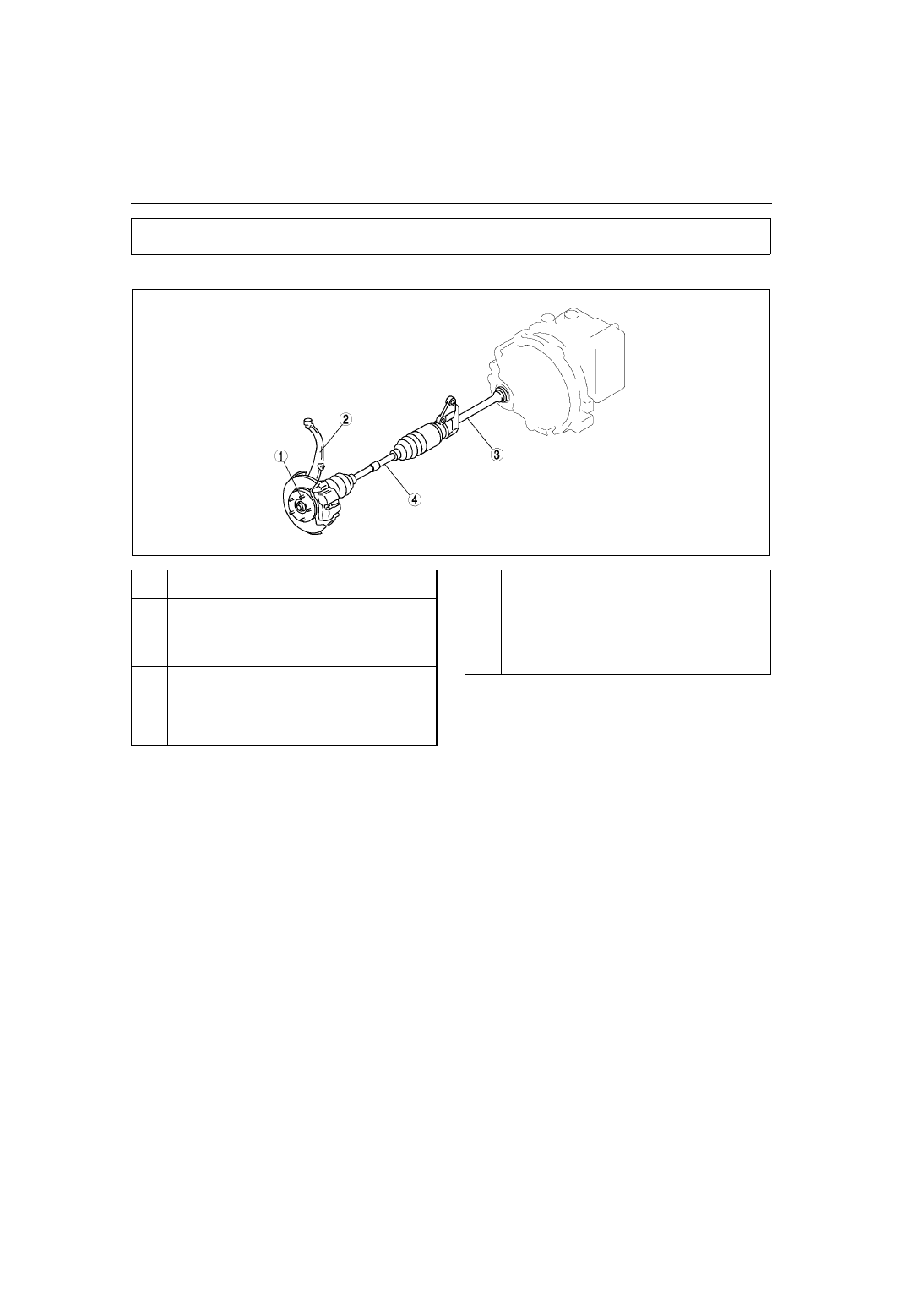

FRONT AXLE

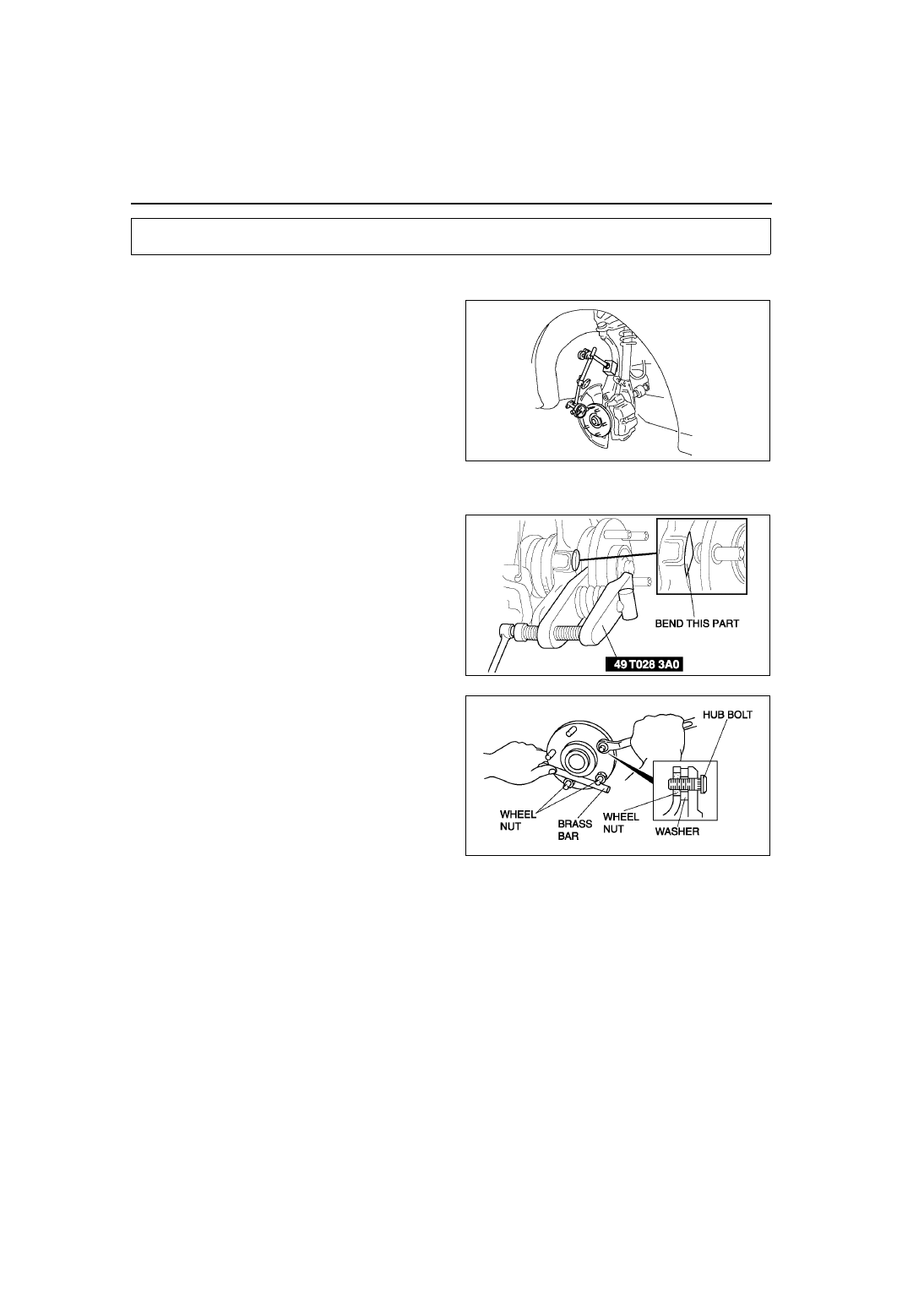

WHEEL HUB, STEERING KNUCKLE PRE-INSPECTION

A6E631204000W01

Wheel Bearing Play Inspection

1. Position a dial indicator against the wheel hub.
2. Push and pull the wheel hub by hand in the axial

direction and measure the wheel bearing play.

Maximum wheel bearing play

0.05 mm {0.002 in}

3. If the bearing play exceeds the specification,

replace and tighten the locknut to the specified
torque and retest.

• Replace the wheel bearing as necessary.

End Of Sie

WHEEL HUB BOLT REPLACEMENT

A6E631233060W01

1. Remove the hub bolt using the SSTs.

Note

• If the dust cover interferes with the wheel

hub bolt and the wheel hub bolt cannot be
removed, tap the part shown in the figure
with a chisel lightly and bend the processing
point back to the steering knuckle side.

2. Install the hub bolt into the wheel hub and install a

washer and hub nut on the hub bolt.

3. Tighten the hub nut while holding the wheel hub

using a brass bar.

End Of Sie

FRONT AXLE

A6E0311W010

A6E0311W011

A6E0311W012

FRONT AXLE

M–5

M

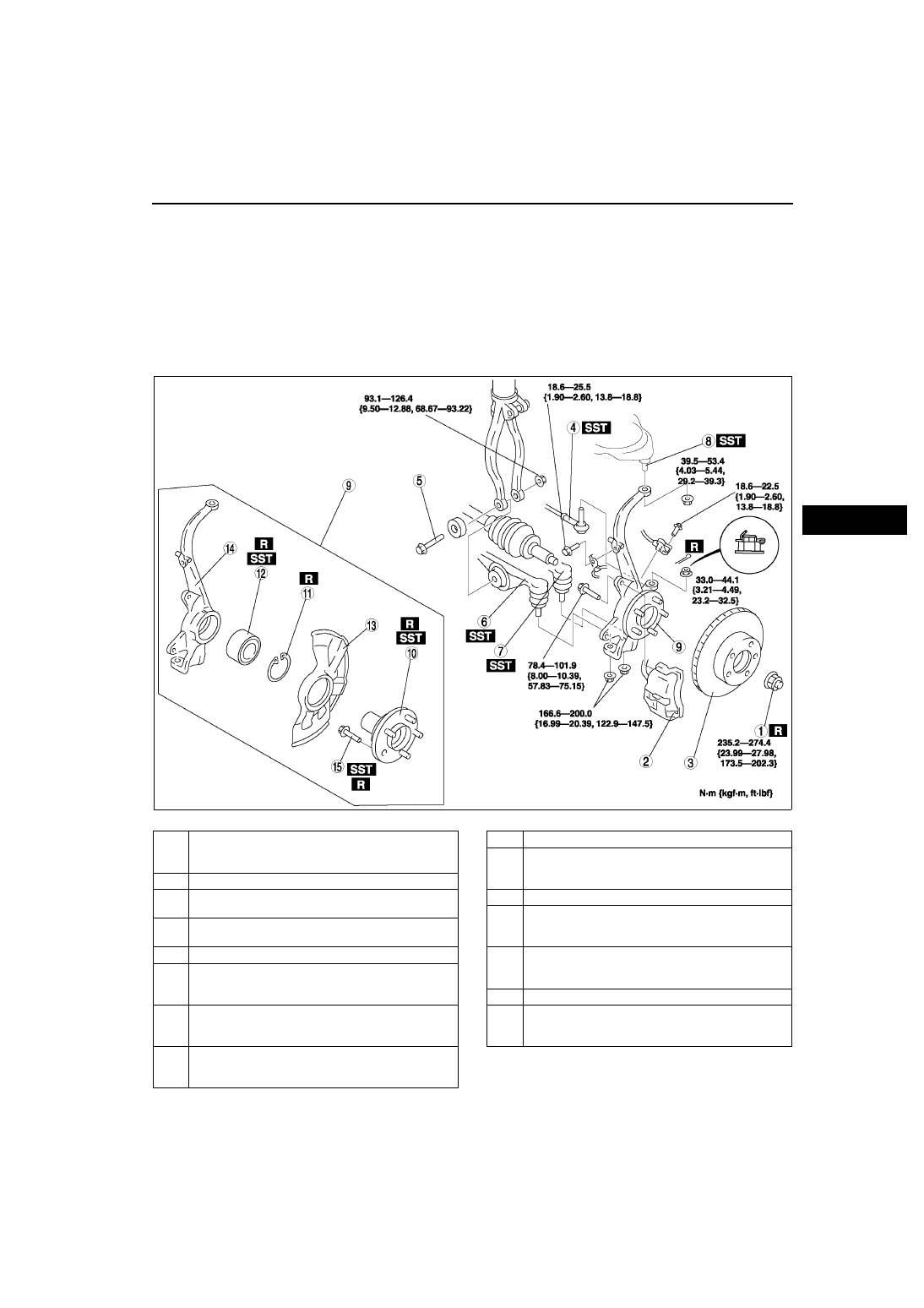

WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION

A6E631204000W02

Caution

• Performing the following procedures without first removing the ABS wheel-speed sensor may

possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the
following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate
place where the sensor will not be pulled by mistake while the vehicle is being serviced.

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, inspect the front wheel alignment. (See

R–5 FRONT WHEEL ALIGNMENT

.)

.

A6E0612W075

1

Locknut
(See

M–6 Locknut Removal Note

)

(See

M–9 Locknut Installation Note

)

2

Brake caliper component

3

Disc plate
(See

P–20 Disc Plate Removal Note

)

4

Tie-rod end ball joint
(See

N–11 Tie-rod End Ball Joint Removal Note

)

5

Bolt

6

Front lower arm (front) ball joint
(See

R–16 Front Lower Arm (Front) Ball Joint

Removal Note

)

7

Front lower arm (rear) ball joint
(See

R–19 Front Lower Arm (Rear) Ball Joint

Removal Note

)

8

Front upper arm ball joint
(See

R–13 Front Upper Arm Ball Joint Removal

Note

)

9

Wheel hub, steering knuckle, dust cover

10

Wheel hub component
(See

M–6 Wheel Hub Component Removal Note

)

(See

M–8 Wheel Hub Component Installation Note

)

11

Retaining ring

12

Wheel bearing
(See

M–6 Wheel Bearing Removal Note

)

(See

M–8 Wheel Bearing Installation Note

)

13

Dust cover
(See

M–7 Dust Cover Removal Note

)

(See

M–8 Dust Cover Installation Note

)

14

Steering knuckle

15

Hub bolt
(See

M–7 Hub Bolt Removal Note

)

(See

M–7 Hub Bolt Installation Note

)
