CLUTCH UNIT

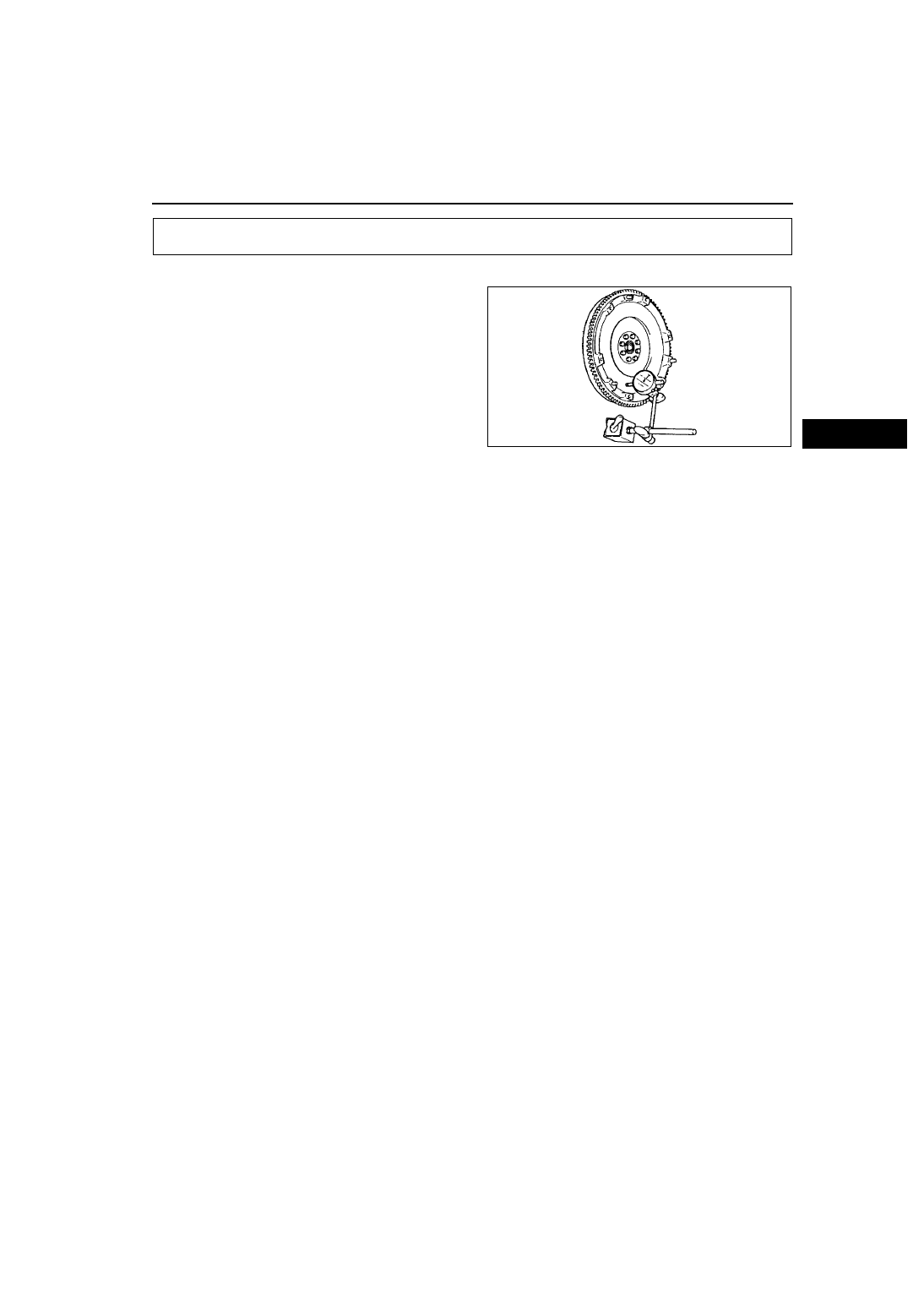

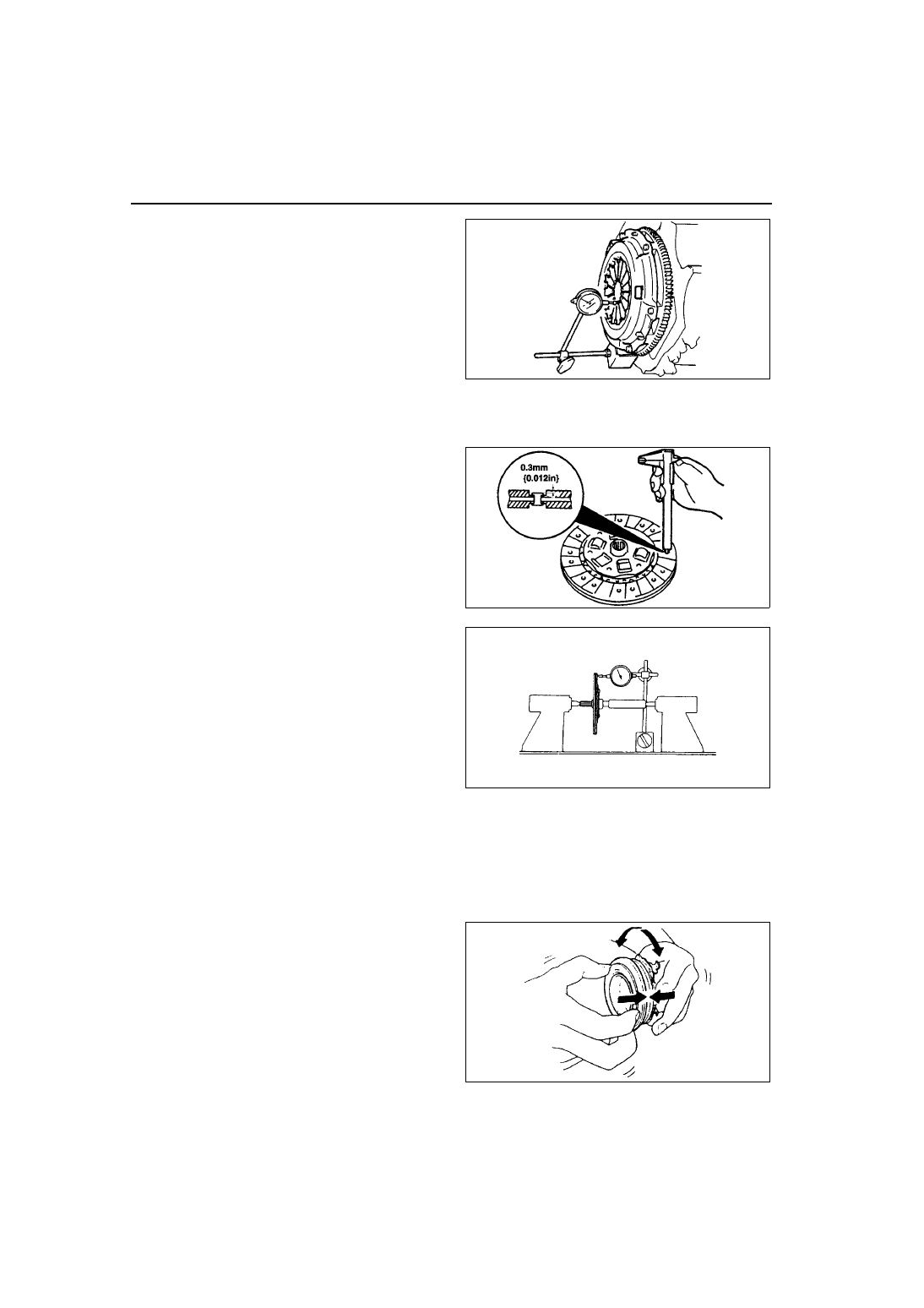

4. Rotate the flywheel and check for misaligned
diaphragm spring fingers.
• If not as specified, replace the clutch cover.
Misalignment
0.6 mm {0.024 in} max.
End Of Sie
CLUTCH DISC INSPECTION
A6E492016460W01
1. Using vernier calipers, measure the thickness of
the lining at a rivet head on both sides.
• Replace the clutch disc if its thickness is less
than the minimum.
Thickness
0.3 mm {0.012 in} min.
2. Measure the clutch disc runout using a dial
indicator.
• If the runout is excessive, replace the clutch
disc.
Runout
0.7 mm {0.028 in} max.
End Of Sie
CLUTCH RELEASE COLLAR INSPECTION
A6E492016510W01
Caution
• Cleaning the clutch release collar with cleaning fluids or a steam cleaner can
wash the grease out of the sealed bearing.
1. Turn the collar while applying force in the axial
direction.
• If the collar sticks or has excessive
resistance, replace the clutch release collar.
End Of Sie
