POWER WINDOW SYSTEM
DRIVER SIDE POWER WINDOW SYSTEM
A6E771658000T04
Outline
• On the basis of the pulse signals from the Hall effect switches in the power window motor, the power window
control module in the power window main switch determines the window position and the operation direction.
Accordingly, the power window main switch controls the driver-side power window system.
• When the initial position is set before vehicle delivery, the window position and the operation direction are
stored in the power window control module in the power window main switch. Thus resetting the initial position
is necessary if the battery negative cable, power window main switch connector, or power window motor
connector is disconnected.
Note
•
If the initial position has not been set, the driver-side power window system's auto function, the auto
window return function and the precise motion function will not function.
•
See the workshop manual for more information about setting the initial position. (Mazda6 Training Manual
3359-1*-02C)
.
Fail-safe Function
End Of Sie

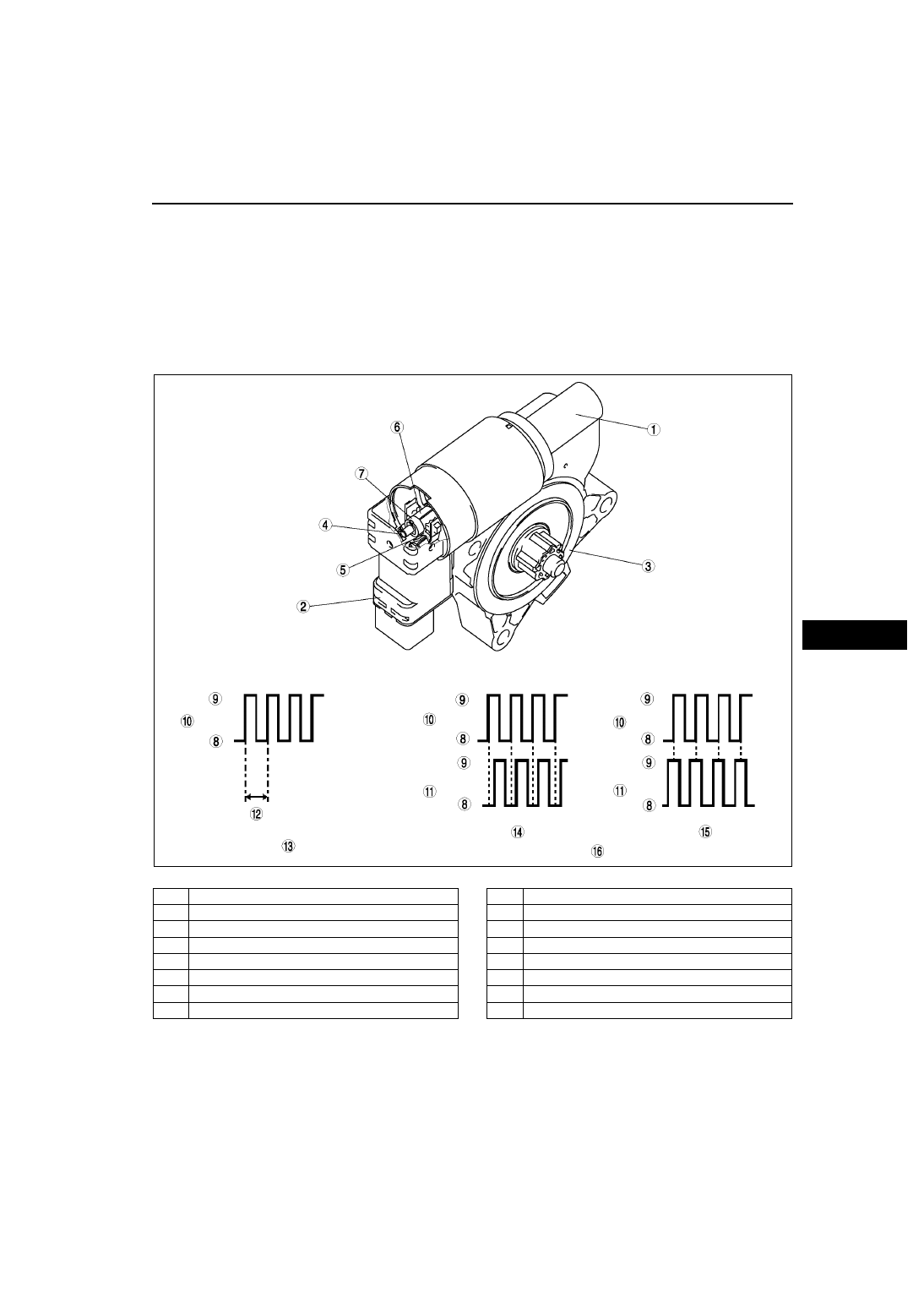

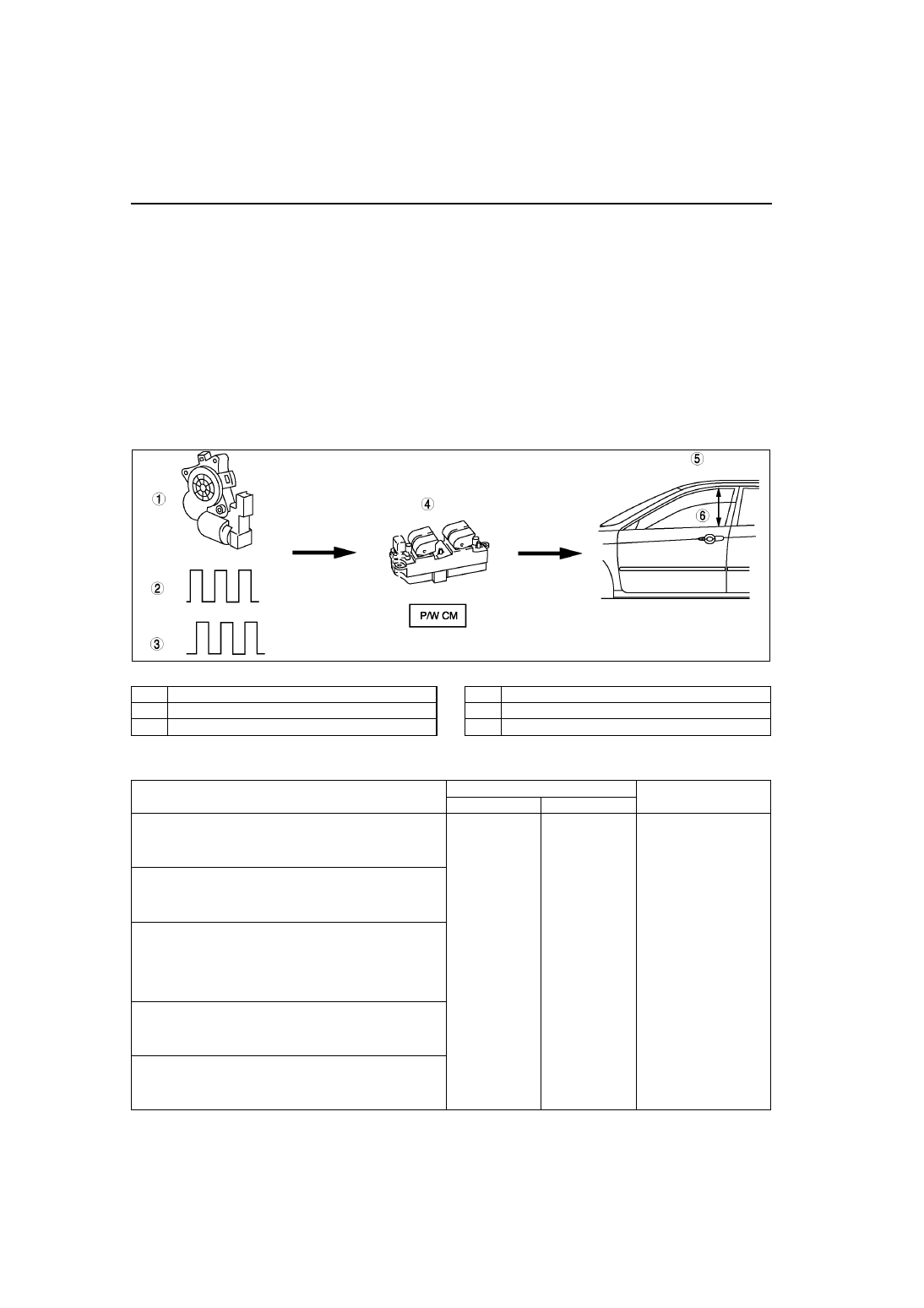

A6E7716T002
1
Power window motor
2
Pulse A
3
Pulse B
4
Power window main switch
5
Driver’s side door
6
Open/close
Detection Condition
Fail-safe
Recovery Items
IG switch ON
IG switch OFF
Hall effect switch No. 1 (for jam-safe and door glass position
detection) operation malfunction
•
During up/down movement, Hall effect switch No. 2 pulse
detected but Hall effect switch No. 1 pulse not detected.
Automatic
operation is
prohibited.
Automatic and
manual
operation are
prohibited.
During up movement,
pulse signals for Hall
effect switches No. 1 and
No. 2 are detected
normally and fully closed
position and return/non-
return ranges are
redetected.
Hall effect switch No. 2 (for door glass movement direction
detection) operation malfunction
•
During up/down movement, Hall effect switch No. 1 pulse
detected but Hall effect switch No. 2 pulse not detected.
Pulse signal malfunction detection (Inversion of input signals
of, or large phase deviation between, Hall effect switches No.
1 and No. 2.)
•
During up/down movement, difference detected between
the direction detection signals from Hall effect switches
No. 1 and No. 2, and the actual direction.
Non-return range downturn malfunction
•
During up movement, the signal input from Hall effect
switch No. 1 was higher than the position stored in the P/
W main switch.
Hall effect switches No. 1 and No. 2 operation malfunction
•
Hall effect switches No. 1 and No. 2 pulse signal not
detected after down movement was initiated from the fully
closed position.
