COOLING SYSTEM

E–3

E

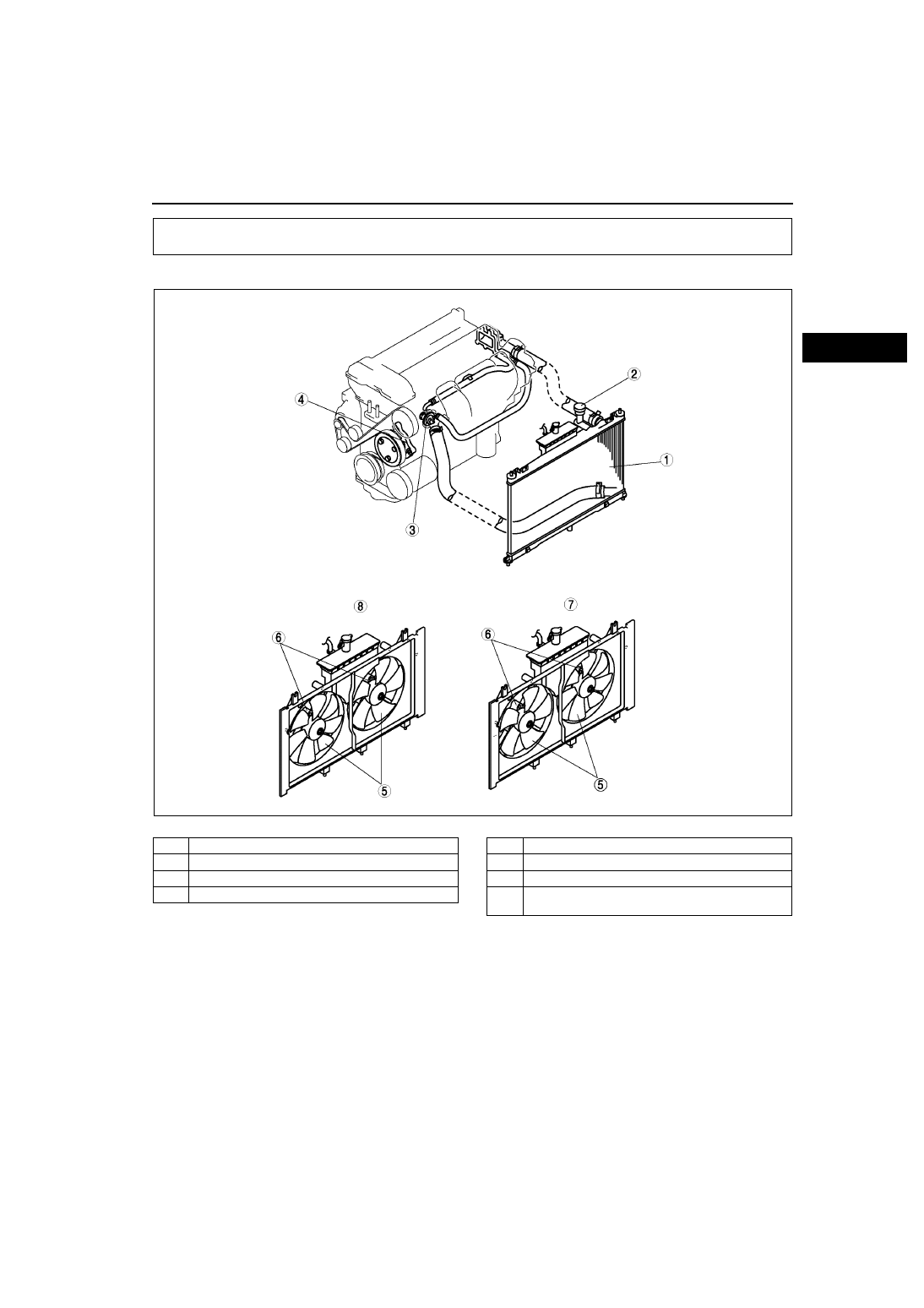

STRUCTURAL VIEW

A6E363001004T02

.

End Of Sie

COOLING SYSTEM

AME3602N001

1

Radiator

2

Radiator  cap

3

Thermostat

4

Water pump

5

Cooling fan blade

6

Cooling fan motor No.1,Cooling fan motor No.2

7

For Israel and L3 engine model

8

LF engine model except for Israel and L8 engine
model

E–4

COOLING SYSTEM

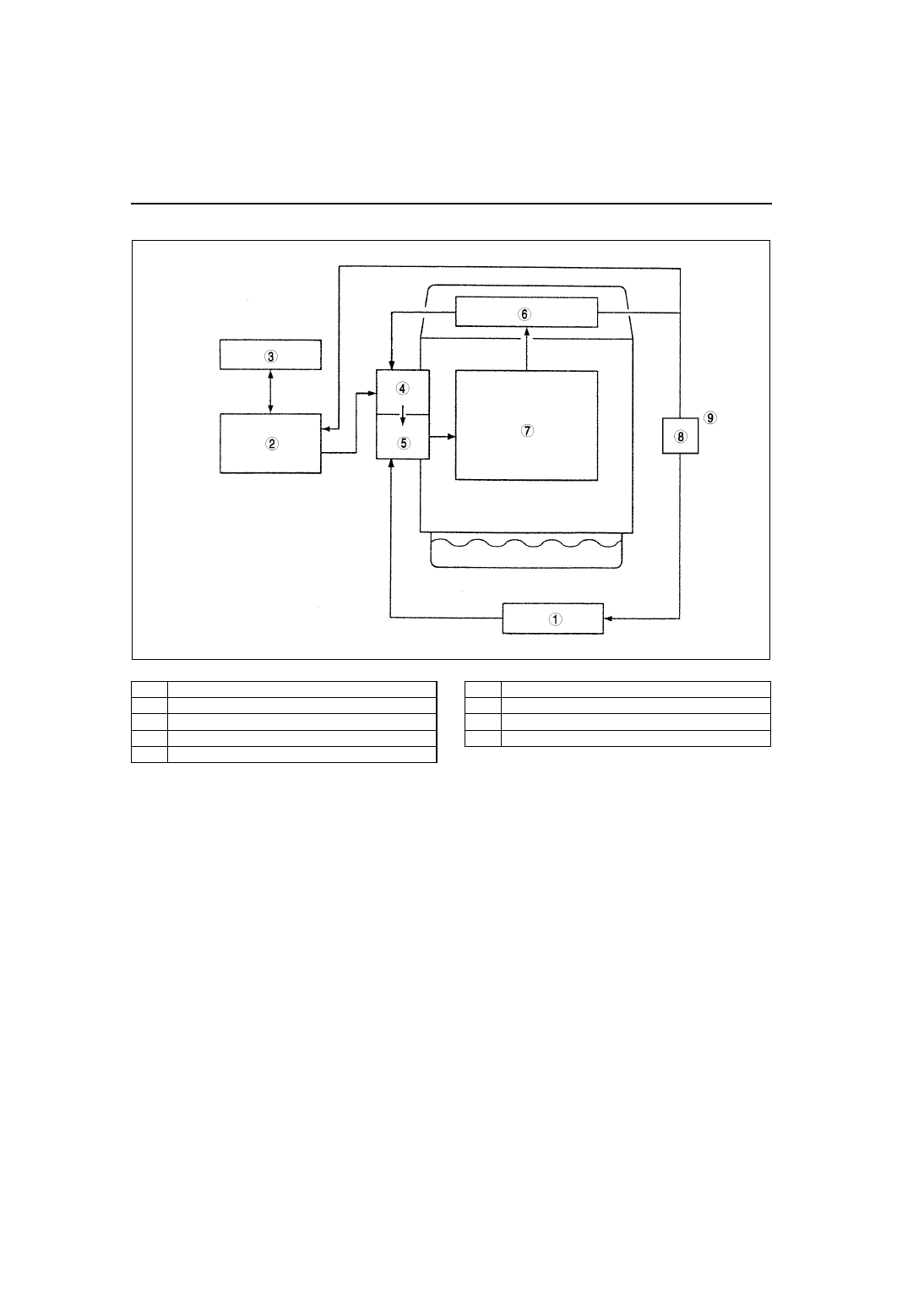

COOLING FLOW DIAGRAM

A6E363001004T03

.

End Of Sie

AME3602N002

1

Heater

2

Radiator

3

Coolant reservoir tank

4

Thermostat

5

Water pump

6

Cylinder head

7

Cylinder block

8

Oil cooler

9

LF and L3 engine models

COOLING SYSTEM

E–5

E

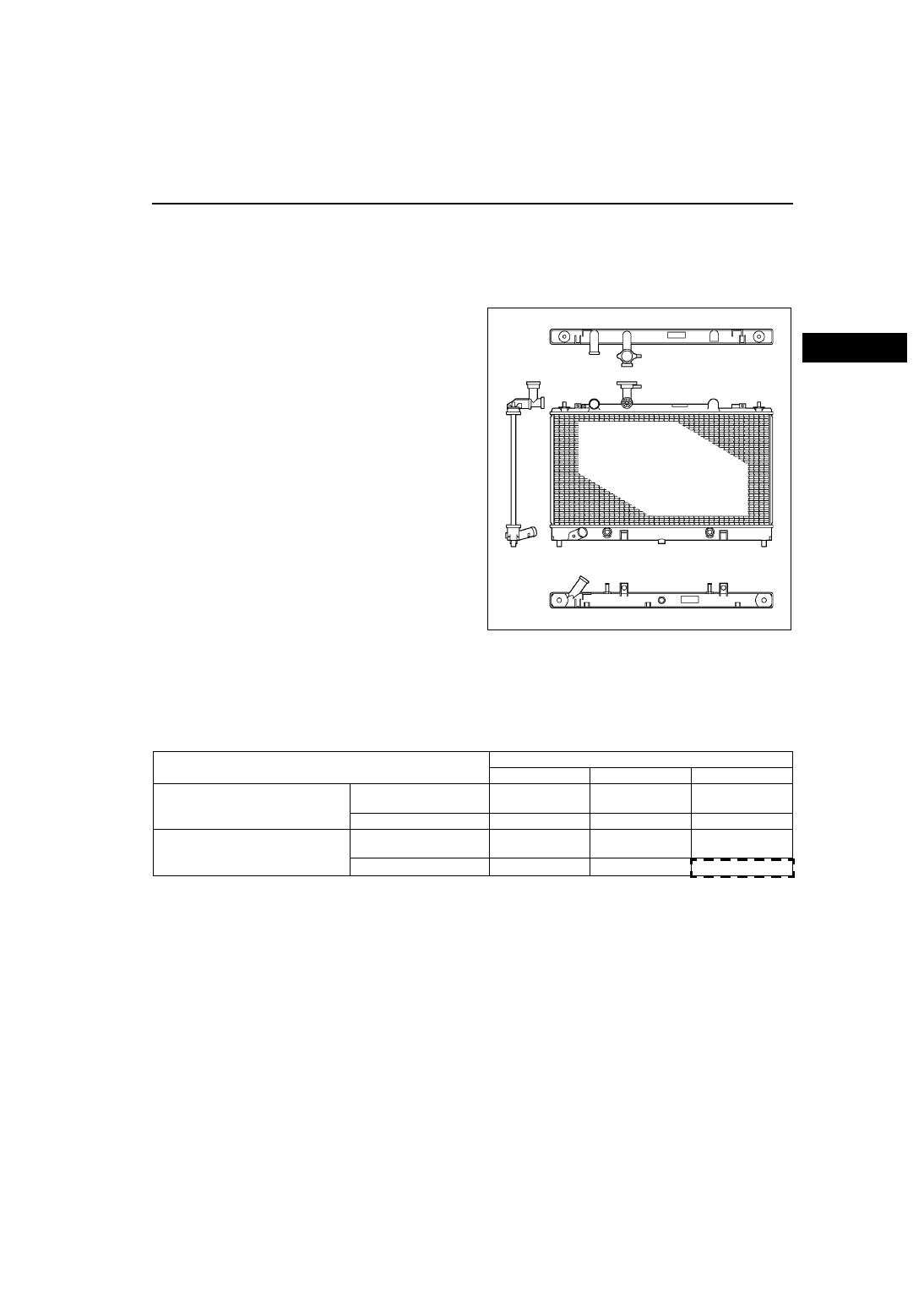

RADIATOR

A6E363015200T01

Structure

•

A cross-flow radiator with corrugated fins is used for improved cooling.

•

The radiator tanks are made of plastic and the core is made of aluminum.

•

Four rubber-insulated mounting brackets are utilized to decrease vibration.

•

The radiator has an ATF cooler in the radiator tank. (ATX)

•

A small pressuring type cap has been adopted for
the radiator cap.

End Of Sie

COOLING FAN

A6E363015140T01

Structure

•

Electric cooling fans No.1 and No.2, operated according to a fan control signal from the PCM, have been
adopted. Due to this, engine noise is reduced and rapid warming-up is possible.

•

A cooling fan No.1 and No.2 is attached to the radiator cowling.

Cooling fan, fan motor specs:

End Of Sie

AME3602N003

ITEM

ENGINE

L8

LF

L3

Cooling fan No.1

Number of
Blade

(sheet)

5

For Israel: 7

Except for Israel: 5

7

Motor output

(W)

80

80-120

70

Cooling fan No.2

Number of
Blade

(sheet)

7

For Israel: 5

Except for Israel: 7

5

Motor output

(W)

80

80-120

90-120

E–6

COOLING SYSTEM

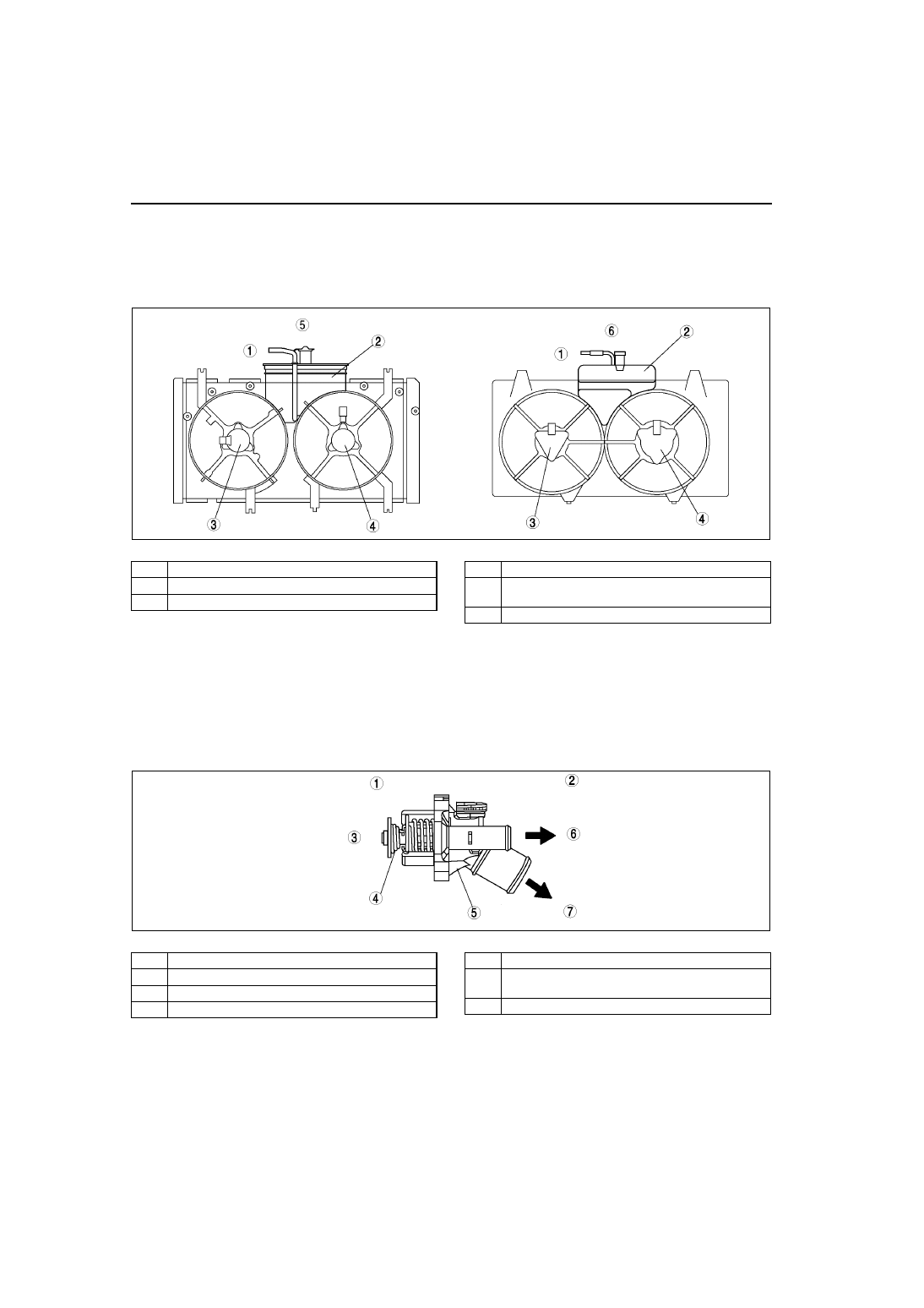

RADIATOR COWLING, COOLANT RESERVOIR TANK

A6E363015140T02

Structure

•

A radiator cowling is made of plastic for the weight reduction.

•

A coolant reservoir tank can be removed from the radiator cowling. (For Israel and L3 engine models)

•

A coolant reservoir tank can not be removed from the radiator cowling. (LF engine models except for Israel and
L8 engine models)

.

End Of Sie

THERMOSTAT

A6E363015171T01

Structure

•

A wax-type thermostat with a jiggle-pin has been adopted.

•

The plastic thermostat case has a built-in stainless steel thermostat body with excellent corrosion resistance.

•

When the engine coolant temperature is below 75.0

°

C {167

°

F}, the thermostat stops the circulation of radiator

coolant from the radiator for improved engine warming. When the engine coolant temperature is between
80.0

°

C {176

°

F} to 84.0

°

C {183.2

°

F}, the thermostat begins opening the valve and engine coolant flows from

the radiator to stabilize engine coolant temperature.

.

End Of Sie

AME3602N004

1

To radiator

2

Coolant reservoir tank

3

Cooling fan motor No.1

4

Cooling fan motor No.2

5

 LF engine model except for Israel and L8 engine
models

6

For Israel and L3 engine models

AME3602N005

1

Engine side

2

Radiator side

3

Water pump

4

Thermostat body

5

Thermostat case

6

Oil cooler (LF and L3 engine models)
Heater hose (L8 engine model)

7

Lower radiator hose
