ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (FS)]

01–02B–16

P0300

Random misfire detected

Flashing

or ON

1 or

2

Misfire

×

(See 01–02B–71 DTC P0300
[FS])

P0301

Cylinder 1 misfire
detected

Flashing

or ON

1 or

2

Misfire

×

(See 01–02B–75 DTC P0301,
P0302, P0303, P0304 [FS])

P0302

Cylinder 2 misfire
detected

Flashing

or ON

1 or

2

Misfire

×

(See 01–02B–75 DTC P0301,
P0302, P0303, P0304 [FS])

P0303

Cylinder 3 misfire
detected

Flashing

or ON

1 or

2

Misfire

×

(See 01–02B–75 DTC P0301,
P0302, P0303, P0304 [FS])

P0304

Cylinder 4 misfire
detected

Flashing

or ON

1 or

2

Misfire

×

(See 01–02B–75 DTC P0301,
P0302, P0303, P0304 [FS])

P0325

Knock sensor circuit
malfunction

ON

1

CCM

×

(See 01–02B–77 DTC P0325
[FS])

P0335

CKP sensor circuit
malfunction

ON

1

CCM

×

(See 01–02B–79 DTC P0335
[FS])

P0340

CMP sensor circuit
malfunction

ON

1

CCM

×

(See 01–02B–80 DTC P0340
[FS])

P0401

EGR flow insufficient
detected

ON

2

EGR

×

(See 01–02B–82 DTC P0401
[FS])

P0402

EGR flow excessive
detected

ON

2

EGR

×

(See 01–02B–83 DTC P0402
[FS])

P0421

Warm-up catalyst system
efficiency below threshold

ON

2

Catalyst

×

(See 01–02B–84 DTC P0421
[FS])

P0442

Evaporative emission
system leak detected
(small leak)

ON

2

Evaporative

×

(See 01–02B–86 DTC P0442
[FS])

P0443

Evaporative emission
control system purge
solenoid valve circuit
malfunction

OFF

Other

(See 01–02B–89 DTC P0443
[FS])

P0451

Fuel tank pressure sensor
performance problem

ON

2

CCM

×

(See 01–02B–90 DTC P0451
[FS])

P0452

Fuel tank pressure sensor
low input

ON

2

CCM

×

(See 01–02B–93 DTC P0452
[FS])

P0453

Fuel tank pressure sensor
high input

ON

2

CCM

×

(See 01–02B–95 DTC P0453
[FS])

P0455

Evaporative emission
control system leak
detected (blockage or
large leak)

ON

2

Evaporative

×

(See 01–02B–97 DTC P0455
[FS])

P0456

Evaporative emission
control system leak
detected (very small leak)

ON

2

Evaporative

×

(See 01–02B–102 DTC P0456
[FS])

P0461

Fuel gauge sender unit
circuit range/performance

ON

2

CCM

×

(See 01–02B–104 DTC P0461
[FS])

P0462

Fuel gauge sender unit
circuit low input

ON

2

CCM

×

(See 01–02B–105 DTC P0462
[FS])

P0463

Fuel gauge sender unit
circuit high input

ON

2

CCM

×

(See 01–02B–107 DTC P0463
[FS])

P0464

Fuel gauge sender unit
circuit performance (slosh
check)

ON

2

CCM

×

(See 01–02B–108 DTC P0464
[FS])

P0480

Cooling fan relay
malfunction

OFF

2

CCM

×

(See 01–02B–109 DTC P0480
[FS])

P0500

VSS circuit malfunction
(MTX)

ON

2

CCM

×

(See 01–02B–111 DTC P0500
[FS])

VSS circuit malfunction
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0505

IAC valve circuit
malfunction

ON

1

CCM

×

(See 01–02B–113 DTC P0505
[FS])

P0506

Idle control system RPM
lower than expected

ON

2

CCM

×

(See 01–02B–115 DTC P0506
[FS])

DTC No.

Condition

MIL

O/D off

indicator

light

DC

Monitor

item

Memory

function

Page

1712-1U-01G(01-02B).fm  16 ページ  2001年6月29日 金曜日 午後3時24分

ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (FS)]

01–02B–17

01–02B

P0507

Idle control system RPM
higher than expected

ON

2

CCM

×

(See 01–02B–117 DTC P0507
[FS])

P0550

PSP switch circuit
malfunction

ON

2

CCM

×

(See 01–02B–118 DTC P0550
[FS])

P0660

VICS solenoid valve
circuit malfunction

OFF

2

CCM

×

(See 01–02B–119 DTC P0660
[FS])

P0703

Brake switch input
malfunction

ON

2

CCM

×

(See 01–02B–122 DTC P0703
[FS])

P0704

Clutch switch input circuit
malfunction (MTX)

ON

2

CCM

×

(See 01–02B–123 DTC P0704
[FS])

P0705

Neutral switch input circuit
malfunction (MTX)

ON

2

CCM

×

(See 01–02B–125 DTC P0705
[FS])

P0705

TR switch circuit
malfunction (ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0706

TR switch circuit
malfunction (open circuit)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0710

Transaxle temperature
sensor circuit malfunction
(open or short) (ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0711

Transaxle temperature
sensor circuit range/
performance (stuck)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0715

Input/turbine speed
sensor circuit malfunction
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0731

Gear 1 incorrect (ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0732

Gear 2 incorrect (ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0733

Gear 3 incorrect (ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0734

Gear 4 incorrect (ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0741

TCC (stuck off) (ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0742

TCC (stuck on) (ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0745

Pressure control solenoid
valve malfunction (ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0751

Shift solenoid A
malfunction (stuck off)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0752

Shift solenoid A
malfunction (stuck on)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0753

Shift solenoid A
malfunction (electrical)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0756

Shift solenoid B
malfunction (stuck off)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0757

Shift solenoid B
malfunction (stuck on)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0758

Shift solenoid B
malfunction (electrical)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0761

Shift solenoid C
malfunction (stuck off)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0762

Shift solenoid C
malfunction (stuck on)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

DTC No.

Condition

MIL

O/D off

indicator

light

DC

Monitor

item

Memory

function

Page

1712-1U-01G(01-02B).fm  17 ページ  2001年6月29日 金曜日 午後3時24分

ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (FS)]

01–02B–18

End Of Sie

P0763

Shift solenoid C
malfunction (electrical)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0766

Shift solenoid D
malfunction (stuck off)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0767

Shift solenoid D
malfunction (stuck on)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0768

Shift solenoid D
malfunction (electrical)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0771

Shift solenoid E
malfunction (stuck off)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0772

Shift solenoid E
malfunction (stuck on)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P0773

Shift solenoid E
malfunction (electrical)
(ATX)

(See 05–02–6 AUTOMATIC TRANSAXLE ON-BOARD DIAGNOSTIC FUNCTION.)

P1250

PRC solenoid valve circuit
malfunction

OFF

2

CCM

×

(See 01–02B–127 DTC P1250
[FS])

P1449

CDCV circuit malfunction

OFF

Other

(See 01–02B–129 DTC P1449
[FS])

P1450

Evaporative emission
control system
malfunction (excessive
vacuum)

ON

2

CCM

×

(See 01–02B–131 DTC P1450
[FS])

P1487

EGR boost sensor
solenoid valve circuit
malfunction

OFF

Other

(See 01–02B–133 DTC P1487
[FS])

P1496

EGR valve stepping motor
coil 1 open or short

OFF

Other

(See 01–02B–135 DTC P1496
[FS])

P1497

EGR valve stepping motor
coil 2 open or short

OFF

Other

(See 01–02B–137 DTC P1497
[FS])

P1498

EGR valve stepping motor
coil 3 open or short

OFF

Other

(See 01–02B–139 DTC P1498
[FS])

P1499

EGR valve stepping motor
coil 4 open or short

OFF

Other

(See 01–02B–141 DTC P1499
[FS])

P1512

VTCS shutter valve close
stuck

ON

2

CCM

×

(See 01–02B–143 DTC P1512
[FS])

P1562

PCM +BB voltage low

ON

1

CCM

×

(See 01–02B–144 DTC P1562
[FS])

P1569

VTCS solenoid valve
circuit low input

ON

2

CCM

×

(See 01–02B–146 DTC P1569
[FS])

P1570

VTCS solenoid valve
circuit high input

ON

2

CCM

×

(See 01–02B–148 DTC P1570
[FS])

P1631

Generator output voltage
signal no electricity

OFF

Other

×

(See 01–02B–150 DTC P1631
[FS])

P1632

Battery voltage monitor
signal circuit malfunction

OFF

Other

×

(See 01–02B–152 DTC P1632
[FS])

P1633

Battery overcharge

OFF

Other

×

(See 01–02B–153 DTC P1633
[FS])

P1634

Generator terminal B
circuit open

OFF

Other

×

(See 01–02B–154 DTC P1634
[FS])

DTC No.

Condition

MIL

O/D off

indicator

light

DC

Monitor

item

Memory

function

Page

1712-1U-01G(01-02B).fm  18 ページ  2001年6月29日 金曜日 午後3時24分

ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (FS)]

01–02B–19

01–02B

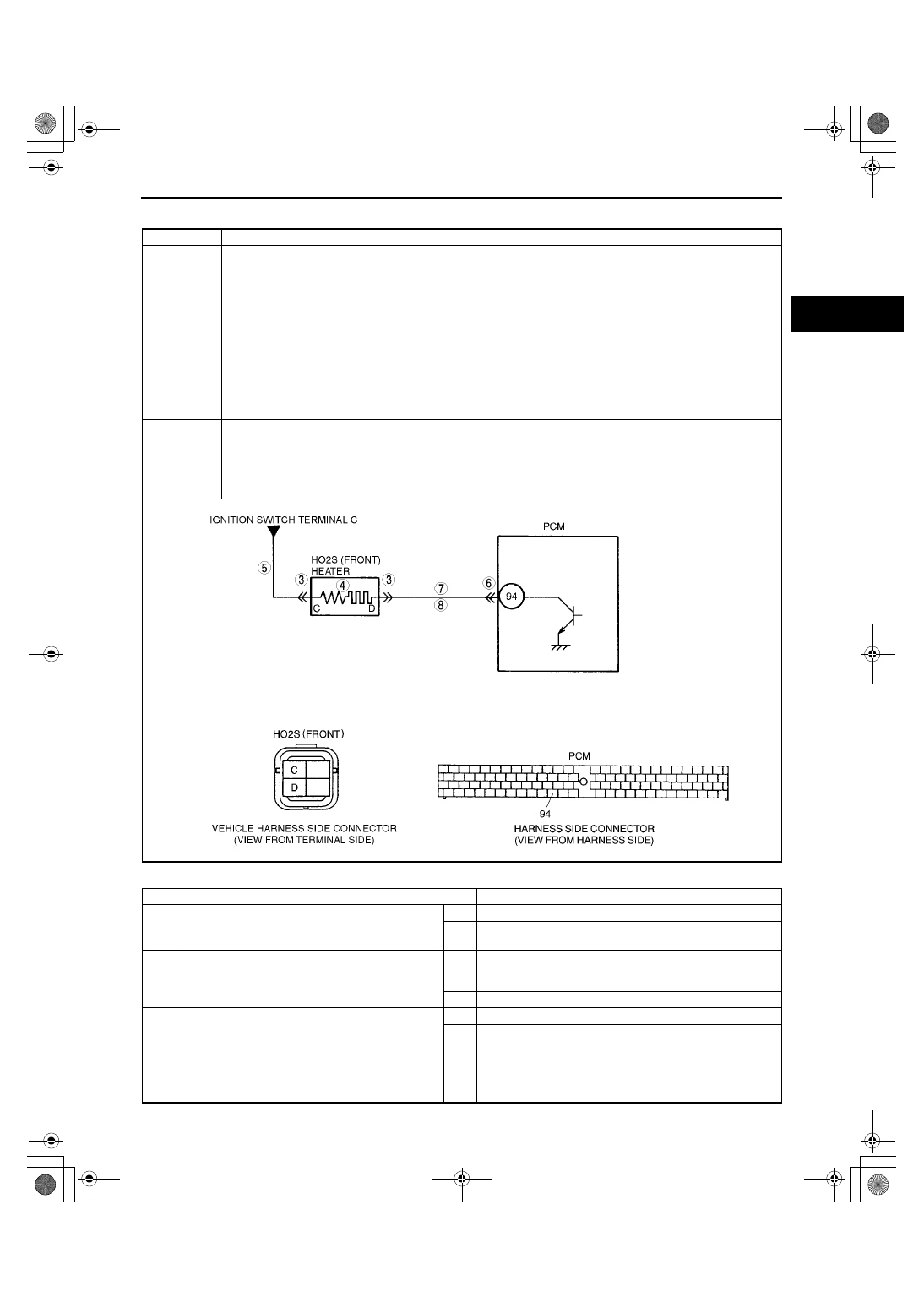

DTC P0031 [FS]

A3U010201084W01

Diagnostic procedure

DTC P0031

HO2S heater (front) circuit low

DETECTION

CONDITION

PCM monitors HO2S heater (front) control signal at PCM terminal 94. If PCM turns the HO2S heater (front)
off but voltage at terminal 94 still remains low, PCM determines that HO2S heater (front) circuit has
malfunction.

Note

HO2S heater (front) is controlled by a duty signal.

Diagnostic support note

This is an intermittent monitor (O

2

 sensor heater).

MIL illuminates if PCM detects the above malfunction condition in two consecutive drive cycles.

PENDING CODE is available if PCM detects the above malfunction condition during first drive cycle.

FREEZE FRAME DATA is available.

DTC is stored in PCM memory.

POSSIBLE

CAUSE

HO2S (front) malfunction

Open circuit between ignition switch terminal C and HO2S (front) terminal C

Open circuit between HO2S (front) terminal D and PCM terminal 94

Short to ground circuit between HO2S (front) terminal D and PCM terminal 94

Poor connection at HO2S (front) or PCM connector

PCM malfunction

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED

Has FREEZE FRAME DATA been recorded?

Yes Go to next step.

No

Record FREEZE FRAME DATA on repair order, then go to
next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

Check for related Service Bulletins availability.

Is any related repair information available?

Yes Perform repair or diagnosis according to available repair

information.

If vehicle is not repaired, go to next step.

No

Go to next step.

3

INSPECT HO2S (FRONT) CONNECTOR FOR
POOR CONNECTION

Turn ignition key to OFF.

Disconnect HO2S (front) connector.

Check for poor connection (damaged/pulled-
out pins, corrosion, etc.).

Is there malfunction?

Yes Repair or replace terminal, then go to Step 9.

No

Go to next step.

1712-1U-01G(01-02B).fm  19 ページ  2001年6月29日 金曜日 午後3時24分















Content   ..  47  48  49  50   ..
