Mazda MX-5 Miata / Grand Touring. Manual - part 151

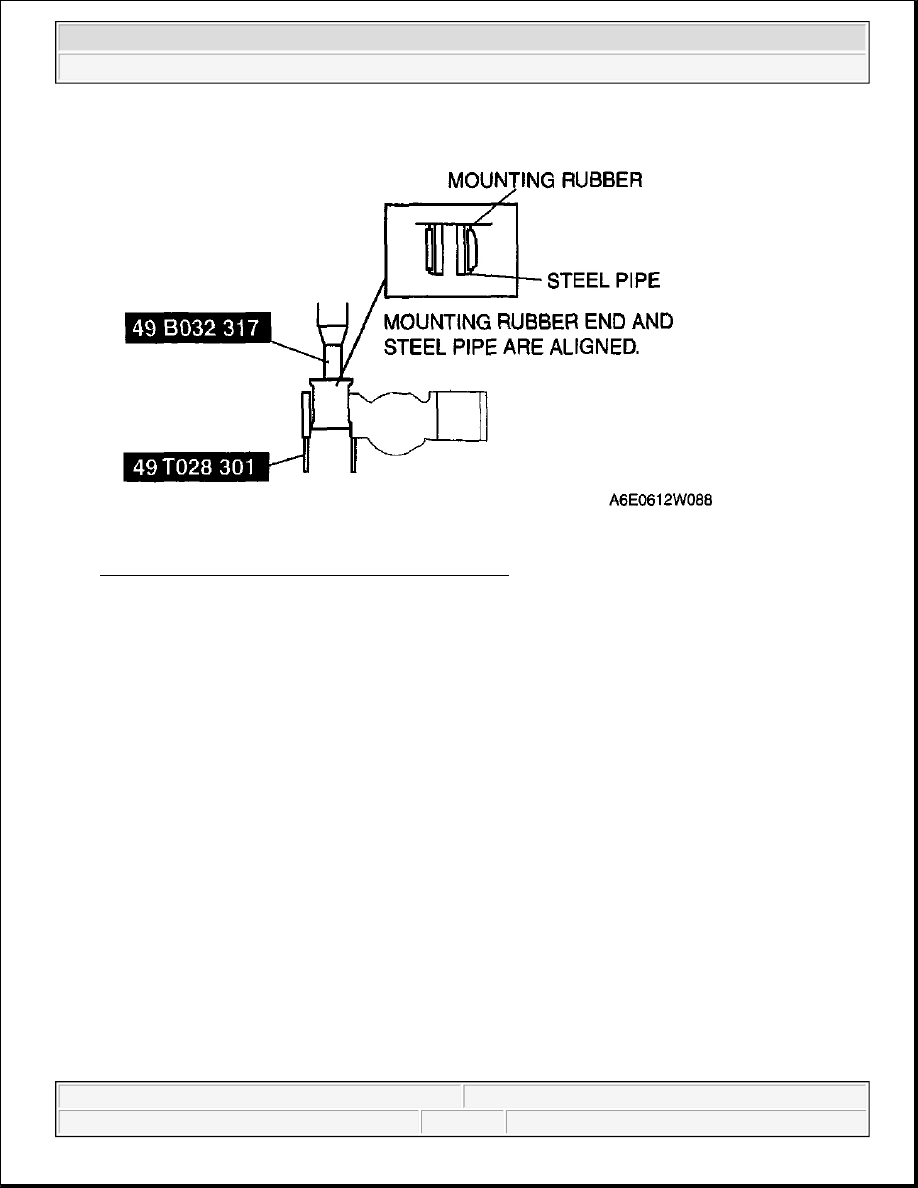

Fig. 35: Aligning Mounting Rubber End & Steel Pipe
Courtesy of MAZDA MOTORS CORP.

STEELING RACK, OIL SEAL (GEAR HOUSING SIDE), INNER GUIDE ASSEMBLY NOTE

1. Apply multi-purpose grease to the oil seal (gear housing side) and Inner guide.

2. Install the plastic bag to the steering rack teeth so as not to damage the oil seal (gear housing side) and the

inner guide, and install the oil seal (gear housing side) and the inner guide to the seal. Move the oil seal
(gear housing side) and the inner guide together with the plastic bag so that they pass the steering rack
teeth, then remove the plastic bag.



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata

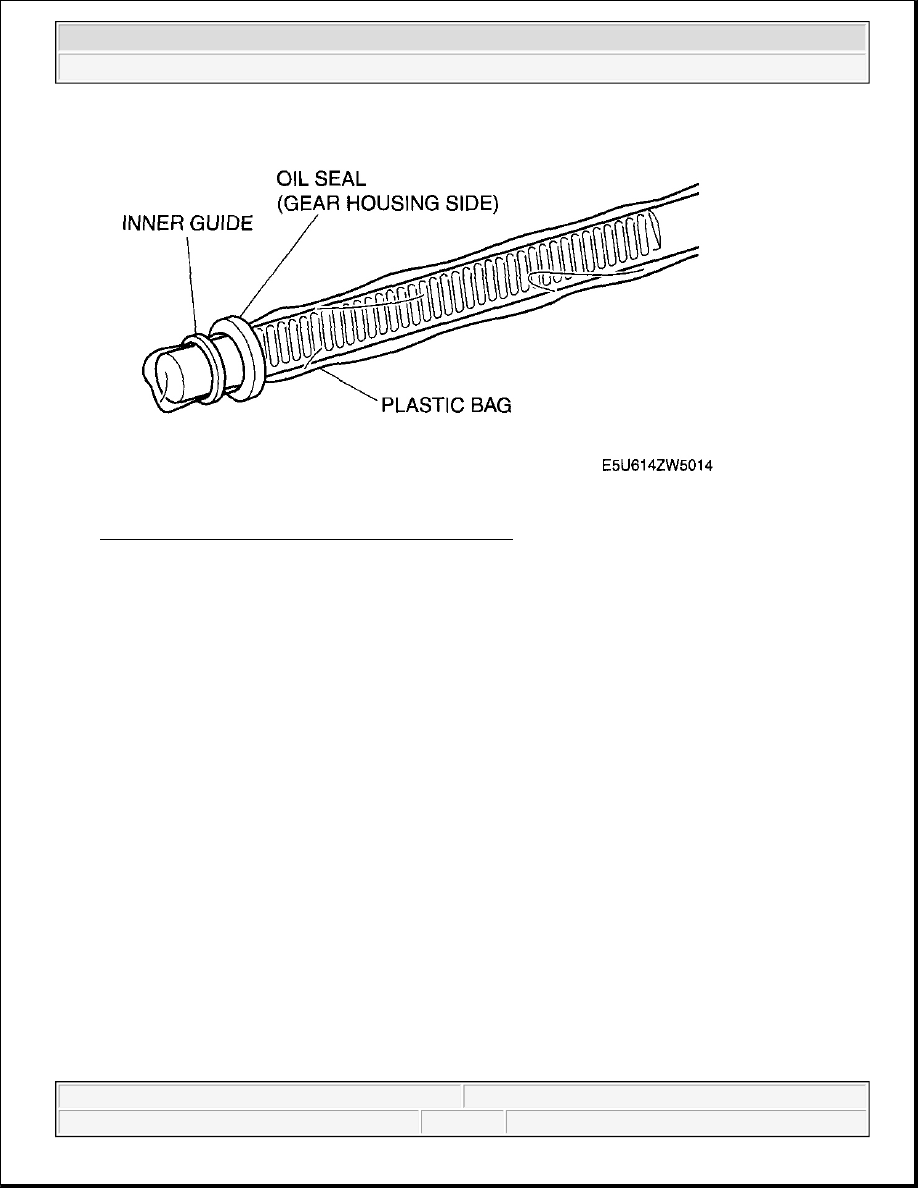

Fig. 36: Installing Plastic Bag To Steering Rack Teeth
Courtesy of MAZDA MOTORS CORP.

3. Put the steering rack into the gear housing.



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata



Fig. 37: Putting Steering Rack Into Gear Housing
Courtesy of MAZDA MOTORS CORP.

4. Using a press, press-in the oil seal (gear housing side) and inner guide until the press-in force increases

rapidly.

OIL SEAL (HOLDER SIDE), HOLDER ASSEMBLY NOTE

1. Apply multi-purpose grease to the oil seal holder side)

2. Install the plastic bag to the steering rack end so as not to damage the oil seal (holder side) and install the

oil seal (holder side) to the seal. Move the oil seal (holder side) together with the plastic bag so that they
pass the steering rack end, then remove the plastic bag.

3. Install the holder and move the steering rack until it contacts the housing.



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata

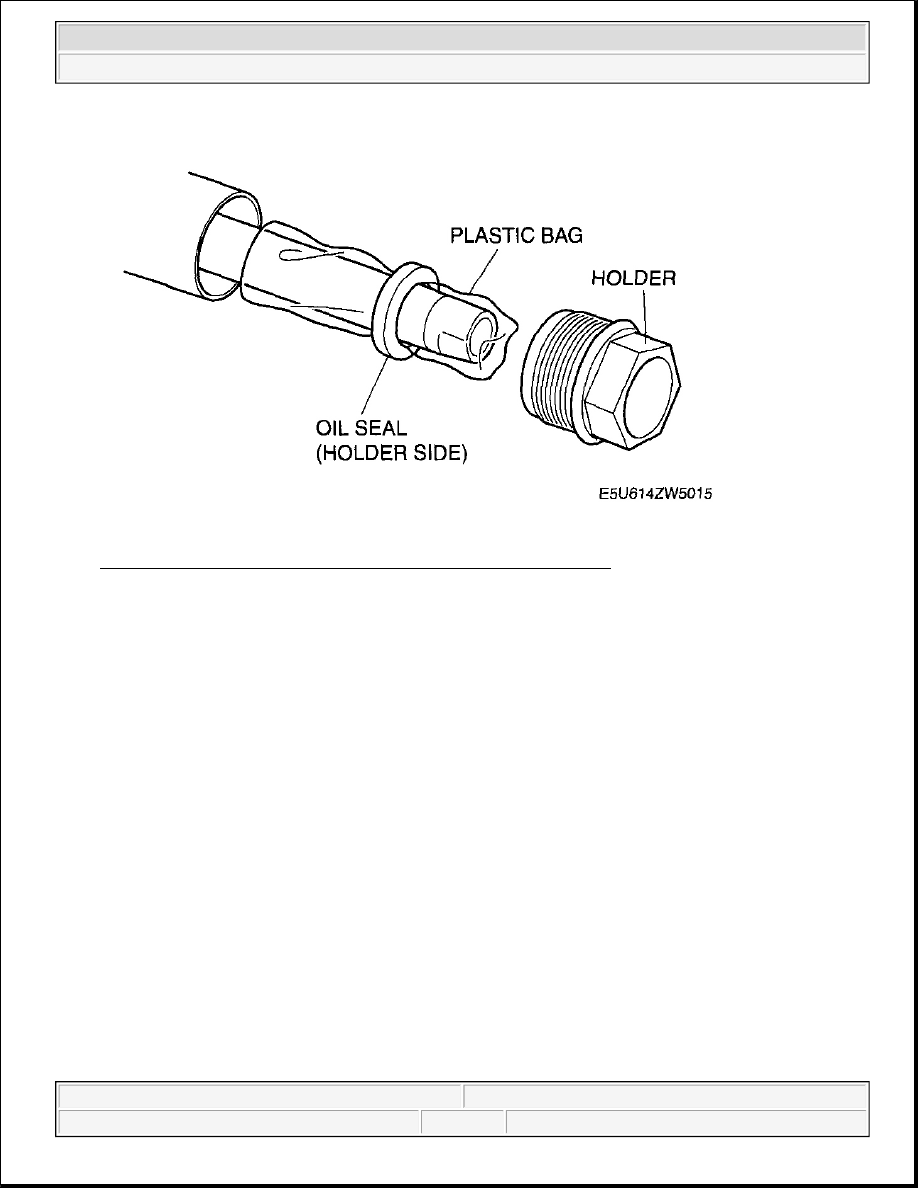

Fig. 38: Identifying Oil Seal (Holder Side), Plastic Bag And Holder
Courtesy of MAZDA MOTORS CORP.

4. Tighten the holder to the specified torque using the SST .

Tightening torque

58.9-73.5 N.m {6.00-7.49 kgf.m, 43.4-54.2 ft.lbf}



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata
