05–17–40

AUTOMATIC TRANSAXLE

Disassembly
Components

R

R

R

R

R

R

1

6

14

2

4

5

7

3

12

R

R

10

WITH
OIL PRESSURE SWITCH

15

13

11

8

9

R

BANJO-TYPE

CDA517ZAA001

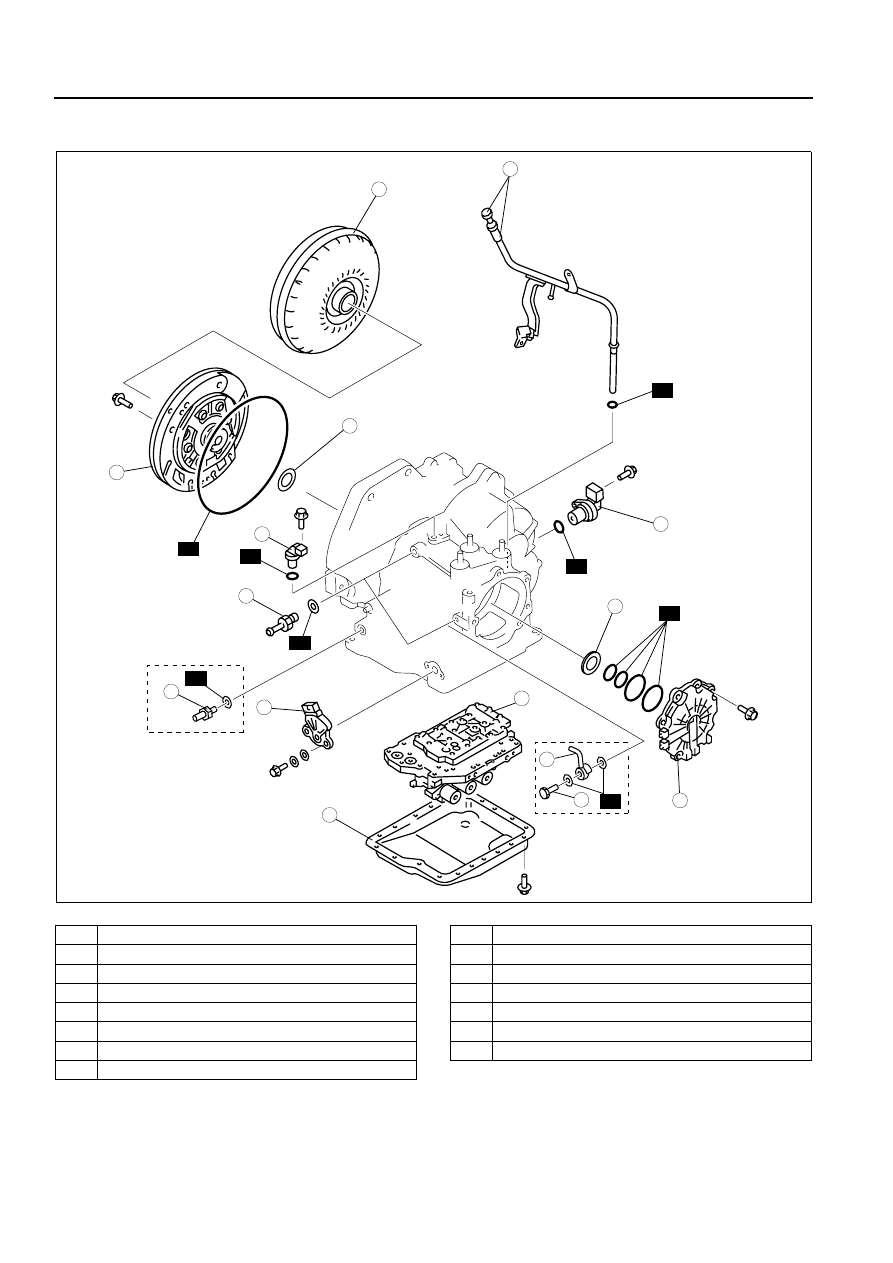

1

Torque converter

2

Oil dipstick and oil filler tube

3

Input/turbine speed sensor

4

Oil pressure switch

5

Transaxle range switch

6

Vehicle speed sensor

7

Connector pipe

8

Connector bolt

9

Oil pipe

10

Oil pan

11

Control valve body component

12

Oil pump

13

Thrust washer

14

End cover

15

Needle bearing

AUTOMATIC TRANSAXLE

05–17–41

05

.

19

18

17

15

14

10

1

2

4

5

7

9

16

R

13

R

12

R

11

R

SST

SST

SELECTIVE

3

6

8

CDA517ZAA102

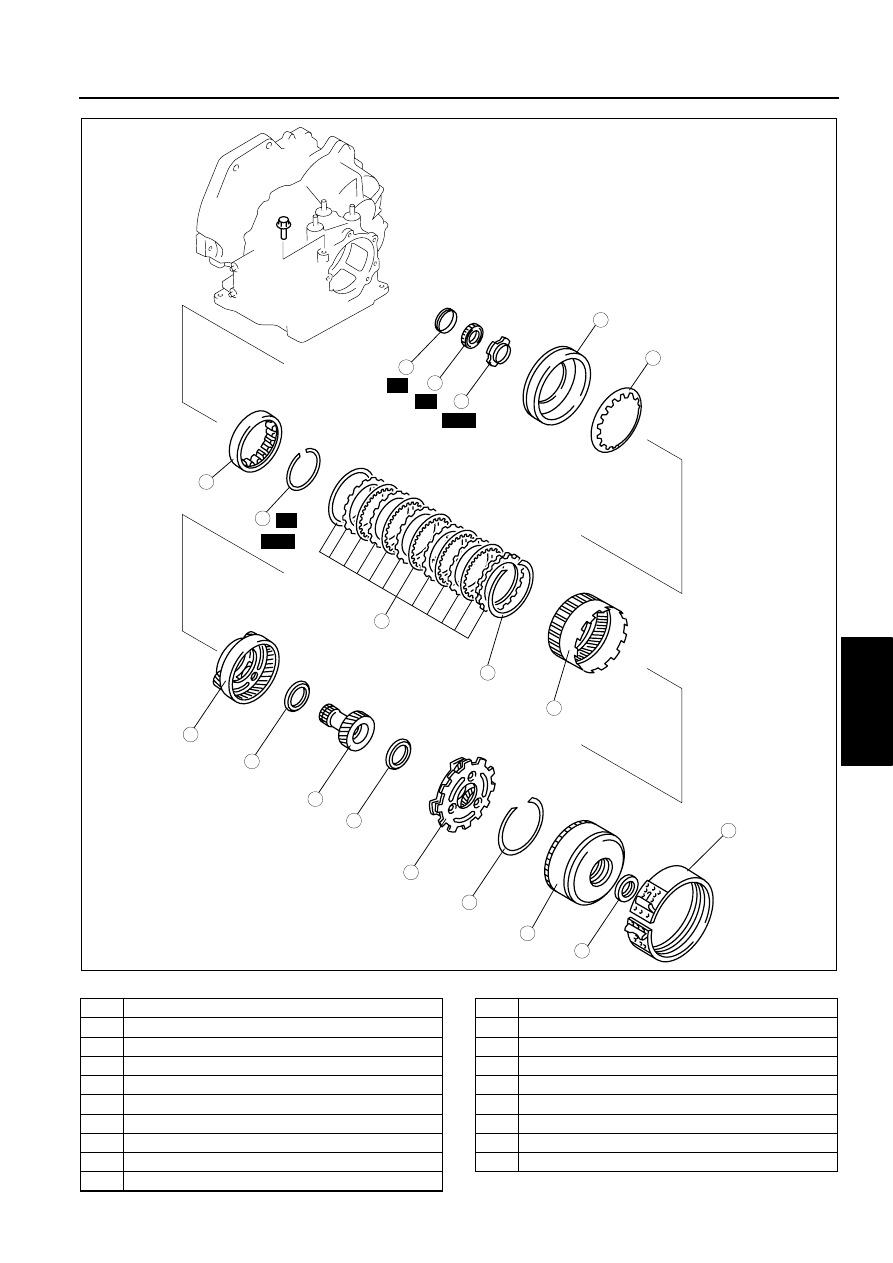

1

2–4 brake band

2

Needle bearing

3

Clutch component

4

Snap ring

5

Rear planetary gear component

6

Needle bearing

7

Front sun gear

8

Needle bearing

9

Front planetary gear component

10

Front internal gear and one-way clutch

11

Lock nut

12

Bearing

13

Distance piece

14

Snap ring

15

Low and reverse brake

16

Snap ring

17

One-way clutch inner race

18

Piston return spring

19

Low and reverse brake piston

05–17–42

AUTOMATIC TRANSAXLE

.

6

13

14

15

16

SST

SST

SST

R

R

R

R

18

16

A

A

7

8

16

17

9

10

12

11

19

4

5

3

2

1

20

B3E0517A200

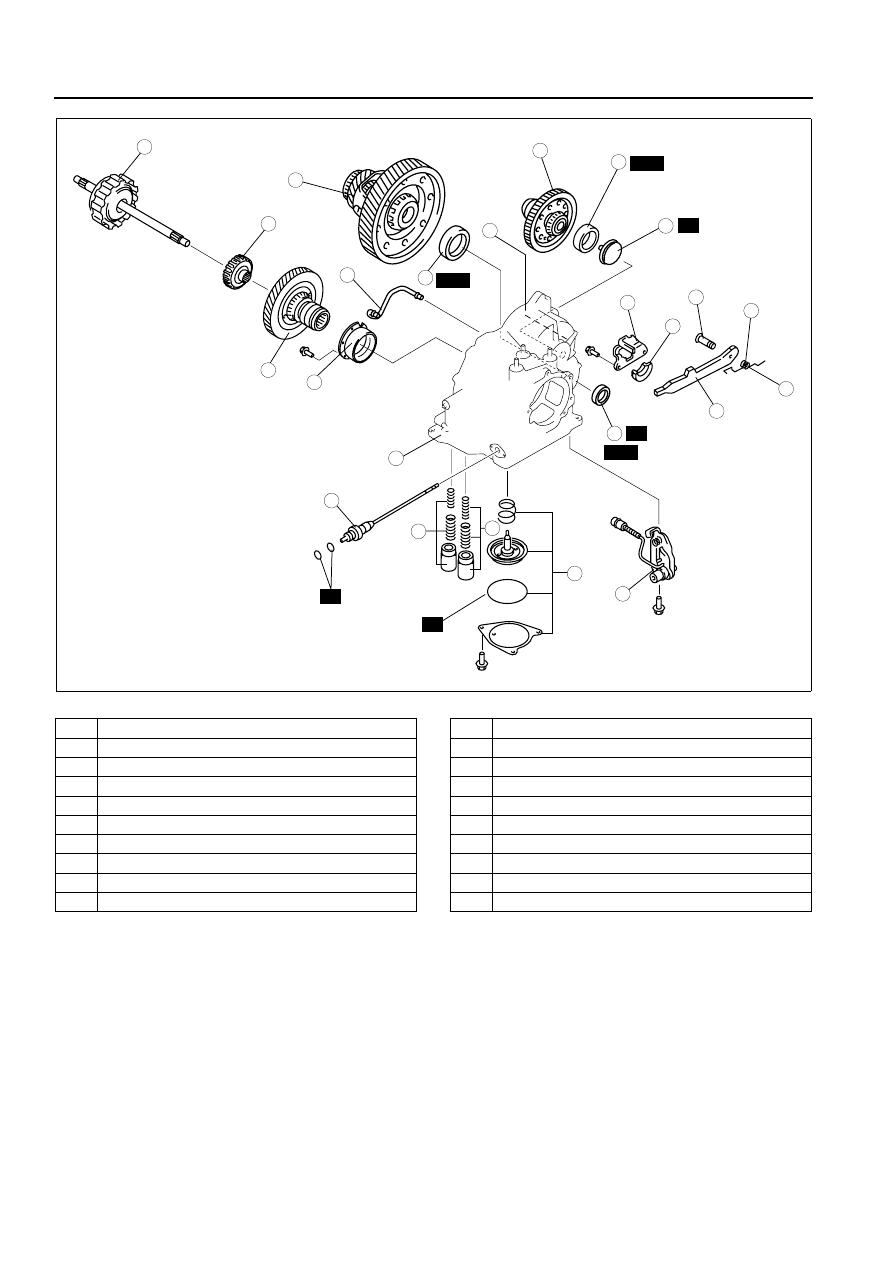

1

Manual shaft

2

Servo apply accumulator

3

Forward accumulator

4

Parking rod lever component

5

Band servo

6

Differential

7

Secondary gear and output gear

8

Actuator plate

9

Support actuator

10

Parking pawl shaft

11

Parking pawl

12

Pawl return spring

13

Forward clutch

14

Forward clutch hub

15

Primary gear

16

Bearing race

17

Funnel

18

Oil pipe

19

Oil seal

20

Transaxle case

AUTOMATIC TRANSAXLE

05–17–43

05

.

Disassembly procedure

1. Remove the torque converter, and immediately turn it so that the hole faces upward.

This will help to keep any remaining fluid from spilling.

2. Remove the ATF dipstick and oil filler tube.
3. Remove the O-ring from the oil filler tube.
4. Remove the breather hose.
5. Assemble the SST.

6. Lift the transaxle and mount it on the SST.
7. Remove the input/turbine speed sensor.
8. Remove the O-ring from the input/turbine speed

sensor.

9. Remove the oil pressure switch. (with oil pressure

switch)

10. Remove the transaxle range switch.
11. Remove the vehicle speed sensor.
12. Remove the O-ring from the vehicle speedometer

sensor.

13. Remove the connector pipe, connector bolt and

oil pipe.

Warning

• Using compressed air can cause dirt and other particles to fly, out, causing injury to the eyes.

Wear protective eye wear whenever using compressed air.

SST

SST

R

3

2

1

1

2

4

SELECTIVE

SELECTIVE

B3E0517A201

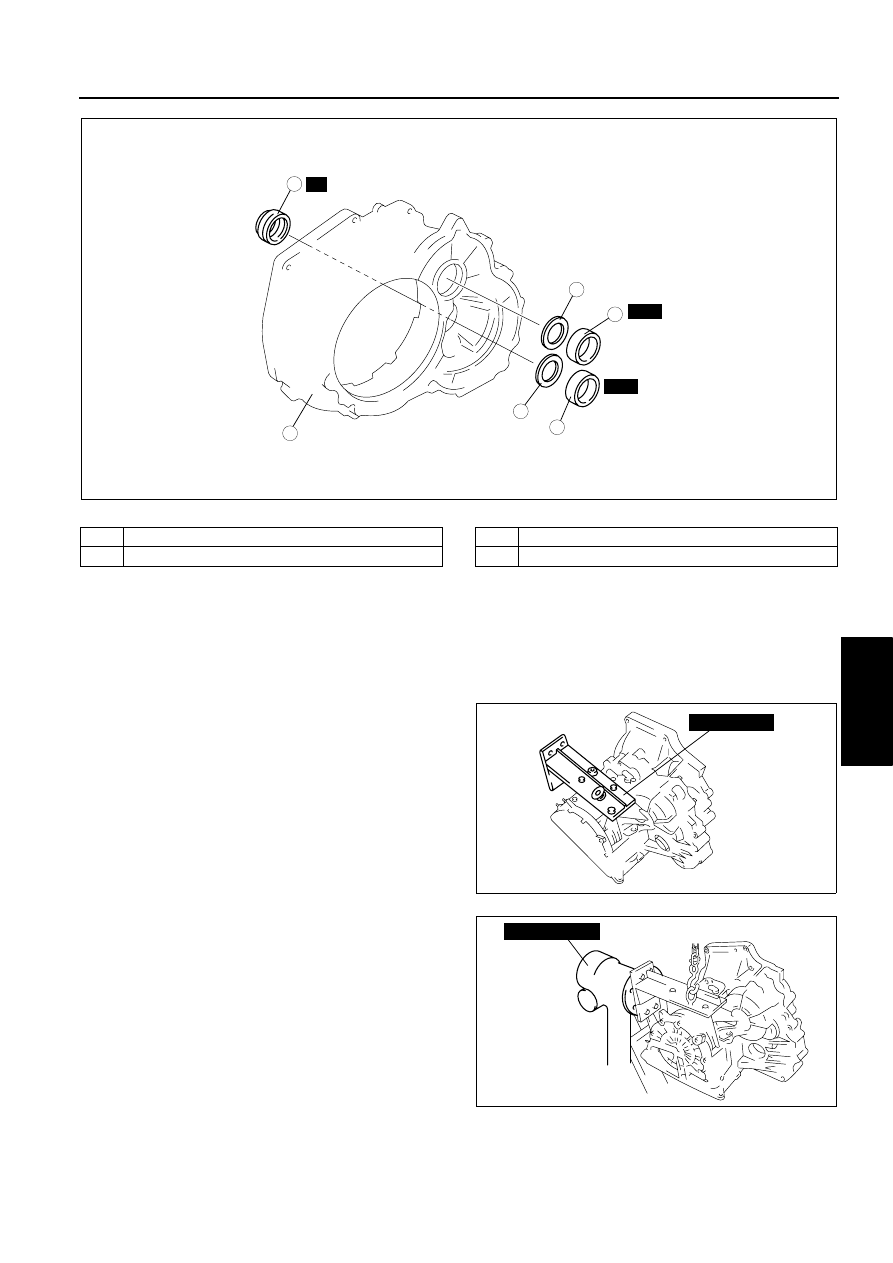

1

Bearing race

2

Adjustment shim

3

Oil seal

4

Converter housing

49 B019 010

B3E0517A331

49 0107 680A

B3E0517A202
