Lifan 620. Manual - part 85

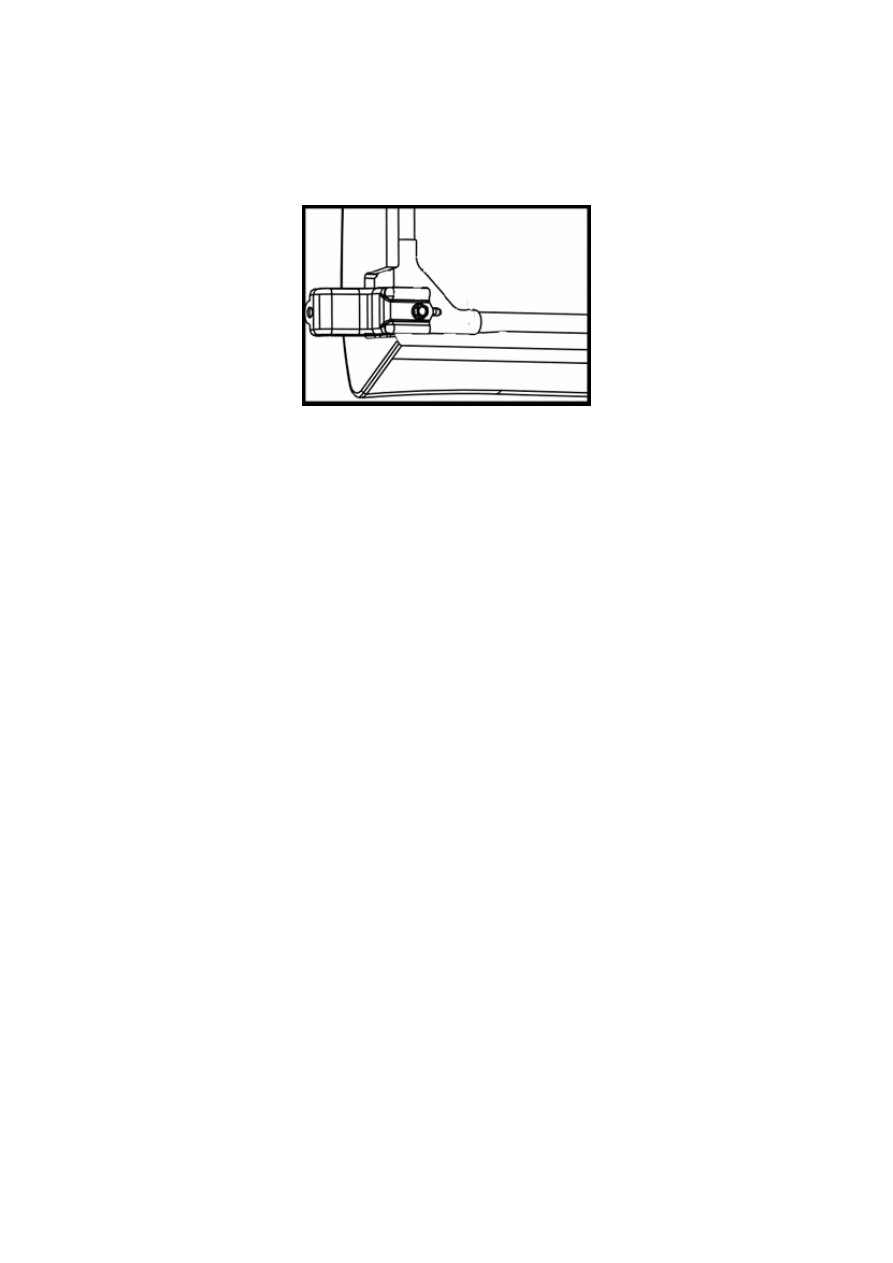

installation.

Torque: 9.8N·m

(4) Install the rear seat back pad assembly, as shown in Fig. 7-20.





341

Section VII    Inside & Outside Decorations



I. Roof

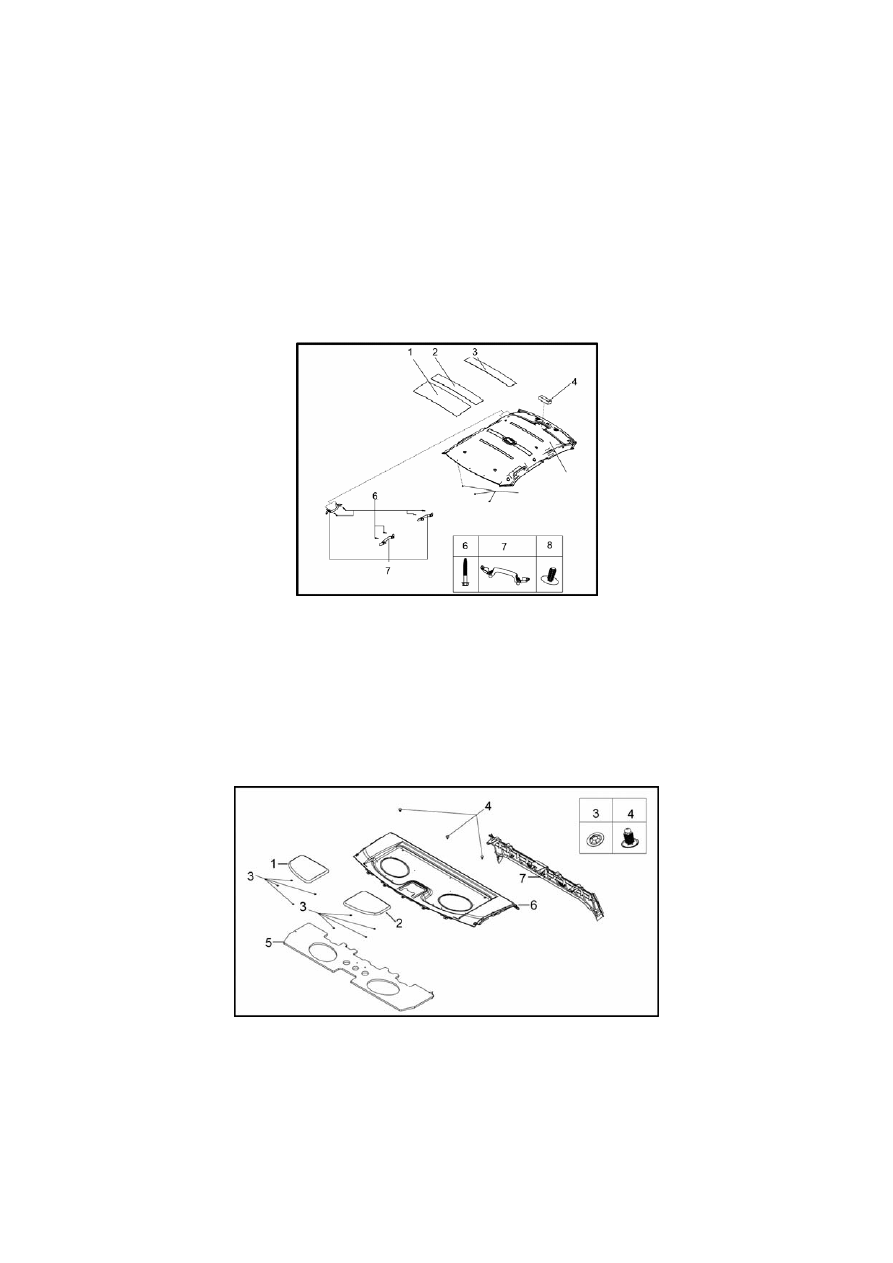

1. Roof (standard scheme) removal:

As shown in Fig. 7-21, first remove the A, B, C pillars, dismantle the roof light, sun visor and the

inner rearview mirror, remove 8 with the buckle clamp, and dismantle 6 with the sleeve, take out of

7 buttressing the roof and then the roof can be removed. Meanwhile, 1, 2, 3 will be adhered on the

roof metal sheet.







Fig. 7-22



1. Rack board upper guard panel left audio cover                  2. Rack board upper guard panel right audio cover

3. Audio cover installing buckle                         4. Guard panel installing buckle

5. Rack board felt pad                                 6. Rack board upper guard panel

7. Rear seat ornament board

342

Removal of the rack board: First, remove the C pillar and high-mounted brake lamp; second, turn

over the rear seats and take out of the safety belt from 4 and remove 6, 7 and 5 successively. 1

and 2 are fixed on 6 through 3 and 4.

(Note: The rear sun visor device is added at 4 in the luxury scheme so the buckle is installed on

the lower place of the rear sun visor device. When removing the 4 for fixing 7, uplift 7 directly and

the buckle here can be taken out; 1 and 2 are welded on 7; four small pads replace 5 in certain

standard scheme.)

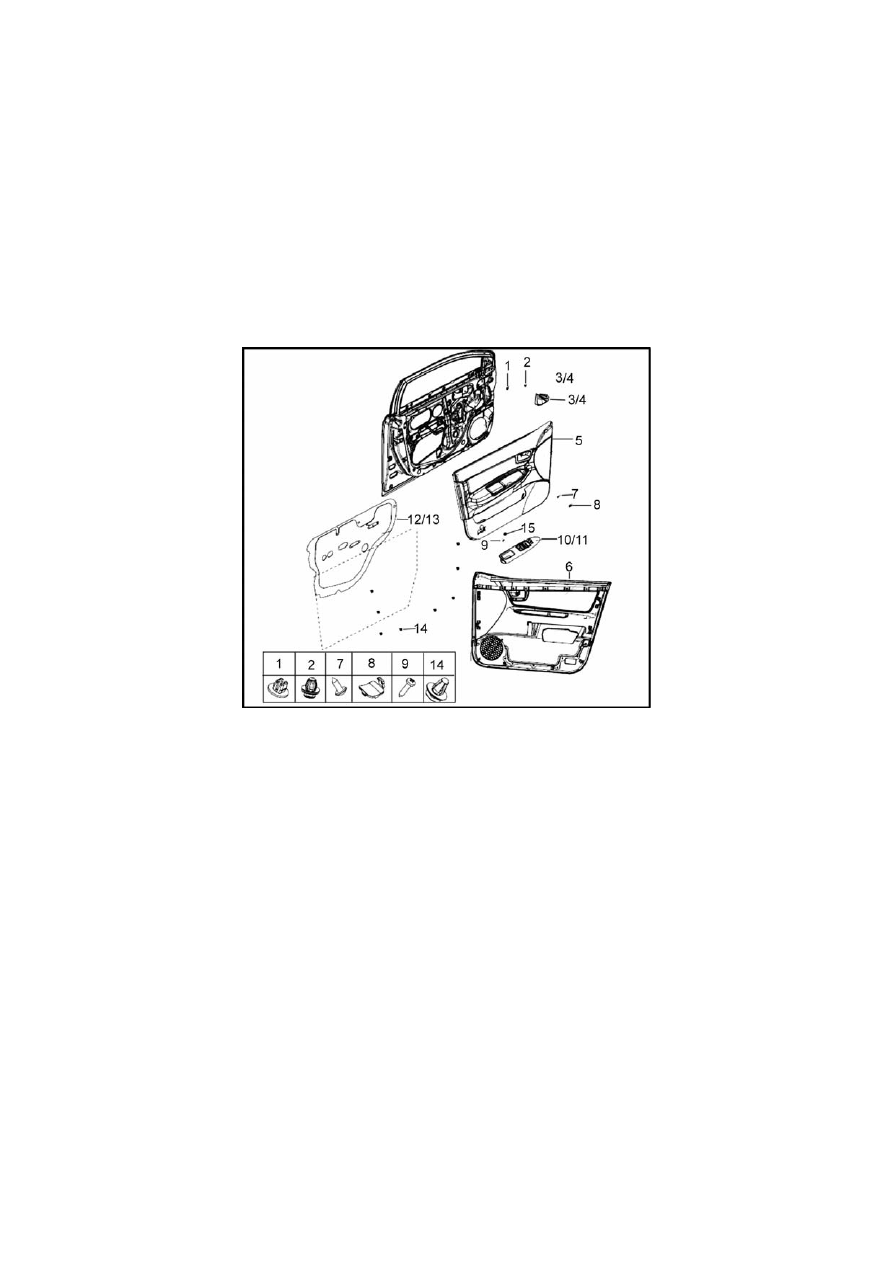

III. Front side door

15. Bolt caulking calking



Remove 3 and 4, unscrew 15 and 9 with the cross-tip screwdriver, open 8 and unscrew 7 as well.

Take out of 5 and 6 from 10 and 11, and unfix the harness. Pull out 5 and 6 to observe whether 14

remains on the metal sheet, if it does, take it with the buckle clamp and return it to the 5 and 6. If it

is necessary to remove 12 and 13, dismantle the door handle and armrest seat installing bracket

first, and tear out 12 and 13, if it is necessary to return them, glue recoating is required. If 1 needs

renewing, dismantle it with the flat blade screwdriver.



343

IV. Rear side door guard panel

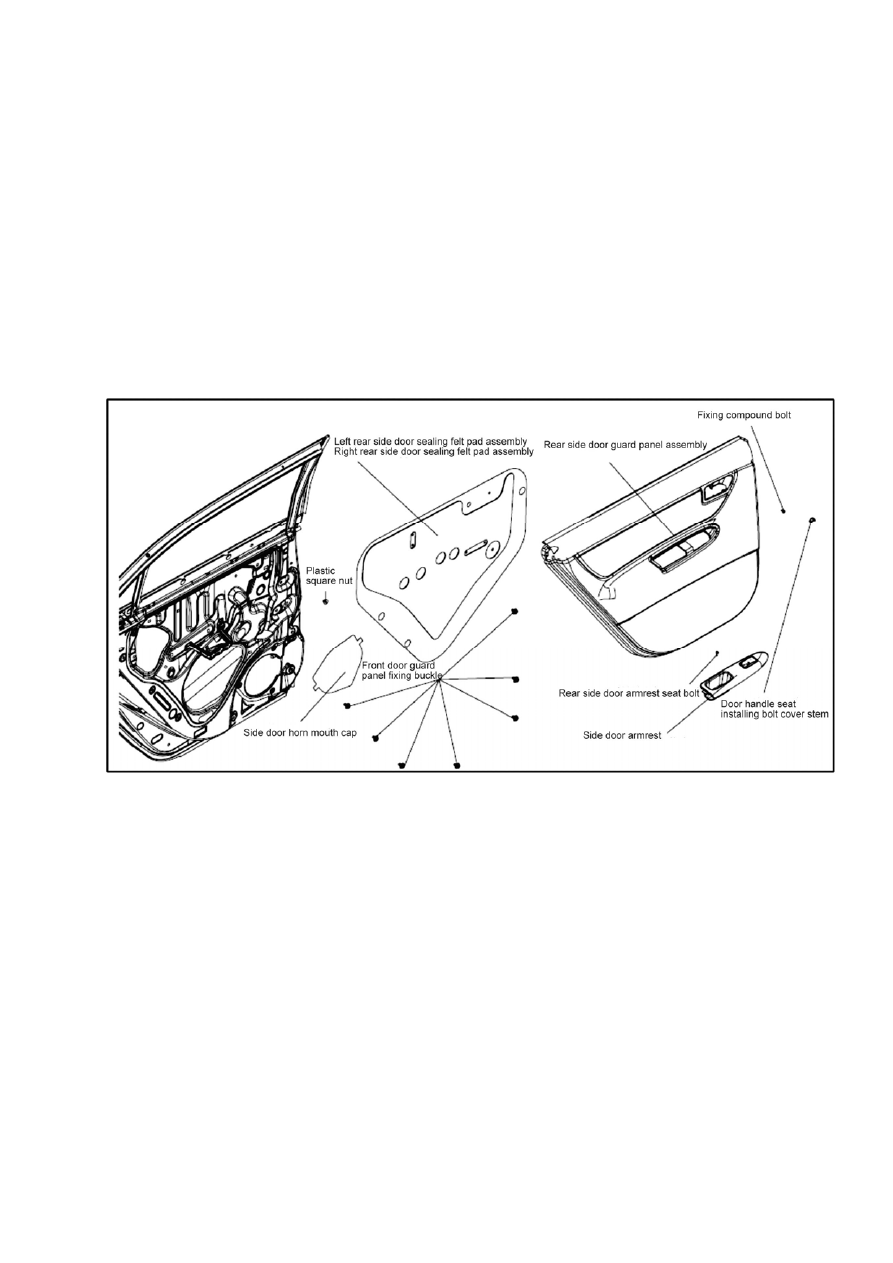

1. Installation of rear side door



① Glue the door horn mouth cap to the lower side round mouth at the position as shown in the

figure.

 Glue the rear side door sealing felt pad assembly on the door inner metal sheet and after

②

confirming that its hole position directly faces with that of the metal sheet, press them tightly.

 Install the armrest seat

③

installing bracket.

 Confirm the non

④

-installation of the inner handle installing bolts, install seven door plate fixing

buckles on the door plate bracket. Put the upper body buckle seat into the place between the door





⑤

⑥

front side into the installing hole of the door plate. Firm the armrest seat with the armrest seat

bolts.
