Wheels and tyres

194

L

TECHNICAL SPECIFICATIONS

Accessory wheels and tyres

Note: Use the diagram above to record
accessory wheel and tyre information.

1. Front tyre pressure.

2. Rear tyre pressure.

3. Wheel and tyre information (size, speed

rating, etc).

Wheel size

Tyre size

Speed rating

8.0J x 18

235/60 R 18

V

7.5J x 17

235/65 R 17

V

6.5J x 16

215/75 R 16

H

WARNING

Contact your Land Rover dealer before
fitting any accessory wheels and tyres.

Your Land Rover dealer will be able to offer
guidance regarding the correct accessories.
Fitting incorrect wheel/tyre combinations can
seriously affect the ride and handling of your
vehicle. In extreme cases this may lead to loss
of control of the vehicle.

1

2

3

E81991

195

Fuses

R

Fuses

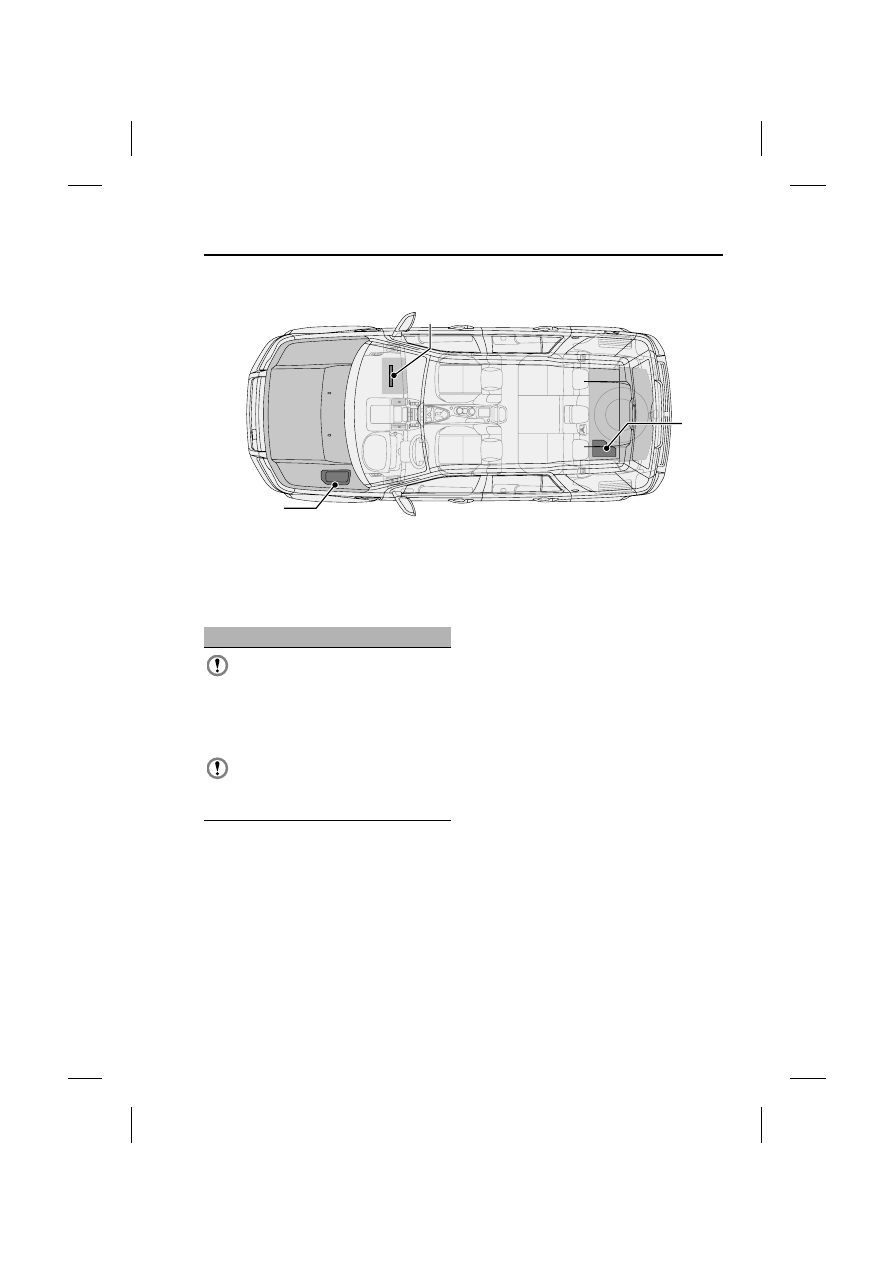

FUSE BOX LOCATIONS

1. Engine compartment fuse box.

2. Passenger compartment fuse box.

3. Luggage compartment fuse box.

CHANGING A FUSE

Note: Land Rover recommend that owners do
not remove or replace relays. It is
recommended that you seek qualified
assistance in the event of a relay failure.

Always switch off the ignition, and the affected
electrical circuit before replacing a fuse.

E80926

3

1

2

CAUTIONS

Fit Land Rover approved replacement
fuses of the same rating and type, or

fuses of matching specification. Using an
incorrect fuse may result in damage to the
vehicle's electrical system, and can result in a
fire.

If the replacement fuse blows after
installation the system should be checked

by your Land Rover Dealer/Authorised
Repairer.

Fuses

196

L

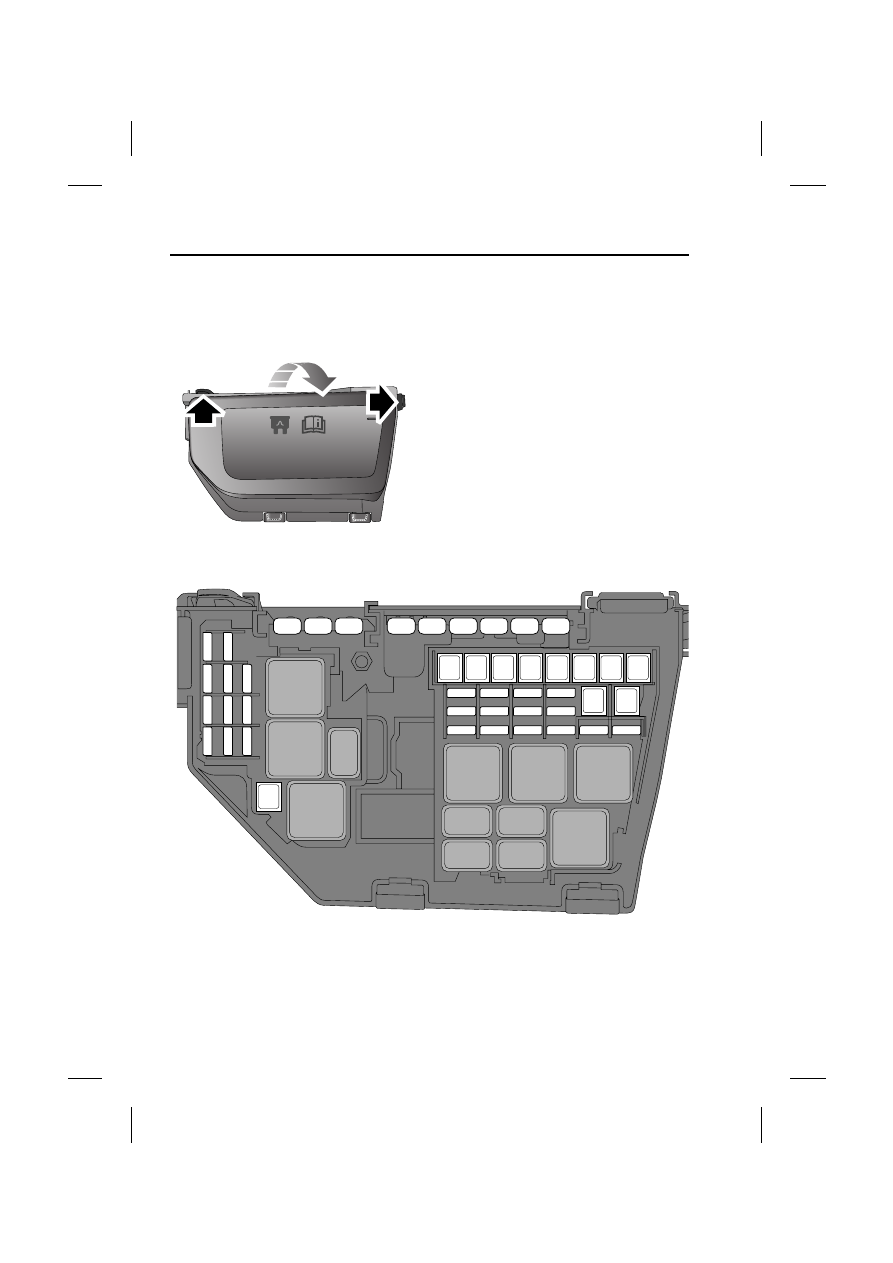

FUSE SPECIFICATION CHART

Engine compartment fuse box

Accessing fuses

Fuse positions and specifications

E80929

F22

F23

F24

F25

F26

F27

F28

F29

F34

F35

F30

F36

F40

F31

F37

F41

F32

F38

F42

F33

F39

F43

F44

F45

F15

F12

F13

F14

F9

F10

F11

F6

F7

F8

F1

F2

F16

F17

F18

F19

F20

F21

F3

F4

F5

E80930

197

Fuses

R

Fuse number

Rating (Amps)

Fuse colour

Circuits protected

F1

5

tan

Glow plugs

F2

15

blue

Automatic transmission

F3

80

-

Cooling fans

F4

60

-

Glow plugs

F5

-

-

-

F6 (Diesel)

10

red

Engine management

F6 (Petrol)

15

blue

Engine management

F7

5

tan

Relays

F8 (Diesel)

10

red

Engine management

F8 (Petrol)

15

blue

Engine management

F9 (Diesel)

10

red

Engine management

F9 (Petrol)

15

blue

Engine management

F10 (Petrol)

10

red

Engine management

F11 (Diesel)

10

red

Engine management

F11 (Petrol)

10

red

Engine management

F12 (Diesel)

10

red

Engine management

F12 (Petrol)

20

yellow

Engine management

F13

15

blue

Air Conditioning

F14 (Diesel)

15

blue

Engine management

F15

40

green

Starter motor

F16 (Diesel)

100

-

Diesel PTC heater

F17

60

-

Passenger compartment

fuse box supply

F18

60

-

Passenger compartment

fuse box supply

F19

60

-

Luggage compartment fuse

box supply

F20

60

-

Luggage compartment fuse

box supply

F21

60

-

Luggage compartment fuse

box supply - Audio unit

F22

30

pink

Windscreen wipers

F23

-

-

-
