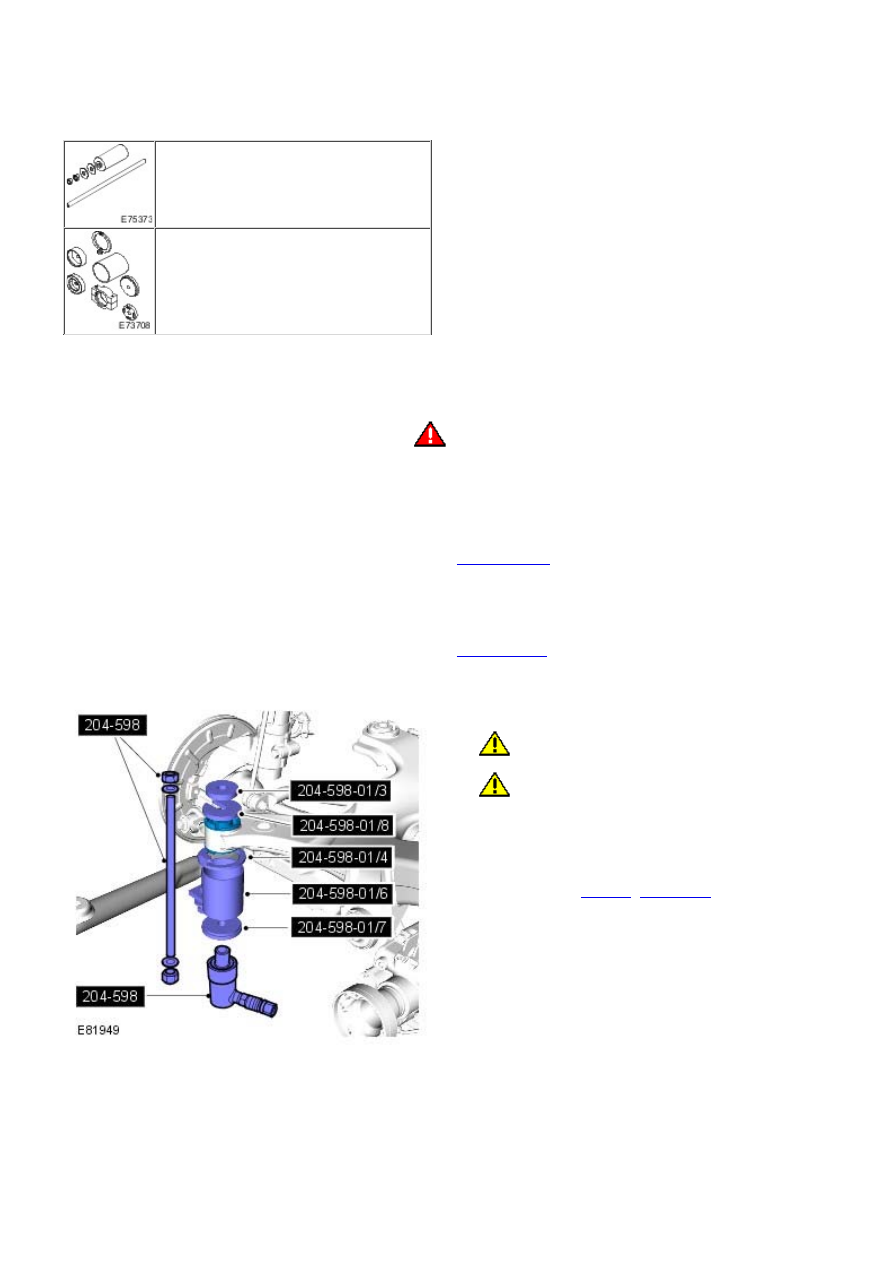

Uni-Body, Subframe and Mounting System - Rear Subframe Front Bushing

Removal and Installation

Special Tool(s)

204-598

Hydraulic Cylinder 10t

204-598-01

Remover/Installer, Subframe Bushing Guide

Removal

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove both rear wheels and tires.

Refer to:

Wheel and Tire

 (204-04 Wheels and Tires, Removal and

Installation).

2.

Remove the rear subframe assembly for access.

Refer to:

Rear Subframe

 (502-00 Uni-Body, Subframe and Mounting

System, Removal and Installation).

3.

4. CAUTIONS:

 Mark the components to aid installation.

 Special tool 204-598-01/8 is used to start the

bushing removal process, and must be removed after

the bushing has released, as it will not pass through

the subframe bushing aperture.

Remove the bushing.

Special Tool(s):

204-598

204-598-01

4.

Installation

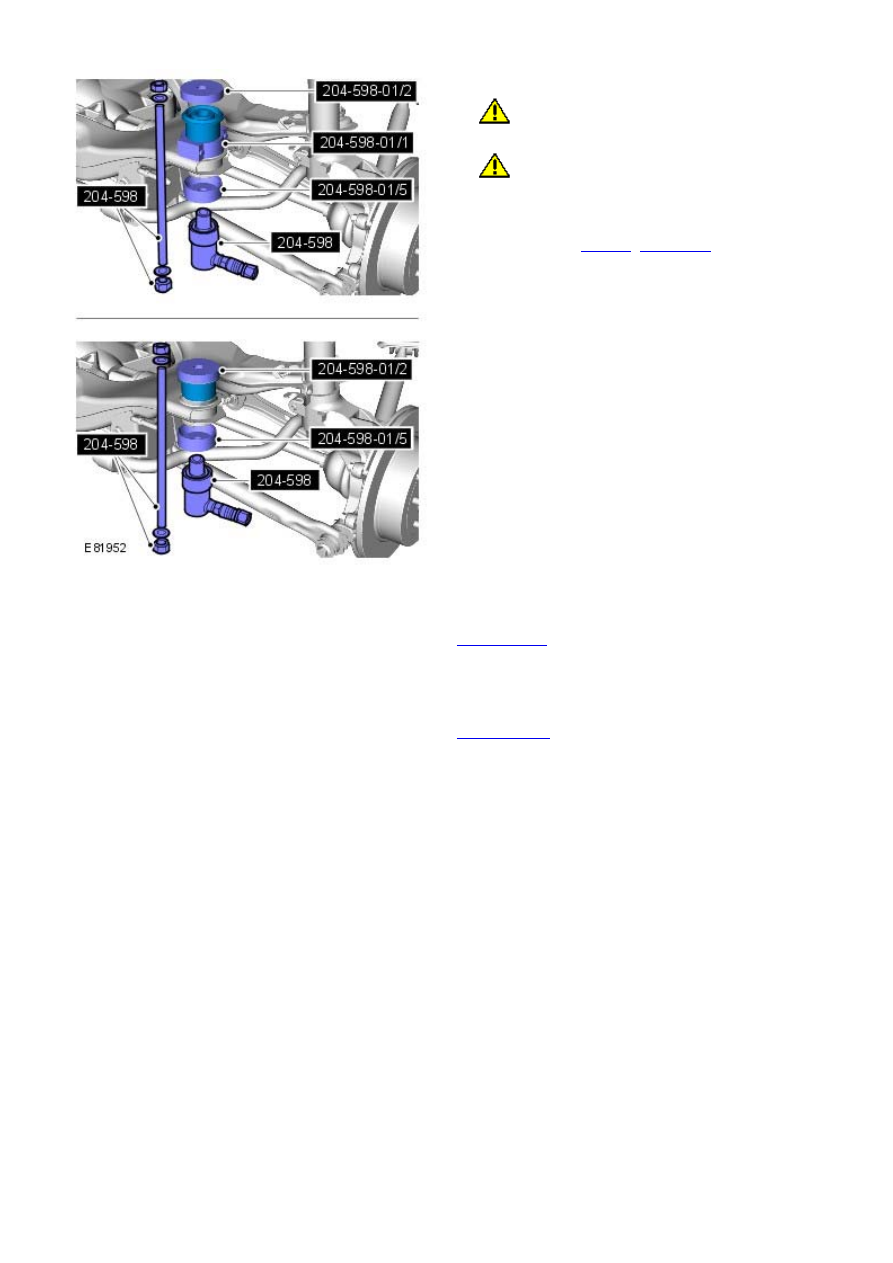

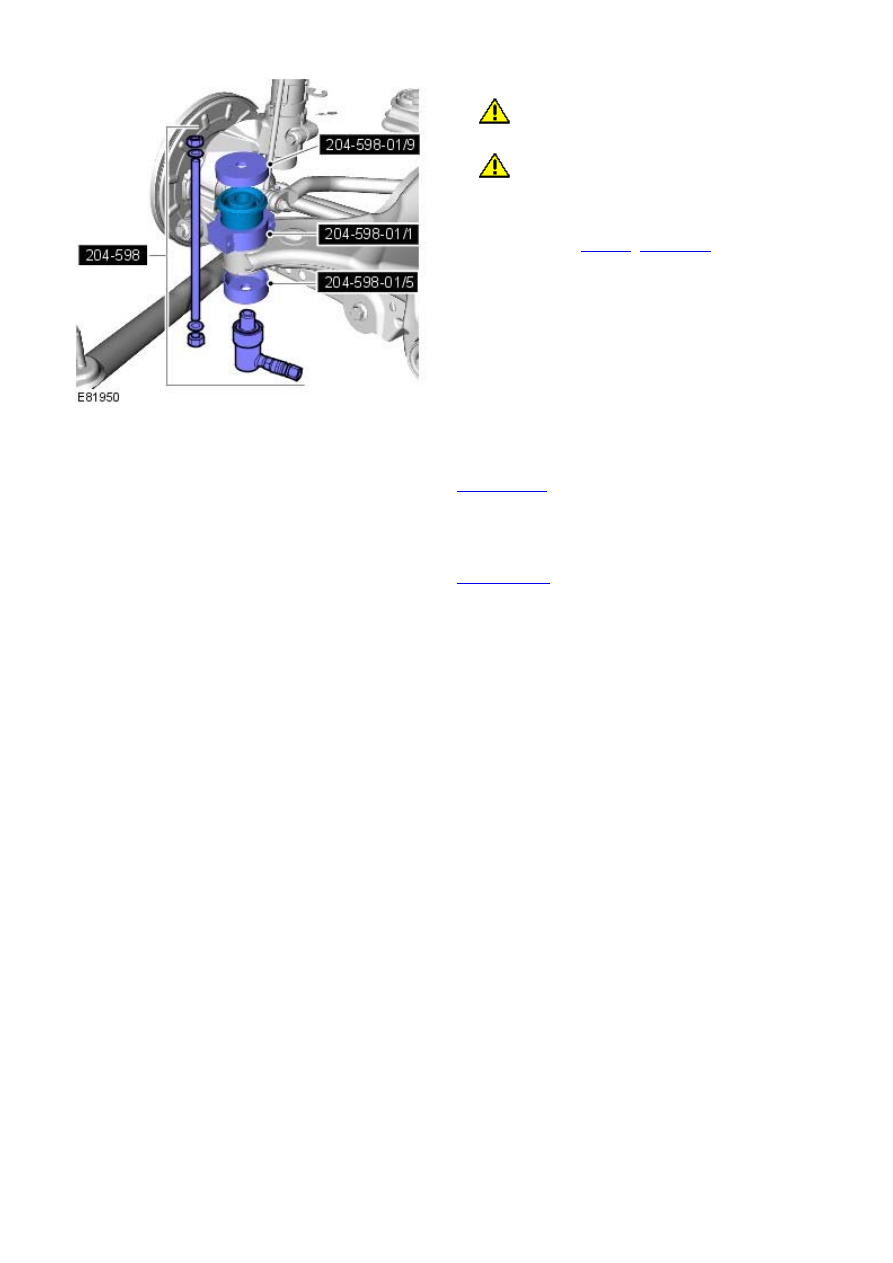

1. CAUTIONS:

 Make sure the correct special tool is used to

install the bushings to the correct depth.

 Make sure that the installation marks are

aligned.

Install the bushing.

Special Tool(s):

204-598

204-598-01

1.

Install the rear subframe assembly.

Refer to:

Rear Subframe

 (502-00 Uni-Body, Subframe and Mounting

System, Removal and Installation).

2.

Install the wheels and tires.

Refer to:

Wheel and Tire

 (204-04 Wheels and Tires, Removal and

Installation).

3.

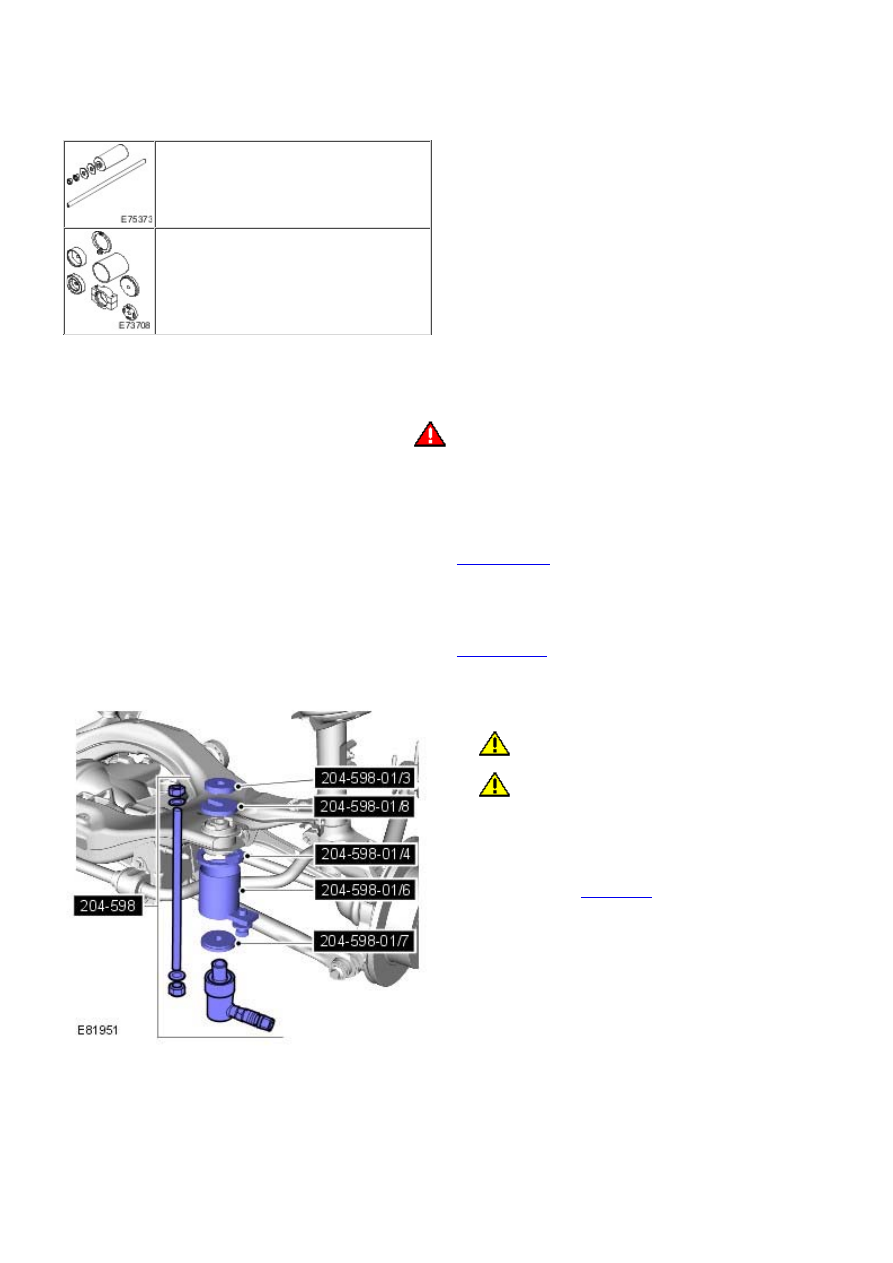

Uni-Body, Subframe and Mounting System - Rear Subframe Rear Bushing

Removal and Installation

Special Tool(s)

204-598

Hydraulic Cylinder 10t

204-598-01

Remover/Installer, Subframe Bushing Guide

Removal

• NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Remove both rear wheels and tires.

Refer to:

Wheel and Tire

 (204-04 Wheels and Tires, Removal and

Installation).

2.

Remove the rear subframe assembly for access.

Refer to:

Rear Subframe

 (502-00 Uni-Body, Subframe and Mounting

System, Removal and Installation).

3.

4. CAUTIONS:

 Mark the components to aid installation.

 Special tool 204-598-01/8 is used to start the

bushing removal process, and must be removed after

the bushing has released, as it will not pass through

the subframe bushing aperture.

Remove the bushing.

Special Tool(s):

204-598-01

4.

Installation

1. CAUTIONS:

 Make sure the correct special tool is used to

install the bushings to the correct depth.

 Make sure that the installation marks are

aligned.

Install the bushing.

Special Tool(s):

204-598

204-598-01

1.

Install the rear subframe assembly.

Refer to:

Rear Subframe

 (502-00 Uni-Body, Subframe and Mounting

System, Removal and Installation).

2.

Install the wheels and tires.

Refer to:

Wheel and Tire

 (204-04 Wheels and Tires, Removal and

Installation).

3.
