chambers. This provides optimum performance, allowing the engine to be extremely responsive to driver demands for all
driving conditions. The fuel system features a Bosch Generation 3 common rail injection system that is monitored and
controlled by an engine control module (ECM), to precisely control the fueling strategy.

Fuel charging is achieved with a low and high-pressure fuel system. The low-pressure fuel system comprises;

a saddle type fuel tank
tank mounted fuel delivery module with integral transfer pump
fuel supply and return lines
filter and water separator assembly
a connecting hose between the fuel filter assembly and the fuel lift pump.

• NOTE: The fuel lift pump is integral with the high-pressure pump.

A return line and fuel leak off hoses from the high-pressure pump, injectors and common fuel rail form the remainder of
the low-pressure fuel return circuit.
For additional information, refer to: Fuel Tank and Lines - 2.2L Duratorq-TDCi (DW ) Diesel (310-01 Fuel Tank and Lines,
Description and Operation).

The high-pressure fuel system comprises;

a high-pressure fuel pump
common fuel rail
4 piezo-injectors with high-pressure connection pipes
a fuel pressure sensor.

The fuel charging and control system provides injection pressures of up to 1800 bar (26,106 psi). Finer atomization of the
injected fuel is achieved with the 7 hole piezo injectors that are capable of near instantaneous response to the ECM
commands, allowing up to 5 individual injections per stroke.

The high-pressure fuel pump is mounted at the rear of the cylinder head and is driven by the exhaust camshaft. A fuel lift
pump is integral with the high-pressure pump and is therefore also driven when the exhaust camshaft rotates. The lift
pump creates suction in the supply line to the fuel tank and draws the fuel from the tank. The fuel passes through the fuel
filter and is then delivered at lift pump pressure to the high-pressure pump inlet port.

The advanced high-pressure fueling system enables pilot injections to be delivered ahead of the main charge of fuel. This
produces a steady flame front and creates a progressive pressure rise in the cylinder similar to that achieved with petrol
engines. This reduction in combustion lag between the injection of fuel and combustion occurring allows fuel to be injected
while combustion is taking place, creating increased power and reducing created combustion noise, vibration and
harshness (NVH) and emissions.

For models fitted with an exhaust system diesel particulate filter, the high-pressure fueling system also provides post
combustion injection of fuel into the combustion chambers. W hen regeneration of the diesel particulate filter is requested,
the ECM allows the fueling system to deliver fuel after the combustion stroke and into the commencement of the exhaust
stroke. This post combustion injection process causes fuel to be burnt in the exhaust system and creates the high exhaust
gas temperatures that are required to regenerate the diesel particulate filter.

Fuel Charging and Controls - TD4 2.2L Diesel - Fuel Charging and Controls

Description and Operation

COMPONENT LOCATION

Item

Part Number

Description

1

-

High-Pressure (HP) common fuel rail

2

-

HP pipe – fuel rail to injector (4 off)

3

-

HP pipe – HP pump to fuel rail

4

-

Low Pressure (LP) pipe – fuel rail leak-off

5

-

Pressure Control Valve (PCV)

6

-

LP pipe - HP pump leak-off

7

-

HP fuel pump and integral lift pump

8

-

Fuel supply pipe - filter to lift pump

9

-

LP pipe - injector leak-off

10

-

Injector (4 off)

11

-

Fuel rail pressure sensor

OVERVIEW

The TD4 diesel engine fuel charging and control system provides precise and instantaneous fuel delivery to the engine
combustion chambers. The fuel system features a Bosch Generation 3 common rail injection system that is monitored and
controlled by the Engine Control Module (ECM), to precisely control the fueling strategy.
For additional information, refer to: Electronic Engine Controls - 2.2L Diesel (303-14 Electronic Engine Controls - 2.2L

Diesel, Description and Operation).

Fuel injection pressure is generated independently of engine speed and fuel injection events. The HP fuel system is
controllable to the optimum level for smooth operation, and is capable of developing an injection pressure up to 1,600 bar
(23,206 psi). The fuel injection timing and volume are calculated by the ECM that also energizes the appropriate piezo-
actuated injector.

The fuel system features a pre-injection (pilot) phase to reduce combustion noise and mechanical load. On vehicles
installed with a Diesel Particulate Filter (DPF), the fuel system also provides a post-injection phase that is required for
regenerating the DPF.
For additional information, refer to:

Exhaust System

 (309-00B Exhaust System - TD4 2.2L Diesel, Description and

Operation).

This type of fuel system allows the TD4 engine to achieve excellent levels of performance and engine response, while
being able to meet current and future exhaust emission legislation.

Fuel charging is achieved with a LP and HP fuel system. The LP fuel system comprises:

Saddle type fuel tank
Tank mounted fuel delivery module and integral transfer pump
Fuel supply and return lines
Filter and water separator assembly.
For additional information, refer to:

Fuel Tank and Lines

 (310-01B Fuel Tank and Lines - TD4 2.2L Diesel,

Description and Operation).

The HP fuel system comprises:

HP fuel pump with integral mounted lift pump and Volume Control Valve (VCV)
Common fuel rail with integral PCV and pressure sensor
4 piezo-injectors
HP connecting pipes
Fuel leak-off pipes.

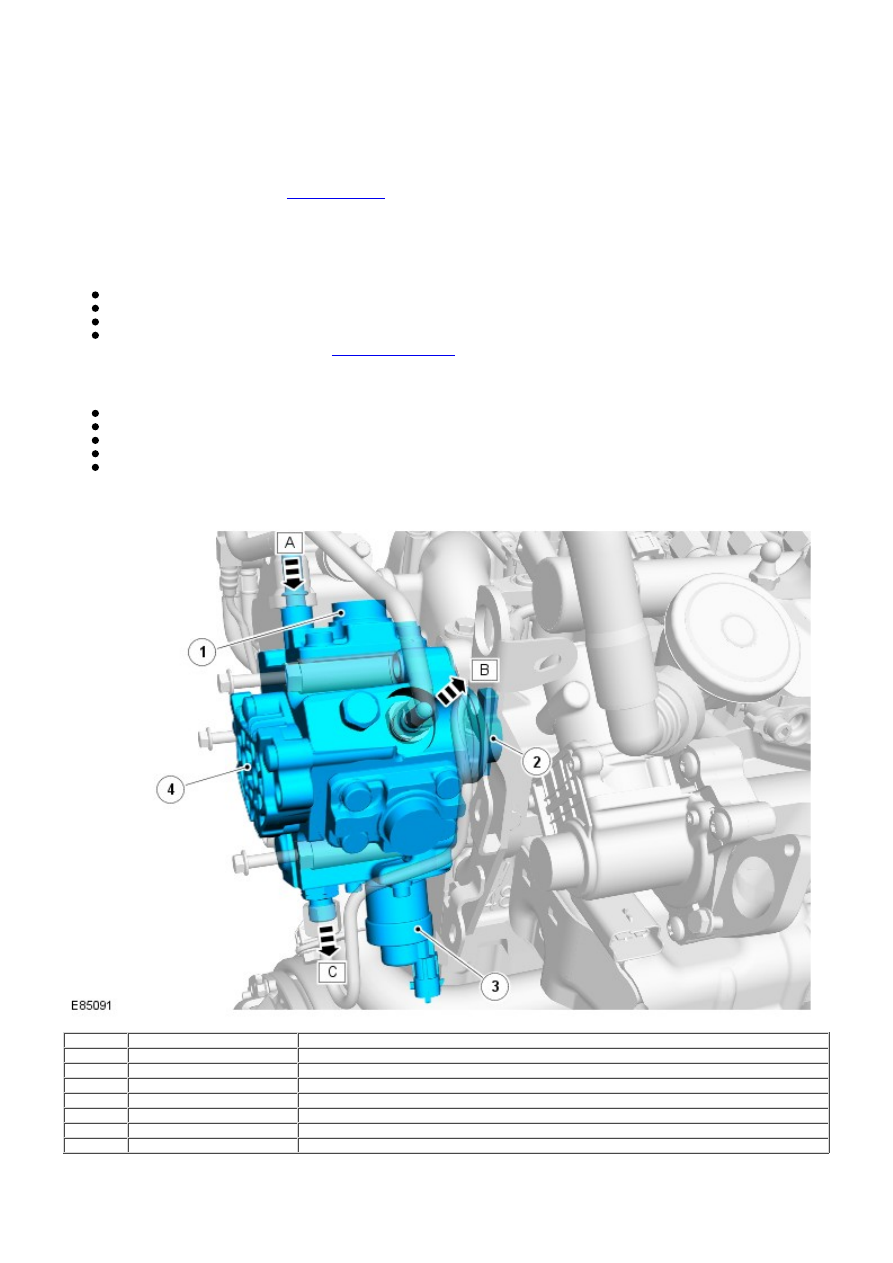

HIGH-PRESSURE FUEL PUMP

Item

Part Number

Description

A

-

Fuel supply connection - filter to lift pump

B

-

LP fuel return connection to filter

C

-

HP fuel supply connection to fuel rail

1

-

HP pump element (3 off)

2

-

HP pump drive shaft

3

-

VCV

4

-

Lift pump

The HP fuel pump is mounted to the rear of the cylinder head (transmission side), and is driven by the exhaust camshaft.
The fuel pump is a 3-piston, radial plunger type, with the pumping elements spaced equally at 120 degrees apart. The
high-pressure output from the pump elements is connected to a fuel ring circuit within the fuel pump, and provides a
constant pressurized fuel supply to the fuel rail. The pump is capable of producing a maximum fuel pressure of 1,600 bar

(23,206 psi).

The fuel system HP pump comprises the following components:

3 HP pumping elements
Integral lift pump
Volume Control Valve (VCV).

The HP pump and integral lift pump must not be separated. The HP pump is not timed to the engine.

A controlled amount of fuel is allowed to leak-off through the HP pump, and returned through a leak-off pipe to the fuel
filter. The leak-off fuel provides cooling and lubrication for the HP pump internal components.

Lift Pump

A fuel lift pump is mounted to the rear of the fuel pump, and forms an integral assembly with the HP pump. The fuel lift
pump is a gear type pump and connected to the fuel filter supply line. The lift pump creates a vacuum (negative pressure)
in the supply line to the fuel tank, and draws the fuel from the tank. The fuel passes through the fuel filter and is then
delivered at lift pump pressure to the HP pump inlet port.

The lift pump normal operating, negative pressure values are shown for the following engine conditions:

Engine Condition

Lift Pump Negative Pressure

Cranking

-133 ± 7 mbar (-10 ± 0.5 cmHg)

Full load

-267 ± 133 mbar (-20 ± 10 cmHg)

Volume Control Valve (VCV)

The VCV is mounted on the HP pump, and located in the feed port between the HP pump elements and the fuel lift pump.
The VCV is a variable position solenoid-operated valve that is controlled by the ECM with a 12V Pulse Width Modulated
(PW M) signal. The VCV controls the quantity of fuel delivered by the lift pump to the HP pump elements.

When the HP fuel pump rotates, pressure is created when the VCV is open and the fuel rail mounted PCV is closed. The
VCV and PCV are variable position valves, and used by the ECM to control fuel delivery and fuel system pressure.

During the fuel heating period when the supply fuel temperature is less than 40°C (104°F), the ECM will fully open the
VCV. Fuel volume and pressure is then controlled directly by the PCV under the control of the ECM.

The VCV is normally open when the solenoid is not energized by the ECM. The resistance value of the VCV solenoid coil is
2.8 ohms at 20°C (68°F).
For additional information, refer to: Electronic Engine Controls - 2.2L Diesel (303-14 Electronic Engine Controls - 2.2L
Diesel, Description and Operation).

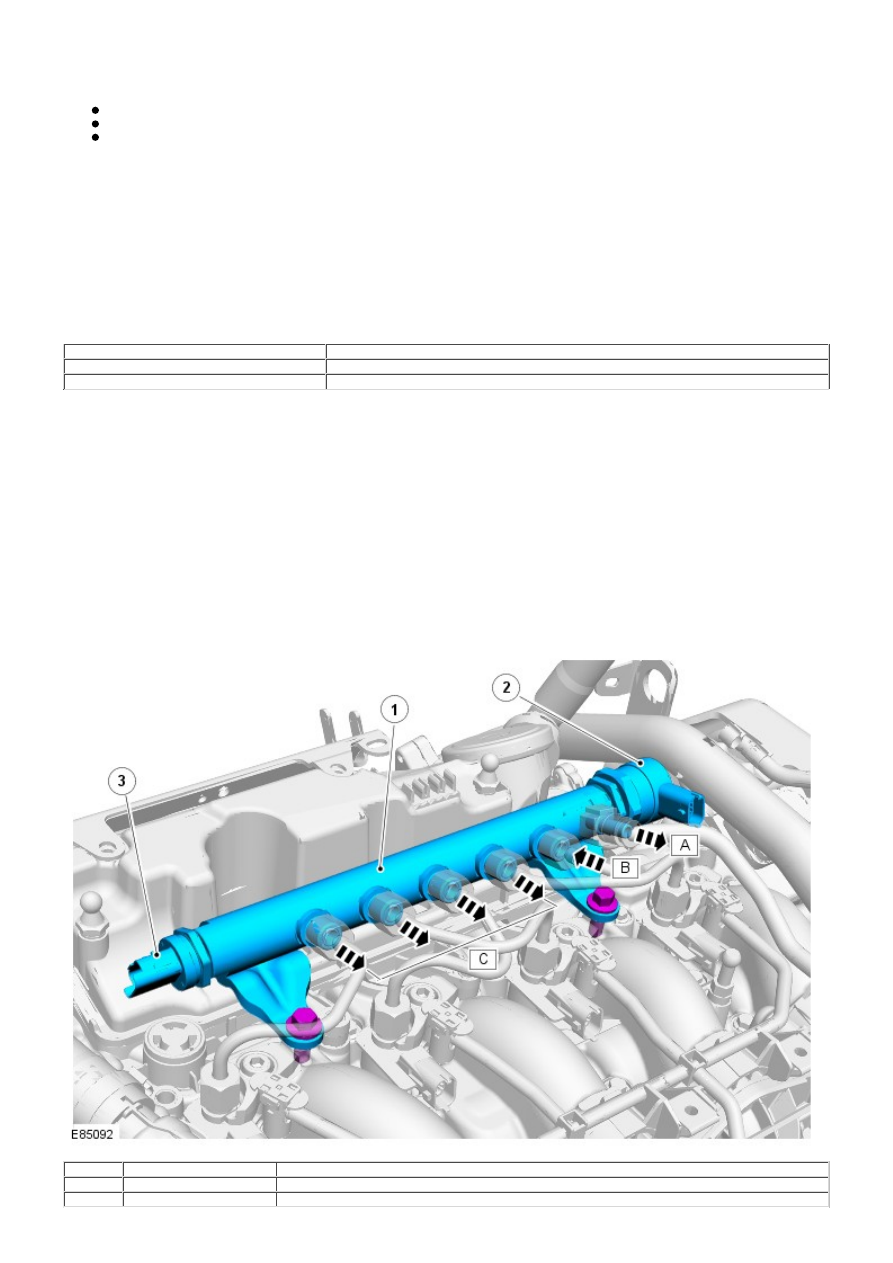

COMMON FUEL RAIL

Item

Part Number

Description

A

-

LP fuel return connection to filter

B

-

HP fuel supply connection – HP pump to fuel rail
