IN CAR ENTERTAINMENT

DESCRIPTION AND OPERATION

86-6-1

IN CAR ENTERTAINMENT

DESCRIPTION AND OPERATION

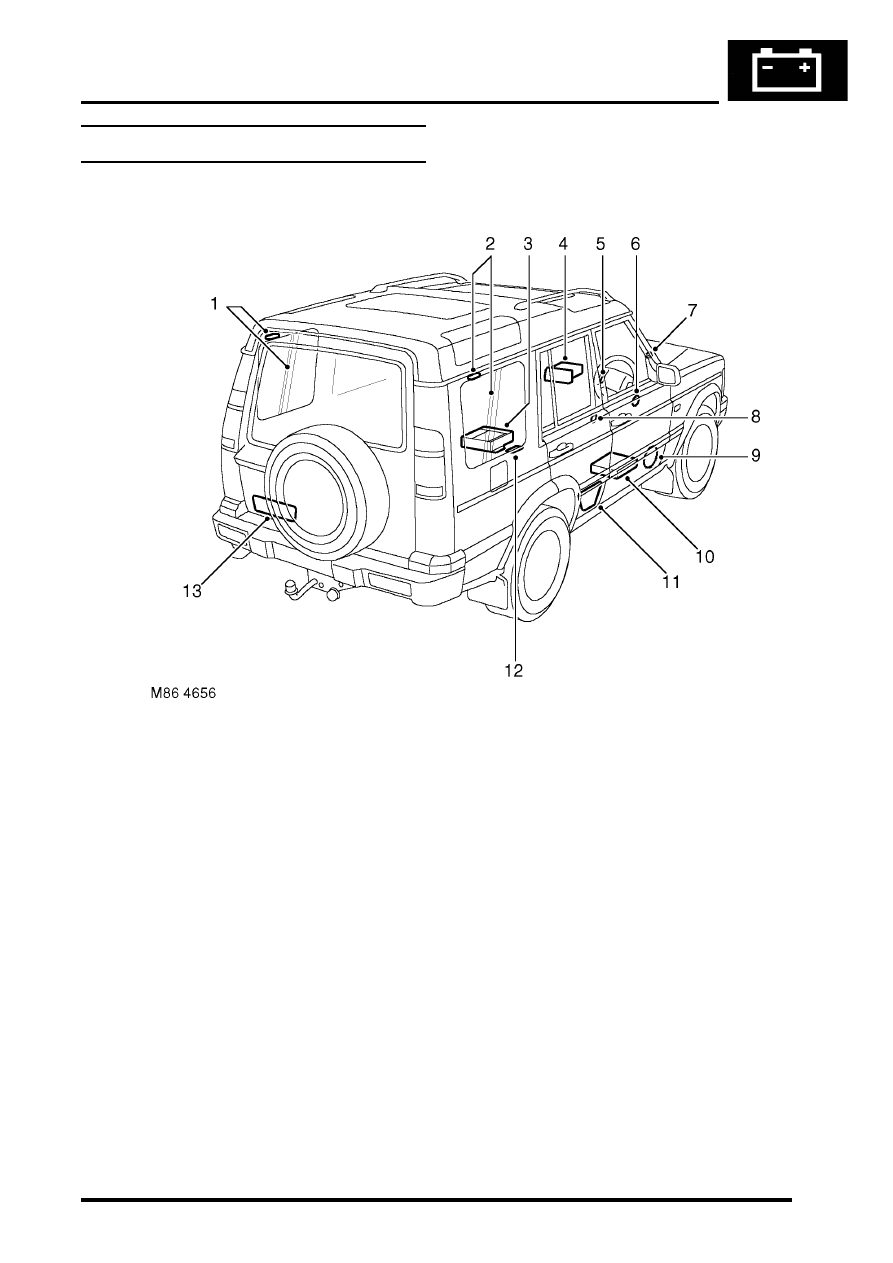

ICE System Component layout

High line RHD system shown (LHD system similar)

1 FM aerial and amplifier (high line only)
2 AM/FM aerial and amplifier
3 Power amplifier (high line only)
4 Radio cassette player
5 Remote radio control switches

(mid line and high line only)

6 Upper front door speaker LH/RH

(high line only)

7 A post speaker LH/RH

(mid line and high line only)

8 Upper rear door speaker, LH/RH

(high line only)

9 Lower front door speaker LH/RH

10 CD-autochanger (if fitted)
11 Lower rear door speaker LH/RH
12 Radio headphone amplifier LH/RH

(high line only)

13 Tail door speakers (high line only)

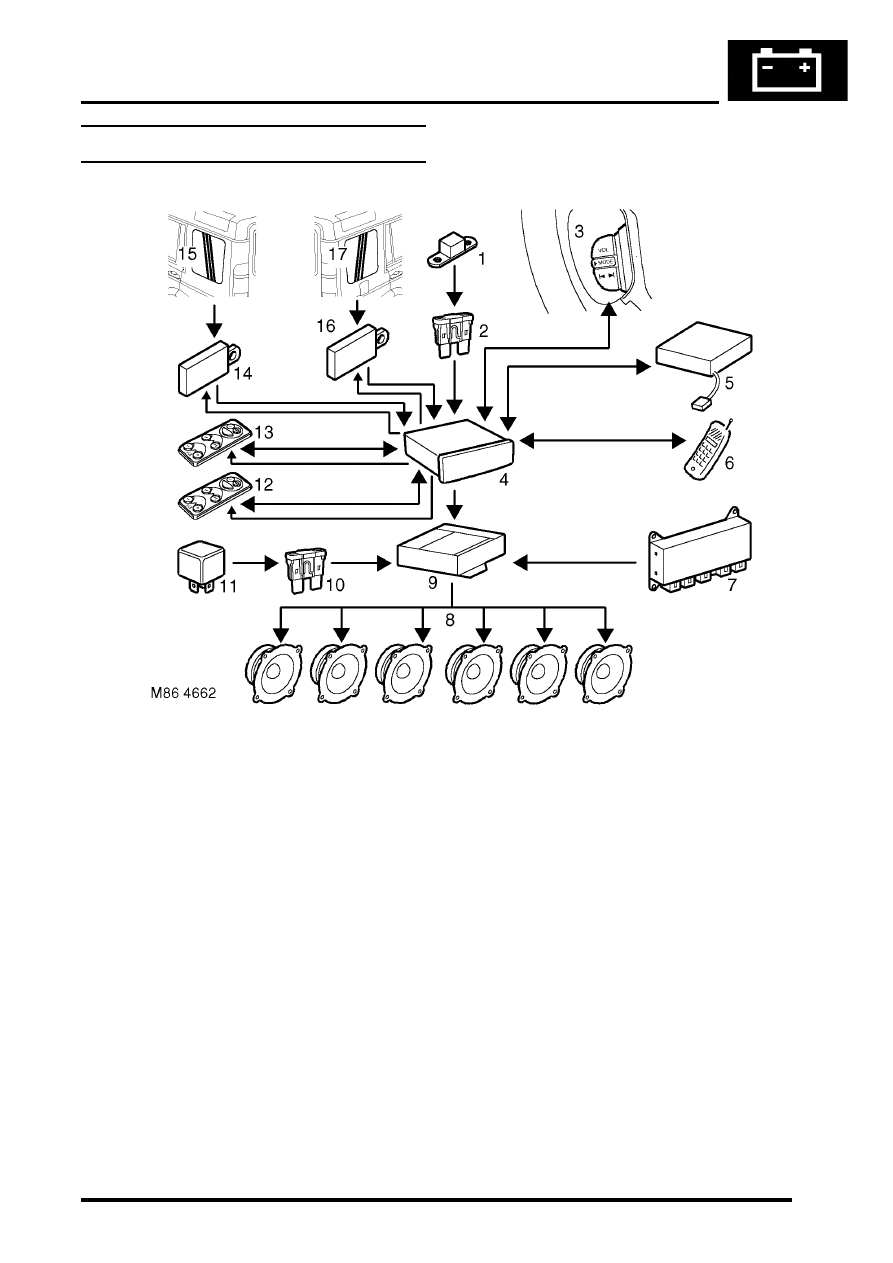

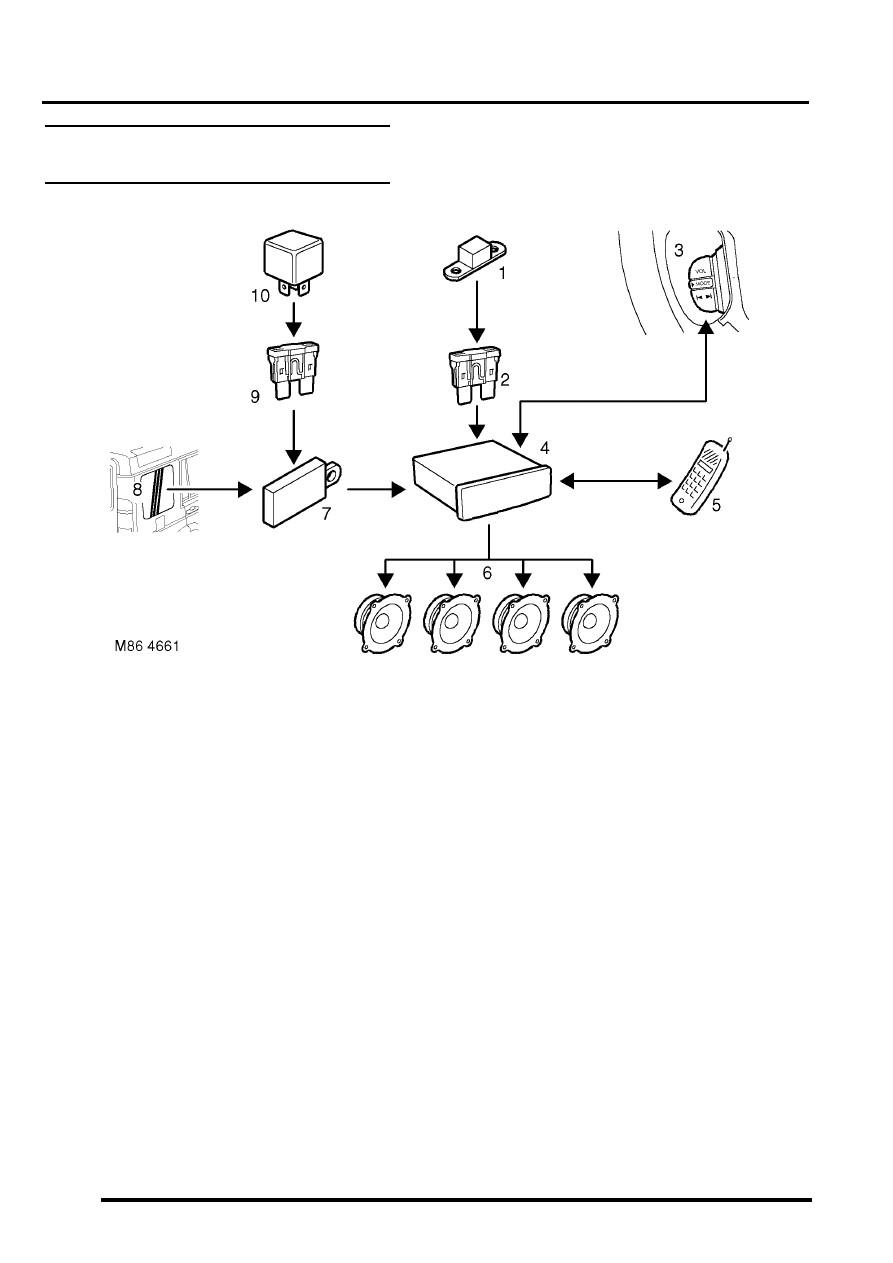

IN CAR ENTERTAINMENT

86-6-4

DESCRIPTION AND OPERATION

Description

General
The in car entertainment (ICE) system allows the driver and passengers to listen to audio output from the speakers
or optional headphones inside the vehicle. Buttons or knobs on the radio cassette allow changes of levels or
selections during the various modes of operation. The system can be controlled from the fascia mounted radio
cassette, or optional remote control switches on the left hand side of the steering wheel. High line systems may also
have rear headphone amplifiers that have some control of the system via the radio cassette player.

One or two amplified aerials located in the rear side windows send radio signals to the radio cassette player. On high
line systems a power amplifier and a CD-autochanger may be located under the front seats. Speakers are located in
the lower door panels, additional speakers may be located in upper door trim, the A-post and the tail door. A display
screen shows the user the current system status.

The ICE supplied varies with trim level and market. Vehicles may not have all of the speakers, amplified aerials, CD-
autochanger, rear headphone amplifiers or power amplifier.

Base system radio cassette
The base radio cassette has buttons for LD (loudness) AM, FM, EJECT (tape), Reverse, Base/Balance, treble, MAN
forward and reverse. The base radio cassette is located in the center of the fascia and contains the radio and tape
player, four clips (accessible through holes in the front of the unit) secure the unit in the fascia. To remove the unit
the four clips must be released with a special tool. The base system can be controlled from the fascia mounted radio
cassette. A logic control circuit in the radio cassette player controls the operation in the various control modes.

The radio cassette has a display screen, the information shown can be the current radio frequency, tape operating,
bass or loudness settings. Power for the illumination on the radio cassette is supplied from the passenger
compartment fuse box. A main fuse is also located in the connector socket area on the back of the radio cassette.

Security code function
A combination of buttons on the radio cassette are used to input and change security codes. Security codes make the
unit unusable if the unit is disconnected from the vehicle without deactivating the security code. The radio cassette
has an internal memory chip that stores the code information, if the power is removed from the unit the chip will
activate the security code feature. For this reason the security code feature must be deactivated before the unit is
removed or the vehicles battery is disconnected.

Audio functions
The radio cassette has buttons for the following audio functions: LD (loudness), bass/balance, fader, treble and
volume.

Cassette functions
The radio cassette has buttons for the following cassette functions: eject, forward, reverse and tape reversal.

Multi function buttons
The function of presets 1-6 and the MAN button depends on current mode of operation and allows selection of radio
band, radio on, tape track and search/seek functions. The MAN button is mode dependent, when pressed the button
allows manual operation or alternate mode selections such as manual tuning.

Internal memory
An internal memory chip stores the station presets and security code, power is supplied internally to the chip via a
permanent power feed, supplied from the passenger compartment fuse box.
