REAR SUSPENSION

DESCRIPTION AND OPERATION

64-23

Transportation mode
Transportation mode must be used when the vehicle is transported on a trailer and secured by the chassis. The
transportation mode can only be enabled and disabled with TestBook.

The transportation mode lowers the rear suspension onto the bump stops with the engine not running. When the
suspension is in transportation mode, the SLS warning lamp is continuously illuminated when the ignition is in position
II.

When the engine is started in transportation mode, the SLS system will raise the rear suspension until a gap of 25
mm (1 in.) exists between the bump stop and the axle. The SLS warning lamp will flash continuously while the SLS
system is raising the suspension. When the gap between the bump stop and the axle is achieved, the warning lamp
will illuminate continuously.

When TestBook is used to disable the transportation mode, the rear suspension will raise to normal ride height when
the engine is running.

REAR SUSPENSION

ADJUSTMENTS

64-25

ADJUSTMENTS

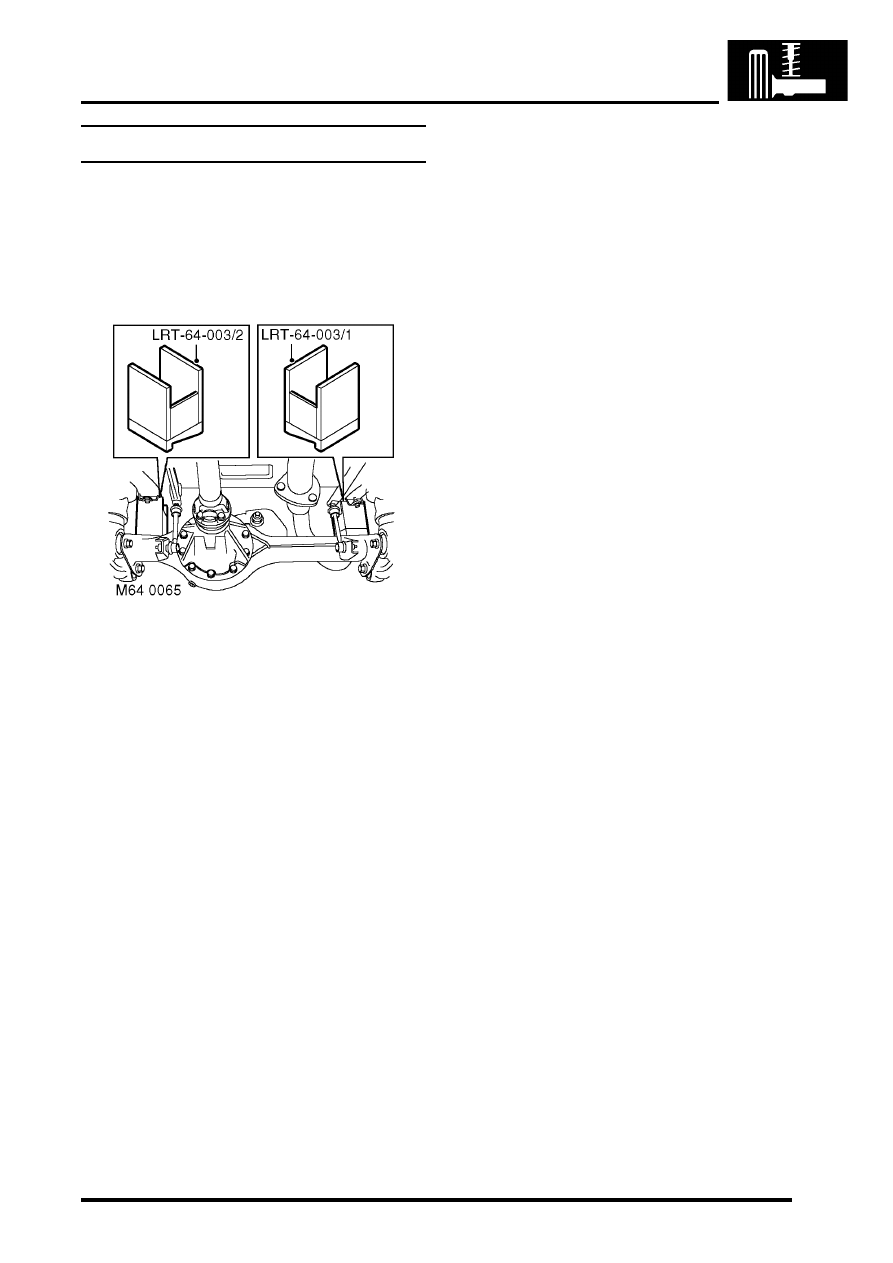

SLS calibration blocks

$% 64.50.38

Fit

1. Connect TestBook to vehicle.
2. Ensure contact faces of calibration blocks LRT-

64-003/1 and LRT-64-003/2 are clean.

3. Using Testbook, operate the SLS system to

raise the body, position the calibration blocks
LRT-64-003/1 and LRT-64-003/2 between the
rear axle and the body, then lower the body
onto the calibration blocks. The calibration
blocks are handed and only fit one way.

Remove

1. Using Testbook, operate the SLS system to

raise the body, remove the calibration blocks
LRT-64-003/1 and LRT-64-003/2 from
between the rear axle and the body.

2. Disconnect TestBook from the vehicle.
