EMISSION CONTROL - V8

DESCRIPTION AND OPERATION 17-2-27

The ECM connector and pins pertinent for secondary air injection are listed in the following table:

Secondary Air Injection System Components
The secondary air injection (SAI) system components (where fitted) are described below:

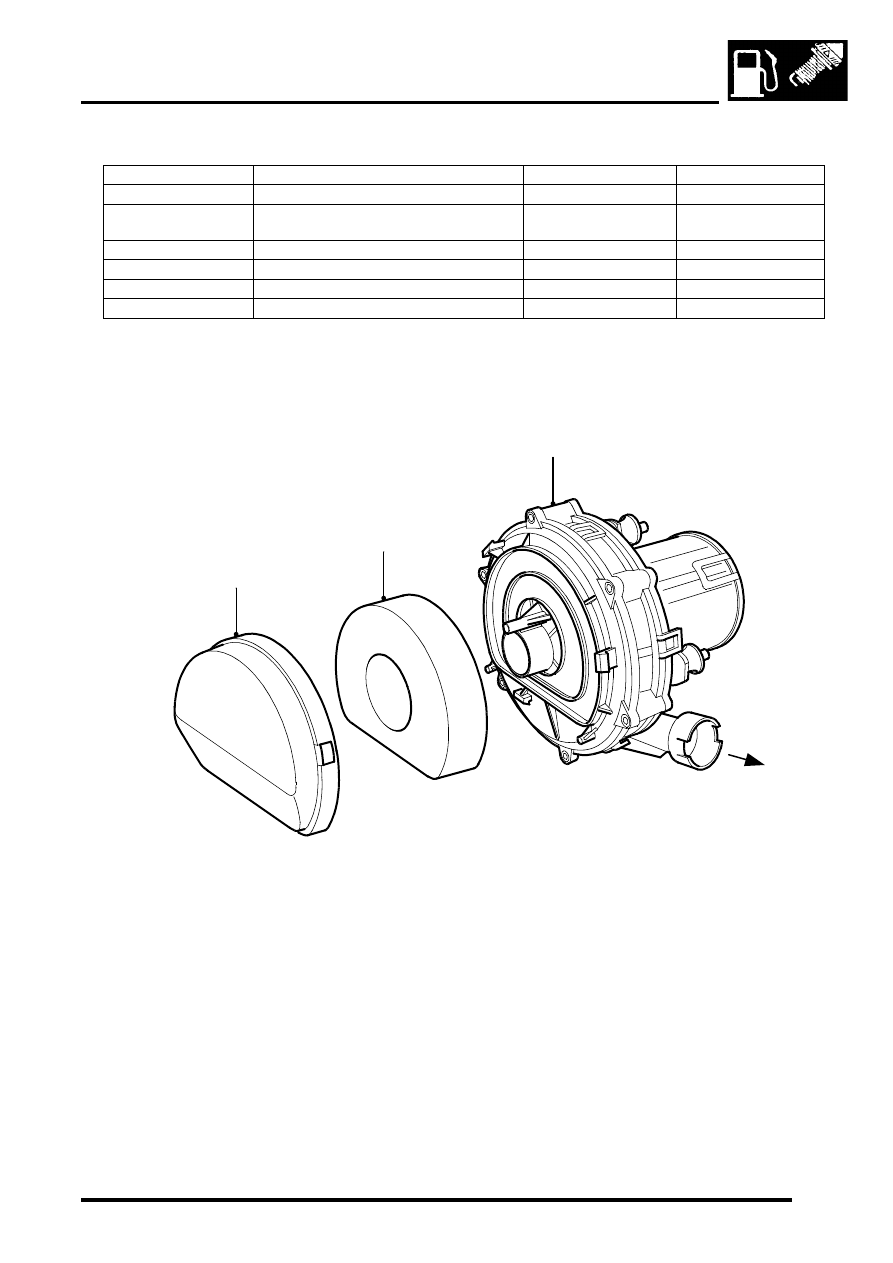

Secondary Air Injection (SAI) Pump

1 SAI pump cover
2 Foam filter

3 SAI pump
4 Pressurised air to exhaust manifolds

The SAI pump is attached to a bracket at the rear RH side of the engine compartment and is fixed to the bracket by
three studs and nuts. The pump is electrically powered from a 12V battery supply via a dedicated relay and supplies
approximately 35kg/hr of air when the vehicle is at idle in Neutral/Park on a start from 20

°

C (68

°

F).

Air is drawn into the pump through vents in its front cover and is then passed through a foam filter to remove
particulates before air injection. The air is delivered to the exhaust manifold on each side of the engine through a
combination of plastic and metal pipes.

Connector / Pin No.

Description

Signal type

Control

C0635-23

Main relay output

Output drive

Switch to ground

C0636-4

Secondary air injection vacuum solenoid
valve control

Output, drive

Switch to ground

C0636-16

Secondary air injection pump relay control

Output drive

Switch to ground

C0636-21

Coolant temperature (ECT) sensor

Ground

0V

C0636-22

Coolant temperature (ECT) sensor

Input signal

Analogue 0 - 5V

C0637-20

MIL "ON"

Output drive

Switch to ground

M17 0204

1

4

2

3

EMISSION CONTROL - V8

17-2-28 DESCRIPTION AND OPERATION

The air delivery pipe is a flexible plastic type, and is connected to the air pump outlet via a plastic quick-fit connector.
The other end of the flexible plastic pipe connects to the fixed metal pipework via a short rubber hose.  The part of the
flexible plastic pipe which is most vulnerable to engine generated heat is protected by heat reflective sleeving.  The
metal delivery pipe has a fabricated T-piece included where the pressurised air is split for delivery to each exhaust
manifold via the SAI control valves.

The pipes from the T-piece to each of the SAI control valves are approximately the same length, so that the pressure
and mass of the air delivered to each bank will be equal. The ends of the pipes are connected to the inlet port of each
SAI control valve through short rubber hose connections.

The T-piece is mounted at the rear of the engine (by the ignition coils) and features a welded mounting bracket which
is fixed to the engine by two studs and nuts.

The foam filter in the air intake of the SAI pump provides noise reduction and protects the pump from damage due to
particulate contamination. In addition, the pump is fitted on rubber mountings to help prevent noise which is generated
by pump operation from being transmitted through the vehicle body into the passenger compartment.

If the secondary air injection (SAI) pump is found to be malfunctioning, the following fault codes may be stored in the
ECM diagnostic memory, which can be retrieved using Testbook/T4:

NOTE: Refer to 'SAI System Fault Finding' and 'Checking Malfunctions on SAI System' at the end of this section to
determine root cause of fault codes.

NOTE: The electrical test of the SAI pump powerstage only indicates that there is a problem with the relay or the
power supply to the relay. It does not indicate the state of the SAI pump itself (i.e. broken or not connected).

As a result of a SAI pump powerstage malfunction, other fault codes may also become stored in the ECM memory.
These may include the following P codes.

NOTE: A malfunction of the SAI pump powerstage is logically expected to result in both engine banks reporting the
same fault.

NOTE: Refer to 'SAI System Fault Finding' and 'Checking Malfunctions on SAI System' at the end of this section to
determine root cause of fault codes.

Secondary Air Injection (SAI) Pump Relay
The secondary air injection pump relay is located in the engine compartment fusebox. The engine control module
(ECM) is used to control the operation of the SAI pump via the SAI pump relay. Power to the coil of the relay is supplied
from the vehicle battery via the main relay and the ground connection to the coil is via the ECM.

Power to the SAI pump relay contacts is via fusible link FL2 which is located in the engine compartment fusebox.

P-code

Description

P0418

Secondary Air Injection System – Relay 'A' circuit malfunction (SAI pump
powerstage fault, e.g. - SAI pump relay fault or relay not connected / open circuit /
harness damage).

P-code

Description

P1412

Secondary Air Injection System – Malfunction Bank 1 LH (Insufficient SAI flow
during passive test)

P1414

Secondary Air Injection System – Low air flow Bank 1 LH (Insufficient SAI flow

during active test)

P1415

Secondary Air Injection System – Malfunction Bank 2 RH (Insufficient SAI flow

during passive test)

P1417

Secondary Air Injection System – Low air flow Bank 2 RH (Insufficient SAI flow

during active test)

EMISSION CONTROL - V8

DESCRIPTION AND OPERATION 17-2-29

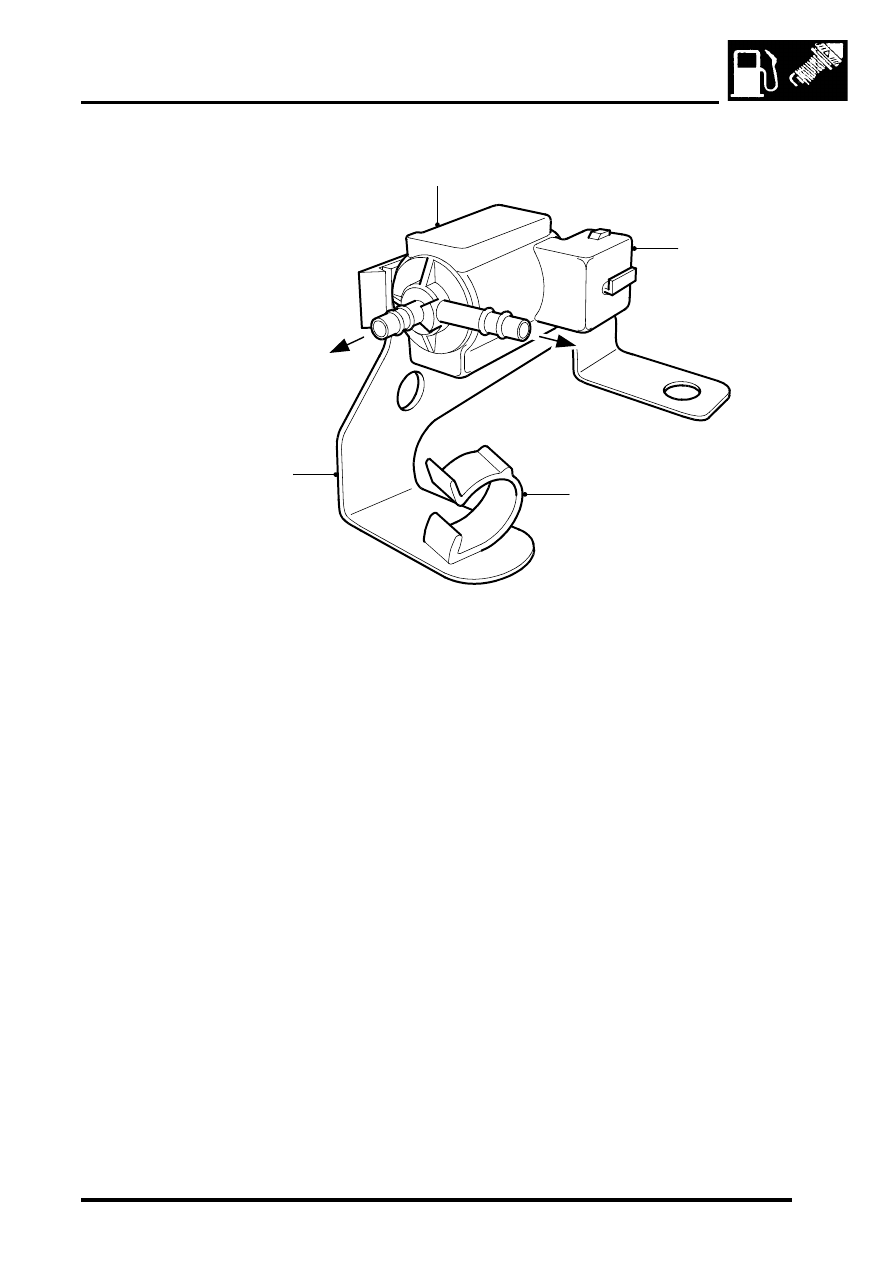

Secondary Air Injection (SAI) Vacuum Solenoid Valve

1 Vacuum port to intake manifold

(via vacuum reservoir)

2 SAI vacuum solenoid valve
3 Electrical connector

4 Vacuum port to vacuum operated SAI control

valves

5 Purge valve clip
6 Mounting bracket

The SAI vacuum solenoid valve is located at the rear LH side of the engine and is electrically operated under the
control of the ECM. The SAI vacuum solenoid valve is mounted on a bracket together with the EVAP system purge
valve.

Vacuum to the SAI vacuum solenoid valve is provided from the intake manifold depression via a vacuum reservoir. A
small bore vacuum hose with rubber elbow connections at each end provides the vacuum route between the vacuum
reservoir and SAI vacuum solenoid valve.  A further small bore vacuum hose with a larger size elbow connector is
used to connect the SAI vacuum solenoid valve to the SAI control valves on each side of the engine via an
intermediate connection.  The SAI vacuum solenoid valve port to the SAI control valves is located at a right angle to
the port to the vacuum reservoir.

The intermediate connection in the vacuum supply line is used to split the vacuum equally between the two SAI control
valves. The vacuum hose intermediate connection is located midpoint in front of the inlet manifold. All vacuum hose
lines are protected by flexible plastic sleeving.

Electrical connection to the SAI vacuum solenoid valve is via a 2–pin connector. A 12V electrical power supply to the
SAI vacuum solenoid valve is provided via the Main relay and Fuse 2 in the engine compartment fusebox. The ground
connection is via the ECM which controls the SAI vacuum solenoid valve operation. Note that the harness
connector to the SAI solenoid valve is grey, and must not be confused with the harness connector to the
EVAP system purge valve which is black.

The ECM switches on the SAI vacuum solenoid valve at the same time as initiating SAI pump operation. When the
SAI vacuum solenoid valve is open, a steady vacuum supply is allowed through to open the two vacuum operated
SAI control valves. When the ECM breaks the earth path to the SAI vacuum solenoid valve, the valve closes and
immediately shuts off the vacuum supply to the two SAI control valves at the same time as the SAI pump operation
is terminated.

M17 0211

1

4

2

3

5

6

EMISSION CONTROL - V8

17-2-30 DESCRIPTION AND OPERATION

If the SAI vacuum solenoid valve malfunctions, the following fault codes may be stored in the ECM diagnostic
memory, which can be retrieved using TestBook/T4:

NOTE: Refer to 'SAI System Fault Finding' and 'Checking Malfunctions on SAI System' at the end of this section to
determine root cause of fault codes.

As a result of the SAI vacuum solenoid malfunction, other fault codes may also be stored in the ECM diagnostic
memory. These may include the following:

NOTE: A malfunction of the valve is logically expected to result in both engine banks reporting the same fault.

NOTE: Refer to 'SAI System Fault Finding' and 'Checking Malfunctions on SAI System' at the end of this section to
determine root cause of fault codes.

P-code

Description

P0412

SAI vacuum solenoid valve powerstage fault - harness damage, short circuit to

battery supply voltage

P0413

SAI vacuum solenoid valve not connected, open circuit

P0414

SAI vacuum solenoid valve short circuit to ground

P-code

Description

P1412

Secondary Air Injection System – Malfunction Bank 1 LH (Insufficient SAI flow
during passive test)

P1413

Secondary Air Injection System – Air control valve always open Bank 1 LH
(Excessive SAI flow during active leak test)

P1414

Secondary Air Injection System – Malfunction Bank 1 LH (Insufficient SAI flow
during passive test)

P1415

Secondary Air Injection System – Malfunction Bank 2 RH (Insufficient SAI flow
during passive test)

P1416

Secondary Air Injection System – Ait control valve always open Bank 2 RH
(Excessive SAI flow during active leak test)

P1417

Secondary Air Injection System – Low air flow Bank 2 RH (Insufficient SAI flow
during active test)
