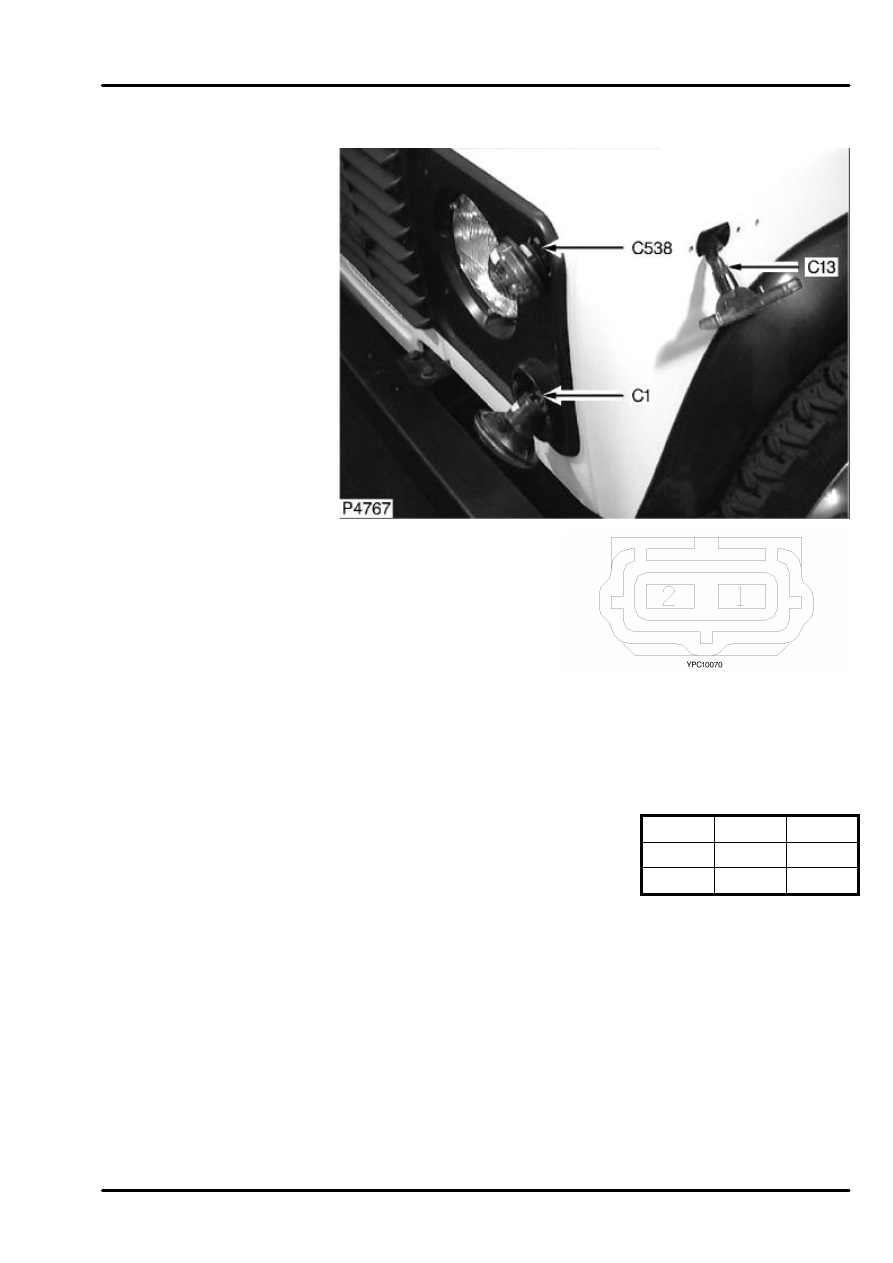

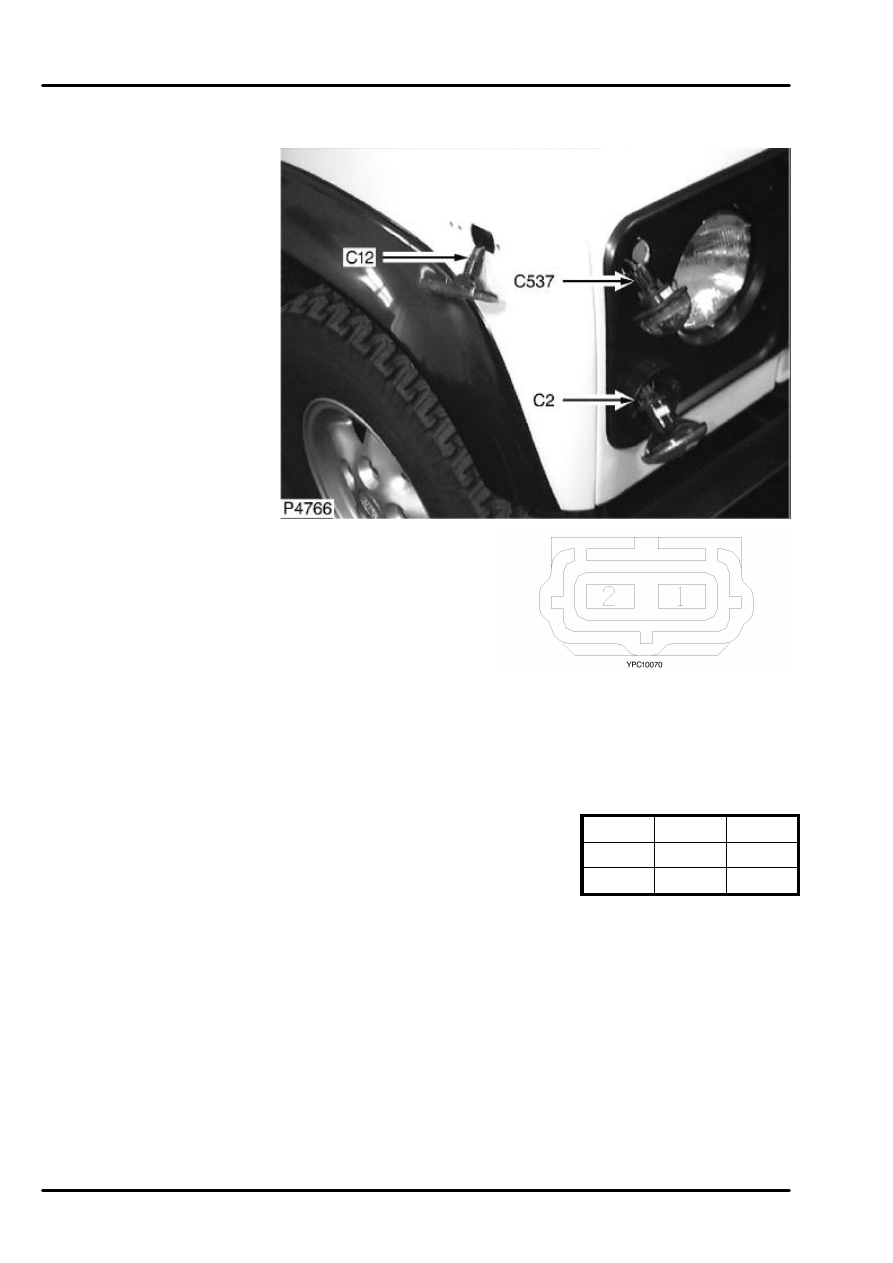

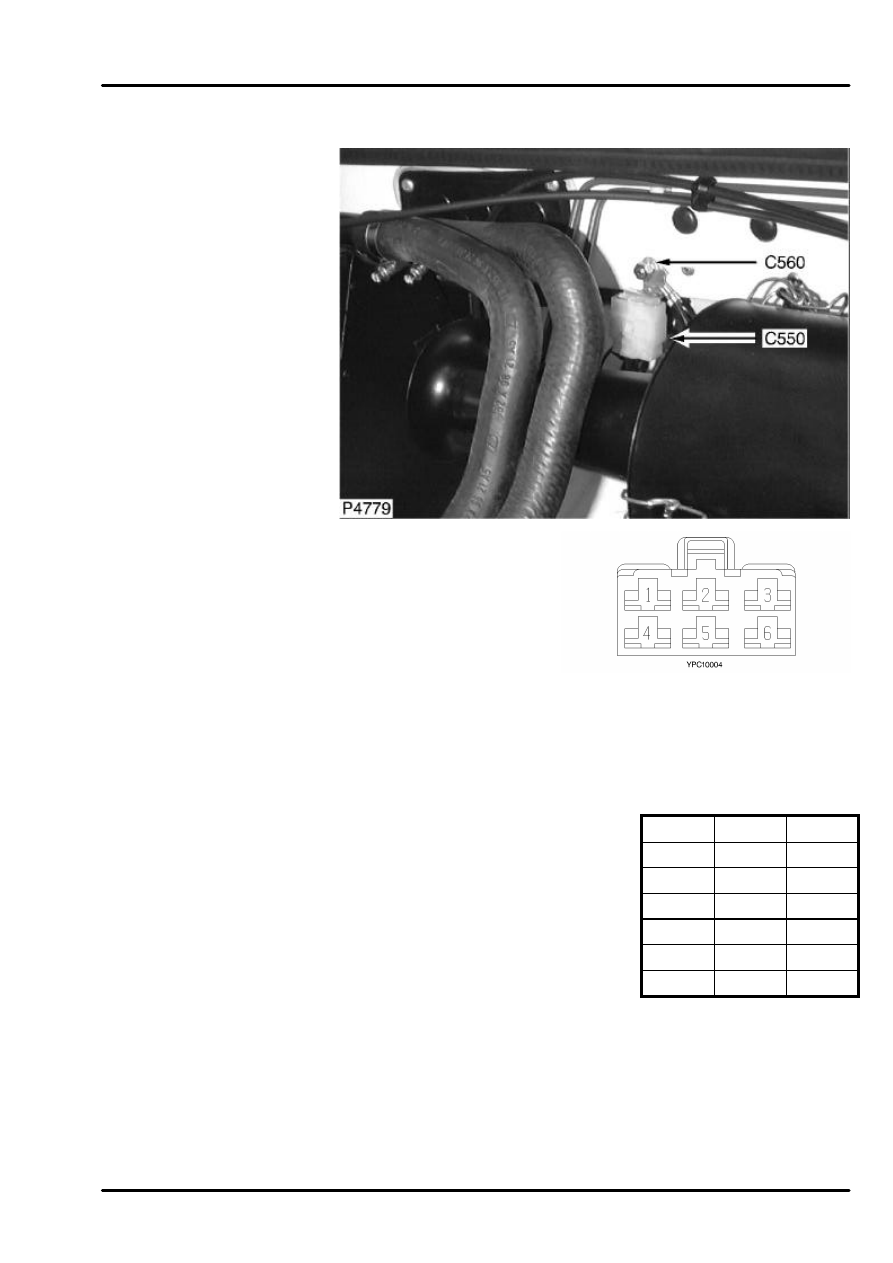

   CONNECTOR DETAILS

DEFENDER 90 NAS

C537

C537
SIDE LAMPS RH
2 Way
Female
BLACK
Behind RH front side
lamp

Cav

Color Cct

1

B

ALL

2

RO

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C538

C538
SIDE LAMPS L.H
2 Way
Female
BLACK
Behind LH front side
lamp

Cav

Color Cct

1

B

ALL

2

RB

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C547

C547
FLASHER UNIT
5 Way
Female
BLACK
Behind front of center
console

Cav

Color Cct

30

LGP

ALL

85

LG

ALL

86

B

ALL

87

LGN

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C550

C550
GROUND HEADER
6 Way
Female
NATURAL
Top of fire wall - center

Cav

Color Cct

1

B

ALL

2

B

ALL

3

B

ALL

4

B

ALL

5

B

ALL

6

B

ALL
