Defender Electric Diagrams. Manual - part 32

   CONNECTOR DETAILS

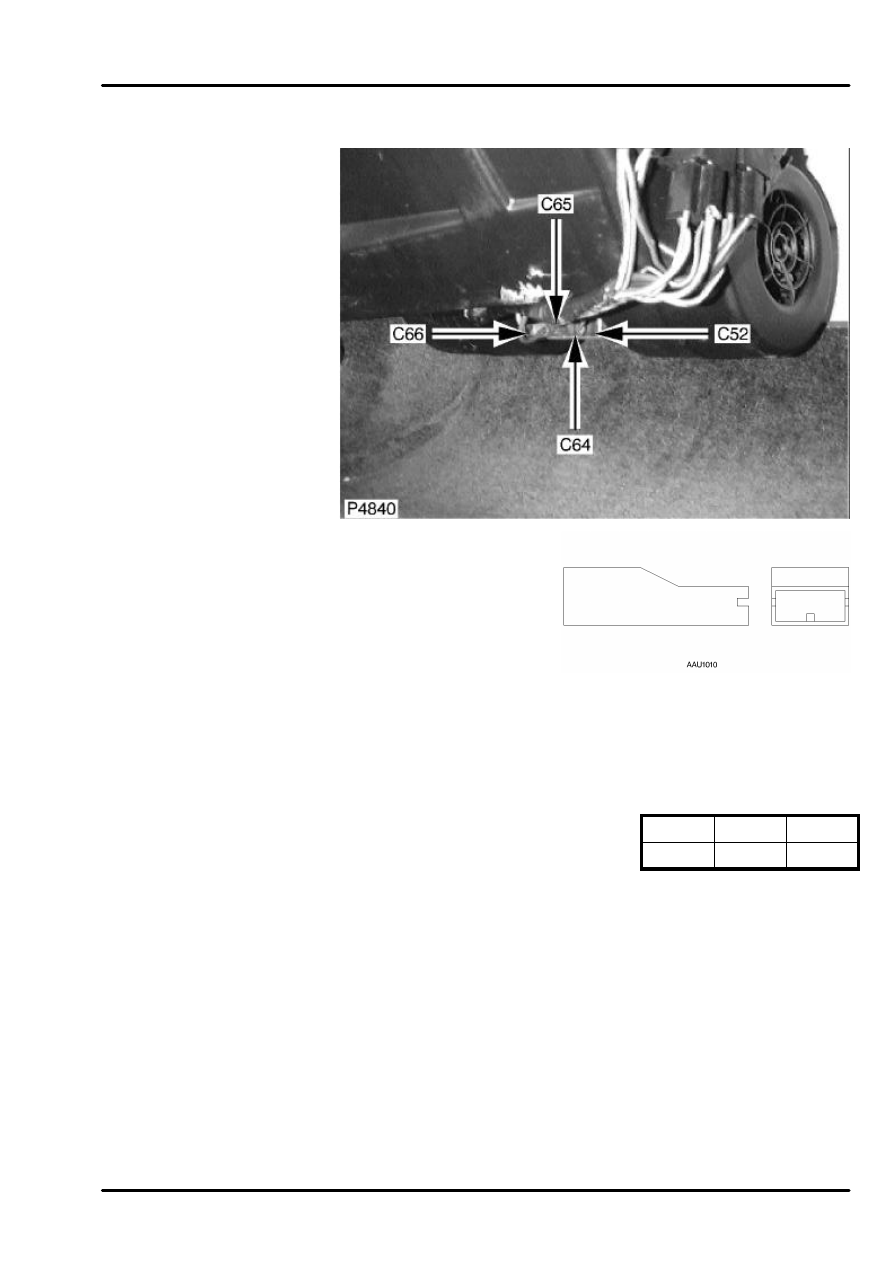

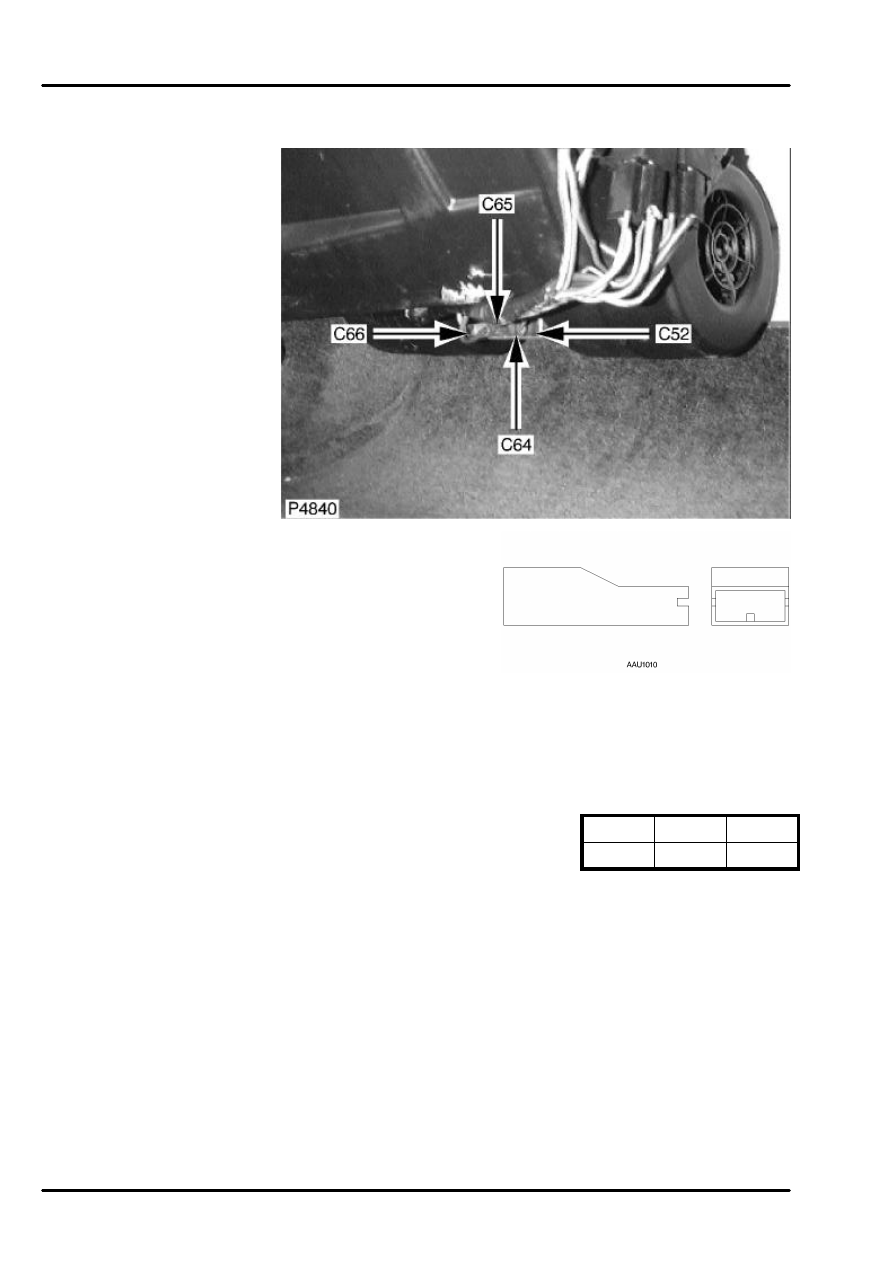

DEFENDER 90 NAS

C64

C64
BLOWER SPEED 2
1 Way
Female
BLACK
Passenger's footwell

Cav

Color Cct

1

G

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C65

C65
BLOWER SPEED 3
1 Way
Female
BLACK
Passenger's footwell

Cav

Color Cct

1

R

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C66

C66
BLOWER GROUND
1 Way
Female
BLACK
Passenger's footwell

Cav

Color Cct

1

B

ALL

CONNECTOR DETAILS

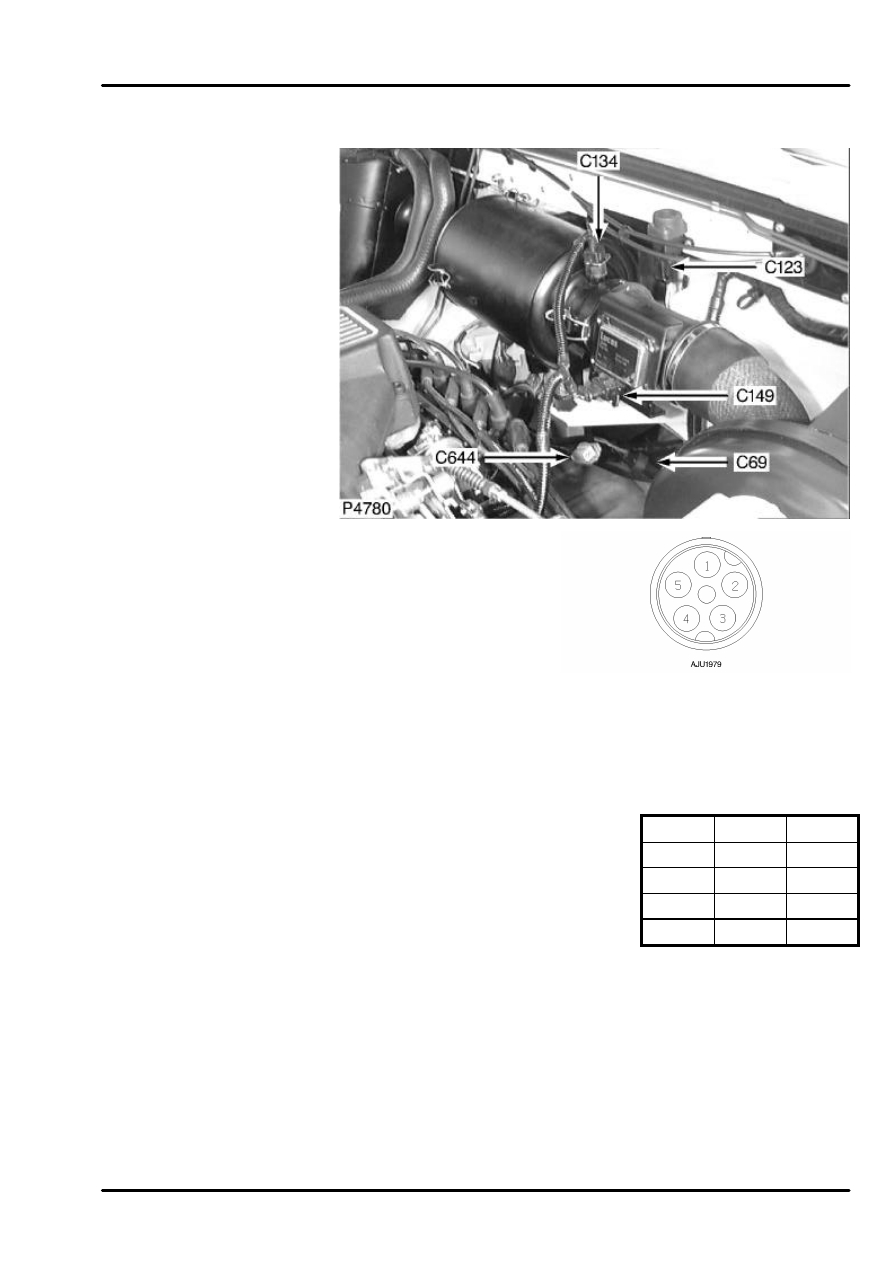

DEFENDER 90 NAS

C69

C69
INHIBIT SWITCH
5 Way
Female
BLACK
Above gearbox

Cav

Color Cct

2

G

ALL

3

GN

ALL

4

BO

ALL

5

BY

ALL
