Jeep Liberty KJ. Manual - part 839





When Monitored:
During active ABS control.

Set Condition:
If the Anti-Lock Brakes Module detects a pressure reduction phase and the following pressure hold phase is
too long.

Possible Causes

WIRING HARNESS, TERMINAL, CONNECTOR DAMAGE

(B4) LEFT REAR WSS 12 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE, SHORTED TO GROUND, OR
OPEN

(B3) LEFT REAR WSS SIGNAL CIRCUIT SHORTED TO VOLTAGE, SHORTED TO GROUND, OR OPEN

(B3) LEFT REAR WSS SIGNAL CIRCUIT SHORTED TO (B4) LEFT REAR WSS 12 VOLT SUPPLY CIRCUIT

LEFT REAR TONE WHEEL

LEFT REAR WSS

ANTI-LOCK BRAKES MODULE

Diagnostic Test

1.

COMPARE WHEEL SPEED SENSOR SIGNALS

WARNING: Ensure brake capability is available before road testing.
With the scan tool, monitor ALL the WSS speeds while an assistant drives the vehicle.

Slowly accelerate as straight as possible from a stop to 40 km/h (25 m.p.h.).

Does the LR WSS speed differ from the other WSS speeds by 8 Km/h (5 m.p.h.) or show NO speed?

Yes

>> Go To 2

No

>> Perform the ABS Intermittent Condition diagnostic procedure in this Section.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

2.

INSPECT TERMINALS, CONNECTORS, WIRING HARNESS, & TONE WHEEL

Turn the ignition off.

Visually inspect the Anti-Lock Brake Module harness connector, Left Rear WSS connector, Left Rear WSS harness
connector, and Left Rear WSS tone wheel for damage.

Check all related wiring for pinched, chafed, pierced, and partially broken wires.

Check all related connectors for broken, bent, pushed out, and corroded terminals.

Check the tone wheel teeth for missing teeth, cracks, and looseness. The teeth must be perfectly square, not
bent, or nicked.

Were any problems found?

Yes

>> Repair as necessary.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Go To 3

5 - 116

BRAKES - ABS ELECTRICAL DIAGNOSTICS

KJ

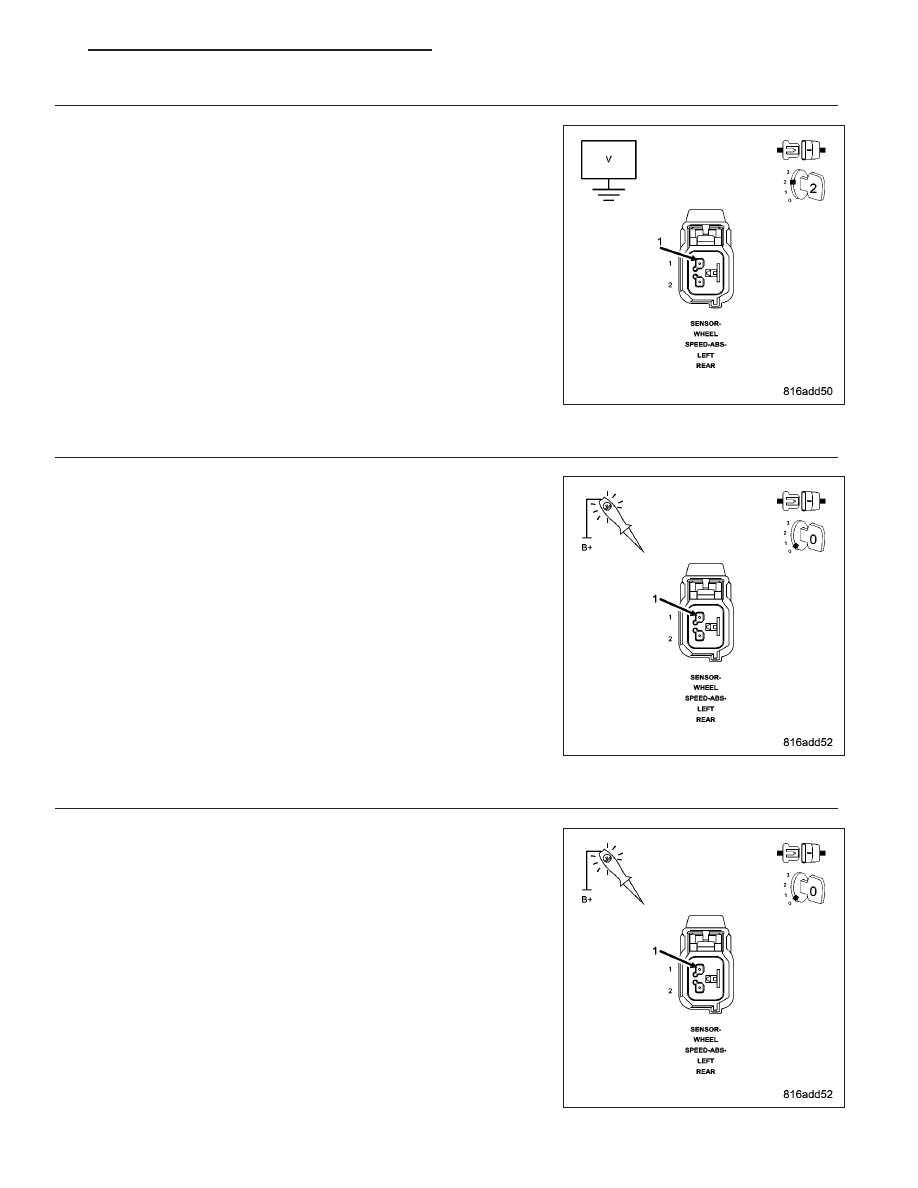

3.

CHECK (B4) LEFT REAR WSS 12 VOLT SUPPLY CIRCUIT VOLTAGE

If not done so previously, reconnect the Anti-Lock Brakes Module har-
ness connector.

Disconnect the Left Rear WSS harness connector.

Turn the ignition on.

Measure the voltage of the (B4) Left Rear WSS 12 Volt Supply circuit.

Is the voltage above 10.0 volts?

Yes

>> Go To 6

No

>> Go To 4

4.

CHECK (B4) LEFT REAR WSS 12 VOLT SUPPLY CIRCUIT FOR A SHORT TO GROUND

Turn the ignition off.

Disconnect the Anti-Lock Brakes Module harness connector.

Using a 12-volt test light connected to 12 volts, probe the (B4) Left Rear
WSS 12 Volt Supply circuit.

Does the test light illuminate?

Yes

>> Repair the (B4) Left Rear WSS 12 Volt Supply circuit for a

short to ground.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

No

>> Go To 5

5.

CHECK (B4) LEFT REAR WSS 12 VOLT SUPPLY CIRCUIT FOR AN OPEN

Connect a jumper wire between ground and the (B4) Left Rear WSS 12
Volt Supply circuit in the Anti-Lock Brakes Module harness connector.

Using a 12-volt test light connected to 12 volts, probe the (B4) Left Rear
WSS 12 Volt Supply circuit.

Does the test light illuminate brightly?

Yes

>> Go To 6

No

>> Repair the (B4) Left Rear WSS 12 Volt Supply circuit for an

open.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

KJ

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 117

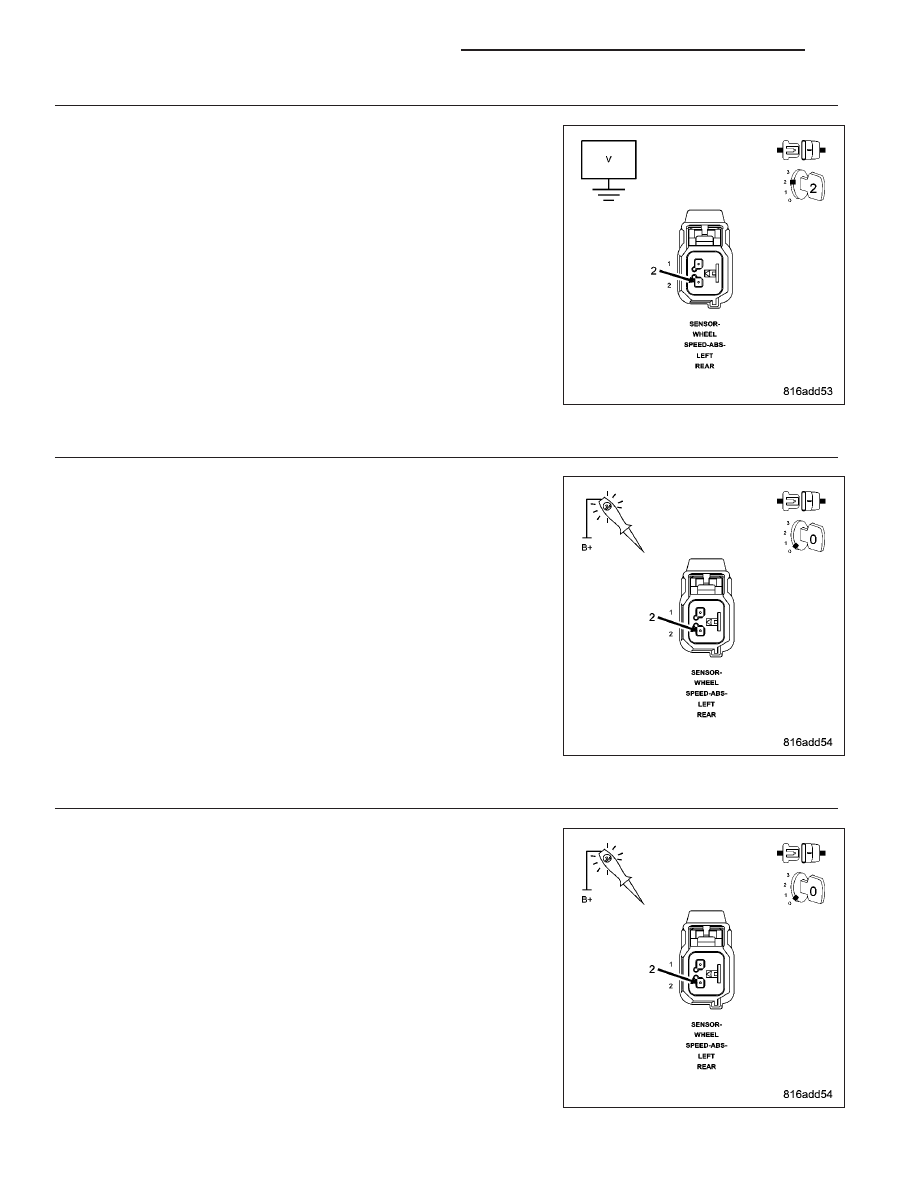

6.

CHECK (B3) LEFT REAR WSS SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE

If not done so previously, turn the ignition on.

Measure the voltage of the (B3) Left Rear WSS Signal circuit.

Is the voltage above 1.0 volt?

Yes

>> Repair the (B3) Left Rear WSS Signal circuit for a short to

voltage.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

No

>> Go To 7

7.

CHECK (B3) LEFT REAR WSS SIGNAL CIRCUIT FOR A SHORT TO GROUND

Turn the ignition off.

If not done so previously, disconnect the Anti-Lock Brakes Module har-
ness connector.

Using a 12-volt test light connected to 12 volts, probe the (B3) Left Rear
WSS Signal circuit.

Does the test light illuminate?

Yes

>> Repair the (B3) Left Rear WSS Signal circuit for a short to

ground.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

No

>> Go To 8

8.

CHECK (B3) LEFT REAR WSS SIGNAL CIRCUIT FOR AN OPEN

Connect a jumper wire between ground and the (B3) Left Rear WSS
Signal circuit in the Anti-Lock Brakes Module harness connector.

Using a 12-volt test light connected to 12 volts, probe the (B3) Left Rear
WSS Signal circuit.

Does the test light illuminate brightly?

Yes

>> Go To 9

No

>> Repair the (B3) Left Rear WSS Signal circuit for an open.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

5 - 118

BRAKES - ABS ELECTRICAL DIAGNOSTICS

KJ

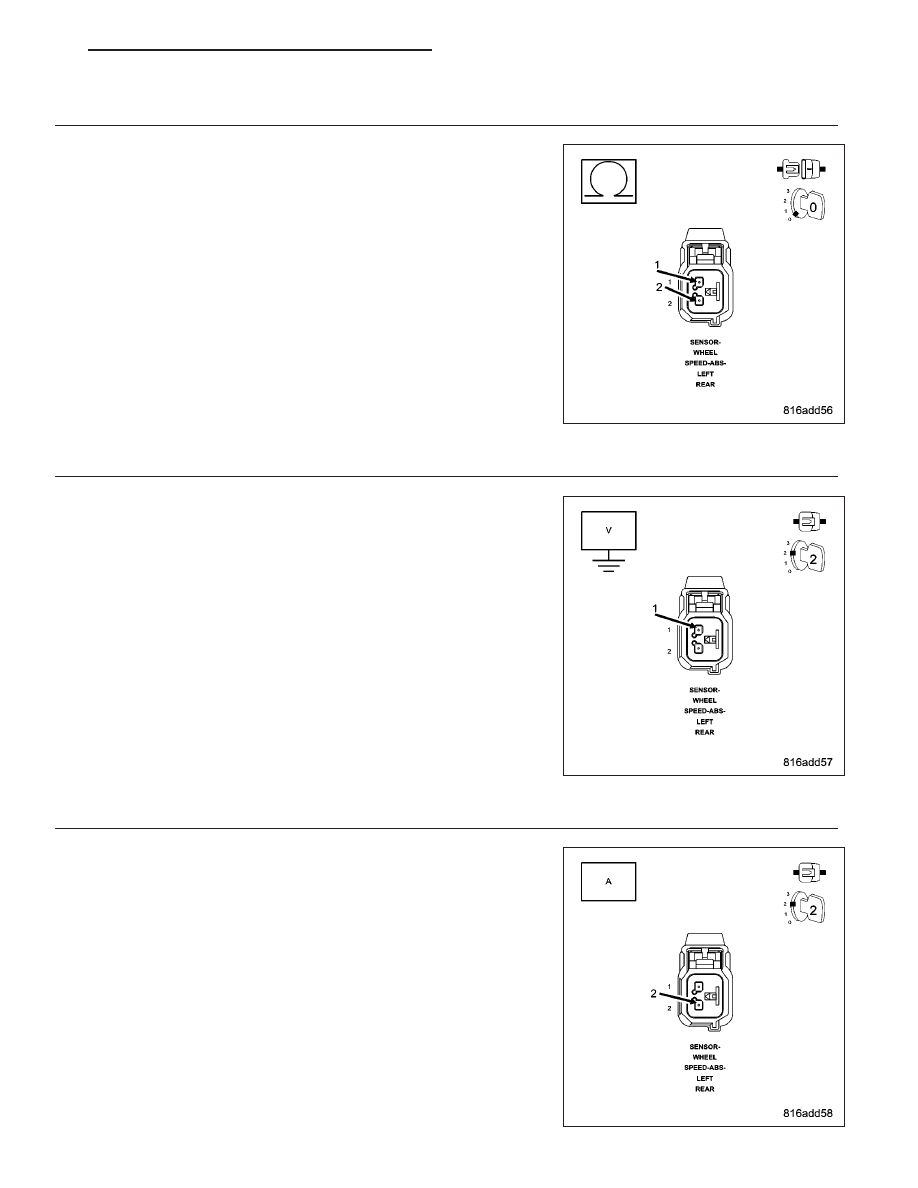

9.

CHECK (B3) LEFT REAR WSS SIGNAL CIRCUIT FOR A SHORT TO (B4) LEFT REAR WSS 12 VOLT
SUPPLY CIRCUIT

If not done so previously, remove all jumper wires.

Measure the resistance between the (B3) Left Rear WSS Signal circuit
and the (B4) Left Rear WSS 12 Volt Supply circuit.

Is the resistance below 10k ohms?

Yes

>> Repair the (B3) Left Rear WSS Signal circuit for a short to

the (B4) Left Rear WSS 12 Volt Supply circuit.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

No

>> Go To 10

10.

CHECK LEFT REAR WSS

Reconnect the Anti-Lock Brakes Module harness connector.

Turn the ignition on.

Measure the voltage of the (B4) Left Rear WSS 12 Volt Supply circuit
while reconnecting the Left Rear WSS harness connector.

Did the voltage drop to 0 volts?

Yes

>> Replace the Left Rear WSS in accordance with the Service

Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

No

>> Go To 11

11.

CHECK LEFT REAR WSS OUTPUT

Backprobe the (B3) Left Rear WSS Signal circuit in the Left Rear WSS
harness connector with the positive lead of an ammeter.

Connect the ammeter negative lead to a good clean chassis ground.

Slowly rotate the left rear wheel.

Does the amperage reading toggle between 7 mA and 14 mA?

Yes

>> Replace the Anti-Lock Brakes Module in accordance with

the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

No

>> Replace the Left Rear WSS in accordance with the Service

Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

KJ

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 119
