POWER WINDOW REAR SWITCH TEST
SWITCH POSITION
CONTINUITY BETWEEN
OFF
1 AND 3
4 AND 2
7 AND 10
8 AND 9
LEFT UP
10 AND 6
LEFT DOWN
6 AND 8
RIGHT UP
5 AND 2
RIGHT DOWN
5 AND 3
5. If the proper results are not obtained, replace the rear window switch.

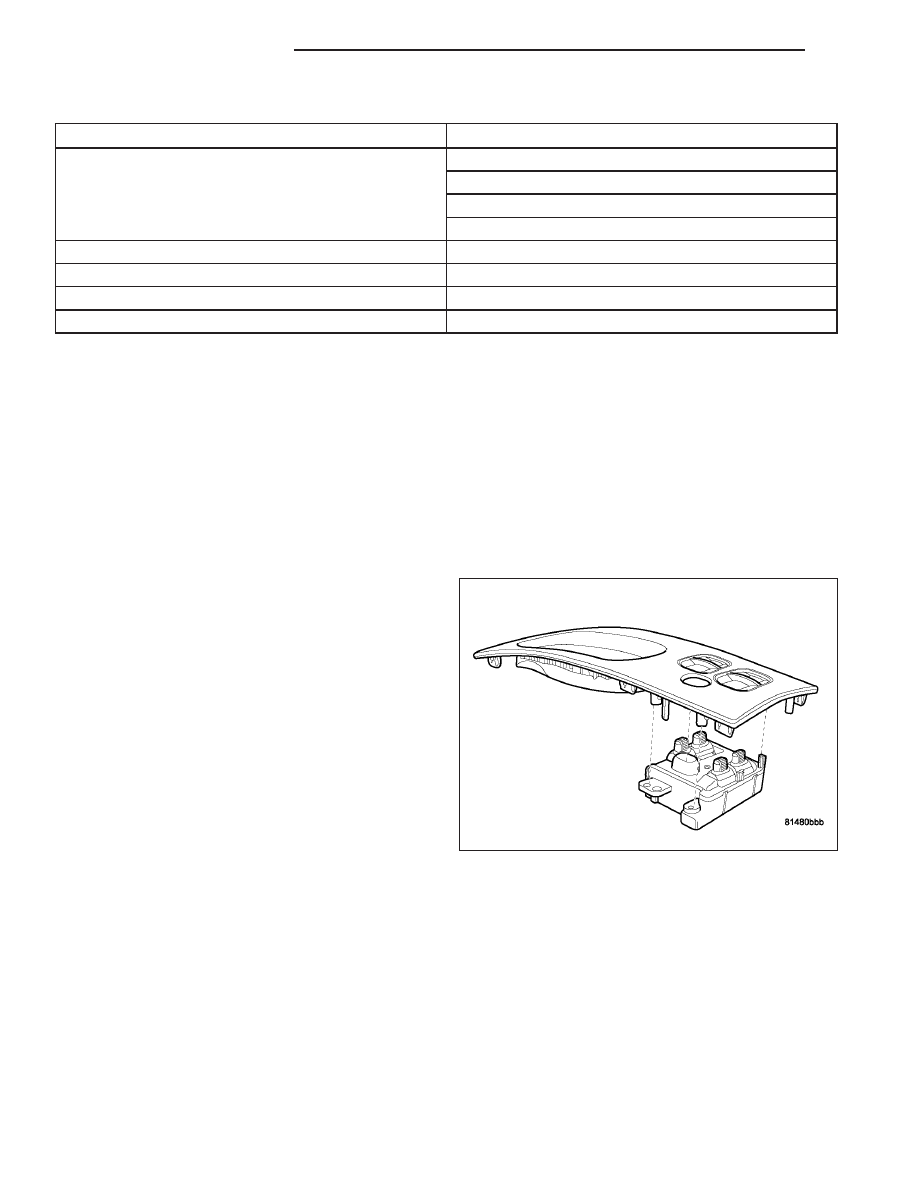

The power window master switch has a Auto-Down feature on both front windows. The switch is equipped with two
detent positions when actuating the power window OPEN. The first detent position allows the window to roll down
and stop when the switch is released. The second detent position actuates an integral express roll down relay that
rolls the window down after the switch is released. When the express down circuit senses stall current (window has
reached end of down travel), the switch will turn current off to the motor. The AUTO feature can be cancelled by
actuating the switch UP or DOWN while window is in motion. If the electronic circuit in the switch fails to detect a
stall current, the auto down circuit will time out within 9 to 14 seconds.

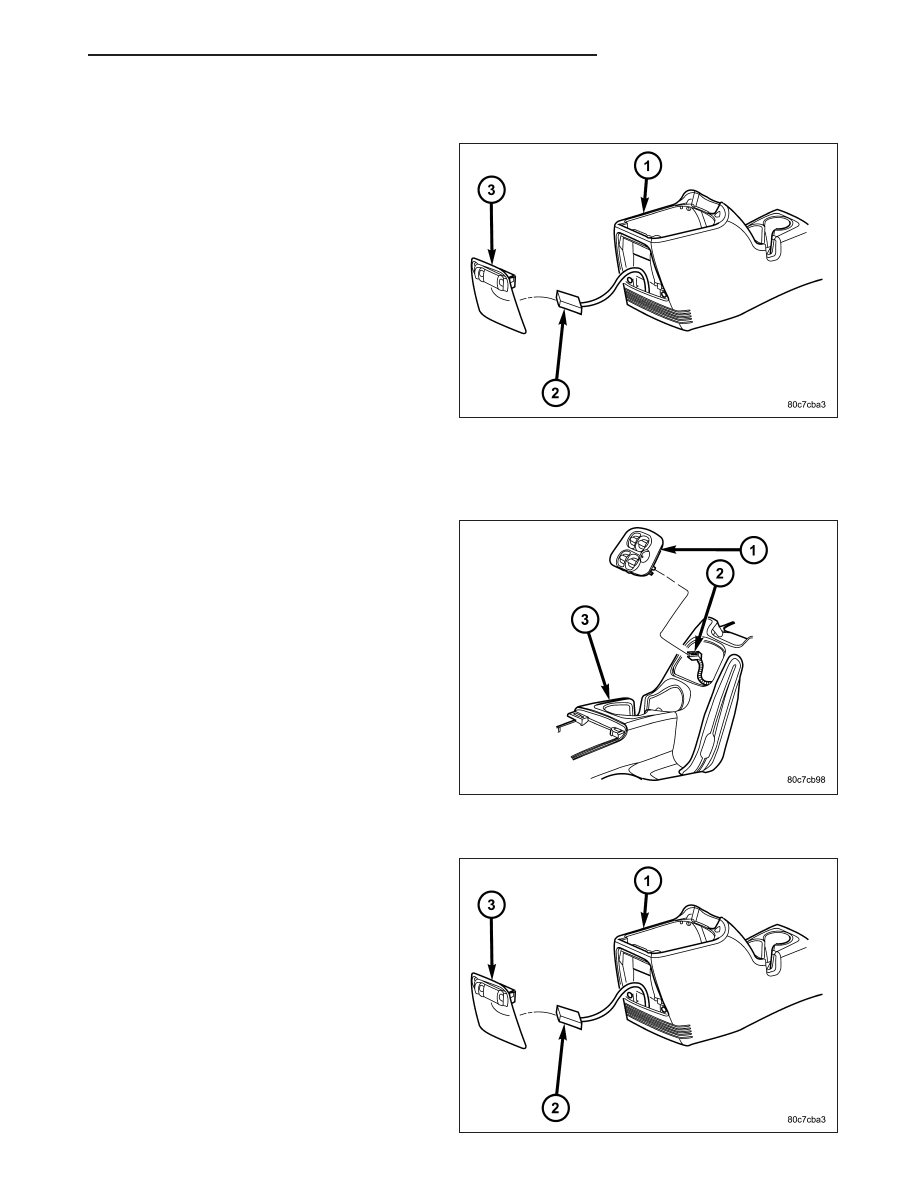

REMOVAL
FRONT
1. Disconnect and isolate the battery negative cable.
2. Remove the shift bezel.
3. Remove the mounting fasteners and switch.
4. Disconnect electrical harness connector.
