Jeep Grand Cherokee WJ. Manual - part 861

Fig.

22

INSTRUMENT

P

ANEL

REAR

CONNECT

ORS

WJ

8Wa-90 CONNECTOR/GROUND LOCATIONS

8Wa - 90 - 29

CONNECTOR/GROUND LOCATIONS (Continued)

2001 JEEP GRAND CHEROKEE

Fig.

23

INSTRUMENT

P

ANEL

REAR

CONNECT

ORS

-

RHD

8Wa - 90 - 30

8Wa-90 CONNECTOR/GROUND LOCATIONS

WJ

CONNECTOR/GROUND LOCATIONS (Continued)

2001 JEEP GRAND CHEROKEE

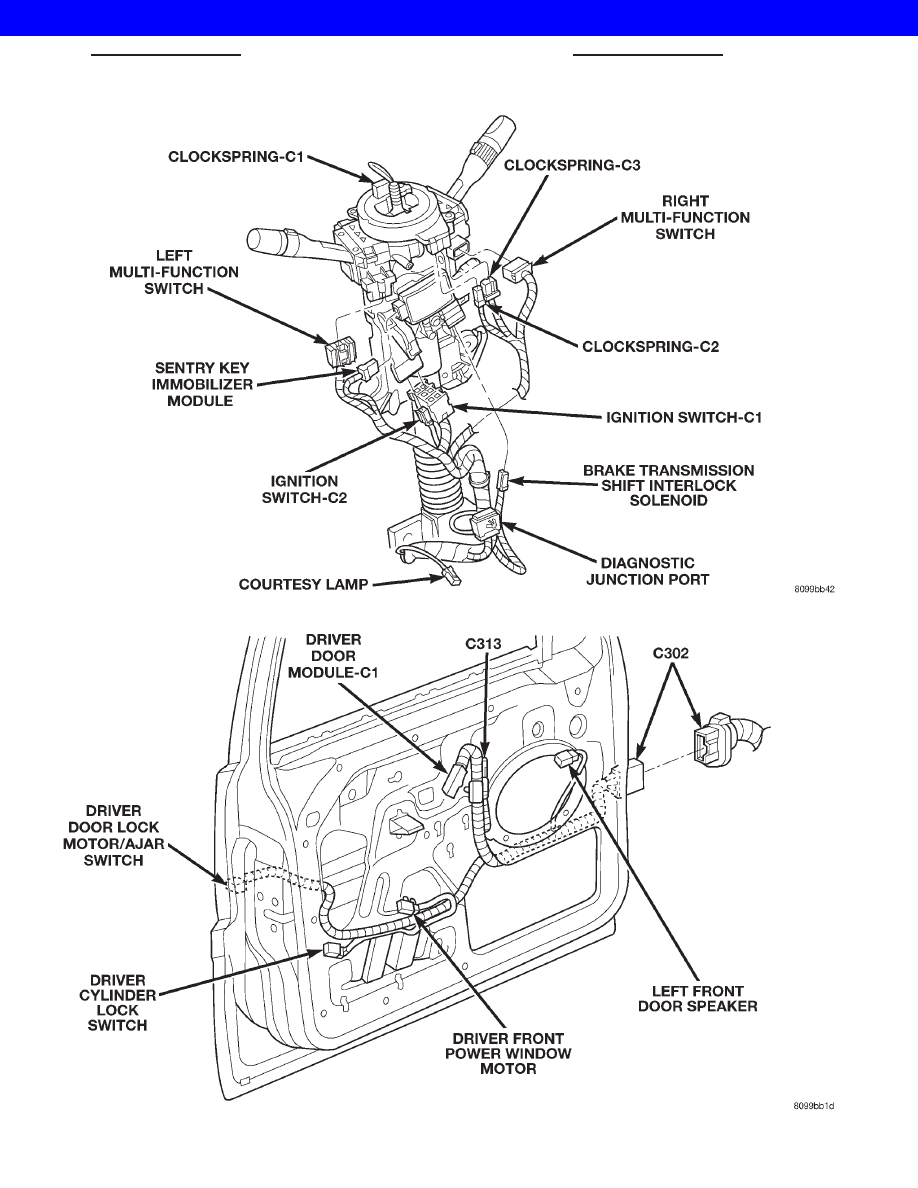

Fig. 24 STEERING COLUMN CONNECTORS

Fig. 25 DRIVER DOOR CONNECTORS

WJ

8Wa-90 CONNECTOR/GROUND LOCATIONS

8Wa - 90 - 31

CONNECTOR/GROUND LOCATIONS (Continued)

2001 JEEP GRAND CHEROKEE

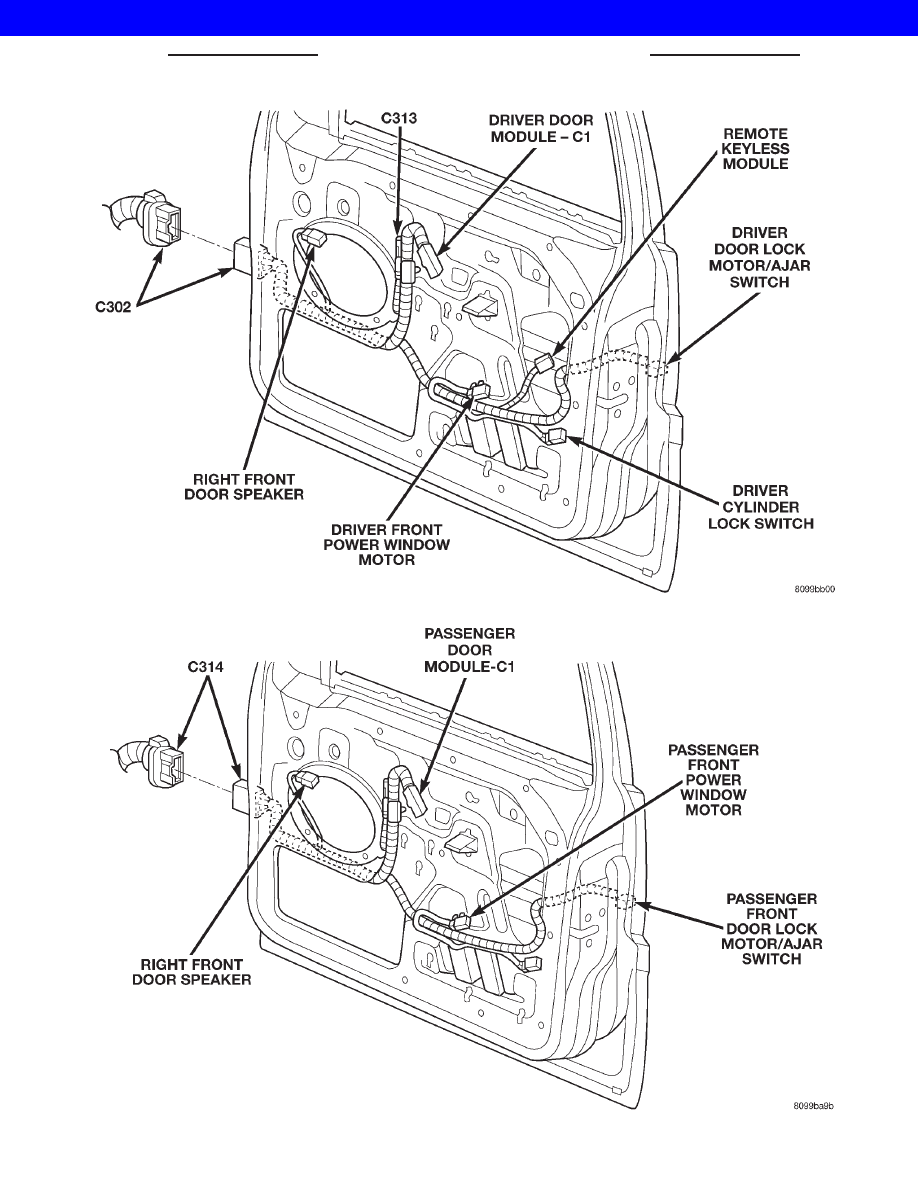

Fig. 26 DRIVER DOOR CONNECTORS - RHD

Fig. 27 PASSENGER DOOR CONNECTORS

8Wa - 90 - 32

8Wa-90 CONNECTOR/GROUND LOCATIONS

WJ

CONNECTOR/GROUND LOCATIONS (Continued)

2001 JEEP GRAND CHEROKEE
