attached to every Chrysler Corporation vehicle. The
label certifies that the vehicle conforms to all appli-
cable Federal Motor Vehicle Safety Standards. The
label also lists:

• Month and year of vehicle manufacture.

• Gross Vehicle Weight Rating (GVWR). The gross

front and rear axle weight ratings (GAWR’s) are
based on a minimum rim size and maximum cold tire
inflation pressure.

• Vehicle Identification Number (VIN).

• Type of vehicle.

• Type of rear wheels.

• Bar code.

• Month, Day and Hour (MDH) of final assembly.

INTRODUCTION

• Paint and Trim codes.

• Country of origin.
The label is located on the driver-side door shut-

face.

BODY CODE PLATE

DESCRIPTION

A metal Body Code plate is located in the engine

compartment and attached to the top of the right
frame rail. The information listed on the plate (Fig.
2) is used for manufacturing and service purposes.

SERVICE PROCEDURES

THREADED HOLE REPAIR

Most stripped threaded holes can be repaired using

a Helicoil

t. Follow the manufactures recommenda-

tions for application and repair procedures.

SPECIFICATIONS

INTERNATIONAL SYMBOLS

DESCRIPTION

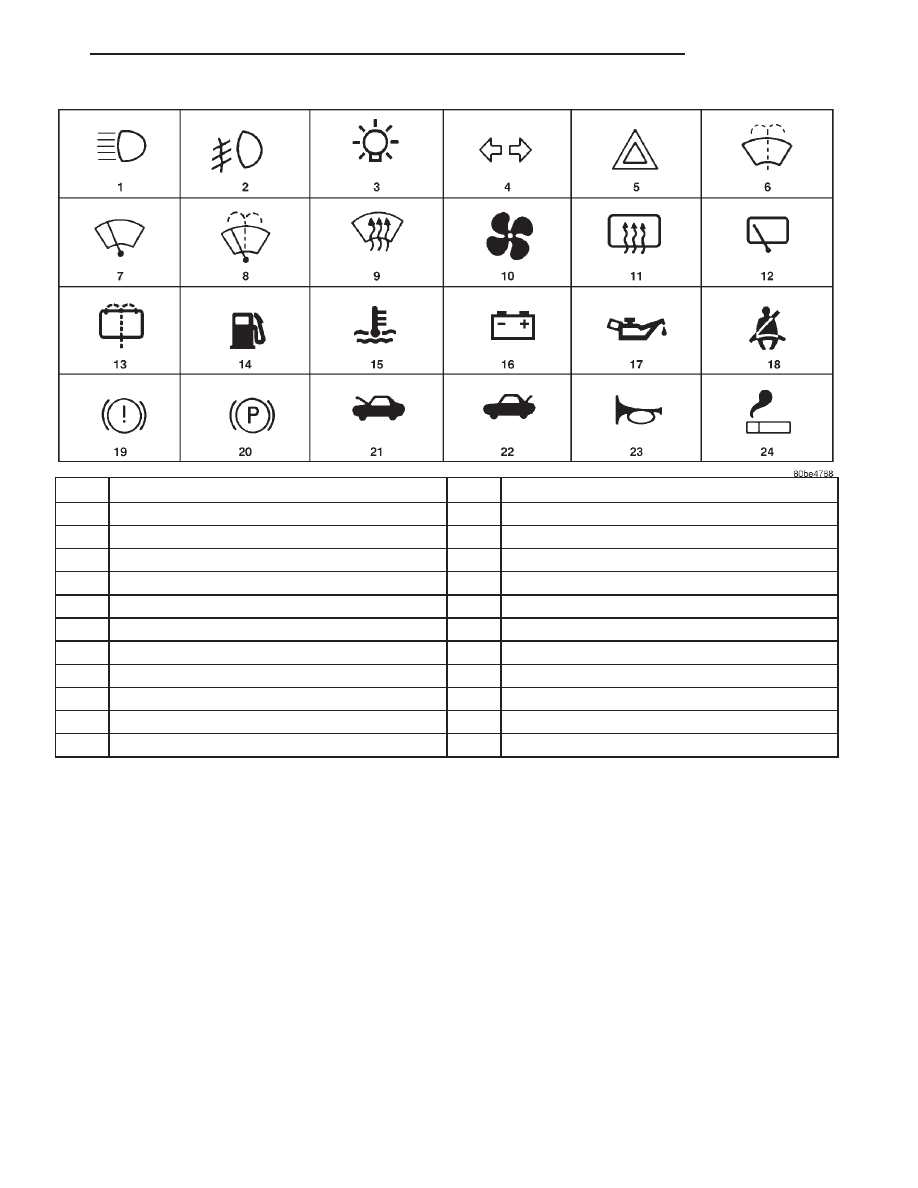

The graphic symbols illustrated in the following

International Control and Display Symbols Chart are
used to identify various instrument controls. The
symbols correspond to the controls and displays that
are located on the instrument panel.

FASTENER IDENTIFICATION

DESCRIPTION

GRADE/CLASS IDENTIFICATION

The SAE bolt strength grades range from grade 2

to grade 8. The higher the grade number, the greater
the bolt strength. Identification is determined by the
line marks on the top of each bolt head. The actual
bolt strength grade corresponds to the number of line
marks plus 2. The most commonly used metric bolt
strength classes are 9.8 and 10.9. The metric
strength class identification number is imprinted on
the head of the bolt. The higher the class number,
the greater the bolt strength. Some metric nuts are
imprinted with a single-digit strength class on the
nut face. Refer to the Fastener Identification and
Fastener Strength Charts.

FASTENER USAGE

WARNING: USE OF AN INCORRECT FASTENER
MAY RESULT IN COMPONENT DAMAGE OR PER-
SONAL INJURY.

Figure art, specifications and torque references in

this Service Manual are identified in metric and SAE
format.

During any maintenance or repair procedures, it is

important to salvage all fasteners (nuts, bolts, etc.)
for reassembly. If the fastener is not salvageable, a
fastener of equivalent specification must be used.

Fig. 1 Vehicle Safety Certification Label

Fig. 2 Body Code Plate

INTRODUCTION

DESCRIPTION AND OPERATION (Continued)

High Beam

Rear Window Washer

Fog Lamps

Fuel

Headlamp, Parking Lamps, Panel Lamps

Engine Coolant Temperature

Turn Warning

Battery Charging Condition

Hazard Warning

Engine Oil

Windshield Washer

Seat Belt

Windshield Wiper

Brake Failure

Windshield Wiper and Washer

Parking Brake

Windscreen Demisting and Defrosting

Front Hood

Ventilating Fan

Rear hood (Decklid)

Rear Window Defogger

Horn

Rear Window Wiper

Lighter
