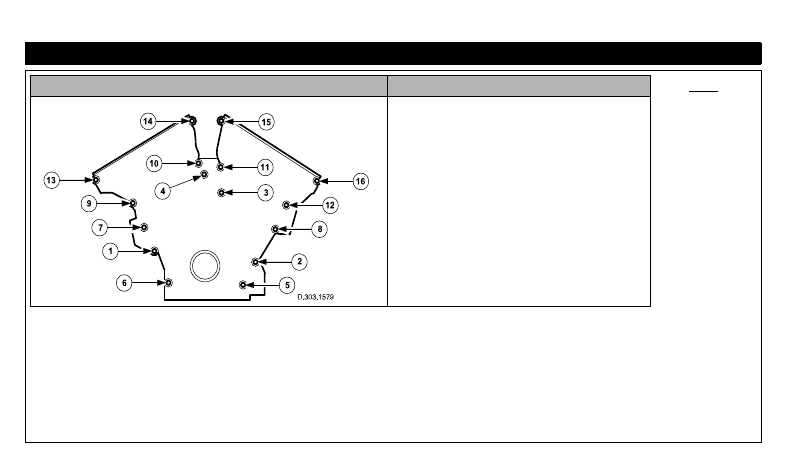

Tightening Torques – V6 Engine Components 103 Notes To convert Nm to lbf ft: Divide the Nm torque figure by 1.356 Cylinder Head Cover 10 Nm Cylinder Head Temperature Sensor 15 Nm Exhaust Manifold See: Tightening Torques and Sequence – Intake and Exhaust Manifolds Section. Generator 48 Nm (25 Nm X-TYPE lower bolt) Ignition Coil 7 Nm Intake Air Control Valve 10 Nm Intake Manifold – Lower 10 Nm Intake Manifold – Upper See: Tightening Torques and Sequence – Intake and Exhaust Manifolds Section. Knock Sensor 25 Nm Oil Cooler 58 Nm Oil Filter 14 to 17 Nm Oil Filter and Engine Mounting Assembly Tighten in sequence below: 1. Tighten M22 bolt to 30 Nm. 2. Tighten M10 bolt to 26 Nm. 3. Tighten M8 bolt to 26 Nm. 4. Tighten M22 bolt to 155 Nm. 5. Tighten M10 bolt to 40 Nm and then rotate 90 degrees. Oil Gauge Tube 10 Nm Oil Pan Baffle 5 Nm and then rotate 45 degrees, not to exceed 17 Nm Component Torque |
