Jaguar X-Type Sedan and Estate (Wagon). Manual - part 666

9.

CAUTION: Make sure the bumper cover is supported before

removing the securing bolts.

• NOTE: Left-hand shown, right-hand similar.

Remove the bumper cover.

Remove the bumper cover securing bolts.

Installation

1. To install, reverse the removal procedure.

Tighten to 7 Nm.

2. Tighten to 7 Nm.

Published: 11-May-2011

Bumpers - Front Bumper Cover Insert

Removal and Installation

Removal

1. Remove the front bumper cover. For additional information, refer

toSection

 501-19 Bumpers

.

2. Remove the energy absorbing foam.

1. Remove the energy absorbing foam retaining clips.

2. Remove the energy absorbing foam.

3. Remove the bumper insert retaining clips.

4. Using a suitable thin lever to avoid damaging the paintwork,

progressively ease the moulding away from the front bumper.

Installation

1. To install, reverse the removal procedure.

Published: 11-May-2011

Bumpers - Rear Bumper4-Door

Removal and Installation

Removal

1. Remove the rear bumper cover. For additional information, refer to

Bumper Cover—Rear

 .

2. Remove the bumper insulator.

3. Remove the rear bumper.

Installation

1. To install, reverse the removal procedure.

Tighten to 17 Nm,

Published: 11-May-2011

Bumpers - Rear BumperWagon

Removal and Installation

Removal

1. Remove the rear bumper cover.

For additional information, refer to:

Rear Bumper Cover - Wagon

 (501-19

Bumpers, Removal and Installation).

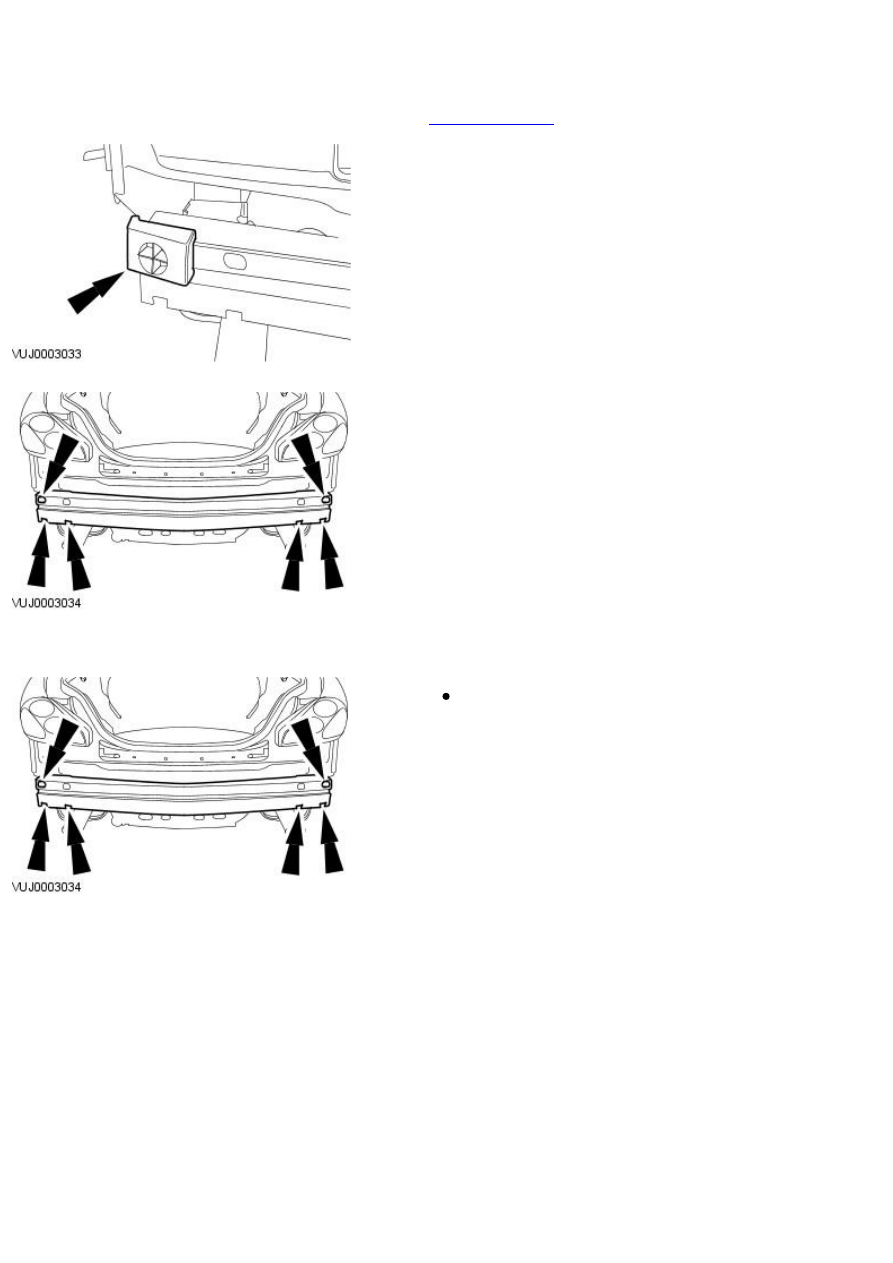

2. NOTE: Left-hand shown, right-hand similar.

Remove the rear bumper insulators.

3. Remove the rear bumper retaining bolts.

4. Remove the rear bumper.

Installation

1. To install, reverse the removal procedure.

Tighten to 17 Nm,
