it may be necessary to reduce the system volume slightly when using certain mobile phones.

Phone related messages are shown on the audio unit panel display or touch-screen when the phone system is active. The Bluetooth™
telephone system can be used in conjunction with the Voice Activation system to provide the driver with completely hands-free
communication. Voice commands are picked up by the system microphone.

The cellular phone system comprises the following components:

Bluetooth™ phone module
Microphone
Bluetooth™ antenna.

Phone dialling is achieved using one of the following methods:

Dialling a number using the audio unit or touch screen
Selecting a number from the handsets phonebook via the audio unit and the Bluetooth™ phone module
Selecting from the handsets call register via the Bluetooth™ phone module.

The Bluetooth™ phone module is connected to the Information and Entertainment system on the D2B bus. This allows audio and control
signals to be routed to and from the Bluetooth™ phone module. The Bluetooth™ phone module has a separate integral Bluetooth™ antenna
located on the

side of the luggage compartment on wagon vehicles and on the rear parcel shelf on 4 door vehicles.

Telephone handsets must be paired with the Bluetooth™ phone module before they can be used with the vehicle system. Up to 5 telephone
handsets can be paired with the vehicle, but only 1 telephone can used at a time. If more than one phone is present in the vehicle, the last
connected phone will be given priority on connection. Phone connection is active at ignition on. The phone will be disconnected 6 minutes
after the ignition is switched off.

Phonebook and last number redial list are stored & synchronized for each of the 5 phones and are resynchronized when each phone
reconnects.

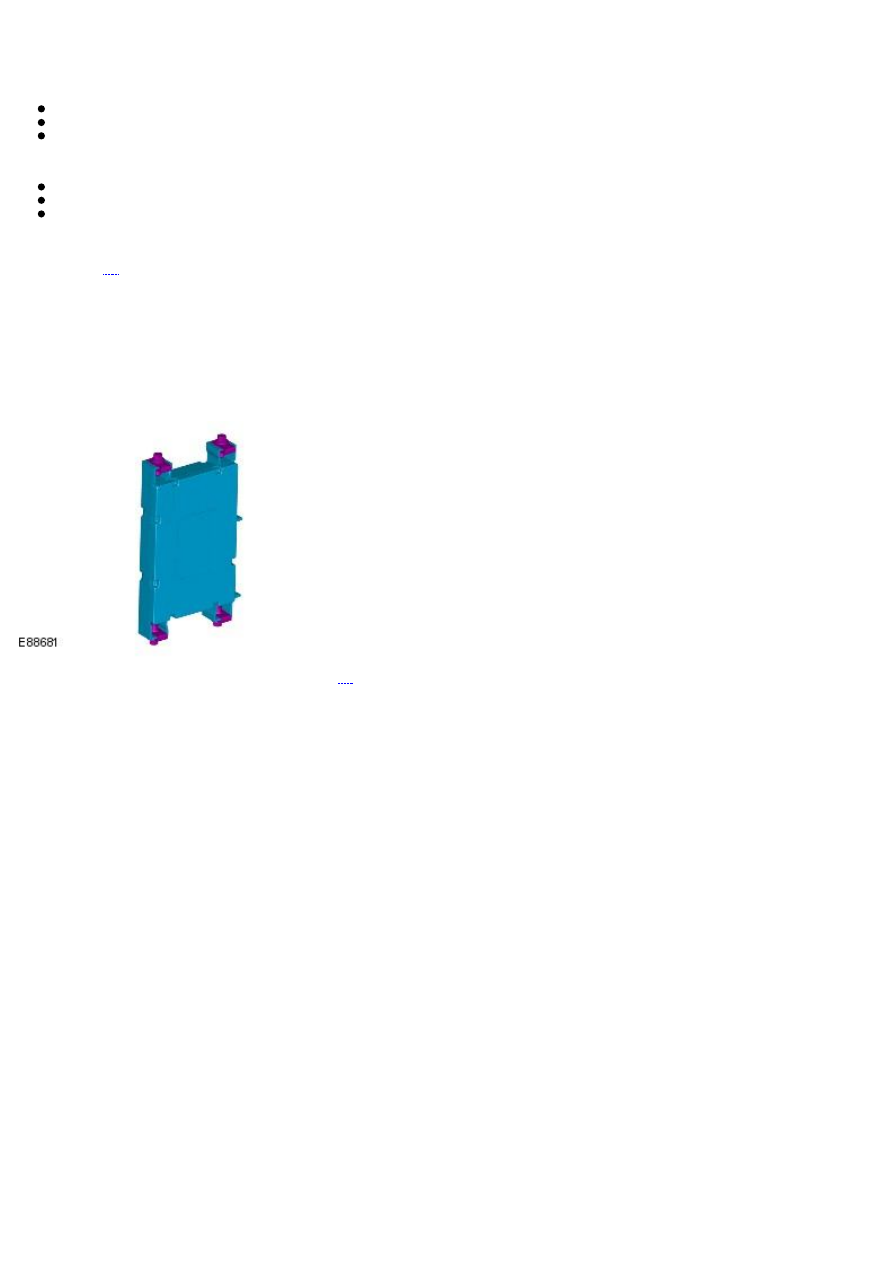

Bluetooth™ Phone Module

The Bluetooth™ phone module is located in the rear

side of the luggage compartment. The Bluetooth™ phone module is connected on

the D2B ring to the voice control module. The D2B ring allows control instructions and audio to be transferred to the relevant modules.

Microphone

The microphone is located adjacent to the overhead console which surrounds the front interior lamp. The microphone is hardwired to the
voice module and the Bluetooth™ phone module.

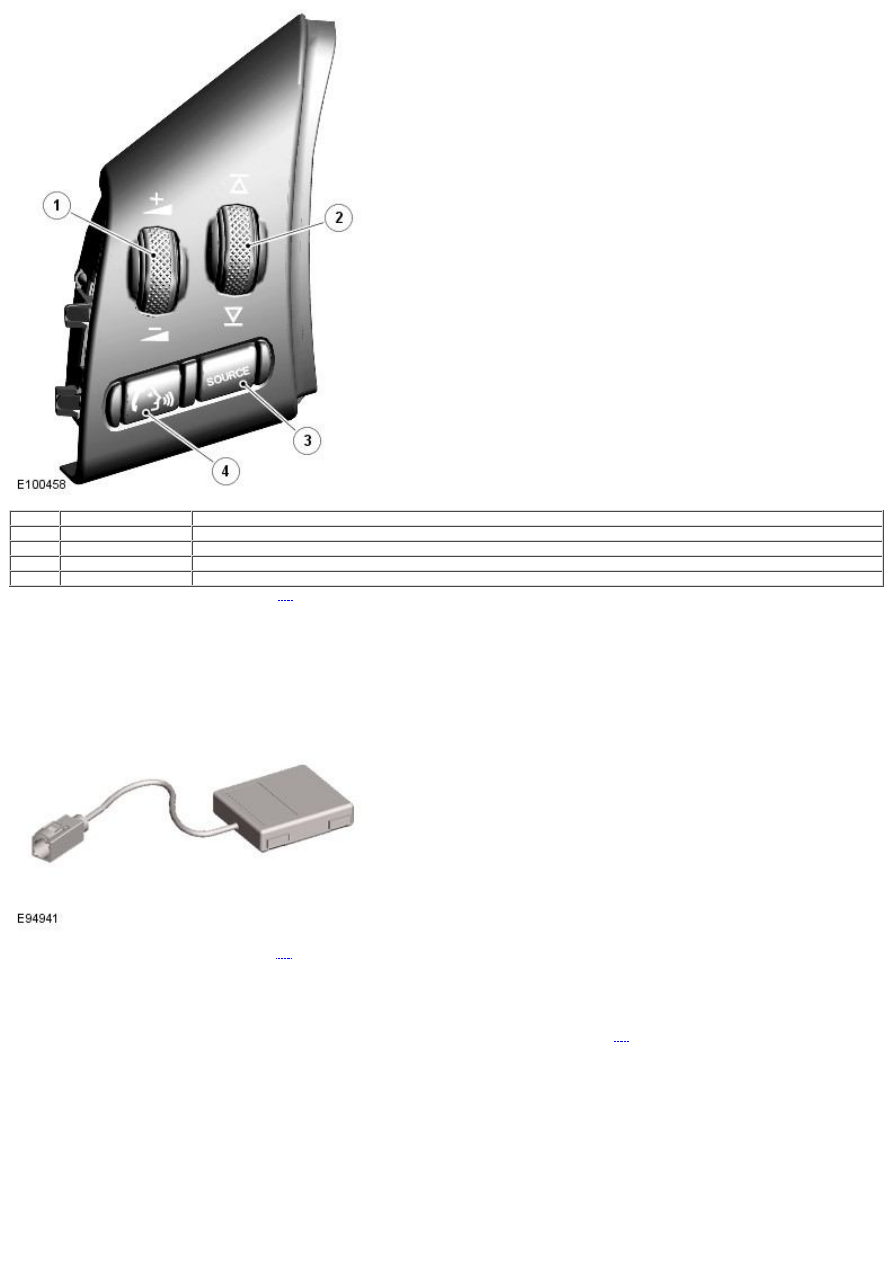

Telephone Control Switches

Item

Part Number

Description

Rotary Volume control

Rotary control Telephone mode - scroll through stored numbers

Phone mode select button

Start voice mode button, answer telephone or send/end in phone mode

The telephone switches are located on the

side of the steering wheel. Two rotary thumbwheels operate the volume of the selected audio

function including the telephone and also allow the driver to scroll through stored telephone numbers when in phone mode or select radio
stations or CD's when in audio modes. The 'source' switch allows the driver to select phone mode by pressing the switch for 2 seconds. The
switch can also be used to cycle through the AM, FM radio stations and CD's in the auto changer. The voice button will allow the start of the
voice function or mute when voice system is not fitted and also answer a call when phone ringing and also send/end when in a phone call.

Bluetooth™ Antenna

The Bluetooth™ antenna is located on the

side of the luggage compartment on wagon vehicles and on the rear parcel shelf on 4 door

vehicles. The antenna is used to connect the Bluetooth™ phone module to a Bluetooth™ compatible phone.

Telephone Voice Control

The vehicle system is able to use any voice tags which are stored in the Jaguar Voice system. There is no voice dialling feature of the
cellular telephone system. Voice dialling is accessed via a short press of the voice button on the

side of the steering wheel. Refer to the

Owners Handbook for further details on voice operation.

Published: 11-May-2011

Cellular Phone - Cellular Phone

Diagnosis and Testing

Principle of Operation

For a detailed description of the phone system, refer to the relevant Description and Operation sections in the workshop manual. REFER to:

Cellular Phone

(419-08 Cellular Phone, Description and Operation).

Inspection and Verification

Where a fault involving the cellular phone is indicated by the Jaguar Approved Diagnostic System, some basic diagnostic methods may be
necessary to confirm that connections are good and that the wiring is not damaged, before installing new components.

1. Verify the customer concern by operating the portable cellular phone both in portable mode and while connected to the vehicle.

2. Make sure the portable convertible phone (US Only) is switched ON. W ith the power button ON, the system should be on while the

ignition switch is in ACC or RUN.

3. Make sure the customer is calling within the coverage area. No Svc will appear in the display if the customer is calling from

outside the coverage area.

4. Check to see if the Roam indicator is on. If so, follow the roaming instructions in the Cellular Phone User Guide.

5. Check to see if the display reads Locked CDMA/TDMA or pin for GSM. If so, press Clr and enter the customer three-digit unlock

code for CDMA/TDMA or the customer pin number on the phone handset for GSM.

6. Make sure the portable cellular phone (US Only) is securely seated in the holder.

7. Make sure the GSM handset coil cord connector is correctly fitted to the armrest connector.

8. Check the portable cellular phone (US Only) antenna connections.

9. Check the portable cellular phone system registration (US Only). Also, check to make sure that the portable cellular phone is

correctly programmed. Incorrect programming can result in single system scanning, loss of speed dialing, loss of hands-free audio,
loss of auto redial, loss of dial tone multi-frequency tones, and the loss of other keypad/portable cellular phone functions.

10. Make sure that a valid SIM card is inserted in the handset SIM card reader (GSM Only)

10.

11. Check the customer account status with the cellular carrier.

11.

If the customer concern is still present, follow these steps to diagnose the concern:

12. Visually inspect for obvious signs of mechanical or electrical damage:

12.

Visual Inspection Chart

Mechanical

Electrical

Portable cellular phone (US only)
Microphone
Portable cellular phone holder (US only)
Coil cord

Electrical connectors
W iring harness for damage or corrosion
Fuses

System/Carrier Concerns - All Systems

Dropped calls, bad connections, noisy audio and other intermittent symptoms usually indicate a system or cellular carrier concern, and are
not the fault of the phone itself. Such symptoms may occur in situations such as the following:

In certain geographic areas (for example: areas of excessive foliage or hills) or at the edge of coverage areas.
At the same place each day.
At the same time each day.
Under bridges, tunnels, in lower freeways, or in congested downtown areas.

If the customer phone exhibits any of the above symptoms or symptoms occur under the above conditions, the customer or the dealer
should contact customer assistance at their particular cellular provider/carrier or call the assistance number provided in the Jaguar Cellular
System Dealer kit.

Other Possible Concerns - All Systems

1. If, for some reason, the customer's electronic serial number was incorrectly recorded in the carrier switch, the phone will not work.

Call the assistance number provided in the Jaguar Cellular System Dealer kit to check the electronic serial number CDMA/TDMA
only.

2. A customer initial call must be made in his/her home coverage area for correct activation of the Jaguar Cellular System.

3. A customer may have to wait until after 24 hours of the coverage activation before making a call from outside of his/her home

coverage area or the phone might be reported stolen and coverage stopped.

4. There may be a slight delay in activation after leaving the dealership from initial delivery.

If, after checking these possibilities, the phone still does not function, do not attempt to repair the phone. Call the cellular phone
distributor.

DTC Index

CAUTION: W hen probing connectors to take measurements in the course of the pinpoint tests, use the adapter kit, part number

3548-1358-00

• NOTE: If the control module/component is suspect and the vehicle remains under manufacturer warranty, refer to the Warranty policy and
procedures manual (section B1.2), or determine if any prior approval program is in operation, prior to the installation of a new module or
component

• NOTE: When performing voltage or resistance tests, always use a digital multimeter (DMM) accurate to three decimal places and with a
current calibration certificate. When testing resistance, always take the resistance of the DMM leads into account.

• NOTE: Check and rectify basic faults before beginning diagnostic routines that involve pinpoint tests

• NOTE: Inspect connectors for signs of water ingress, and pins for damage and/or corrosion

• NOTE: If DTCs are recorded and, after performing the pinpoint tests, a fault is not present, an intermittent concern may be the cause.
Always check for loose connections and corroded terminals.

DTC

Description

Possible Source

Action

B1038 Microphone input circuit -

short to ground

Microphone fault
W iring harness
fault

Refer to appropriate circuit diagram, check microphone input circuits for short to
ground. Repair circuit faults using appropriate materials and methods. Clear DTC,
retest system to verify correct operation.

B1039 Microphone input circuit -

short to battery

Microphone fault
W iring harness
fault

Refer to appropriate circuit diagram, check microphone input circuits for short to
battery. Repair circuit faults using appropriate materials and methods. Clear DTC,
retest system to verify correct operation.

B1342 ECU is defective

Internal ECU
fault

This DTC also includes memory failure. Replace telephone ECU and clear DTC.
retest system to verify correct operation.

B1893 GPS antenna open circuit

GPS Antenna
W iring harness
fault

Check Antenna circuit for open circuits, repair wiring faults using approved
methods and materials, clear DTC and retest to confirm correct operation.

B2102 Antenna circuit short to

ground

GPS Antenna
W iring harness
fault

Check Antenna circuit for short circuits, repair wiring faults using approved
methods and materials, clear DTC and retest to confirm correct operation.

B2103 Antenna not connected

GSM or
Bluetooth
Antenna
W iring harness
fault

Check GSM and Bluetooth antenna circuits for open circuits, repair wiring faults
using approved methods and materials, clear DTC and retest to confirm correct
operation.

B2141 NVM configuration failure

No phone
number
invalid phone
number

Software error or SIM card error, confirm SIM is valid and download new software
to phone module. Clear DTC and retest system to confirm operation.

B2477 Module configuration

failure

Configuration
fault

No vehicle identification number present, configure vehicle. Clear DTC and recheck
system to confirm correct operation.

B2633 Microphone not

connected

Microphone
W iring harness
fault

Check microphone is connected correctly, Check microphone lines for open circuits.
install connectors correctly or repair wiring harness using appropriate methods and
materials.

B2636 SOS switch input short

circuit to ground

SOS switch
W iring harness
fault

Check SOS switch is not stuck. Check SOS switch input line for short circuit to
ground. Repair wiring harness faults using appropriate methods and materials.
Replace SOS switch as required. Clear DTC and retest system for correct operation.

B2637 Information switch input

short to ground

Information
switch
W iring harness
fault

Check information switch for faults, check wiring harness for information switch
circuits shorted to ground. Repair wiring harness faults using approved methods
and materials. Clear DTC and retest system for correct operation.

B2638 Phone rechargeable

battery fault

Phone battery
faulty
W iring harness
fault

Check if the phone battery is correct for the phone in use. Confirm battery
charging connections are in good condition and are connected to the power supply.

B2640 Deployment indication

input short to ground

W iring harness

Check wiring harness for airbag deployment indication circuit short to ground.
Repair wiring fault using approved methods and materials. Clear DTC and retest
system to confirm correct operation.

B2641 Deployment indication

input short to battery

W iring harness

Check wiring harness for airbag deployment indication circuit short to power.
Repair wiring fault using approved methods and materials. Clear DTC and retest
system to confirm correct operation.

B2904 Partial mute circuit

failure

W iring harness

Check mute circuits from phone ECU to radio head unit and nav system ECUs are
not short to ground. Repair wiring harness using approved methods and materials

U2601 D2B wake up short to

ground

W iring harness

Check D2B wake up circuit for short to ground. Repair W iring harness using
approved materials and methods. Clear DTC and retest to confirm correct
operation.

U2609 D2B wake up pulse width

out of specification

Module software
issue

D2B pulse width specification is <50mS - >110mS, if the pulse width is outside
this range check the module configuration and programming. Reconfigure and
reprogramme module, clear DTC and retest system to confirm correct operation.

U2610 D2B Slave ECU fails to

receive a report position

D2B network
concern

During initialisation no position status report is received, check D2B network for
open circuits, shorts. Repair wiring harness using approved methods and
materials. Clear DTC and retest system to ensure correct operation.

U2611 D2B Slave ECU fails to

receive an alarm clear
command

D2B network
concern

On entering alarm state, slave ECU has fail to receive alarm clear command, check
D2B network for open circuits, shorts. Repair wiring harness using approved
methods and materials. Clear DTC and retest system to ensure correct operation.
