Jaguar X-Type Sedan and Estate (Wagon). Manual - part 42

4. Using the special tools, remove the wheel hub.

Vehicles with 2.0L engine

CAUTION: Failure to follow this procedure may result in damage to

the anti-lock brake system (ABS) components.

Disconnect the anti-lock brake system (ABS) sensor electrical connector.

6. Remove the wheel hub.

Remove the retaining bolts.

7. Remove the (ABS) sensor.

Remove the retaining bolt.

Installation

All vehicles

1. Install the wheel hub.

Tighten to 63 Nm.

Vehicles with 2.5L or 3.0L engine

2. Install a new rear halfshaft retaining nut.

Tighten to 270 Nm.

Vehicles with 2.0L engine

3. Install the (ABS) sensor.

Tighten to 7 Nm.

4. Reconnect the (ABS) sensor electrical connector.

All vehicles

5. Install the rear brake disc.

For additional information, refer to:

Brake Disc

(206-04 Rear Disc Brake,

Removal and Installation).

Published: 11-May-2011

Rear Suspension - Wheel Knuckle

Removal and Installation

Removal

1. Remove the wheel hub.

For additional information, refer to: Wheel Hub (204-02, Removal and
Installation).

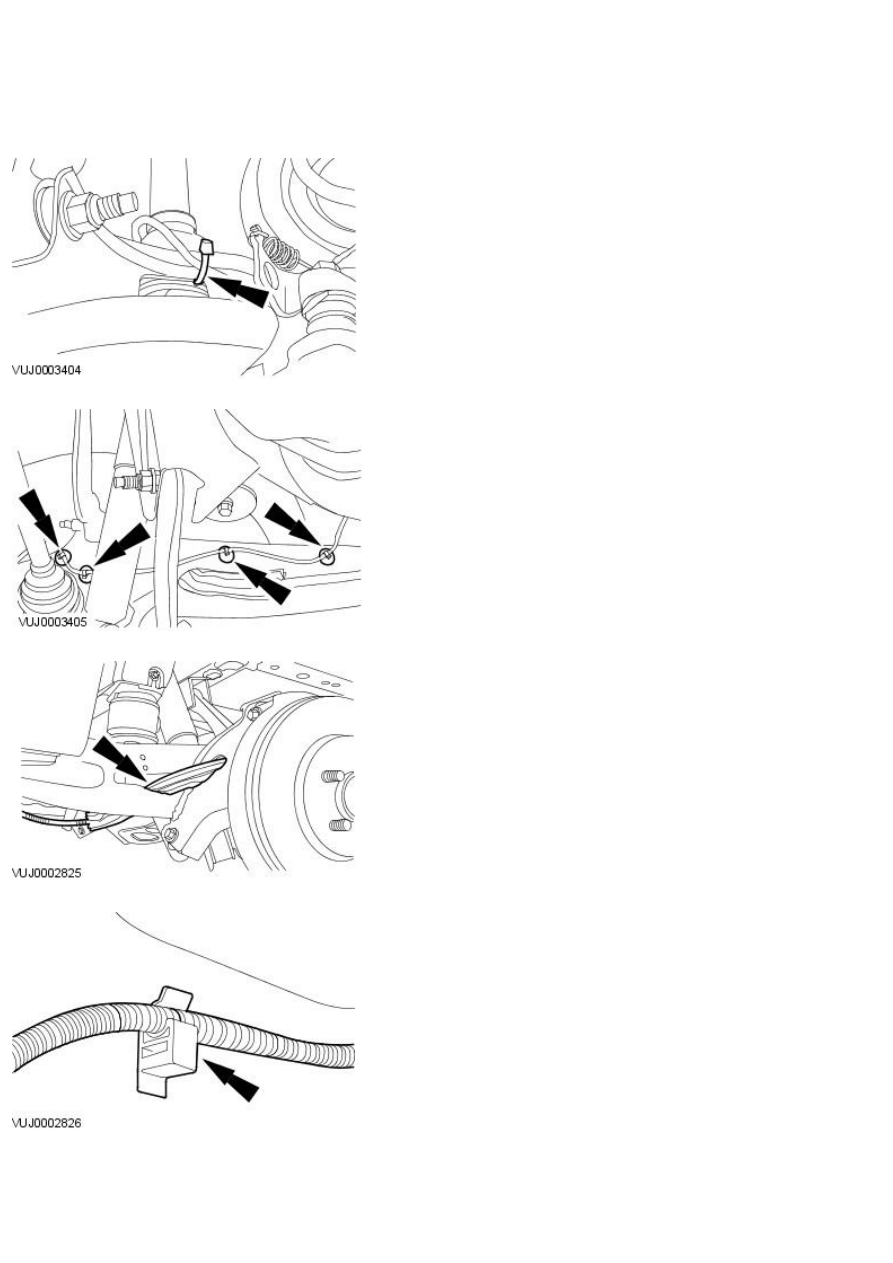

2. Remove the anti-lock brake system (ABS) wheel speed sensor wiring

harness retaining strap.

3. Detach the ABS wheel speed sensor wiring harness.

4. Detach the parking brake cable and conduit.

5. Detach the parking brake cable and conduit.

6. Detach the damper.

7. Detach the upper arm.

8. Detach the front lower arm.

CAUTION: Make sure that excessive strain is not placed on the

lower arm.

Using a suitable transmission jack, support the rear lower arm.

10. Detach the wheel knuckle mounting bracket.
