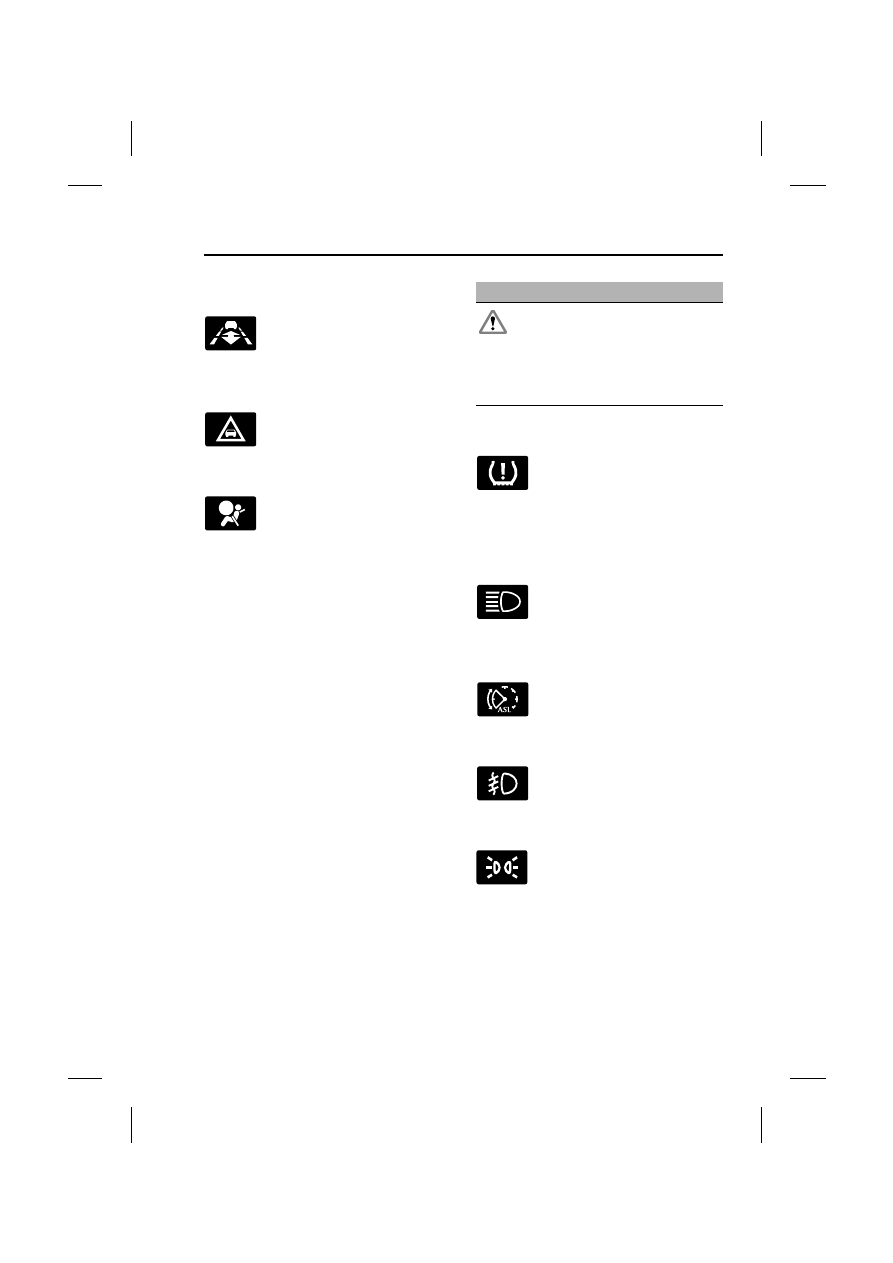

Adaptive Cruise Control (ACC)
(Amber)

Illuminates when adaptive
cruise control is active to
indicate that the vehicle is in

follow mode.

Forward alert (Amber)

Illuminates when Forward Alert
is active.

Air bag fault (Amber)

The air bag warning indicator
will be lit for approximately six
seconds when the ignition

system is on.

If the indicator remains illuminated or
flashes, it indicates a fault within the air
bag electrical circuits. Report the fault to
a Jaguar Dealer immediately.

It is safe to drive the vehicle, however, in
an accident the air bags may not operate.

The following components are monitored
by the air bag system:
• Driver's dual stage air bag (steering

wheel)

• Driver's side thorax air bag
• Driver's pretensioner
• Driver's side crash sensor
• Passenger's dual stage air bag
• Passenger's side thorax air bag
• Passenger's pretensioner
• Driver's side crash sensor
• Passenger's front seat occupancy

sensor

• Restraints control module
• Rollover Protection System

(convertible only).

Tire Pressure Monitoring System
(TPMS) (Yellow)

Illuminates when one or more
tires are significantly under
inflated. The vehicle should be

stopped as soon as possible and the tires
checked and inflated to the
recommended pressure.

High beam (Blue)

Illuminates when the high
beam is switched ON or
flashed.

Automatic Speed Limiter (ASL)
(Green)

Illuminates when automatic
speed limiter is active.

Front fog lamp (Green)

Illuminates when the front fog
lamps are switched ON.

Side lamps (Green)

Illuminates when the side
(parking) lamps are switched
ON.

WARNING

If the warning indicator signals
that a fault is present in the
system, do not use a child

restraint on the front passenger seat.
Doing so will increase the risk of death or
serious injury to the child.

Instruments

116

L

Direction indicators (Green)

The appropriate indicator will
flash when the column stalk is
moved up or down to signal a

turn. If a direction indicator bulb fails, the
audible ticking and lamp will sound and
flash at twice normal rate when that
indicator is selected.

Hazard warning indicators

When the hazard warning switch is used,
both direction indicators flash
simultaneously.

117

Instruments

R

AUDIBLE WARNINGS AND
INDICATORS

Various sounds are produced for warning and notification purposes as follows:

Hazard or Condition

Chime or tone/remedy

External lights remain ON when the

driver’s door is opened.

A chime will sound until the lights are

switched OFF or driver’s door is closed.

The chime will not sound if the lighting

control is in AUTO position.

Hazard warning indicators ON.

A ticking will sound until the hazard

indicators are switched OFF.

Direction indicators ON.

A ticking will sound until the indicators are

switched OFF.

Memory 1, 2 or 3 configuration saved.

A short tone as the memory selection is

saved.

Air bag system failure.

A tone sequence is repeated five times.

Seek qualified assistance as soon as

possible.

Seat belt reminder.

A chime will sound until an unfastened

seat belt is fastened. The warning will

cease if all the front seats are occupied

and the seat belts are buckled, the vehicle

is brought to a halt, the ignition is turned

OFF or more than approximately five

minutes has elapsed with the vehicle in

motion, the ignition on and an occupied

seat’s belt unbuckled

Electric parking brake.

If the park brake is applied while the

vehicle is moving a continuous chime will

sound; release the park brake. If there is a
fault with the system which would prevent

the application of the park brake, a brief

sequence of chimes is initiated.

Adaptive Cruise Control (ACC) Driver

intervene and Forward Alert.

Multiple chime. Apply the brakes.

ACC low speed automatic switch off.

A chime will sound to indicate that the

ACC system is no longer operating.

Instruments

118

L

Speed is over 15 km/h (9 mph) above the

set limit speed.

A short warning chime. Reduce speed.

Gear selector is not in Park with ignition

OFF.

A chime will sound. Select Park .

Convertible roof starting to open or close.

High-pitched single chime.

The Jaguar Smart Key cannot be

detected.

A chime will sound. The remote handset

should be inserted into the starter control

unit.

The Jaguar Smart Key is to be removed

from the starter control unit.

A chime will sound for 60 seconds if the

Jaguar Smart Key is in the starter control

unit and the driver’s door is opened. The

remote handset should be removed from

the starter control unit.

DSC OFF

A chime will sound.
