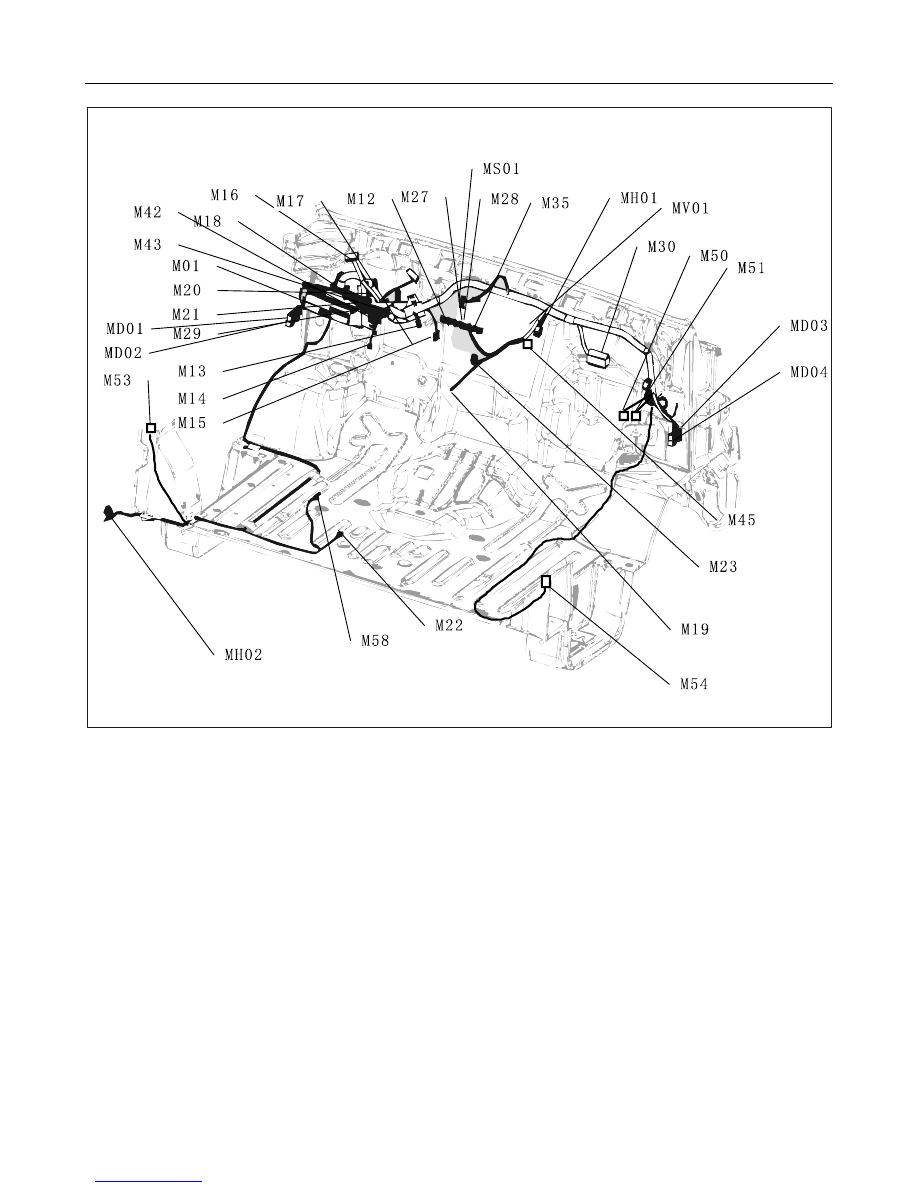

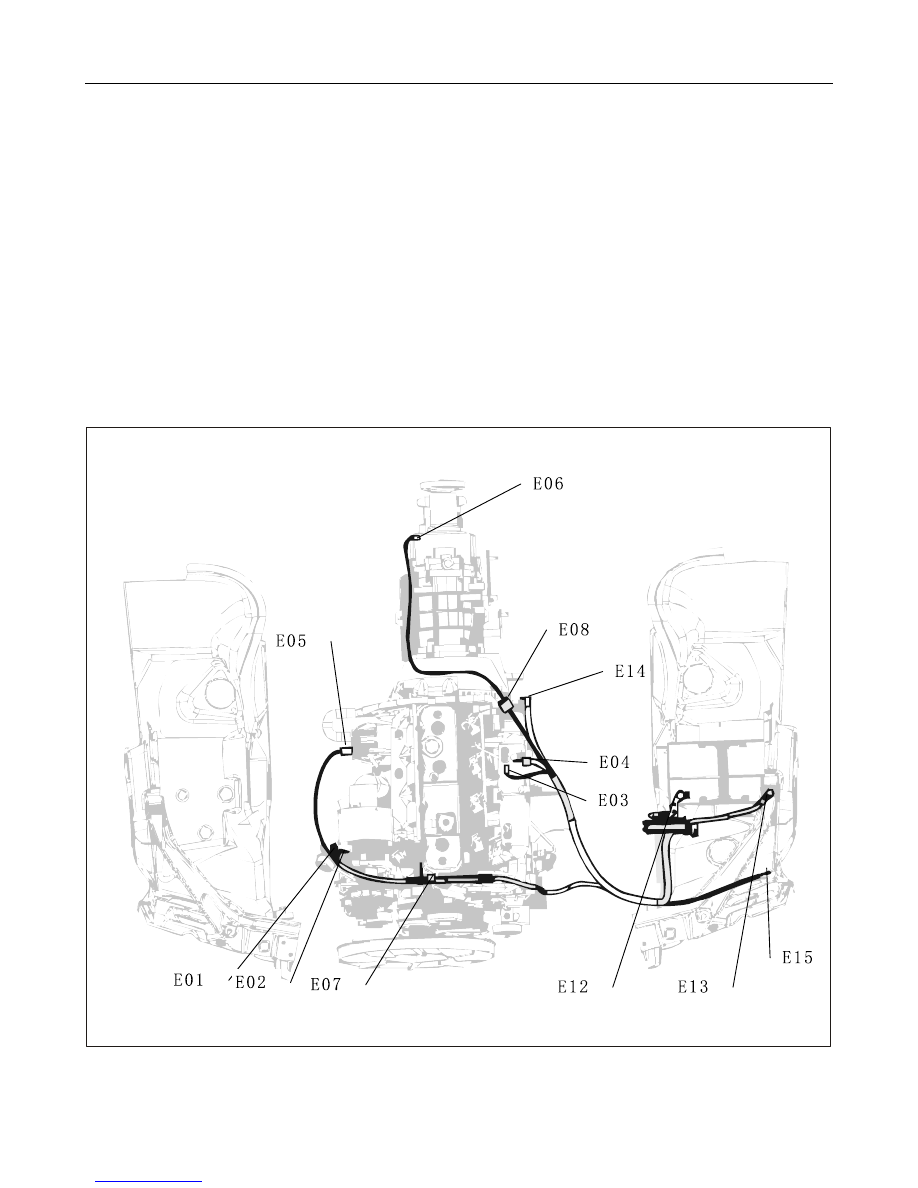

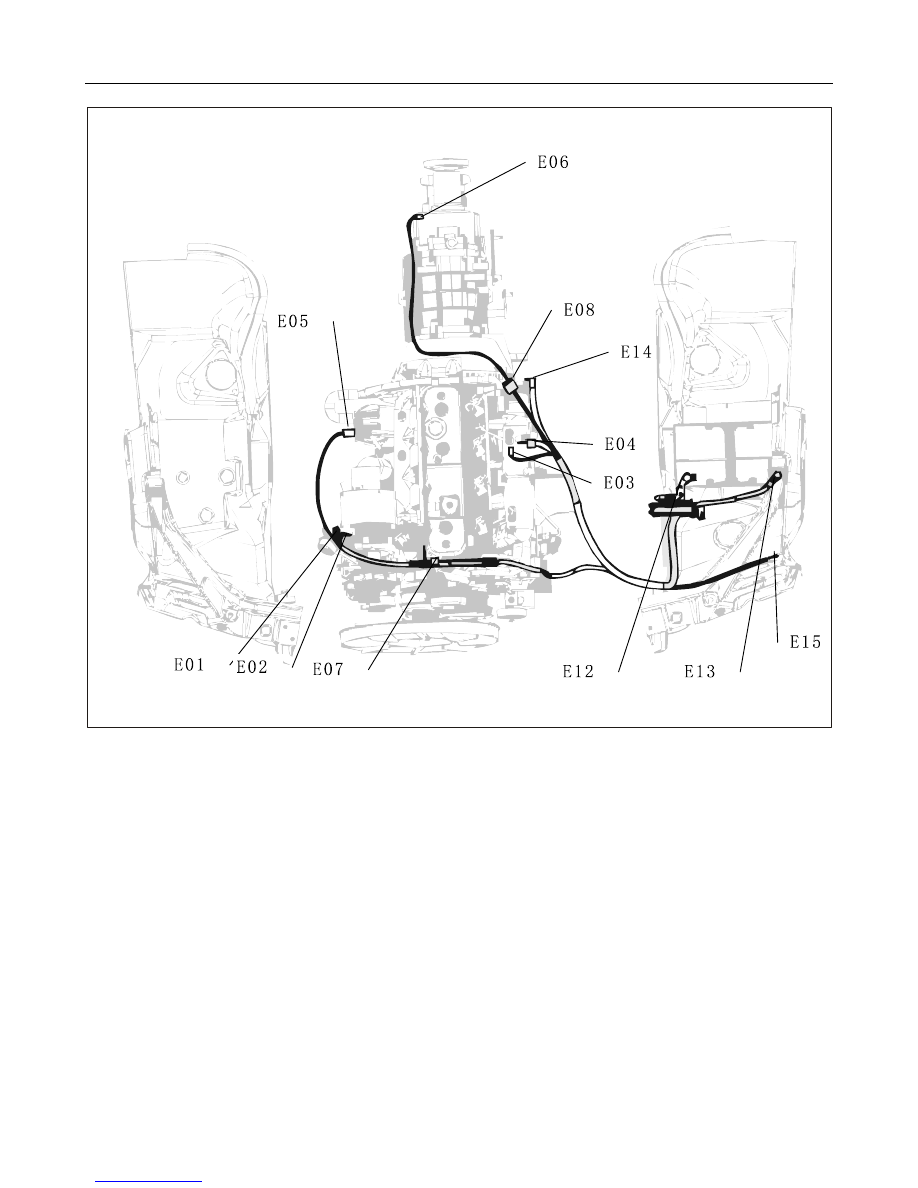

EC EC EC EC Circuit Circuit Circuit Circuit Diagram Diagram Diagram Diagram - 251 - Main harness specification Identification code Name Identification code Name M01 Relay box M42 Key and faulted door switch M02 Left front fog lamp M43 Buzzer M03 Left headlamp M45 Rear air heater M04 Left electric horn M50 BCM controller interface 1 M05 Oil-water separator sensor M51 BCM controller interface 2 M06 Oil temperature sensor M52 Right electric horn M07 Heater M53 Left door switch M08 Brake fluid level switch M54 Right door switch M09 Front wiper motor M58 Driver’s seat belt switch M10 Odometer sensor MH01 Connected to front A/C harness M12 Rear ceiling lamp switch MH02 Connected to rear A/C harness M13 Dual brake switch MD01 Connected to left door harness 1 M14 Clutch switch MD02 Connected to left door harness 2 M15 Electronic accelerator pedal MD03 Connected to right door harness 1 M16 Instrument 1 MD04 Connected to right door harness 2 M17 Instrument 2 MV01 Connected to airbag harness M18 Ignition switch MB01 Connected to ABS harness M19 Cigarette lighter ML01 Connected to left tail lamp harness 1 M20 Combination switch 1 ML02 Connected to left tail lamp harness 2 M21 Combination switch 2 ML11 Connected to right tail lamp harness M22 Hand brake switch MG01 Connected to fuel tank harness M23 Radio CD-player MS01 Connected to loud speaker harness M24 Right headlamp ME01 Connected to engine harness M25 Left side turn signal lamp ME02 Connected to engine harness M26 Front washer motor ME03 Connected to engine harness M27 Front fog lamp switch ME04 Connected to engine harness M28 Rear fog lamp switch ME05 Connected to engine harness M29 Combination switch 3 M30 Engine ECU M31 GCU-1 M32 GCU-2 M33 GCU-3 M34 Right front fog lamp M35 Warning lamp switch M36 Right side turn signal lamp M37 A/C compressor M38 High/low pressure switch |
