Engine JAC HFC4DA1-2C. Manual - part 53

SC Battery

Battery

Battery and

and

and Charging

Charging

Charging System

System

- 2 -

Instruction

Instruction and

and

and Operation

Operation

Battery

Maintenance-free battery is adopted by Sunray series with characteristics in low electrolyte consumption. In the
service life of the battery, there is no need to replenish with distilled water. Moreover, other characteristics of the
battery are shock resistance, high temperature resistance and low self discharge. Therefore, the service life of this
battery is twice as long as that of general batteries.

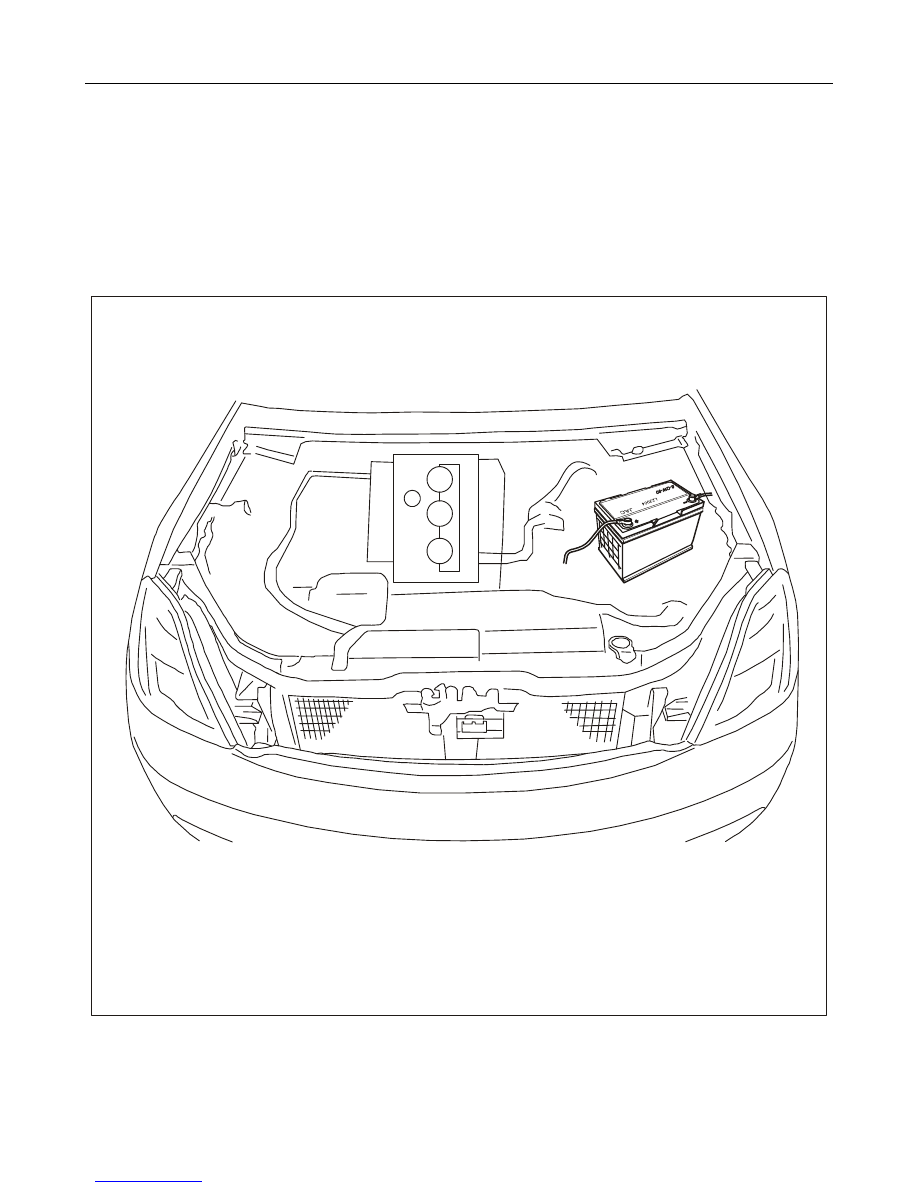

Mounting

Mounting Position

Position

Position of

of Battery

Battery

The battery is mounted on the right side of the engine compartment.

SC Battery

Battery

Battery and

and

and Charging

Charging

Charging System

System

- 3 -

Instruction

Instruction and

and

and Operatio

Operatio

Operation

Precautions

Precautions of

of Battery

Battery

Warning:

Warning: Keep the battery out of the reach of

children. Since there is sulfuric acid in the battery, the
contact of the sulfuric acid with the skin, eyes or
clothes should be avoided. In the case of working
close to the battery, it is necessary to protect your eyes
from being hurt by the spilled out acid solution. Once
the acid solution comes into contact with skin or eyes,
it is necessary to wash with clean water for 15 minutes
at least and go to a doctor immediately. In the case of
mistakenly swallow, it is necessary to go to a doctor
immediately or it may lead to personal injury.

Warning:

Warning: In general, explosive gas may be

generated by the battery. In the case of misconduct of
it, it may lead to personal injury. Therefore, keep the
battery out of flames, sparks or burning objects. In the
case of battery charging or working close to the battery,
it is necessary to protect your face and eyes and
maintain good ventilation. Please follow relevant
instructions or it may lead to personal injury.

Warning:

Warning: In the case of mistakenly short circuit

between the positive and negative terminal posts with
a metal conductor (eg.metal tools, metal wires, metal
parts, etc.), in other word, the external short circuit of
the battery occurs, the generated electric arc may
result in electrode erosion and melted lead alloy
splashing even the burning due to the generation of a
lot of heat.

Precautionary measure: Prevent direct short

circuit between the positive and negative terminal
posts of the battery in battery assembly with metal

tools or fault diagnosis with metal wires.

Warning:

Warning: It is necessary to connect the charger

with the battery properly before turning on the
charger or it may lead to personal injury.

Warning:

Warning: It is necessary to turn off the charger

before disassembling the battery or it may lead to
personal injury.

Attention:

Attention: It is avoided to carry out battery

charging onboard.

Attention:

Attention: It is not allowed to get close to the

battery being charged by the generator. If only
generator is applied in battery charging, it is required
continuous driving over 8 hours for complete charging
without any extra load on the charging system.

Warning:

Warning: In the process of charging equipment

application, it is necessary to follow the instruction of
the manufacture or it may lead to personal injury.

Protection: Please wear safety goggles and

gloves.

Emergency treatment: In the case of battery

burning, disconnect the external short-circuited metal
wire with the battery, using a monkey spanner or other
tools and it is not allowed to contact it with hands. At
the same time, put out the fire with extinguisher.

SC Battery

Battery

Battery and

and

and Charging

Charging

Charging System

System

- 4 -

Instruction

Instruction and

and

and Operation

Operation

Generator

Air-cooled generator is adopted by Sunray series vehicle, conducting cooling via the air blowing from the fan behind
the pulley into the generator shell. The generator is the main power of the vehicle with the function of power
supplying to all electric equipments (except starter) in the normal operation of the starter (above the idle speed) as
well as battery charging.

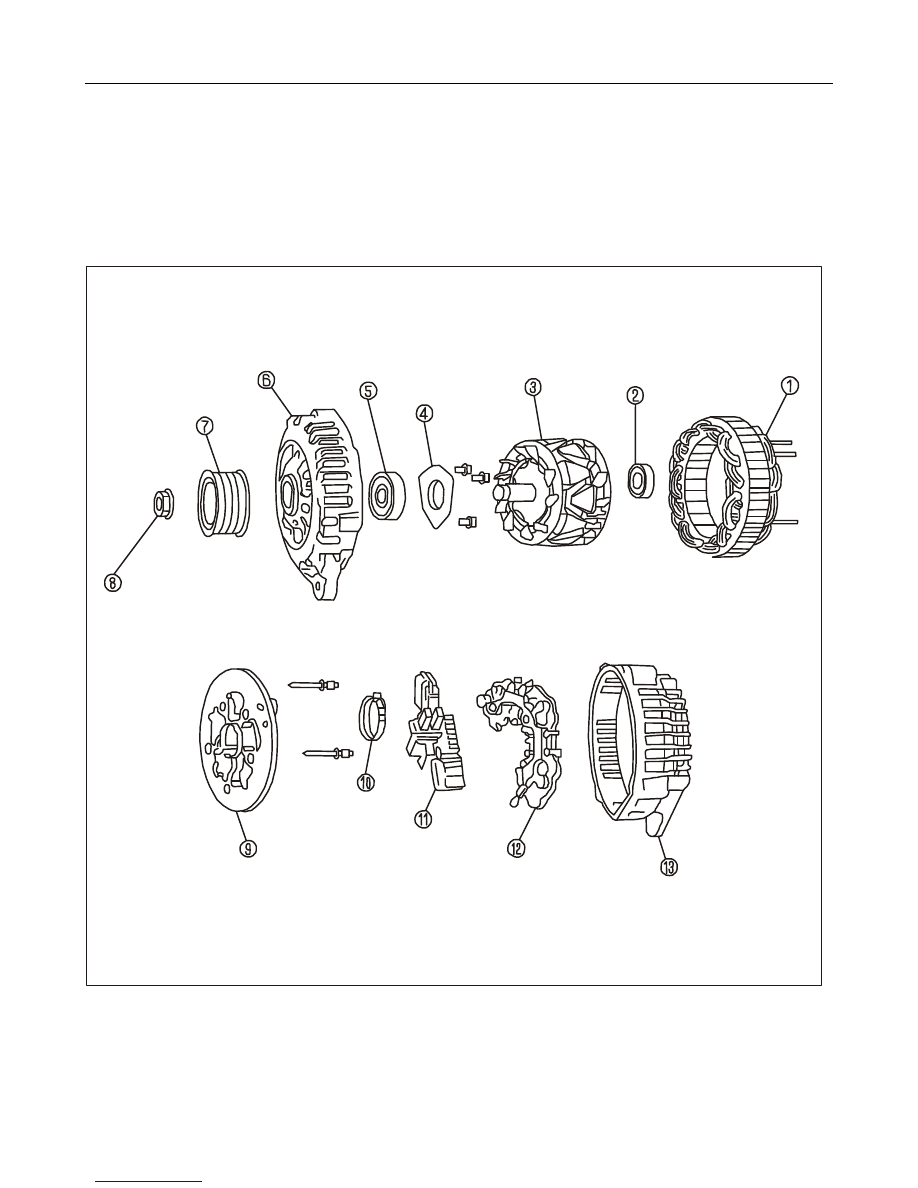

Explosive

Explosive View

View

View of

of Generator

Generator

1. Stator

2.Rear bearing

3.Rotor assembly

4.Retainer

5. Front bearing

6.Front cover

7.Pulley

8.Pulley nut

9.Fan guider

10. Double labyrinth seal

11.IC voltage regulator assembly

12.Diode assembly

13. Rear cover

SC Battery

Battery

Battery and

and

and Charging

Charging

Charging System

System

- 5 -

Diagnosis

Diagnosis and

and

and Testing

Testing

Maintenance

Maintenance of

of Battery

Battery

Battery status indicator (electric eye):

Green: There is sufficient electric quantity in the

battery for starting the vehicle normally.
Black: There is no sufficient electric quantity in
the battery and battery boost charge is needed.
White: The battery is scrapped and it is necessary
to carry out replacement.

Boost charge of Battery

Under the condition of vehicle starting, in the
case of abnormal applications like excessively
long-term operation of electricals, the electric eye
of the battery becomes darkened even the vehicle
fails to start because of the power loss of battery
due to the lack of normal battery charging caused
by long-term parking and vehicle electric leakage
or charging fault in vehicle generator. In this case,
it is necessary to carry out external charging
treatment to the battery.

�

Appearance inspection of the battery prior to
boost charge:
It is not allowed to charge the battery with a
broken case or acid leakage. Please replace the
battery after identifying the cause.
It is not allowed to carry out boost charge for the
battery with a broken terminal post. Please
replace the battery after identifying the cause.
It is not allowed to charge the battery with a
white electric eye. Please replace the battery.
Prior to boost charge, please clean the terminal
post, removing the oxide on the surface.

�

Precautions in charging:
Wear safety goggles.
Maintain ventilation in charging under normal
temperature.
It is not allowed to smoke in charging to prevent
the introduction of fire.
In the wire connection after charging, connect the
positive connecting wire firstly; in the wire
disconnection before charging, disconnect the
negative connecting wire firstly.

�

Battery boost charge:
Confirm that battery terminals are clean and
charging circuit is in good connection.
Connect the positive pole of the charger with that
of the battery while the negative pole of the
charger with that of the battery. Do not charge the
series connected battery (24V).

As dual-purpose charger, one with constant
voltage of 16.0V (maximum permitted voltage
is equal or under 16.2V or large quantity of
water shall be electrolyzed which may lead to
liquid level decrease, white electric eye and
scrapped battery) and rated current of 25 ampere
shall be applied in battery charging until the
electric eye becomes green. The green electric
eye indicates the battery is charged completely.
In the case of no constant voltage charger for
battery

charging,

charge

the

battery

with

constant

current

according

following

specifications:

(1)

Select the charging current with rated
capacity of 1/8 ～ 1/10 ampere for battery
charging and at the end of charging, the
voltage of battery shall reach 16V without
any exceedance (in the case of black electric
eye of the battery with voltage under 16V at
the end of battery charging, there is no
influence to battery application.) When it
can not guaranteed the charging voltage
limit of the charger is under 16V, it is
necessary to monitor the end voltage of
battery to be charged, or there shall be
battery

water

loss

due to

overvoltage

charging even battery failure.

(2)

After charging completion, verify the color
of battery electric eye. In the case of green
electric eye, it indicated that the battery is
charged completely. In the case of black
electric

eye,

verify

whether

charging

connecting wires are connected firmly,
connection points are clean and charging
voltage is 16V. Leave the battery as it is for
24 hours, measure its voltage and carry out
boost charge according to charging interest.

(3)

In the case of white electric eye, it indicates
that there are bubbles in the electric eye and
shake the battery slightly to remove these
bubbles. If the electric eye is still white after
battery shaking (indicating electrolyte loss),
replace the battery.

For battery with voltage lower than 11V, there
may be incapable charging phenomenon at the
beginning of battery charging. The proportion of
sulfuric acid in the battery is close to pure water
and battery internal resistance becomes very
large due to serious battery power loss. In this
case, reduce the charging current or use a
charger with a higher power instead, with the
battery charging goes on, the proportion of
sulfuric acid in the battery increases and the
