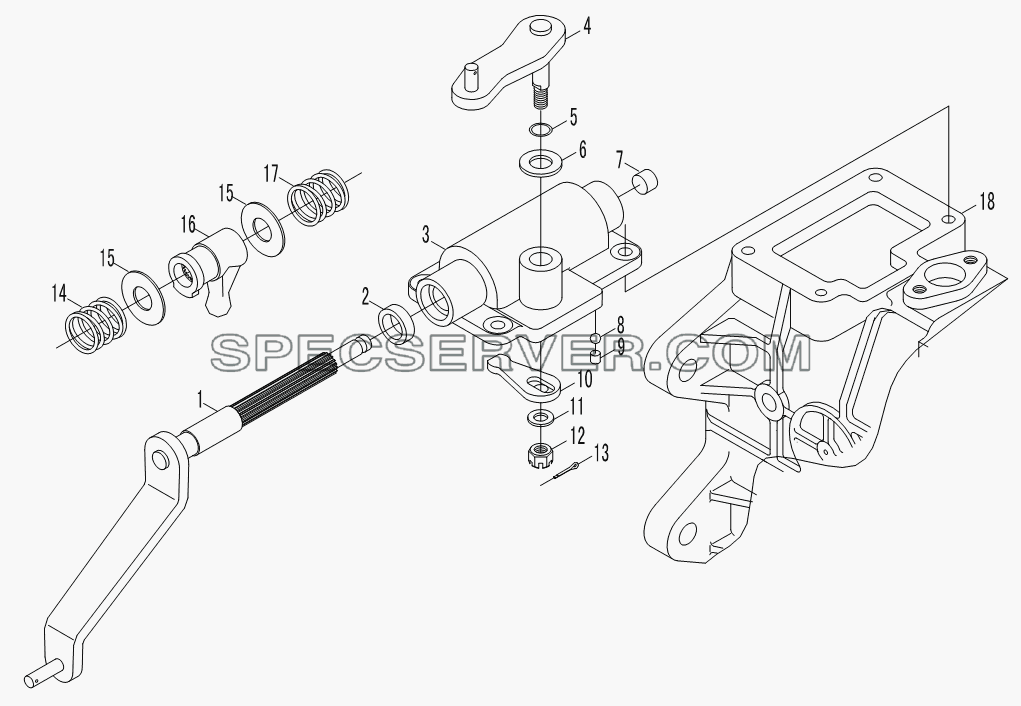

№		Номер детали	Наименование запчасти
1		LG520E30-1702055	gear shift rock arm combination
2		LG520-1702061K28	oil sealing assy
3		LG520-1702051B21	gear shift control seat
4		LG520E30-1702075	gear selection rock arm combination
5		GB1235-76	O ring
6		LG520-1702079-11	Gasket
7		LG520-1702028B2	Patch
8		GB308-84	steel ball 6
9		LG525-1702053-11	positioning pin
10		LG520-1702081K28	gear selection fork head
11		GB97.2-85	Washer 8
12		Q38108	throttled nut M8x1
13		GB91-86	Split pin 2x20
14		LG520-1702060	Spring
15		LG520-1702054K28	Gasket
16		LG520-1702058-11	gear shift fork head
17		LG520-1702060	Spring
18		LG520-1701011E27	front shell

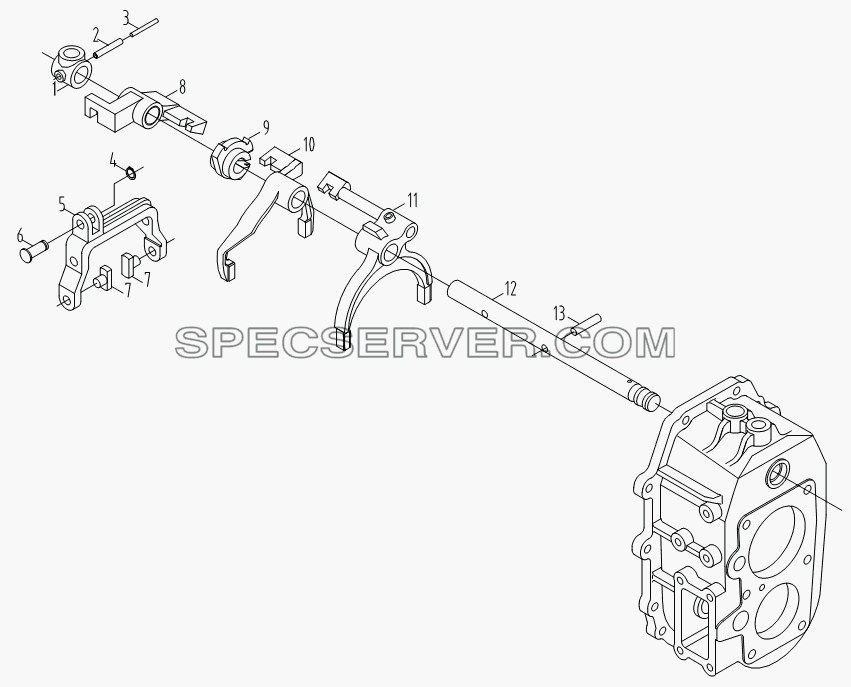

Fork shaft assembly для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		LG520-1702027B1	shift fork pad
2		Q5280436	elastic column pin
3		Q5280636	elastic column pin
4		GB894.1-86	Retainer ring 10
5		LG520B-1702024	4-5 speed fork
6		LG520B-1702027	4-5 speed fork pin
7		LG520B-1702029	fork pad
8		LG520-1702023B1	4-5 speed fork pad
9		LG520-1702033Z/J	inter-lock plate
10		LG520-1702024B1	2-3 speed fork
11		LG520-1702026Q3	1st reverse speed fork
12		LG520-1702021Q	gear shift fork shaft
13		LG520-1702022B1	gear shift pin

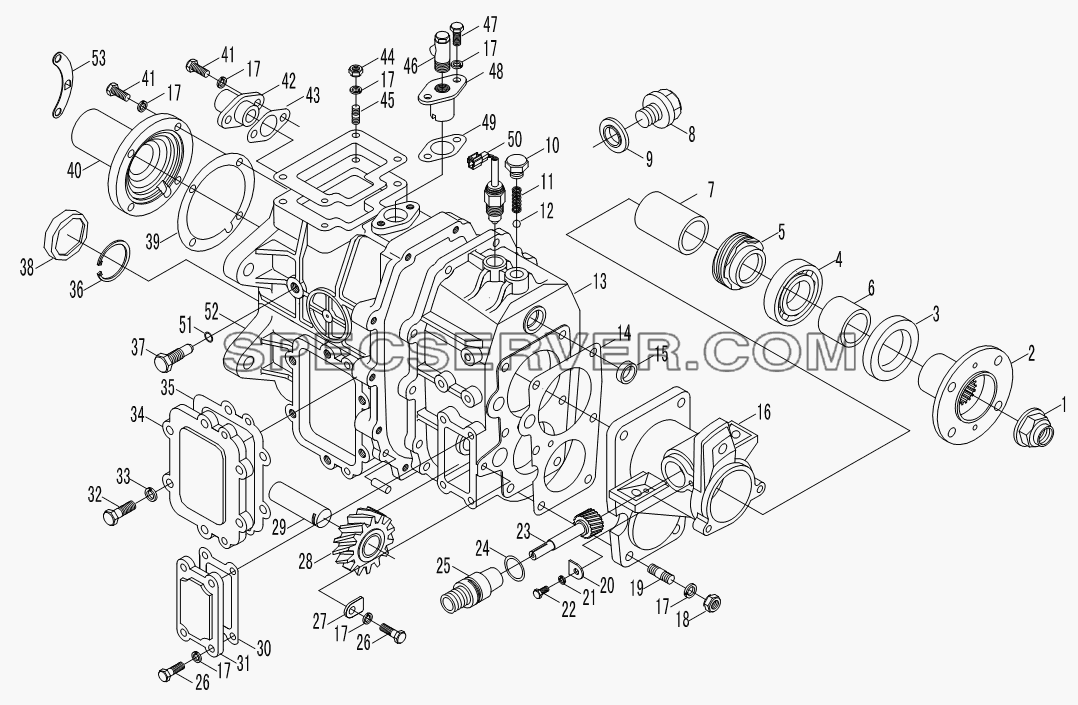

Main case shell and its peripheral compenents для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		LG520-1701354B1	nut
2		LG520-1701352E16	ring flange
3		LG520-1701350E16	2nd-shaft oil seal
4		6007	ball bearing
5		LG525-1701344-11	odograph driving gear
6		LG520-1701371E16	spacing sleeve
7		LG520-1701343E16	spacing sleeve
8		PTJ520-1701020B1	oil block assy
9		PTJ520-1701015B1	combination washer
10		515Q-1701372	plug
11		LG520-1702029B1	self-lock spring
12		GB308-89	Steel ball
13		LG520-1701012N2(LG520E30	rear shell
14		LG520-1701357B1	sealing gasket
15		LG5-20-1702036B1	plug
16		LG520-1701356E27Q	rear end cover of the 2nd shaft
17		Washer10	Spring washer 10
18		NutM10X1	Nut M10X1
19		M10-M10X1X25	stud
20		LG520-1701363Y2	lock chip
21		GB93-87	Spring washer
22		GB5783-86	Bolt
23		LG525-1701346-11	speedometer driven gear
24		22X2.4	seal ring
25		LG520-1701347-11	connector
26		GB5783-86	Bolt
27		LG520-1701416B1	lock chip
28		PTJ520-1701410B1	idle wheel of the reverse gear
29		LG520-1701413B1	idler shaft
30		LG520-1701418B1	sealing gasket
31		LG520-1701417B1	cover plate
32		GB5783-86	Bolt
33		GB93-87	Spring washer
34		LG520-1701019N2	hole cover of PTO
35		LG520-1701018N2	sealing gasket
36		GB893.1-86	retainer ring 62
37		LG520B-1702031A	shaft position bolt
38		LG520-1701216B1B1	plug cover
39		PTJ520-1701144C1	sealing gasket of the 1st shaft
40		LG520-1701141C1	1st shaft cover
41		GB5783-86	Bolt
42		PTJ520-1702031B1	axle sleeve
43		LG520-1702032B1	sealing gasket
44		GB6176-86	Nut M8X1
45		GB898-88	stud M8--M8X1X22
46		LG520-1702091B1	ventilation plug
47		GB5783-86	Bolt
48		LG520-1702034	limit block
49		LG520-1702032B1	sealing gasket
50		LG520-1702040B1	reverse signal switch
51		GB1235-76	O ring
52		LG520-1701011E27	front shell
53		130-1602057	return spring clip

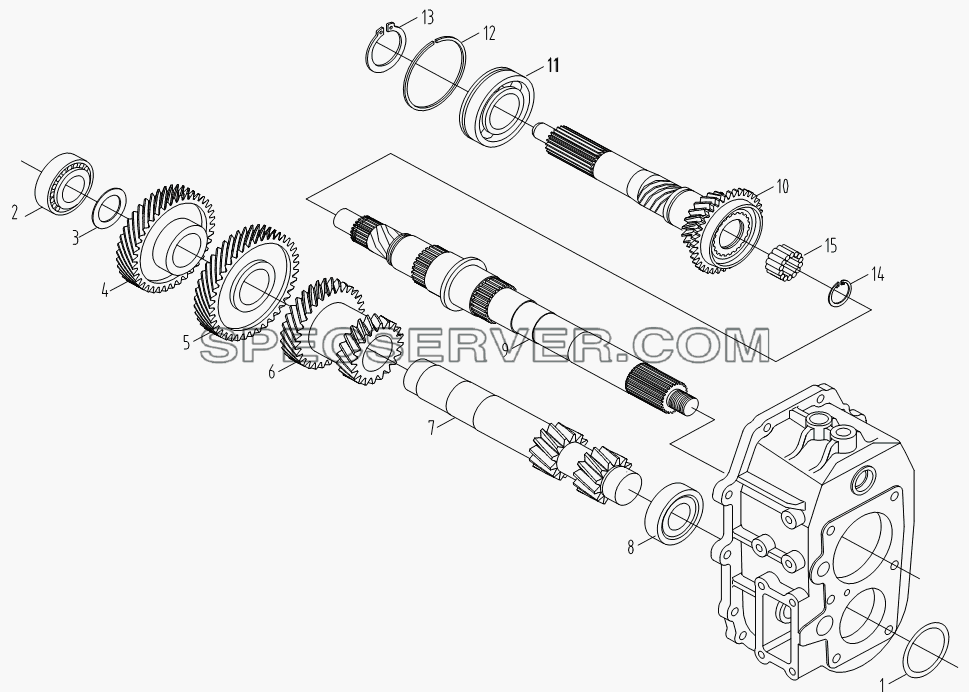

1st shaft and intermediate shaft assembly для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		LG520-1702026B1	Adjusting shim
2		GB297-84	Bearing
3		LG520-1701226B1	Adjusting shim
4		LG520-1701212Q	1st speed reduction gear
5		LG520-1701213Q	5-speed gear
6		LG520-1701214Q2	2nd,3rd speed reduction gear
7		LG520-1701211Q	Intermediate shaft
8		GB297-84	Bearing
9		PTJ520-1701301B1	2nd shaft
10		LG520-1701129E27Q	1st shaft and cone
11		6208	Non-standard bearing
12		GB305-89	Stopper ring 80/86.6
13		Q43146	Circlip for shaft
14		LG520-1701332B1	Retainer ring
15		LG520-1701334B1	Short column roller

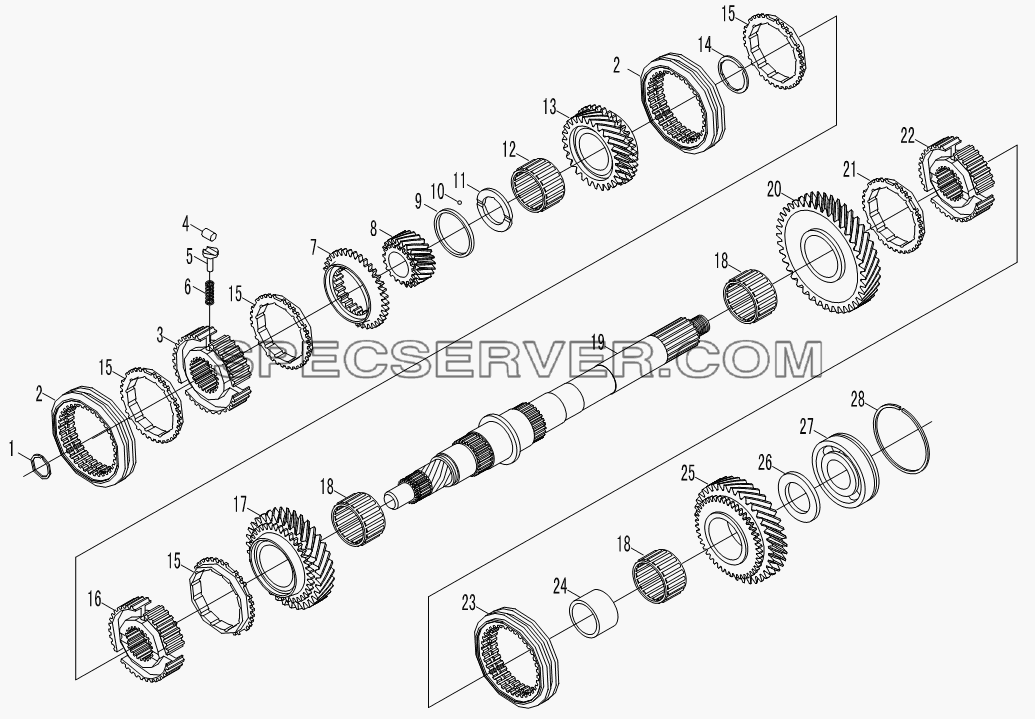

2nd shaft assembly для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		LG520-1701333B1	lock ring
2		LG520-1701307B1	synchronizer gear bush
3		LG520-1701321B1	synchronizer socket
4		LG520-1701308B1	synchronizer slide
5		LG520-1701311B1	spring seat
6		LG520-1701312B1	spring
7		LG5-20-1701322B1	5-speed synchronizer cone
8		LG5-20-1701318QN	5-speed gear
9		LG5-20-1701366B3	collar
10		GB308-89	Steel ball
11		LG5-20-1701364B1	thrust washer
12		K384425	roller bearing
13		LG520-1701315Q2	3-speed gear & cone
14		LG5-20-1701317B1	lock ring
15		LG5-20-1701306B1	synchronizer cone
16		PTJ5-20-1701303B1	synchronizer socket
17		LG5-20-1701305Q2	2-speed gear
18		K455027	needle bearing
19		PTJ520-1701301B1	2nd shaft
20		LG5-20-1701340Q	1st speed gear combination
21		LG520-1701304Q3	synchronizer cone
22		LG5-20-1701309Q3	synchronizer socket
23		LG5-20-1701339Q3	1st reverse synchronizer gear bush
24		PTJ520-1701316B1	bearing race
25		LG520-1701338Q3	reverse gear
26		LG520-1701341B1	thrust washer
27		GB277-89	Bearing 50307
28		GB305-89	Stopper ring 80/86.6

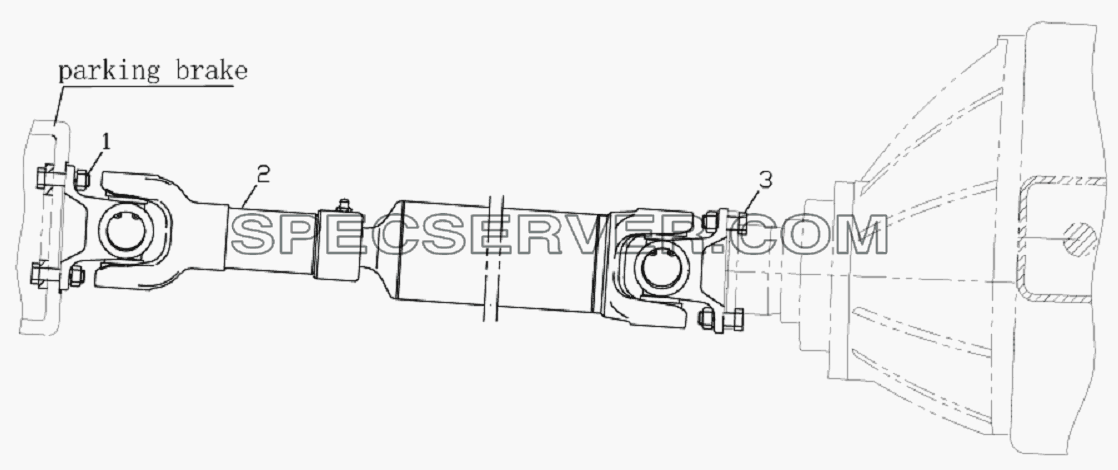

2200D4 Driving shaft equipment для HFC 1020K-D134 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		2202082Z8	middle transmission shaft bolt
2		2201000D4	rear axle transmission shaft
3		2201072Z8	rear axle transmission shaft bolt
