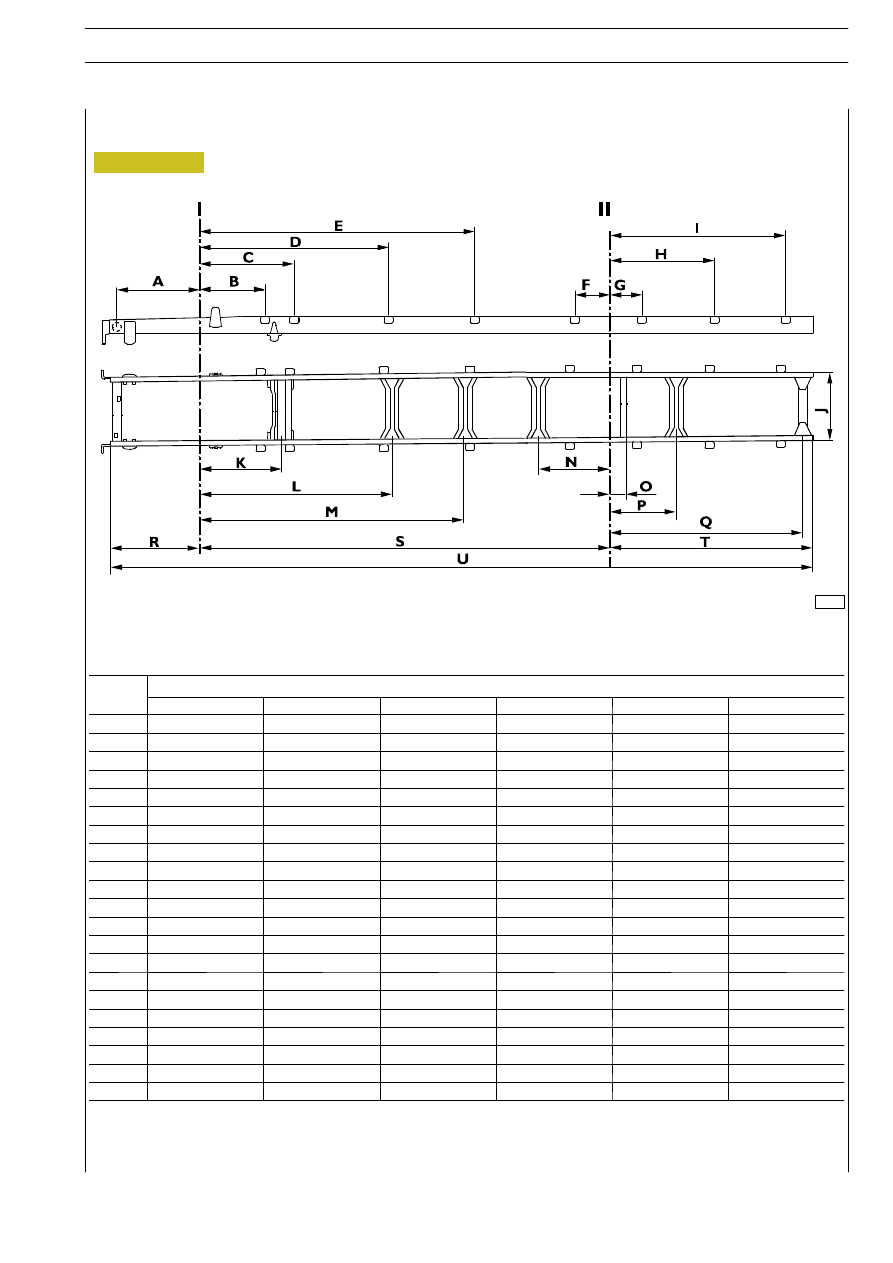

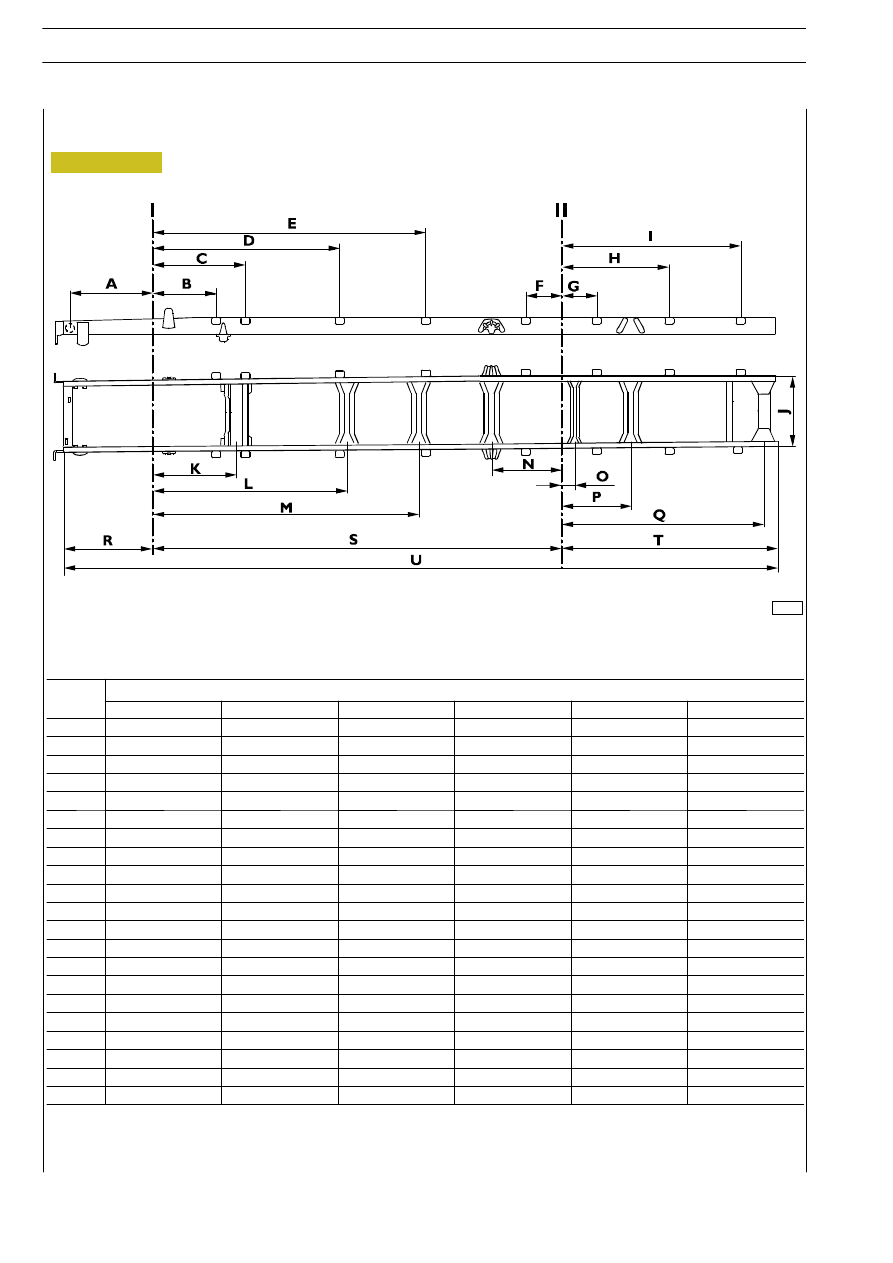

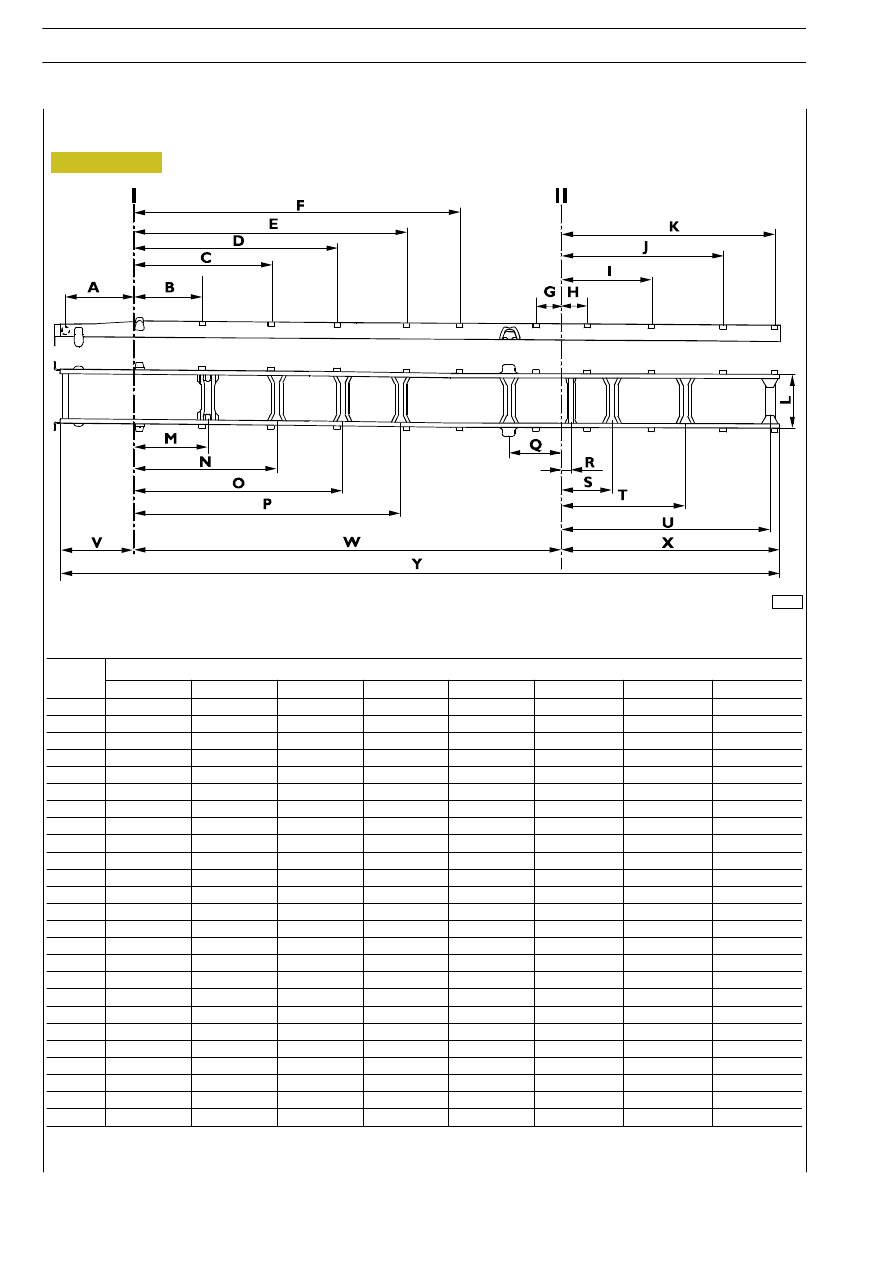

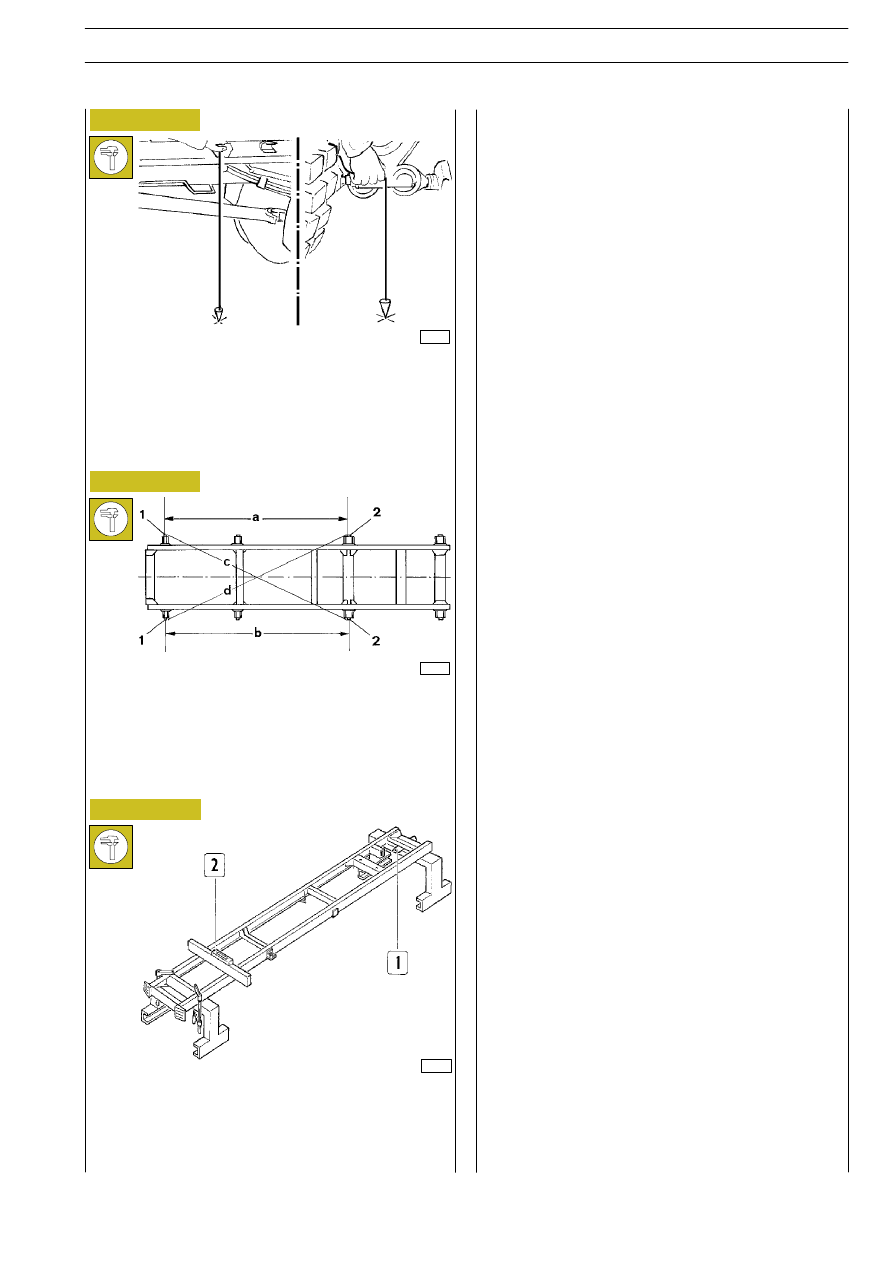

A movement in the position of the axes can be checked by
making a diagonal measurement. To do this, plumb the centre
of the front mount of the front suspension and the centre of
the front support of the rear leaf spring on the flat supporting
surface, on both sides.
Firstly compare the distance of the points ”a” and ”b”. Then
make the diagonal measurement (distance ”c” and ”d”) from
point (1) in front to the right to point (2) behind to the left
and the opposite.
- position the other side of the chassis frame, in a central
position under the rear cross member, on the knee of
an L-shaped iron (1);
- set a rule crosswise and put a spirit level (2) on this,
checking the reading.
At each check point you will need to have the same reading
or the chassis frame is out of shape.
Measuring the torsion of the chassis frame
17357
A slight torsion can only be measured with the chassis frame
freed of the cab and mechanical assemblies.
To do this check, proceed as follows:
- set the chassis frame on two stands;
- using two clamps, secure one side of the chassis frame
to the stand.
