MANUAL TRANSMISSION

7B–27

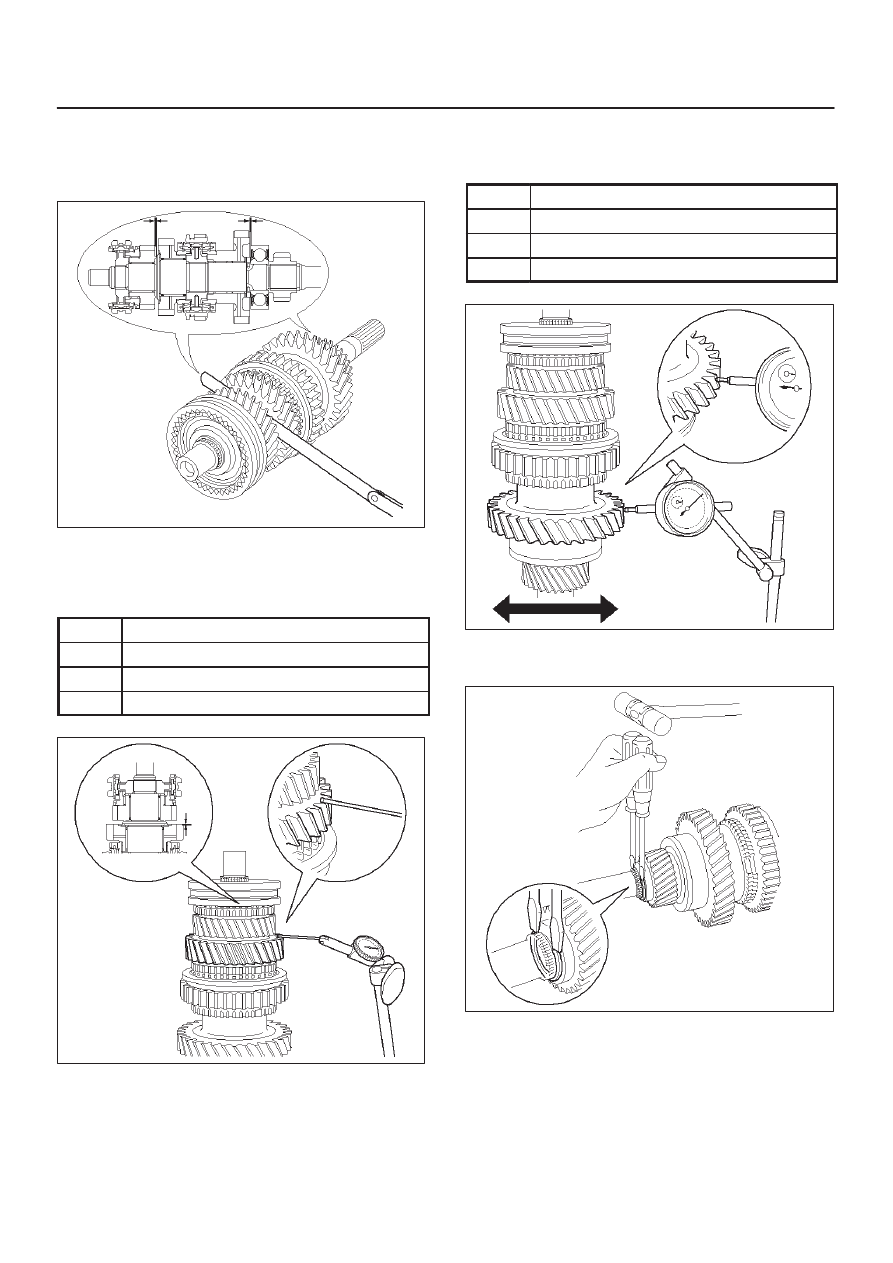

23. Disassemble the main shaft assembly.

1. Inspect each gear thrust clearance.

1. Using thickness gauge, inspect thrust

clearance (1st gear, 3rd gear).

226RW077

2. Mount the mainshaft through the aluminum

plate in a vise.

3. Using a dial indicator, measure each gear

thrust clearance.

Gear

Standard Clearanse

1st

0.15 – 0.45 mm (0.0059 – 0.0177 in)

2nd

0.10 – 0.25 mm (0.0039 – 0.0098 in)

3rd

0.10 – 0.25 mm (0.0039 – 0.0098 in)

226RW070

2. Inspect each gear radial clearance.

1. Using a dial indicator, measure the radial

clearance of each gear.

Gear

Standard Clearanse

1st

0.020 – 0.074 mm (0.00078 – 0.00291 in)

2nd

0.015 – 0.068 mm (0.00059 – 0.00268 in)

3rd

0.015 – 0.068 mm (0.00059 – 0.00268 in)

226RW071

3. Using 2 screwdrivers and hammer, tap out the

snap ring.

226RW053

7B–28 MANUAL TRANSMISSION

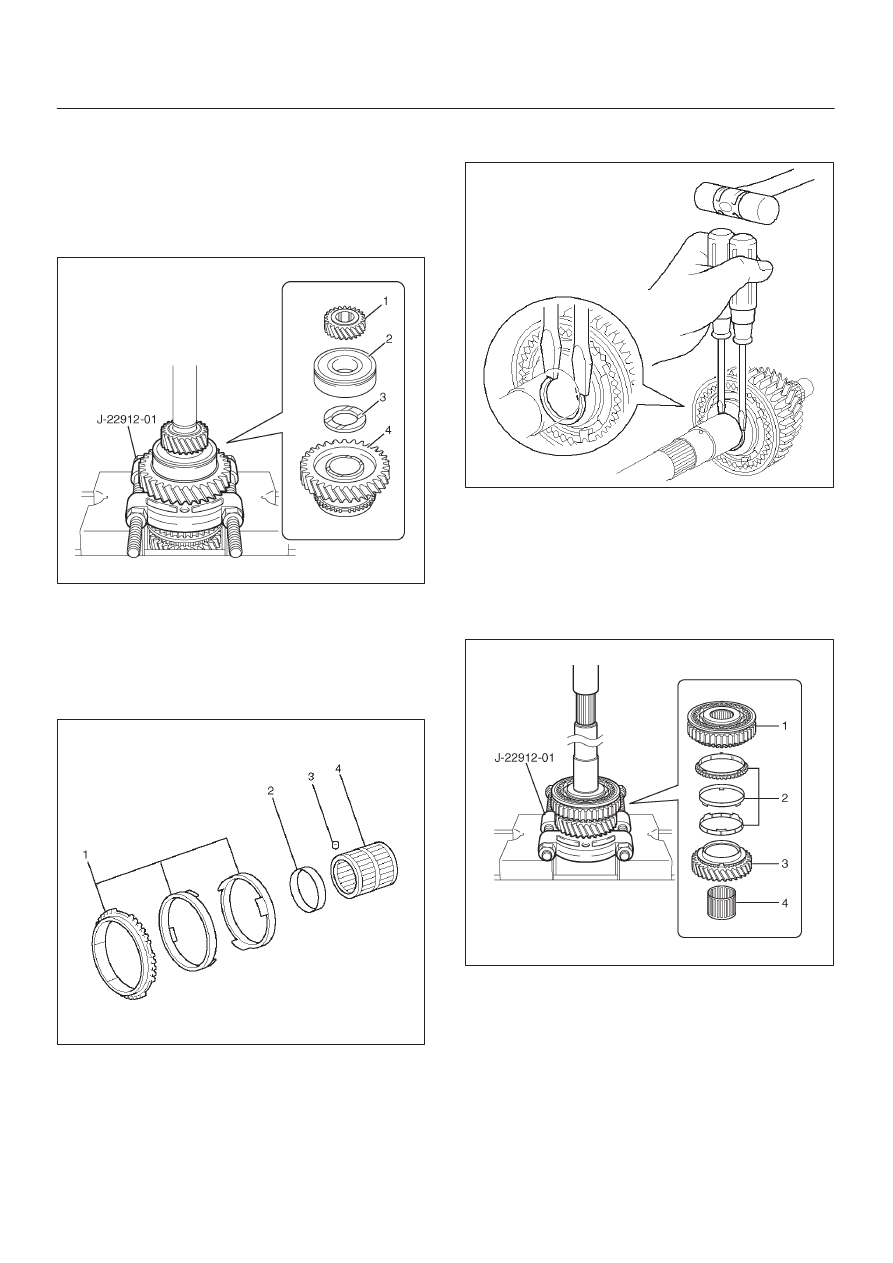

4. Using bearing separator J–22912–01 and a

press, remove the following parts.

1. 5th gear (1).

2. Mainshaft bearing (2).

3. 1st gear thrust washer (3).

4. 1st gear (4).

226RW072

5. Remove following parts from mainshaft.

1. Synchronizer assembly (1).

2. 1st gear thrust washer pin (3).

3. 1st gear needle roller bearing (4).

4. 1st gear bearing spacer (2).

226RW146

6. Using 2 screwdrivers and hammer, tap out snap

ring.

226RW073

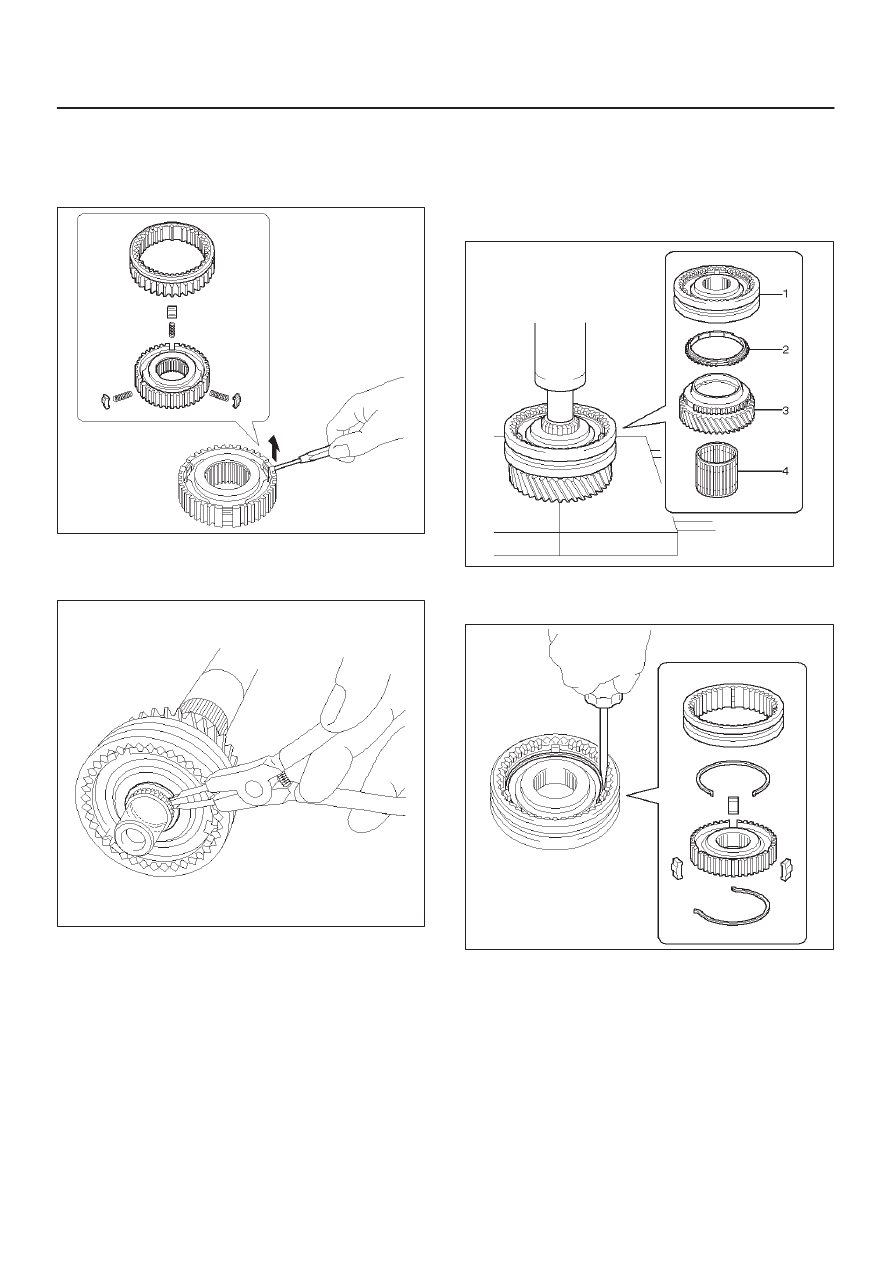

7. Using bearing separator J–22912–01 and a

press, remove the following parts.

1. Clutch hub No.1 assembly (1).

2. Synchronizer assembly (2).

3. 2nd gear (3).

4. 2nd gear needle roller bearing (4).

226RW074

MANUAL TRANSMISSION

7B–29

8. Remove the reverse gear from clutch hub No.1.

9. Remove the 3 inserts and 3 compression springs.

D

When removing the inserts, push the insert
spring with a screwdriver.

226RW075

10. Remove the snap ring.

NOTE: Don’t damage the bearing surface.

226RW076

11. Using a press, remove following parts.

1. Clutch hub No.2 assembly (1).

2. 3rd block ring (2).

3. 3rd gear (3).

4. 3rd gear needle roller bearing (4).

226RW091

12. Using screwdriver, remove the 2 insert springs,

hub sleeve No.2, clutch hub No.2 and 3 inserts.

226RW090

7B–30 MANUAL TRANSMISSION

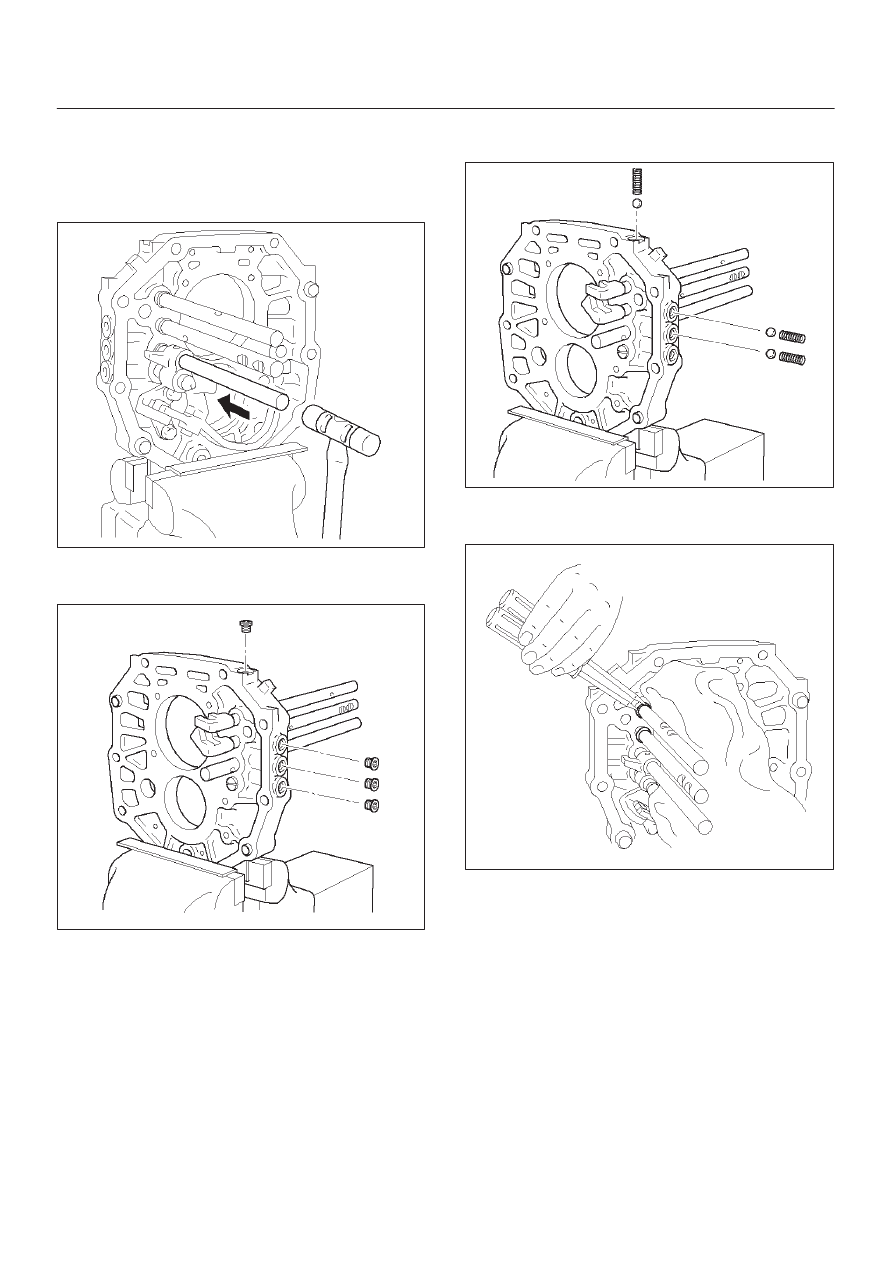

24. Remove the shift parts and interlock parts.

1. Mount the intermediate plate through the

aluminum plate in a vise.

2. Using a plastic hammer, tap the 5th shift rod on

the neutral.

226RW052

3. Using a torx socket wrench(T40), remove the 4

plugs.

226RW050

4. Using a magnetic finger, remove 3 springs and

balls.

226RW049

5. Using 2 screwdrivers and a hammer, remove 2

snap rings from each shift fork rod.

226RW048
