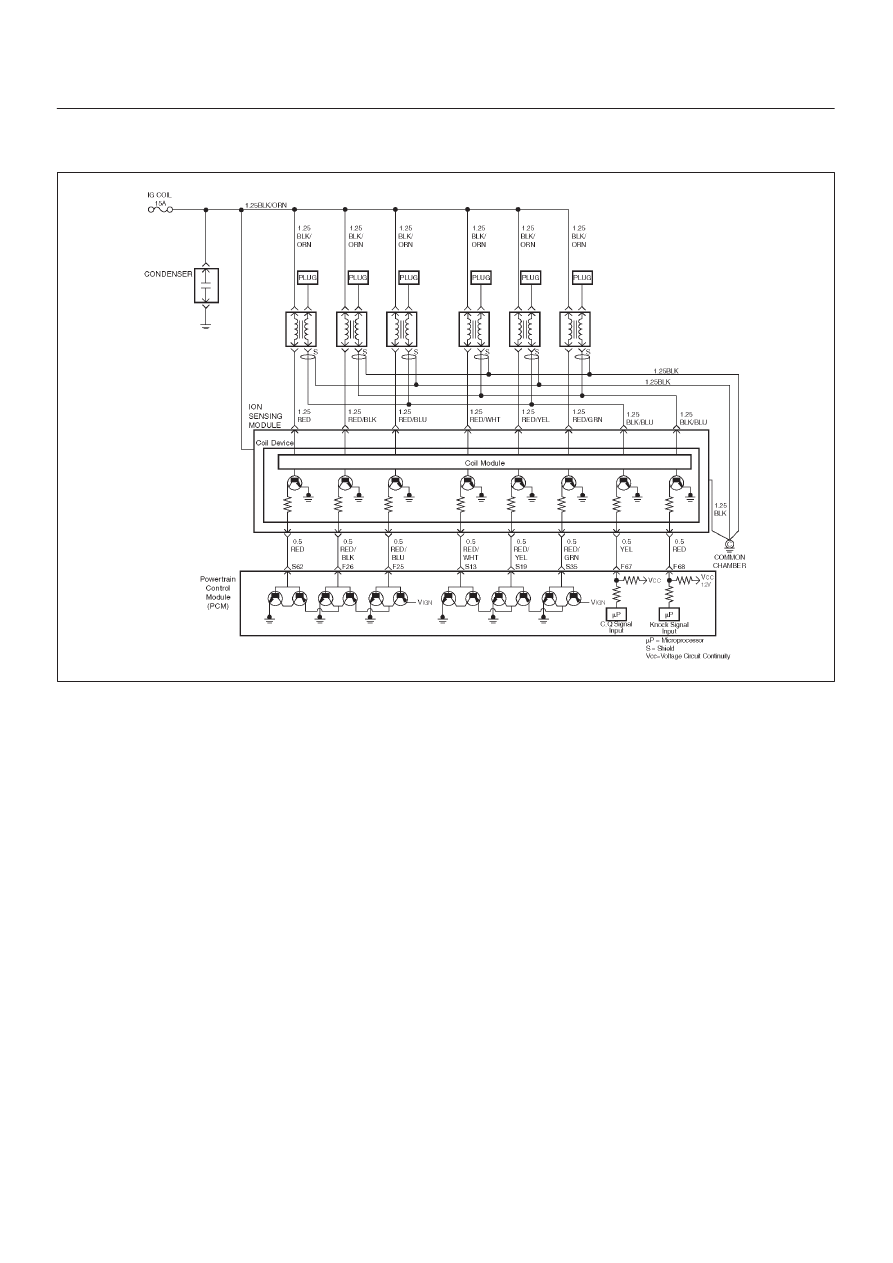

6E–452 TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1340 ION Sensing Module Cylinder ID Fault (Cylinder Synchronization Fail) D06R200098 Circuit Description The Power Control Module (PCM) checks the validity of D This test will return a fault if the cylinder Conditions for setting the DTC D Ignition voltage is between 11volts and 16 volts. D Engine speed is between 650rpm and 6250rpm. D No ECT DTCs set. D No injector DTCs set. D No Fuel Trim DTCs set. D No Misfire DTCs set. D No system voltage DTCs set. Action Taken When the DTC Sets D The PCM will ON the MIL after second trip with D The PCM calculates an air flow value based on idle air D The PCM will store conditions which were present Conditions for Clearing the MIL/DTC D The PCM will turn the MIL “OFF” on the third D A history DTC P1340 will clear after 40 consecutive trip D DTC P1340 can be cleared using the Tech 2 “Clear Diagnostic Aids An intermittent may be caused by the following: D Poor connections. D Misrouted harness. D Rubbed through wire insulation. D Broken wire inside the insulation. Check for the following conditions: D Poor connection at PCM-Inspect harness connectors D Damaged harness–Inspect the wiring harness for |
