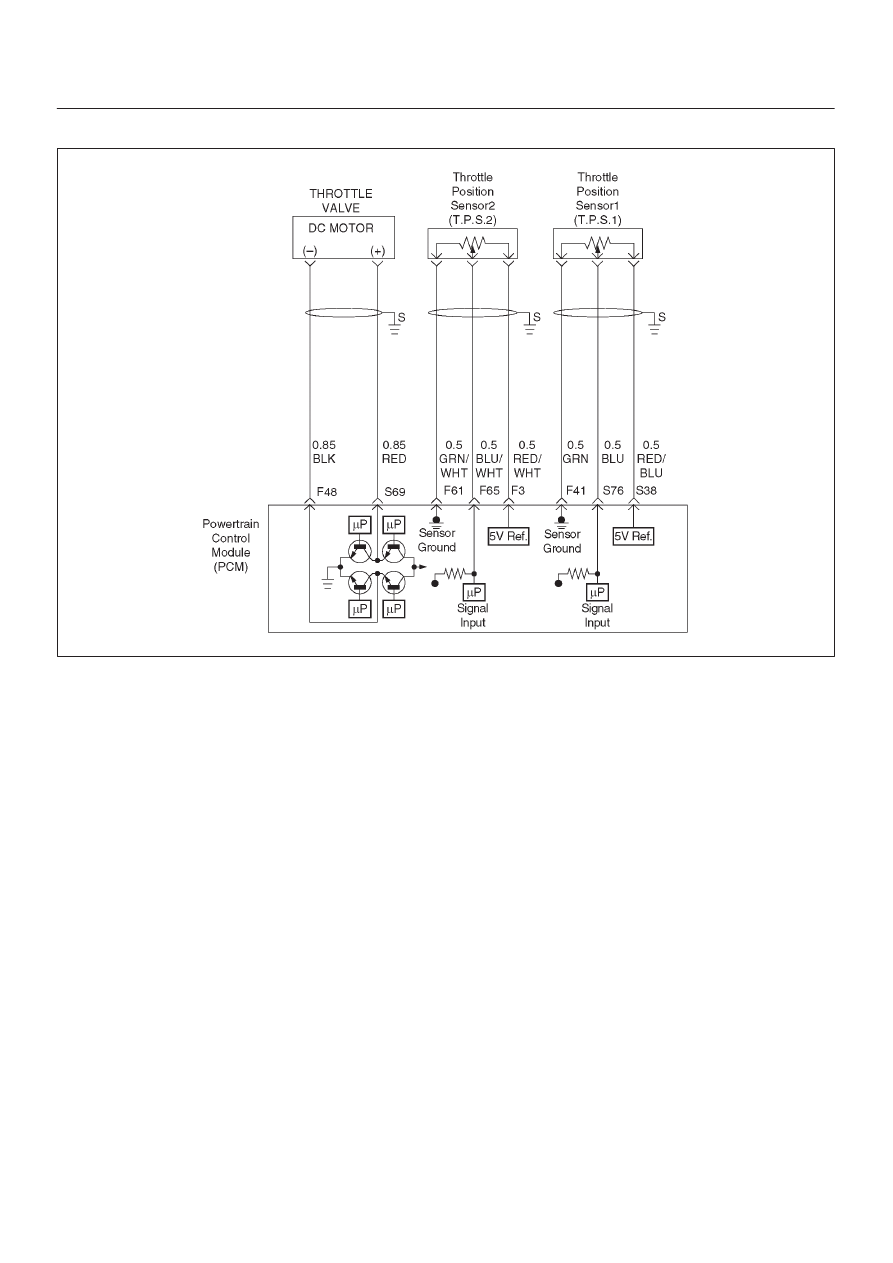

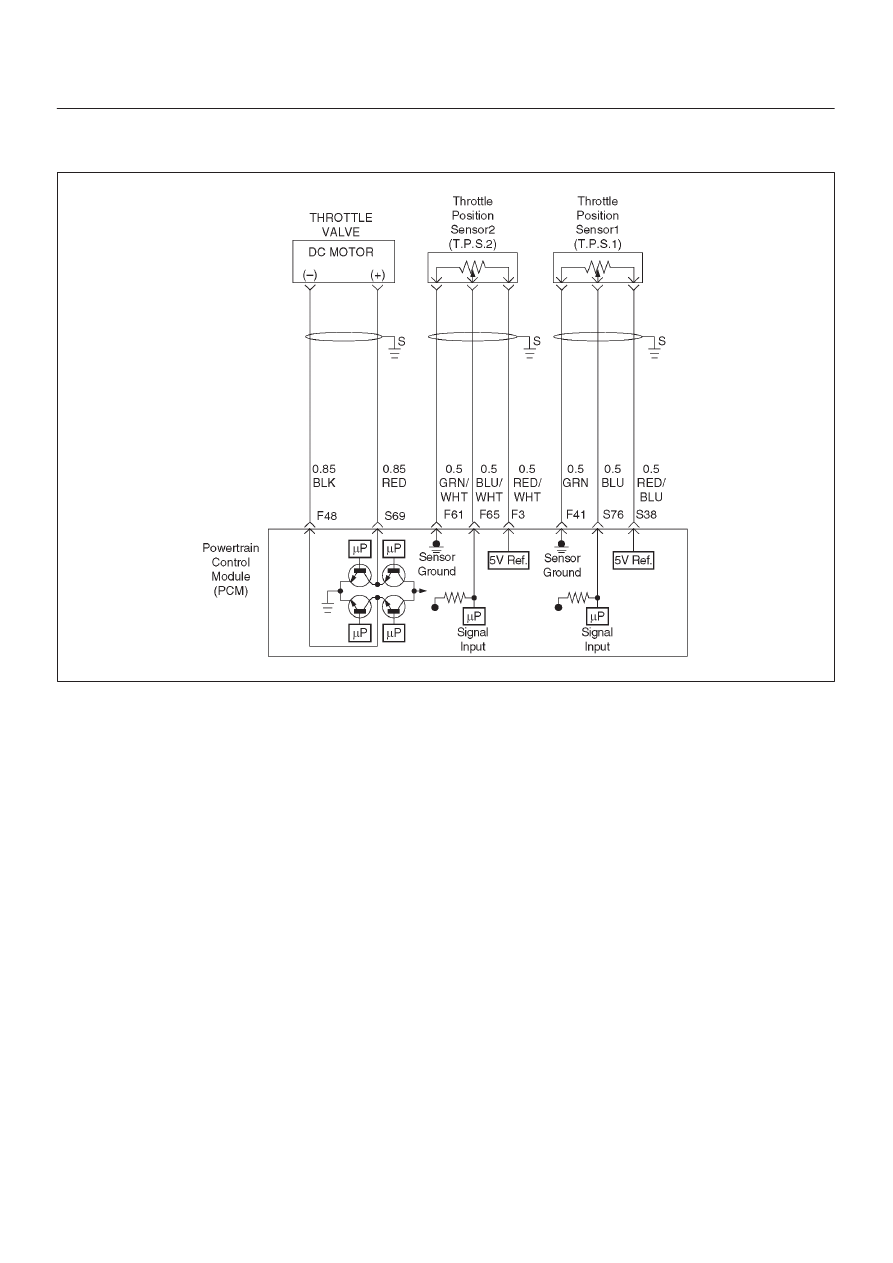

6E–436 TROOPER 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1295 Power Management Mode D06RY00088 Circuit Description D The throttle position (TP) sensor circuit provides a D The DC motor circuit provides a voltage signal relative D The mass air flow (MAF) sensor measures the amount The MAF sensor produces a frequency signal which D This DTC ditects that if the systm is in Conditions for setting the DTC D The ignition is “ON”. D Power Management Mode is active. (Fail safe Mode) Action Taken When the DTC Sets D The PCM will illuminate the malfunction indicator lamp D The PCM calculates an air flow value based on idle air D The PCM will store condition which were present when Conditions for Clearing the MIL/DTC D The PCM will turn the MIL “OFF” on the third D A history DTC P1295 will clear after 40 cosecutive trip D DTC P1295 can be cleared using the Tech 2 “Clear Diagnostic Aids An intermittent may be caused by the following: D Poor connectons. D Mis routed harness. D Rubbed through wire insulation. D Broken wire inside the insulation. Check for the following conditions: D Poor connection at PCM-Inspect harness connectors D Damaged harness-Inspect the wiring harness for |
